Abstract

The utility model discloses a battery box structure for an electric vehicle and a main box body component thereof. The main box body component is a stamping part formed by stamping. The stamping part includes a bottom plate, and a plurality of parallel extending The chute with a concave structure is used to correspond to the roller slide on the electric vehicle. A bottom reinforcement rib with a protruding structure is arranged between every two adjacent chute. The bottom reinforcement rib and its two sides Adjacent chutes form a stepped structure. On the outer surface of the bottom plate, there are multiple sliding grooves arranged in parallel. The sliding grooves are used to adapt to the roller channel on the electric vehicle, which saves the auxiliary battery box for guiding the battery box. Guide device, when installing the battery box, you only need to align the chute at the bottom of the main box with the roller channel on the electric vehicle, and the battery box can be quickly installed on the electric vehicle.

Description

An electric vehicle battery box structure and its main box body components

technical field

The utility model belongs to the technical field of electric vehicles, relates to a battery box structure of an electric vehicle, in particular to a main box body component of the battery box structure of an electric vehicle.

Background technique

In recent years, with the awareness of environmental protection in various countries around the world, electric vehicles have been fully developed and promoted as clean and environmentally friendly green vehicles. Among them, the battery as the power source of the electric vehicle has an important impact on the applicability of the electric vehicle. The use of the battery on the electric vehicle is not only related to the performance of the battery itself, but also to the performance of the battery box.

The existing electric vehicle battery box structure generally uses parts or components to be welded or assembled to connect the parts or components together to enhance the overall strength of the box. However, this assembly method has problems such as local deformation, weight Disadvantages such as large size and small space make the box heavy and affect the arrangement of electrical components on the battery box. At present, product designs tend to be lightweight, high-strength, and small-sized, and the existing battery boxes should also tend to be lightweight, high-strength, and small-sized. Moreover, the existing battery box needs to be guided by an auxiliary guide device during installation, which increases the weight of the battery box and even affects the installation space of the electrical components in the battery box. Of course, the installation space of the electrical components can also be enlarged by increasing the volume of the battery box, but increasing the volume of the battery box not only increases the weight of the battery box, but also limits the use places of the battery box.

Utility model content

The purpose of this utility model is to provide a main box body member of the electric vehicle battery box structure to solve the problem that the battery box in the prior art needs to be guided by an auxiliary guide device and the weight of the battery box is additionally increased. Technical problem; at the same time, the utility model also relates to an electric vehicle battery box structure using the above-mentioned main box member.

In order to achieve the above purpose, the main box member of the electric vehicle battery box structure provided by the utility model adopts the following technical scheme: a main box member of the electric vehicle battery box structure, and the main box member is stamped and formed Stamping parts, the stamping parts include a base plate, on the outer surface of the base plate are provided with a plurality of sliding grooves in a concave structure extending in parallel for matching with the roller slides on the electric vehicle, and each adjacent two Bottom reinforcing ribs in a protruding structure are arranged between the two chutes, and the bottom reinforcing ribs and adjacent chutes on both sides form a stepped structure.

The structure on the inner surface of the bottom plate corresponding to the bottom reinforcing rib on the outer surface of the bottom plate is a concave structure corresponding to the protruding structure of the bottom reinforcing rib.

The bottom reinforcing rib is composed of a plurality of reinforcing rib protruding blocks arranged along the extending direction of the chute, and a concave structure located on the outer surface of the bottom is arranged between every two adjacent reinforcing rib protruding blocks along the extending direction of the chute. partition.

The cross-section of the chute is rectangular, and the transition connection between the bottom of the rectangular chute and the side wall of the chute is a circular arc transition, and the bottom of the rectangular chute is connected to the adjacent two sides along the extending direction of the chute. The bottoms of the partitions between the rib protrusions are on the same plane.

The main box member also includes two bent side plates that are vertically connected to the two ends of the bottom plate and are opposite to the bottom plate. The outer surface of the bent side plate is arranged with a The protruding blocks extending in parallel with the chute of the bottom plate, the two protruding blocks are arranged in parallel along the direction perpendicular to the bottom plate, and the two protruding blocks are provided with a The mounting structure corresponding to the component.

The electric vehicle battery box structure provided by the utility model adopts the following technical scheme: an electric vehicle battery box structure, including a main box member and a front baffle and a rear baffle installed at the front and rear ends of the main box, the main box The body member is a stamping part formed by stamping, and the stamping part includes a base plate, and on the outer surface of the base plate, there are a plurality of sliding grooves in a concave structure extending in parallel for matching with the roller slides on the electric vehicle, A bottom reinforcing rib in a protruding structure is arranged between every two adjacent chutes, and the bottom reinforcing rib forms a stepped structure with adjacent chutes on both sides.

The structure on the inner surface of the bottom plate corresponding to the bottom reinforcing rib on the outer surface of the bottom plate is a concave structure corresponding to the protruding structure of the bottom reinforcing rib.

The bottom reinforcing rib is composed of a plurality of reinforcing rib protruding blocks arranged along the extending direction of the chute, and a concave structure located on the outer surface of the bottom is arranged between every two adjacent reinforcing rib protruding blocks along the extending direction of the chute. partition.

The cross-section of the chute is rectangular, and the transition connection between the bottom of the rectangular chute and the side wall of the chute is a circular arc transition, and the bottom of the rectangular chute is connected to the adjacent two sides along the extending direction of the chute. The bottoms of the partitions between the rib protrusions are on the same plane.

The main box member also includes two bent side plates that are vertically connected to the two ends of the bottom plate and are opposite to the bottom plate. The outer surface of the bent side plate is arranged with a The protruding blocks extending in parallel with the chute of the bottom plate, the two protruding blocks are arranged in parallel along the direction perpendicular to the bottom plate, and the two protruding blocks are provided with a The mounting structure corresponding to the component.

The beneficial effects of the utility model are: the main box member of the electric vehicle battery box structure in the utility model is a stamping part, the main box member includes a stamped bottom plate, and a plurality of parallel sets are arranged on the outer surface of the bottom plate The chute is used to adapt to the roller channel on the electric vehicle, which saves the auxiliary guide device on the battery box for auxiliary battery box alignment. When installing the battery box, only the main The chute at the bottom of the box corresponds to the roller channel on the electric vehicle, so that the battery box can be quickly installed on the electric vehicle. And between every two adjacent chutes, bottom reinforcing ribs can be set to enhance the strength of the whole main box. The bottom reinforcing ribs are in a protruding structure, and the chutes are in a concave structure, so that the bottom reinforcing ribs and chutes form a stepped structure. The chute and bottom rib structure of the main box body provided by the utility model are processed by stamping technology, which has high production efficiency, high overall strength, light weight, and saves the additional auxiliary guiding device. When applied to the battery box , the overall volume of the battery box will be smaller.

In the electric vehicle battery box structure provided by the utility model, the front and rear ends of the main box member are respectively assembled with a front baffle and a rear baffle. The chute corresponding to the roller slideway on the electric vehicle, so that when the battery box is installed on the electric vehicle, the chute is adapted to the guide of the roller slideway, which saves the existing need to add on the battery box The auxiliary guiding device reduces the overall weight of the battery box and reduces the volume of the battery box. Moreover, a bottom reinforcing rib in a protruding structure is provided between every two adjacent chutes, and the bottom reinforcing rib and its adjacent chute in a concave structure form a stepped structure. Here, the chute on the main box and the The bottom reinforcing rib structure is processed by stamping technology, which has high production efficiency, and the overall strength of the battery box is high and light in weight. Because the groove at the bottom of the main box is used as the guiding structure, the original additional auxiliary guiding device is omitted, so that The overall volume of the battery box is reduced.

Description of drawings

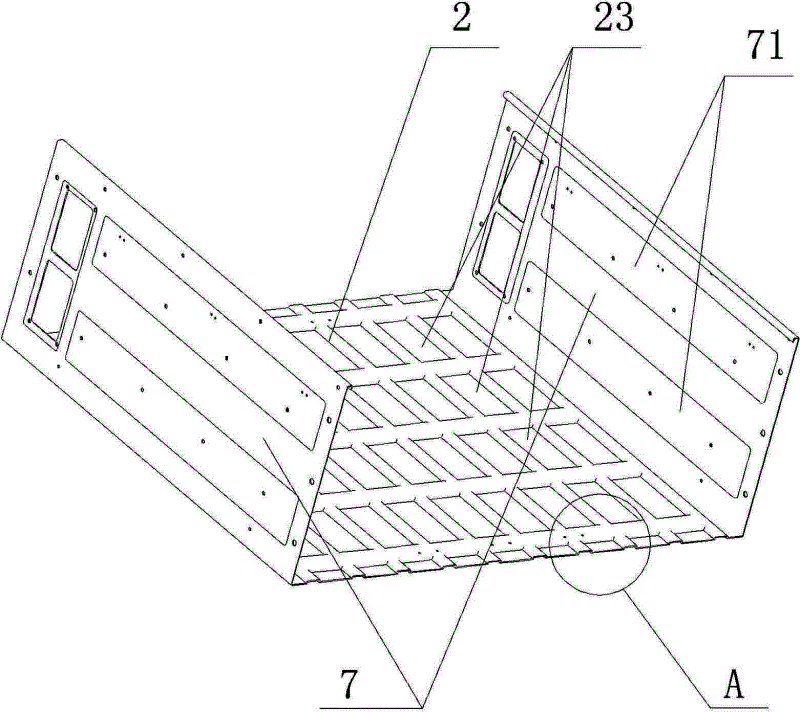

Fig. 1 is the structural representation of a kind of embodiment of the main box body member of electric vehicle battery box provided by the utility model;

Figure 2 is an enlarged view of A in Figure 1;

Fig. 3 is a schematic structural view of the battery box structure of an electric vehicle using the main box shown in Fig. 1;

Fig. 4 is a partial structural schematic view of the battery box shown in Fig. 3 mounted on an electric vehicle.

Detailed ways

As shown in Figures 1 and 2, a main box member of an electric vehicle battery box structure, the main box member is composed of a bottom plate 2 and two opposite ends that are integrally connected with the ends on both sides of the bottom plate 2 and are perpendicular to the bottom plate. The stamping part formed by bending the side plate 7, wherein, on the outer surface of the bottom plate 2, a plurality of sliding grooves 21 in a concave structure extending in parallel for matching with the roller slideways on the electric vehicle are provided. In this embodiment, the cross section of the chute is rectangular, and the transition connection between the bottom of the rectangular chute and the side wall of the chute is a circular arc transition, and a protruding structure is arranged between every two adjacent chute 21 The bottom reinforcing rib 22 of the protruding structure forms a step structure with the chute 21 of the recessed structure adjacent to the bottom reinforcing rib 22 of the protruding structure. A plurality of connected reinforcing rib protruding blocks 23 are arranged, and a partition in a concave structure located on the outer surface of the bottom plate is provided between two adjacent reinforcing rib protruding blocks along the extending direction of the chute, and the bottom of the partition It is on the same plane as the groove bottom of the rectangular chute, and in this embodiment, the structure on the inner surface of the bottom plate corresponding to the position of the bottom reinforcing rib on the outer surface of the bottom plate is the same as the protruding structure of the bottom reinforcing rib Corresponding to the concave structure, the concave structure on the inner surface of the bottom plate corresponds to the protruding structure of the bottom reinforcing rib on the outer surface of the bottom plate, which is convenient for stamping design during the stamping process of the bottom plate. On the outer surface of the bent side plate 7 of the main box member, a protruding block 71 protruding from the outer surface of the bent side plate and extending in parallel with the chute on the bottom plate is arranged. There are two protruding blocks arranged in parallel in the direction perpendicular to the bottom plate. As shown in FIG. 1 , mounting structures corresponding to the electrical components in the battery box are provided on the protruding blocks.

The main box body in the above embodiments is processed by stamping technology, and has high overall strength and light weight.

The bottom plate in the above-mentioned embodiment is a stamping part, and the bottom reinforcing ribs in a protruding structure on the outer surface of the bottom plate and the concave structure corresponding to the position on the inner surface of the bottom plate are structures formed at the same time by stamping, just because the bottom plate One is viewed from the outer surface of the base plate and the other is viewed from the inner surface of the base plate only. It is also possible to change the stamping process, so that only the bottom reinforcement ribs are stamped out during stamping, and no corresponding concave structure is left on the inner surface of the bottom plate.

As shown in Figure 3, a battery box structure for an electric vehicle includes a main box member 1 and a front baffle 4 and a rear baffle 3 installed at the front and rear ends of the main box member. The structure of the main box member 1 adopts The structure shown in Figure 1, and the block code 5 is set on the protruding block on the bent side plate 7 of the main box member, so as to provide an operable space for the installation of electrical components, so that the battery module in the battery box more solid. And it can be seen from Figure 2 that, viewed from the outer surface of the bottom plate, the bottom reinforcing rib is in a protruding structure, while the chute is in a concave structure. When viewed from the inner surface of the bottom plate, it corresponds to the position of the concave structure of the chute It is a convex structure, and the position corresponding to the convex structure of the bottom rib is a concave structure. During the connection process between the main box and the front and rear baffles, since the front and rear baffles have gaps corresponding to the protrusions of the main box, the installation of the front and rear baffles is convenient, and the connection strength between the two is also enhanced. The strength of the whole battery box is improved.

As shown in Figure 4, after assembling the box body shown in Figure 3, put the power battery in the battery box 10, and cover the battery box cover, then put the battery box as a whole into the power cabin 11 of the electric vehicle The chute on the bottom plate of the main box body of the battery box 10 corresponds to the roller slideway 112 in the power cabin 11 of the electric vehicle. The weight of the entire battery box reduces the volume occupied by the battery box.

Claims (10)

1. the main box member of a batteries of electric automobile box structure; It is characterized in that: described main box member is stamping forming blanked part; This blanked part comprises base plate; The outside face of base plate be provided with a plurality of parallel extensions be used for electronlmobil on the corresponding adaptive chute that is sunk structure of roller slideway, between every two adjacent chutes, be furnished with the bottom reinforced rib that is projective structure, the chute formation ledge structure that the bottom reinforced rib is adjacent with its both sides.

2. the main box member of batteries of electric automobile box structure according to claim 1 is characterized in that: on the described plate inner surface corresponding to the structure of the position of the bottom reinforced rib on the plate outer surface for the corresponding sunk structure of projective structure of said bottom reinforced rib.

3. the main box member of batteries of electric automobile box structure according to claim 2; It is characterized in that: described bottom reinforced rib is made up of a plurality of reinforced rib projecting blocks of arranging along the chute bearing of trend, between two every adjacent reinforced rib projecting blocks of chute bearing of trend, is provided with the partition that is sunk structure that is positioned at bottom outer surface.

4. the main box member of batteries of electric automobile box structure according to claim 3; It is characterized in that: the cross section of described chute is a rectangle; The bottom land of this rectangle chute and groove sidewall transition junction are arc transition, and the bottom land of rectangle chute and described bottom along the partition between adjacent two reinforced rib projecting blocks of chute bearing of trend are in same plane.

5. according to the main box member of any said batteries of electric automobile box structure in the claim 1 to 4; It is characterized in that: described main box member also comprises two relative bending side plates of the vertical and base plate setting that the both-side ends of base plate is connected with; Be furnished with on the outside face of bending side plate protrude in bending side plate outside face and with the parallel projecting block that extends of the chute of said base plate; Described projecting block is equipped with two places along the direction parallel clothes perpendicular to base plate, and described two place's projecting blocks are provided with the corresponding mounting structure of each electric elements that is used for battery box.

6. batteries of electric automobile box structure; Comprise main box member and the front apron and the back shield that are installed in the main box front and back end; It is characterized in that: described main box member is stamping forming blanked part; This blanked part comprises base plate; The outside face of base plate be provided with a plurality of parallel extensions be used for electronlmobil on the corresponding adaptive chute that is sunk structure of roller slideway, between every two adjacent chutes, be furnished with the bottom reinforced rib that is projective structure, the chute formation ledge structure that the bottom reinforced rib is adjacent with its both sides.

7. batteries of electric automobile box structure according to claim 6 is characterized in that: on the described plate inner surface corresponding to the structure of the position of the bottom reinforced rib on the plate outer surface for the corresponding sunk structure of projective structure of said bottom reinforced rib.

8. batteries of electric automobile box structure according to claim 7; It is characterized in that: described bottom reinforced rib is made up of a plurality of reinforced rib projecting blocks of arranging along the chute bearing of trend, between two every adjacent reinforced rib projecting blocks of chute bearing of trend, is provided with the partition that is sunk structure that is positioned at bottom outer surface.

9. batteries of electric automobile box structure according to claim 8; It is characterized in that: the cross section of described chute is a rectangle; The bottom land of this rectangle chute and groove sidewall transition junction are arc transition, and the bottom land of rectangle chute and described bottom along the partition between adjacent two reinforced rib projecting blocks of chute bearing of trend are in same plane.

10. according to any described batteries of electric automobile box structure in the claim 6 to 9; It is characterized in that: described main box member also comprises two relative bending side plates of the vertical and base plate setting that the both-side ends of base plate is connected with; Be furnished with on the outside face of bending side plate protrude in bending side plate outside face and with the parallel projecting block that extends of the chute of said base plate; Described projecting block is equipped with two places along the direction parallel clothes perpendicular to base plate, and described two place's projecting blocks are provided with the corresponding mounting structure of each electric elements that is used for battery box.
