Abstract
The utility model relates to an oscillating cleaning device which comprises a machine frame. The machine frame is connected with an oscillating cabinet through an oscillating spring. The oscillating cleaning device is characterized in that a plurality of layers of net-shaped layer frames are sequentially distributed in the oscillating cabinet along the direction of a discharging end of the oscillating cabinet, and the lower sides of discharging ends of upper-layer net-shaped layer frames are in matching connection with feeding ends of lower-end net-shaped layer frames. The oscillating cleaning device can quickly clean block-shaped vegetables and is high in cleaning efficiency.
Description
Technical field
The utility model relates to a kind of vibration cleaning device, is specially adapted in the washing and cleaning operation to block vegetables.
Background technology
In the food processing factory of greengrocery; In the processing like potato; Carry out deep processing again after at first all will cleaning up it, and usual cleaning way all crosses the workman and clean, this mode not only efficient is slow; And can't guarantee the quality of cleaning, this very large work of intensity simultaneously.
Summary of the invention
The purpose of the utility model is a kind of vibration cleaning device of design, and the utility model can be fast cleans up the vegetables of bulk, and the efficient of cleaning is high.
The utility model technical scheme is achieved in that a kind of vibration cleaning device; Comprise frame; Be connected with a vibration cabinet through the vibration spring on the said frame; It is characterized in that: be laid with several layers lamina reticularis frame successively along vibration cabinet discharging extreme direction in the said vibration cabinet, the feed end of the discharge end downside of upper strata lamina reticularis frame and lower floor's lamina reticularis frame is connected.
Above-mentioned vibration cabinet is positioned at lamina reticularis frame top and is provided with two sparge pipes, and said sparge pipe in axial direction is evenly equipped with hole for water spraying, and the hole for water spraying that is positioned at the sparge pipe of vibration cabinet discharging end one side is directed downwards, and the hole for water spraying of another sparge pipe is towards vibration cabinet discharging end.
The above-mentioned frame of stating is positioned at vibration cabinet below and is provided with a sewage collecting box, and said sewage collecting box upper shed is provided with a screen pack, and said sewage collecting box downside is connected with outlet pipe.
The utlity model has reasonable in design, simple in structure, can reduce the needed time of cleaning, and guaranteed the efficient of cleaning, also reduced working strength of workers.
Description of drawings
Fig. 1 is the organigram of the utility model embodiment.

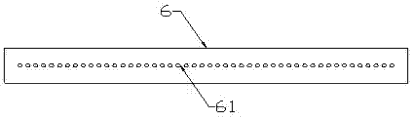

Fig. 2 is the organigram of the said sparge pipe of the utility model embodiment.
Among the figure: 1-frame; 2-vibration spring, 3-vibration cabinet, 4-lamina reticularis frame, 5-conveyer belt apparatus, 6-sparge pipe, 7-sewage collecting box, 8-screen pack, 9-outlet pipe, 31-vibration cabinet discharging end, 41-lamina reticularis frame discharge end, 42-lamina reticularis frame feed end.
The specific embodiment
The sweet osmanthus intestines cut-flower feed arrangement that the utility model is provided below in conjunction with accompanying drawing and concrete embodiment is done and is specified.
Please referring to accompanying drawing; A kind of vibration cleaning device; Comprise frame 1; Be connected with a vibration cabinet 3 through vibration spring 2 on the said frame 1, it is characterized in that: be laid with several layers lamina reticularis frame 4 successively along vibration cabinet discharging end 31 directions in the said vibration cabinet 3, discharge end 41 downsides of upper strata lamina reticularis frame and the feed end 42 of lower floor's lamina reticularis frame are connected.
Said vibration cabinet 3 is positioned at lamina reticularis frame 4 tops and is provided with two sparge pipes 6; Said sparge pipe 6 in axial direction is evenly equipped with hole for water spraying 61; The hole for water spraying 61 that is positioned at the sparge pipe 6 of vibration cabinet discharging end 31 1 sides is directed downwards, and the hole for water spraying 61 of another sparge pipe 6 is towards vibration cabinet discharging end 31.
Said frame 1 is positioned at vibration cabinet 3 belows and is provided with a sewage collecting box 7, and said sewage collecting box 7 upper sheds are provided with a screen pack 8, and said sewage collecting box 7 downsides are connected with outlet pipe 9.
Said vibration cabinet discharging end 31 1 skew backs are provided with a conveyer belt apparatus 5.
The utility model has changed habitually in the past the situation that can only clean block vegetables through manual work; And the utility model is provided with 2 sparge pipes that the water jet direction is different, and it can drive block vegetables and move forward; Block vegetables can not piled up on the lamina reticularis frame, influence washing speed.
The utility model does not limit to above-mentioned preferred forms, and anyone can draw other various forms of vibration cleaning devices under the enlightenment of the utility model.All equalizations of being done according to the utility model claim change and modify, and all should belong to the covering scope of the utility model.
Claims (4)
1. vibration cleaning device; Comprise frame; Be connected with a vibration cabinet through the vibration spring on the said frame; It is characterized in that: be laid with several layers lamina reticularis frame successively along vibration cabinet discharging extreme direction in the said vibration cabinet, the feed end of the discharge end downside of upper strata lamina reticularis frame and lower floor's lamina reticularis frame is connected.
2. vibration cleaning device according to claim 1; It is characterized in that: said vibration cabinet is positioned at lamina reticularis frame top and is provided with two sparge pipes; Said sparge pipe in axial direction is evenly equipped with hole for water spraying; The hole for water spraying that is positioned at the sparge pipe of vibration cabinet discharging end one side is directed downwards, and the hole for water spraying of another sparge pipe is towards vibration cabinet discharging end.
3. vibration cleaning device according to claim 1 is characterized in that: said frame is positioned at vibration cabinet below and is provided with a sewage collecting box, and said sewage collecting box upper shed is provided with a screen pack, and said sewage collecting box downside is connected with outlet pipe.
4. vibration cleaning device according to claim 1 is characterized in that: said vibration cabinet discharging end one skew back is provided with a conveyer belt apparatus.
