本实用新型涉及生活用品领域，特别涉及一种多功能烟盒。为了解决传统烟盒功能单一、不能持续使用的技术问题，本实用新型提供了一种多功能烟盒。本实用新型的技术方案为：一种多功能烟盒，包括盛烟部、滑盖和火机部。所述火机部位于盛烟部一侧，与盛烟部固定连接。所述滑盖位于盛烟部的上方。滑盖上设有导轨，盛烟部开口处两侧设有滑槽，所述导轨在滑槽内滑动。所述火机部顶部设有出火口，底部设有充气孔。所述滑盖从盛烟部滑下后，可以反置作为烟灰缸使用。本实用新型的有益效果是该保持烟既能保持传统烟盒的基本作用，又附加了打火机和烟灰缸的功用。其结构简单，成本较低，经济实用，卫生环保，具有持续使用性，易于推广。
The utility model relates to the field of daily necessities, in particular to a multifunctional cigarette case. In order to solve the technical problem that the traditional cigarette case has single function and cannot be used continuously, the utility model provides a multifunctional cigarette case. The technical scheme of the utility model is: a multifunctional cigarette case, which includes a cigarette holding part, a sliding cover and a lighter part. The lighter part is located on one side of the cigarette holding part and is fixedly connected with the smoke holding part. The sliding cover is located above the cigarette holding part. Guide rails are arranged on the sliding cover, and slide grooves are arranged on both sides of the opening of the cigarette holding part, and the guide rails slide in the slide grooves. The top of the lighter part is provided with a fire outlet, and the bottom is provided with an air filling hole. After the sliding cover slides down from the cigarette holding part, it can be reversed and used as an ashtray. The beneficial effect of the utility model is that the holding cigarette can not only maintain the basic function of the traditional cigarette case, but also add the functions of a lighter and an ashtray. The utility model has the advantages of simple structure, low cost, economy and practicality, sanitation and environmental protection, continuous usability and easy popularization.
Description
Technical field
The utility model relates to the daily necessities field, particularly a kind of multi-functional cigarette case able.
Background technology
At present, traditional cigarette case great majority are disposable, papery, cigarette case is used once and promptly is dropped, and has caused the serious waste of resource.And common cigarette case and ashtray separate itself, and common ashtray has the advantages that to be not easy to carry, and can not satisfy people's demand.
The utility model content
In order to solve the technical problem that the conventional smoke kit function is single, can not continue to use, the utility model provides a kind of multi-functional cigarette case able.
The technical scheme of the utility model is: a kind of multi-functional cigarette case able comprises cigarette portion, slip lid and the lighter portion of containing.Said lighter portion is positioned at contains cigarette portion one side, and contains cigarette portion and is fixedly connected.Said slip lid is positioned at the top of containing cigarette portion.Slip lid is provided with guide rail, contains cigarette portion opening part both sides and is provided with chute, and said guide rail slides in chute.
Said lighter portion top is provided with crater, and the bottom is provided with air-filled pore.
Said slip lid can be inverted and use as ashtray after sliding from Sheng cigarette portion.
The beneficial effect of the utility model is the basic role that this maintenance cigarette can keep traditional cigarette case, the function of having added lighter and ashtray again.It is simple in structure, and cost is lower, and is economical and practical, and hygienic environment-protecting has lasting usability, is easy to promote.
Description of drawings

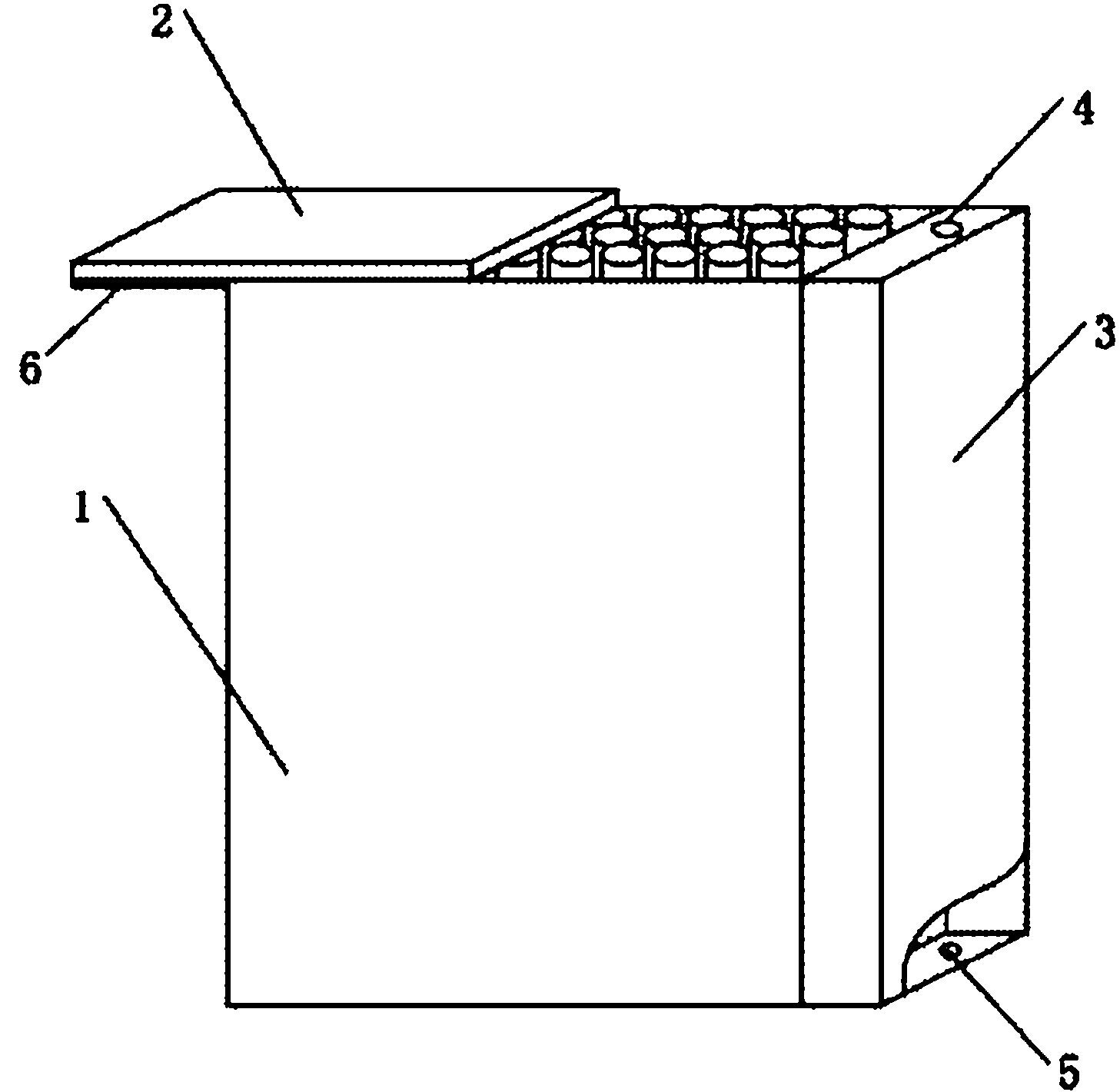

Fig. 1 is the structural representation of the utility model;
Fig. 2 is the part enlarged diagram of the utility model;
Fig. 3 is the structural representation of slip lid in the utility model.
Wherein, 1, contain cigarette portion, 2, slip lid, 3, lighter portion, 4, crater, 5, air-filled pore, 6, guide rail, 7, chute, 8, groove.
The specific embodiment
Specify the utility model below in conjunction with accompanying drawing.
As depicted in figs. 1 and 2, the utility model comprises cigarette portion 1, slip lid 2 and the lighter portion 3 of containing.Said lighter portion 3 is positioned at contains cigarette portion 1 one sides, and contains cigarette portion 1 and is fixedly connected.Said slip lid 2 is positioned at the top of containing cigarette portion 1.Slip lid 2 is provided with guide rail 6, contains cigarette portion 1 opening part both sides and is provided with chute 7, and said guide rail 6 slides in chute 7.
Said lighter portion 3 tops are provided with crater 4, and the bottom is provided with air-filled pore 5.
As shown in Figure 3, said slip lid 2 is inverted after sliding from Sheng cigarette portion 1, and its groove 8 can be used as ashtray and uses.
