Abstract
一种蚊香烘干用锅炉的热回收装置，包括具有热交换腔的热交换器，所述热交换腔中设置有换热管，所述换热管一端通过管道连接锅炉的尾气排放口，另一端通过管道连接烟囱，所述热交换腔设置有与大气连通的进气口和与蚊香烘干房连通的出气口，本实用新型可实现锅炉尾气的回收利用，达到节能减排的目的。
A heat recovery device for a boiler for drying mosquito-repellent incense, comprising a heat exchanger with a heat exchange chamber, a heat exchange tube is arranged in the heat exchange cavity, one end of the heat exchange tube is connected to the tail gas discharge port of the boiler through a pipe, and the other One end is connected to the chimney through a pipe, and the heat exchange chamber is provided with an air inlet connected to the atmosphere and an air outlet connected to the mosquito-repellent incense drying room. The utility model can realize the recovery and utilization of boiler tail gas, and achieve the purpose of energy saving and emission reduction.
Description
Technical field
The utility model relates to the heat reclamation device of a kind of mosquito-repellent incense oven dry with boiler.
Background technology
The mosquito-repellent incense oven dry is used for providing heat to the mosquito-repellent incense baking room with boiler; it can form circulating air in conjunction with the blower fan that is arranged in the mosquito-repellent incense baking room in baking room; existing boiler exhaust gas is directly to be discharged in the air by chimney mostly; in order to realize requirement on environmental protection; usually also can between boiler exhaust gas floss hole and chimney, dust arrester be set; but there is a large amount of heats in the boiler exhaust gas; and these heats are discharged into the waste that will cause the energy in the air, might influence surrounding environment simultaneously.
Summary of the invention
The purpose of this utility model is at the deficiencies in the prior art, and the heat reclamation device of a kind of effectively recovery boiler using waste heat from tail gas, realization energy-saving and emission-reduction is provided.
The purpose of this utility model realizes by following technical solution:
A kind of mosquito-repellent incense oven dry heat reclamation device of boiler, it is characterized in that: comprise heat exchanger with heat exchange chamber, be provided with heat exchanger tube in the described heat exchange chamber, described heat exchanger tube one end connects the exhaust port of boiler by pipeline, the other end connects chimney by pipeline, and described heat exchange chamber is provided with air inlet that is communicated with atmosphere and the gas outlet that is communicated with the mosquito-repellent incense baking room.
Further, the pipeline between the described heat exchanger tube other end and the chimney is provided with blower fan and dust arrester.
The utlity model has following beneficial effect:
Realize the recovery of boiler exhaust gas waste heat by heat exchanger, enter chimney behind the heat exchanger tube of boiler exhaust gas in over-heat-exchanger, the air and the heat exchanger tube that enter from the heat exchange chamber air inlet carry out heat exchange, form hot gas and enter the mosquito-repellent incense baking room, thereby realize effective recovery of boiler exhaust gas waste heat; Pipeline between the heat exchanger tube other end and the chimney is provided with blower fan and dust arrester, can realize the dedusting of boiler exhaust gas, reduces the discharging of pollutant.
Description of drawings
Below in conjunction with accompanying drawing the utility model is described in further detail.

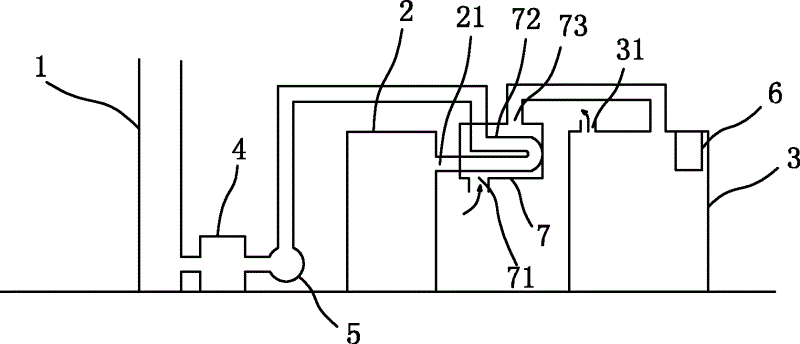

Fig. 1 is a structural representation of the present utility model.
The specific embodiment
With reference to shown in Figure 1, a kind of mosquito-repellent incense oven dry heat reclamation device of boiler, comprise heat exchanger 7 with heat exchange chamber, be provided with heat exchanger tube 72 in the heat exchange chamber, heat exchanger tube 72 1 ends connect the exhaust port 21 of boiler 2 by pipeline, the other end connects chimney 1 by pipeline, heat exchange chamber is provided with air inlet 71 that is communicated with atmosphere and the gas outlet 73 that is communicated with mosquito-repellent incense baking room 3, pipeline between heat exchanger tube 72 other ends and the chimney 1 is provided with blower fan 5 and dust arrester 4, baking room 3 is provided with moisture exhausting port 31, and inside is provided with the blower fan 6 that is used to form circulating air.
The above, it only is preferred embodiment of the present utility model, so can not limit the scope that the utility model is implemented with this, i.e. the equivalence of doing according to the utility model claim and description changes and modifies, and all should still belong in the scope that the utility model patent contains.
