本实用新型涉及一种水晶工艺灯。LED水晶工艺灯，包括中空底座、线路板、蓄电池、LED灯、水晶玻璃装饰架和开关，水晶玻璃装饰架固定在中空底座上，线路板设置在中空底座内，中空底座的侧壁上设置充电接口，充电接口通过导线连接线路板，线路板与蓄电池相连；中空底座顶部设置通孔，水晶玻璃装饰架底部设置空腔，空腔与中空底座顶部的通孔位置对应且相互连通；安装在线路板上的LED灯的顶部穿过通孔伸入水晶玻璃装饰架底部的空腔中，开关安装在水晶玻璃装饰架上，开关通过连接线连接线路板。该LED水晶工艺灯的优点是结构新颖，可以充电后蓄电备用。
The utility model relates to a crystal craft lamp. LED crystal craft lamp, including hollow base, circuit board, battery, LED lamp, crystal glass decorative frame and switch, crystal glass decorative frame is fixed on the hollow base, the circuit board is set in the hollow base, and charging is set on the side wall of the hollow base The interface, the charging interface is connected to the circuit board through wires, and the circuit board is connected to the battery; a through hole is set on the top of the hollow base, and a cavity is set at the bottom of the crystal glass decorative frame, and the cavity corresponds to the position of the through hole on the top of the hollow base and is connected to each other; it is installed on the line The top of the LED light on the board extends into the cavity at the bottom of the crystal glass decorative frame through the through hole, the switch is installed on the crystal glass decorative frame, and the switch is connected to the circuit board through the connecting wire. The advantage of the LED crystal craft lamp is that it has a novel structure and can store electricity for backup after charging.
Description
Technical Field
The utility model relates to a crystal craft lamp.
Background
The LED crystal craft lamp is a very beautiful daily decoration, and the existing LED crystal craft lamp needs to be connected with a power supply outside the craft lamp through a power line in the lighting process, so that the attractiveness of the LED crystal craft lamp is influenced, the application range is limited, and the LED crystal craft lamp cannot be used in places where the power supply is temporarily unavailable or in the case of power failure.
Disclosure of Invention
The invention aims to solve the problems of the existing LED crystal craft lamp and provide the LED crystal craft lamp which is novel in structure and can be charged.
In order to achieve the above object, the present invention adopts the following technical solutions:
the LED crystal craft lamp comprises a hollow base, a circuit board, a storage battery, an LED lamp, a crystal glass decoration frame and a switch, wherein the crystal glass decoration frame is fixed on the hollow base; the top of the hollow base is provided with a through hole, the bottom of the crystal glass decorating frame is provided with a cavity, and the cavity corresponds to and is communicated with the through hole at the top of the hollow base; the top of the LED lamp arranged on the circuit board penetrates through the through hole to extend into the cavity at the bottom of the crystal glass decoration frame, the switch is arranged on the crystal glass decoration frame, and the switch is connected with the circuit board through a connecting wire.
Preferably, the crystal glass decorating frame comprises a crystal glass base and a crystal glass swinging part bonded on the crystal glass base, the cavity and the switch are arranged on the crystal glass base, one end of the connecting wire is connected with the switch, and the other end of the connecting wire penetrates through the through hole to be connected with the circuit board.
Preferably, the crystal glass ornament is provided with the groove, and the groove not only saves materials, but also can refract light, so that the decorative effect is improved.
According to the LED crystal craft lamp adopting the technical scheme, the charging interface is arranged on the side wall of the hollow base and is connected with the storage battery through the wire circuit board, and the storage battery can store electricity to be used by the LED lamp after charging. The LED crystal craft lamp has the advantages of novel structure, capability of storing electricity for later use after charging, no need of using a power supply except the craft lamp at any time when the lamp is turned on, and capability of being used in places where the power supply is not available temporarily after charging or when power is cut off.
Drawings

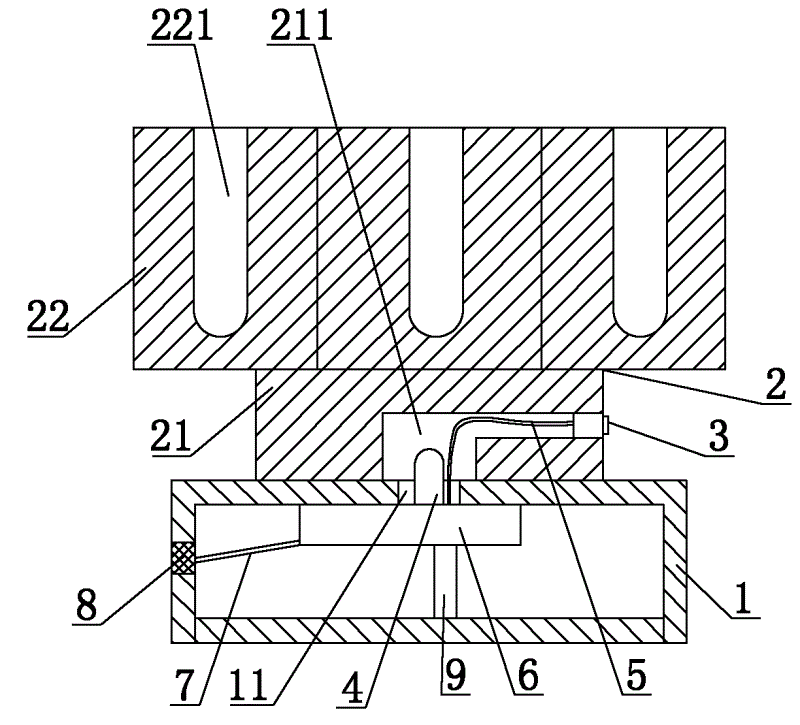

FIG. 1: the embodiment of the utility model discloses an embodiment schematic structure.
Detailed Description
The invention will be further described with reference to fig. 1.
Example (b): the LED crystal art lamp shown in figure 1 comprises a hollow base 1, a circuit board 6, a storage battery 9, an LED lamp 4, a crystal glass decorating frame 2 and a switch 3. The crystal glass decoration frame 2 is fixed on the hollow base 1, the circuit board 6 is arranged in the hollow base 1, the charging interface 8 is arranged on the side wall of the hollow base 1, the charging interface 8 is connected with the circuit board 6 through the lead 7, and the circuit board 6 is connected with the storage battery 9. The top of the hollow base 1 is provided with a through hole 11, the bottom of the crystal glass decorating frame 2 is provided with a cavity 211, and the cavity 211 corresponds to the through hole 11 at the top of the hollow base 1 in position and is communicated with the through hole. The top of the LED lamp 4 arranged on the circuit board 6 passes through the through hole 11 and extends into the cavity 211 at the bottom of the crystal glass decorating frame 2, and the switch 3 is arranged on the crystal glass decorating frame 2.
The crystal glass decorating frame 2 is composed of a crystal glass base 21 and a plurality of crystal glass swinging parts 22 bonded on the crystal glass base, the crystal glass swinging parts 22 are provided with grooves 221, the grooves 221 can save materials and refract light rays emitted by the LED lamp 4, and the decorating effect is improved. The cavity 211 and the switch 3 are installed on the crystal glass base 21, the switch 3 is connected with the circuit board 6 through the connecting wire 5, specifically, one end of the connecting wire 5 is connected with the switch 3, and the other end passes through the cavity 211 and the through hole 11 to be connected with the circuit board 6.
Claims (3)
- The LED crystal craft lamp is characterized by comprising a hollow base, a circuit board, a storage battery, an LED lamp, a crystal glass decoration frame and a switch, wherein the crystal glass decoration frame is fixed on the hollow base; the top of the hollow base is provided with a through hole, the bottom of the crystal glass decorating frame is provided with a cavity, and the cavity corresponds to and is communicated with the through hole at the top of the hollow base; the top of the LED lamp arranged on the circuit board penetrates through the through hole to extend into the cavity at the bottom of the crystal glass decoration frame, the switch is arranged on the crystal glass decoration frame, and the switch is connected with the circuit board through a connecting wire.
- 2. The LED crystal art lamp according to claim 1, wherein the crystal decorating rack comprises a crystal base and a crystal ornament bonded to the crystal base, the cavity and the switch are arranged on the crystal base, one end of the connecting wire is connected with the switch, and the other end of the connecting wire penetrates through the through hole to be connected with the circuit board.
- 3. The LED crystal art lamp according to claim 2, wherein the crystal glass ornament is provided with a groove.
