Abstract
本实用新型涉及一种粉碎机，包括分级电机、打散电机、打散盘、整流通道、内筒、外筒以及粗粉出口，所述分级电机以及打散电机设于外筒的顶部，所述分级电机与打散盘相连接在一起，所述分级风机与内筒相连接在一起，所述粗粉出口设于外筒的底部，所述外筒内还设有分级风机，所述分级风机与整流通道相连接在一起，所述外筒的底部还设有细粉出口，本实用新型的优点是：本实用新型其结构特点能够使得粉碎机的粉碎效果更好，其分级电机以及打散盘的结合更能够体现其粉碎机的效果。
The utility model relates to a pulverizer, comprising a grading motor, a dispersing motor, a dispersing disc, a rectification channel, an inner cylinder, an outer cylinder and a coarse powder outlet, the grading motor and the dispersing motor are arranged on the top of the outer cylinder, and the The grading motor is connected with the dispersing disc, the grading fan is connected with the inner cylinder, the coarse powder outlet is arranged at the bottom of the outer cylinder, a grading fan is also arranged in the outer cylinder, and the grading fan is connected with the inner cylinder. The fan is connected with the rectification channel, and the bottom of the outer cylinder is also provided with a fine powder outlet. The utility model has the advantages that: the utility model can make the crushing effect of the pulverizer better, and its grading motor and grinding The combination of loose discs can better reflect the effect of its pulverizer.
Description
Technical field
The utility model relates to a kind of pulverizer.
Background technology
In current society, a lot of pulverizers have appearred on the market, and it is simple in structure for pulverizer now, and the technology of pulverizer can not reach certain crushing effect, and also there are a lot of deficiencies in pulverizer in the process of using.
Summary of the invention
The purpose of this utility model provides a kind of pulverizer to address the above problem.
The technical solution adopted in the utility model is:
A kind of pulverizer, comprise the classification motor, break up motor, break up dish, rectification passage, inner core, urceolus and meal outlet, described classification motor and break up the top that motor is located at urceolus, described classification motor with break up the dish be connected together, described classification blower fan and inner core are connected together, and the bottom of urceolus is located in described meal outlet.
Also be provided with the classification blower fan in the described urceolus, described classification blower fan and rectification passage are connected together, and the bottom of described urceolus also is provided with the fine powder outlet.
The utility model has the advantages that: its design feature of the utility model can make that the crushing effect of pulverizer is better, and its classification motor and the combination of breaing up dish more can embody the effect of its pulverizer.
Description of drawings
Below in conjunction with the drawings and specific embodiments the utility model is described in further detail.

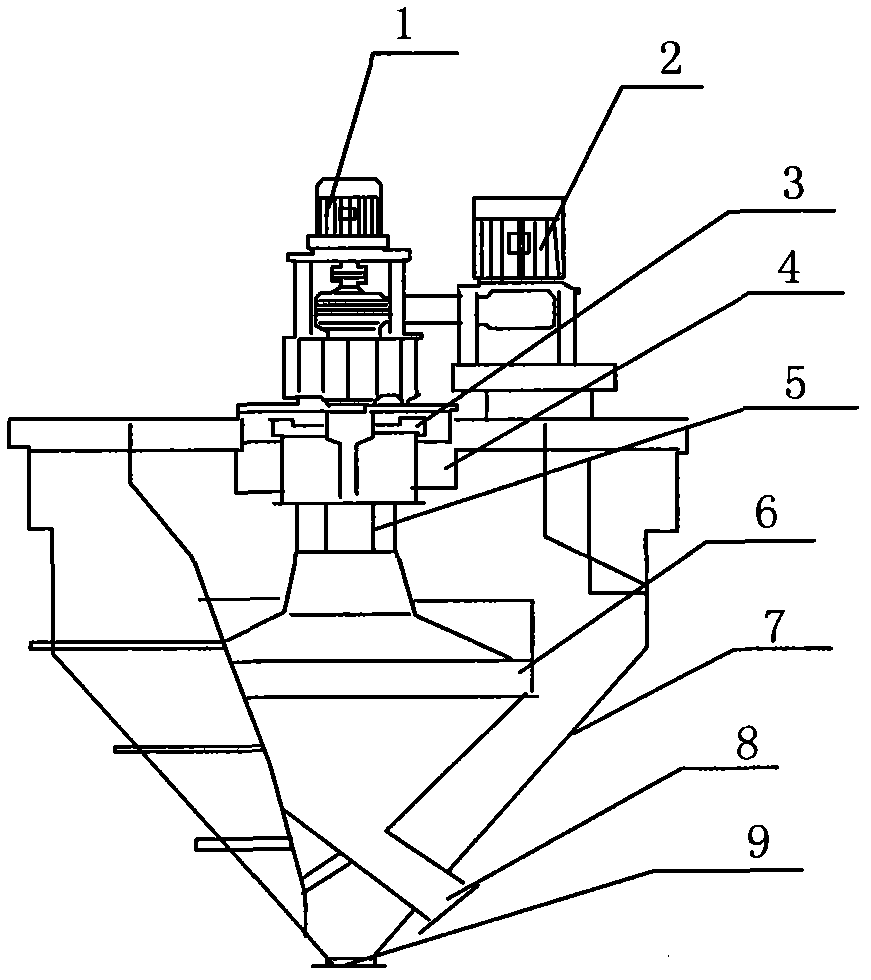

Fig. 1 is a structural representation of the present utility model.
Wherein: 1, classification motor, 2, break up motor, 3, break up dish, 4, the rectification passage, 5, the classification blower fan, 6, inner core, 7, urceolus, 8, the meal outlet, 9, the fine powder outlet.
The specific embodiment
A kind of as shown in Figure 1 pulverizer, comprise classification motor 1, break up motor 2, break up dish 3, rectification passage 4, inner core 6, urceolus 7 and meal outlet 8, described classification motor 1 and break up the top that motor 2 is located at urceolus 7, described classification motor 1 with break up dish 3 and be connected together, described classification blower fan 1 is connected together with inner core 6, and the bottom of urceolus 7 is located in described meal outlet 8.
Also be provided with classification blower fan 5 in the described urceolus 7, described classification blower fan 5 is connected together with rectification passage 4, the bottom of described urceolus 7 also is provided with fine powder outlet 9, its design feature of the utility model can make that the crushing effect of pulverizer is better, and its classification motor and the combination of breaing up dish more can embody the effect of its pulverizer.
Claims (2)
1. pulverizer, it is characterized in that comprising the classification motor, break up motor, break up dish, rectification passage, inner core, urceolus and meal outlet, described classification motor and break up the top that motor is located at urceolus, described classification motor with break up the dish be connected together, described classification blower fan and inner core are connected together, and the bottom of urceolus is located in described meal outlet.
2. a kind of pulverizer according to claim 1 is characterized in that also being provided with in the described urceolus classification blower fan, and described classification blower fan and rectification passage are connected together, and the bottom of described urceolus also is provided with the fine powder outlet.
