Abstract

The utility model discloses a portable blood collection case and bag, which comprises a case body (1), the case body (1) and the case cover (2) are movably connected to form a shell, and the opening and closing sides of the case body (1) and the case cover (2) There is a table bag zipper (3) on the top, a compartment bag (4) is provided between the box body (1) and the box cover (2), and the compartment bag (4) passes through the compartment bag zipper (5) It is movably connected with the box body (1), the space formed by the back of the compartment bag (4) and the box body (1) is the storage area (6) located in the box body (1), and the back side of the compartment bag (4) A horizontal medical device patch pocket (7) is provided, a pen inserting loop (8) is provided on the upper side of the horizontal medical appliance patch pocket (7), and a vertical medical appliance patch pocket ( 9); the space formed by the front of the compartment bag (4) and the box cover (2) is equipped with an operating platform (10). The utility model is convenient to carry, unfolds rapidly, has complete functions, and is suitable for popularization and use.

Description

Portable blood collection bag

technical field

The utility model relates to the field of medical appliances, in particular to a portable blood collection case that can be carried around.

Background technique

At present, in emergencies, disasters, or field operations, it is often impossible to implement emergency blood collection to ensure blood supply due to being in the field or in disaster situations. There are two reasons, one is the lack of blood collection equipment; the other is the lack of blood testing items and equipment. Therefore be badly in need of a kind of easy to carry, fully-featured blood collection case bag, use when for the military field operation medical support, sudden accident and disaster medical rescue.

Contents of the invention

The purpose of this utility model is to address the lack of existing equipment, to provide a blood donor physical examination, blood sample collection, blood testing, blood collection, blood heat sealing and specimen retention to the issuance of blood donation certificates in the field or in disaster situations. Portable blood collection case for work.

The purpose of this utility model is solved by the following technical solutions:

A portable blood collection case and bag, comprising a box body and a box cover, the box body and the box cover are movably connected to form a shell, and the opening and closing sides of the box body and the box cover are provided with table pocket zippers, between the box body and the box cover There is a compartment bag in between, and the compartment bag is connected to the box through the zipper of the compartment bag. The space formed by the back of the compartment bag and the box is the storage area in the box. The back of the compartment bag is equipped with a horizontal medical Apparatus patch pocket, the upper side of the horizontal medical appliance patch pocket is provided with a pen loop, and the side of the horizontal medical appliance patch pocket is provided with a vertical medical appliance patch pocket; the space formed by the front of the compartment bag and the box cover is equipped with operating tower.

The operating table is composed of a table top and a support rod, the support rod is a foldable support rod, and the support rod is located at the back of the table top.

A connecting block is arranged between the support rods, and a document bag and a garbage storage bag are respectively arranged on both sides of the connecting block.

The certificate bag is located on the outside of the support rod, and the garbage collection and storage bag is located on the inside of the support rod.

The back of the table is provided with a rod sleeve, and a box support rod is inserted in the rod sleeve.

One end of the box supporting rod is provided with threads, and the other end of the box supporting rod is disc-shaped.

The top of the box is provided with a handle, and the bottom of the box is provided with a tugboat.

The middle part of the back of the box body is provided with a pull rod, and the outside of the pull rod is provided with a strap.

The four corners of the back of the box are provided with mutually symmetrical support nuts, and the support nuts correspond to the fixed nuts in the storage area.

The position of the zipper of the table pocket is corresponding to that of the zipper of the compartment bag.

Compared with the prior art, the utility model has the following advantages:

1. The utility model adopts an alloy structure as the main frame, which is strong and firm. It adopts rainproof cloth, waterproof zipper, etc., which are suitable for field operation and easy to clean.

2. The built-in items of the utility model are placed at a fixed point, fixed securely, orderly, complete, and convenient for work; it is suitable for maneuvering under various conditions.

3. The utility model occupies a small area under field conditions and can be unfolded quickly. It can be fully unfolded and fully retracted within 5 minutes; its shape and color application can be changed to camouflage that is consistent with the environment according to needs.

4. The utility model can complete the task of blood collection under field conditions, including health consultation of blood donors, general physical examination, rapid detection of blood infectious diseases, blood collection, retention of blood samples, blood heat sealing and issuance of blood donation certificates , and dispose of medical waste and sharps in accordance with the "Medical Waste Management Regulations".

5. The utility model can be applied to individual deep operations, and can be used for emergency blood collection and blood supply in emergencies, disasters or field operations to save patients' lives.

Description of drawings

Accompanying drawing 1 is the outline structure schematic diagram of the present utility model;

Accompanying drawing 2 is a schematic diagram of the expanded structure of the case cover of the present utility model;

Accompanying drawing 3 is the compartment bag of the utility model and the schematic diagram of the internal structure of the box body;

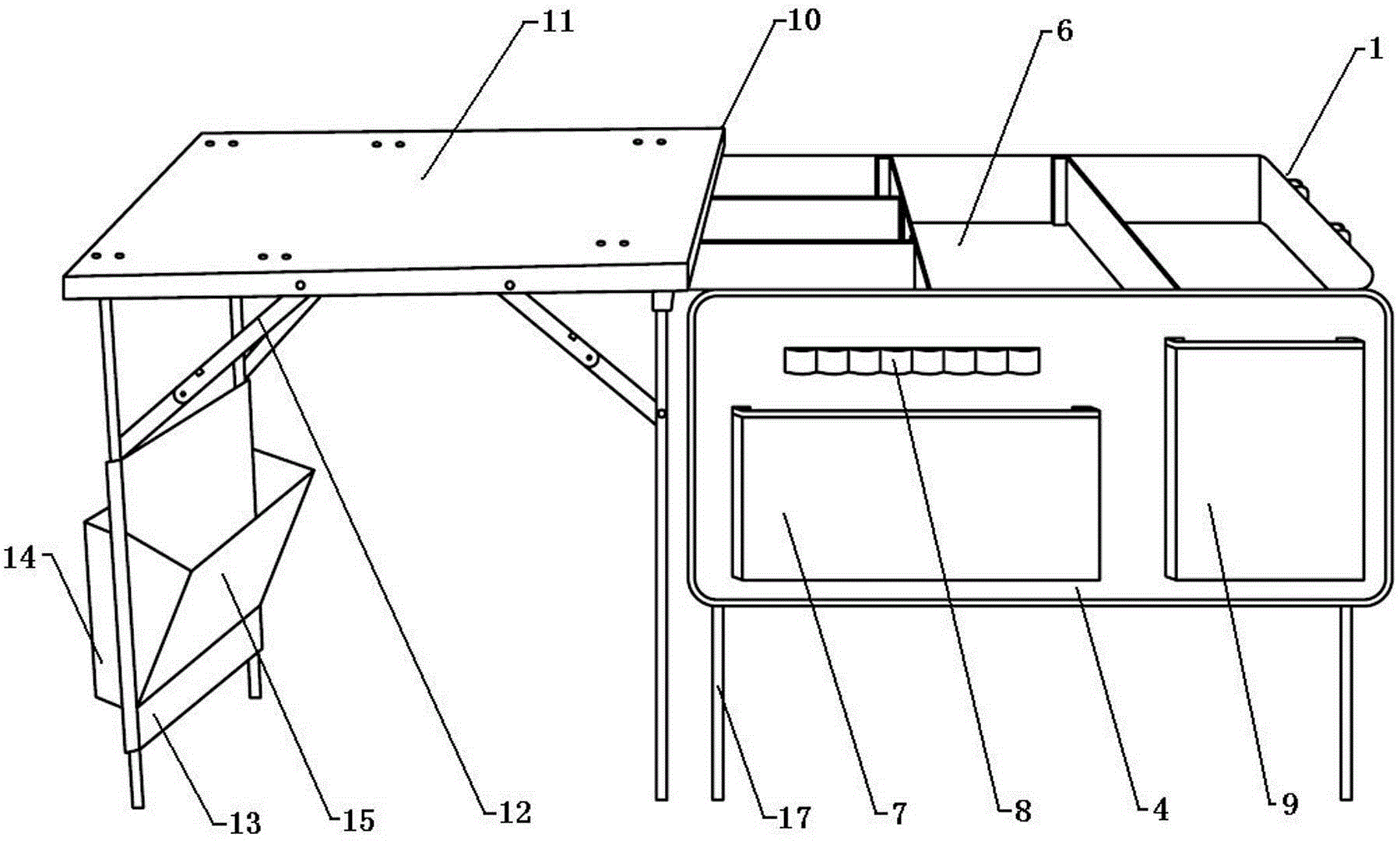

Accompanying drawing 4 is the expanded structure schematic diagram of the present utility model;

Accompanying drawing 5 is the schematic diagram of the back structure of the console of the utility model;

Accompanying drawing 6 is a schematic diagram of the back structure of the tank cover of the present utility model.

Among them: 1—box body; 2—box cover; 3—desk bag zipper; 4—compartment bag; 5—compartment bag zipper; 6—storage area; 7—horizontal medical device patch pocket; loop; 9—vertical medical device patch pocket; 10—operating table; 11—table top; 12—support rod; 13—connecting block; 14—certificate bag; 15—garbage storage bag; 16—rod cover; 18—carrying handle; 19—tug wheel; 20—pull rod; 21—strap; 22—support nut; 23—fixed nut.

Detailed ways

Below in conjunction with accompanying drawing and embodiment the utility model is described further.

As shown in Figure 1-6: a portable blood collection case, including a box body 1 and a box cover 2, the box body 1 and the box cover 2 are movably connected to form a shell, and the opening and closing sides of the box body 1 and the box cover 2 are provided with Table pocket zipper3. A compartment bag 4 is arranged between the box body 1 and the box cover 2, and one side of the compartment bag 4 is fixed on the corresponding side of the box body 1, while the other three sides of the compartment bag 4 are connected to the box through the compartment bag zipper 5. The body 1 is movably connected, the position of the compartment bag zipper 5 corresponds to the position of the table bag zipper 3, the space formed by the back of the compartment bag 4 and the box body 1 is the storage area 6 located in the box body 1, and the compartment The back side of bag 4 is provided with horizontal medical appliance patch pocket 7, and the upper side of horizontal medical appliance patch pocket 7 is provided with inserting pen loop 8, and the side of horizontal medical appliance patch pocket 7 is provided with vertical medical appliance patch pocket 9. In addition, a handle 18 and a tug wheel 19 are respectively provided on the top and bottom of the casing 1, and a pull bar 20 is provided at the middle part of the back of the casing 1, and a strap 21 is provided on the outside of the pull rod 20; The supporting nuts 22 are symmetrical to each other, and the supporting nuts 22 correspond to the fixing nuts 23 on the inner surface of the box body 1 . The space formed by the front of the compartment bag 4 and the box cover 2 is equipped with an operating platform 10 made up of a table top 11 and a support rod 12. The support rod 12 is a foldable support rod, and the support rod 12 can be folded on the back of the table top 11; Wherein, connecting block 13 is provided between two support rods 12 on the width direction, and the both sides of connecting block 13 are respectively provided with certificate bag 14 and garbage storage bag 15, and this certificate bag 14 is positioned at the outside of support rod 12, and garbage collection Storage bag 15 is positioned at the inboard of support rod 12; Also be provided with rod cover 16 on the back of table top 11, and rod cover 16 is inserted with box body support rod 17, and one end of box body support rod 17 is provided with screw thread, and box body support rod 17 The other end is disc-shaped, and when the utility model is deployed, the threaded end of the box body support rod 17 is screwed into the support nut 22 to support the box body 1.

The utility model can realize function conversion according to actual needs, and is divided into physical examination area, specimen collection area, inspection area, blood collection area, heat sealing area, blood donation certificate area and supporting materials area. And equipped with physical examination form, publicity materials, signature pen, bar code, sphygmomanometer, paper clip, disposable vacuum blood collection tube and needle (take one sample for blood screening, and keep two samples for blood review), pulse pressing Tapes, cotton pads, iodophors, cotton swabs, sharps boxes, medical garbage bags, domestic garbage bags, disposable middle sheets, colloidal gold method rapid detection reagent strips and detection plates for infectious diseases, timers, ABO and Rh blood group reagents, Blood collection bag, hemostat, electronic scale, portable heat sealing machine, scissors, blood donation certificate, blood type stamp, signature pen and other materials.

When the utility model is in use, at first pull open the table bag zipper 3, take out the console 10, and take out the box support rod 17 under the table top 11 and then unfold the support rod 12, place the console 10 and the cabinet 1 side by side, and simultaneously Open the compartment bag zipper 5, turn over the compartment bag 4, and the whole process of blood collection can be carried out.

The technology not involved in the utility model can all be realized by prior art.

Claims (10)

1. portable blood sampling case and bag, comprise casing (1) and case lid (2), casing (1) and case lid (2) housing that constitutes by an active connection, the folding limit of casing (1) and case lid (2) is provided with dress table bag slide fastener (3), it is characterized in that being provided with compartment bag (4) between described casing (1) and the case lid (2), compartment bag (4) is movably connected by compartment bag slide fastener (5) and casing (1), the space that the back side of compartment bag (4) and casing (1) constitute is for being positioned at the storing part (6) of casing (1), the back side of compartment bag (4) is provided with horizontal medical apparatus out pocket (7), laterally the upside of medical apparatus out pocket (7) is provided with and inserts a loop (8), and laterally the side of medical apparatus out pocket (7) is provided with vertical medical apparatus out pocket (9); In the space that described compartment bag (4) is positive and case lid (2) constitutes operating board (10) is housed.

2. portable blood sampling case and bag according to claim 1, it is characterized in that described operating board (10) is made up of table top (11) and support bar (12), described support bar (12) is collapsible support bar, and support bar (12) is positioned at the back of table top (11).

3. portable blood sampling case and bag according to claim 2 is characterized in that being provided with between the described support bar (12) contiguous block (13), and the both sides of contiguous block (13) are respectively equipped with certificate bag (14) and rubbish is stored up bag (15).

4. portable blood sampling case and bag according to claim 3 is characterized in that described certificate bag (14) is positioned at the outside of support bar (12), and described rubbish is stored up the inboard that bag (15) is positioned at support bar (12).

5. portable blood sampling case and bag according to claim 2 is characterized in that the back of described table top (11) is provided with bar cover (16), are inserted with case supports bar (17) in the bar cover (16).

6. portable blood sampling case and bag according to claim 5 is characterized in that an end of described case supports bar (17) is provided with screw thread, and the other end of case supports bar (17) is discoid.

7. portable blood sampling case and bag according to claim 1 is characterized in that the top of described casing (1) is provided with carrying handle (18), and the bottom of casing (1) is provided with tugboat (19).

8. according to claim 1 or 7 described portable blood sampling case and bag, it is characterized in that the middle part, the back side of described casing (1) is provided with pull bar (20), the outside of pull bar (20) is provided with braces (21).

9. according to claim 1 or 7 described portable blood sampling case and bag, the back side that it is characterized in that described casing (1) is provided with symmetrical support nut (22) for four jiaos, and described support nut (22) is corresponding with the hold-doun nut (23) of casing (1) inner face.

10. portable blood sampling case and bag according to claim 1 is characterized in that described dress table bag slide fastener (3) is corresponding with the position of compartment bag slide fastener (5).
