CN202071656U - Suspension device for mining vehicle - Google Patents

Abstract

The utility model discloses a suspension device for a mining vehicle, which comprises: a balance arm: V-shaped, the ridge is hinged on the vehicle frame between the double rear axles; two oil-gas springs: the double rear axles are located between the two Between the two oil and gas springs, the outer cylinder of the oil and gas spring is tightly connected to the frame; two elastic beams: respectively located on both sides of the balance arm; balance bracket: fixed on the frame between the double rear axles; two upper thrust rods : respectively located on both sides of the balance bracket; two ends of each upper thrust rod are respectively hinged to the second straight section of the elastic beam on the same side and the upper part of the balance bracket; two lower thrust rods: respectively located on both sides of the balance bracket; The two ends of the thrust rod are respectively hinged on the same side of the axle and the lower part of the balance bracket; two lateral thrust rods: extend along the direction of the axle, and the two ends of each lateral thrust rod are respectively hinged between the vehicle frame and the axle bag bracket. The utility model improves the reliability of the vehicle.

Description

Suspension device for mining vehicles

technical field

The utility model relates to a suspension device, in particular to a suspension device suitable for mining vehicles with a weight below 100 tons.

Background technique

At present, mining vehicles with a total weight of less than 100t generally use the balanced suspension device of ordinary heavy-duty vehicles. As shown in Figure 1, the balanced suspension device of this common heavy-duty vehicle mainly contains by leaf spring 5, leaf spring seat 3, saddle bolt 7 and limit piece 1 to form. The leaf spring 3 is formed by fastening a group of stacked leaf springs through saddle bolts 7, elastically connects the vehicle frame 2 and the axle 6, and bears the vertical load. The balance suspension device of this ordinary heavy-duty vehicle is directly applied on the mining vehicle after a slightly improved design. Due to the special working environment of the mining vehicle, the load is large and the working conditions are harsh. Therefore, during use, the rear axle leaf spring 3 limit block and the leaf spring 3 front and rear brackets are abnormally worn, and the end cover of the balance shaft 4 is cracked, and the plate Faults such as single-piece breakage of the spring 3 and breakage of the saddle bolt 7 lead to a high failure rate of the suspension device and a decrease in the quality and reliability of the vehicle. However, due to the limitations of the current leaf spring structure design and insufficient manufacturing process, it is difficult to increase enough load-carrying capacity to meet the requirements for the use of the suspension device of large mining vehicles.

Contents of the invention

The technical problem to be solved by the utility model is to provide a suspension device for a mining vehicle, which improves the reliability of the vehicle.

In order to solve the problems of the technologies described above, the technical solution of the utility model is:

A suspension device for a mining vehicle, comprising:

Balance arm: V-shaped, the spine is hinged on the frame between the double rear axles;

Two oil-pneumatic springs: the double rear axle is located between the two oil-pneumatic springs, and the outer cylinder of the oil-pneumatic spring is tightly connected to the frame;

Two elastic beams: respectively located on both sides of the balance arm; the elastic beam includes the first straight section, the connecting section and the second straight section connected in sequence, the free end of the first straight section is hinged to the push rod of the oil-pneumatic spring on the same side, and the second straight section The free ends of the two straight sections are hinged to one end of the balance arm; the corresponding part of the second straight section to the axle is hinged to the axle;

Balance bracket: fixed on the frame between the double rear axles;

Two upper thrust rods: respectively located on both sides of the balance bracket; the two ends of each upper thrust rod are respectively hinged to the second straight section of the elastic beam on the same side and the upper part of the balance bracket;

Two lower thrust rods: respectively located on both sides of the balance bracket; the two ends of each lower thrust rod are respectively hinged to the lower part of the same side axle and the balance bracket;

Two transverse thrust rods: extend along the axle direction, and the two ends of each transverse thrust rod are respectively hinged between the vehicle frame and the axle bag bracket.

The balance arm is arranged in an inverted V shape.

The first straight section of the elastic beam is located below the second straight section.

The second straight section of the elastic beam is located above the axle.

The balance arm and the balance bracket are located at the same place of the vehicle frame.

The suspension device is arranged symmetrically as a whole.

A suspension device for a mining vehicle, comprising two suspension devices for a mining vehicle according to any one of claims 1 to 6, located at both ends of the axle respectively.

The utility model adopts a series form, realizes the full-suspension balance movement of the double rear axle, meets the movement requirements of the balance suspension of the mining vehicle, improves the vehicle carrying capacity, reduces the wear of moving parts, and improves the reliability of the vehicle.

Description of drawings

Below in conjunction with accompanying drawing, the specific embodiment of the present utility model is described in further detail:

Fig. 1 is a schematic structural diagram of the prior art.

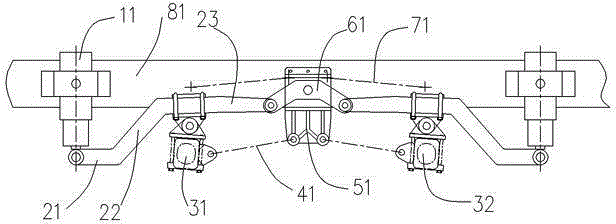

Fig. 2 is a structural schematic diagram of a suspension device for a mine vehicle of the present invention.

In the figure: 1 limit block, 2 frame, 3 leaf spring seat, 4 balance shaft, 5 leaf spring, 6 rear axle, 7 saddle bolt, 11 oil and gas spring, 21 first straight section, 22 connecting section, 23 second Straight section, 31 rear axle I, 32 rear axle II, 41 lower thrust rod, 51 balance bracket, 61 balance arm, 71 upper thrust rod, 81 frame.

Detailed ways

As shown in Figure 2, a suspension device for a mining vehicle is mainly composed of a balance arm 61, an oil-gas spring 11, an elastic beam, a balance bracket 51, an upper thrust rod 71, a lower thrust rod 41 and a lateral thrust rod (not shown in the figure). Out) composition, oil gas spring 11, elastic beam, upper thrust rod 71, lower thrust rod 41 and transverse thrust rod are two.

in:

The balance arm 61 is V-shaped, and its spine is hinged on the vehicle frame 81 between the double rear axles (rear axle I 31 and rear axle II 32 shown in the figure). Preferably, the balance arm 61 is arranged in an inverted V shape. Preferably, the distance between the hinge point and the double rear axle is approximately equal.

The two oil-pneumatic springs 11 are respectively located outside the double rear axles. In other words, the double rear axles are located between the two oil-pneumatic springs 11 , and the outer cylinders of the oil-pneumatic springs 11 are tightly connected to the vehicle frame 81 . Preferably, the push rod of the oil-pneumatic spring 11 protrudes downwards.

Two elastic beams are respectively located on two sides of the balance arm 61 . The elastic beam includes a first straight section 21 , a connecting section 22 and a second straight section 23 which are sequentially connected. The free end of the first straight section 21 is hinged to the push rod of the oil-pneumatic spring 11 on the same side, the free end of the second straight section 23 is hinged to one end of the balance arm 61, and the corresponding part of the second straight section 23 and the axle is hinged to the axle . The elastic beam is equivalent to the leaf spring of the air suspension device, which bears the load and transmits the force. Preferably, the first straight section 21 of the elastic beam is located below the second straight section 23 . Preferably, the second straight section 23 of the elastic beam is located above the axle.

The balance bracket 51 is fixed on the vehicle frame 81 between the double rear axles. Preferably, the balance arm 61 and the balance bracket 51 are located at the same place of the vehicle frame 81 .

Two upper thrust rods 71 are respectively located on both sides of the balance bracket 51 . Both ends of each upper thrust rod 71 are respectively hinged to the second straight section 23 of the elastic beam on the same side and the upper part of the balance bracket 51 . Preferably, the hinge joint between the upper thrust rod 71 and the second straight section 23 is close to the connecting end.

The two lower thrust rods 41 are respectively located on both sides of the balance bracket 51 . Both ends of each lower thrust rod 41 are respectively hinged to the same side axle and the lower part of the balance bracket 51 .

Two transverse thrust rods extend along the axle direction, and the two ends of each transverse thrust rod are respectively hinged between the vehicle frame 81 and the axle bag bracket.

Preferably, the suspension device is arranged symmetrically as a whole.

A suspension device for a mining vehicle comprises two above-mentioned suspension devices for a mining vehicle, which are respectively located at two ends of a vehicle axle.

As shown in Figure 2, the utility model adopts a series suspension, and two elastic beams and a balance arm 61 are connected in series to the double rear axle and the vehicle frame 81, and the balance movement is realized through the balance arm 61. The elastic beam is responsible for the transmission of the driving force and the torsion of the frame. When the elastic beam is subjected to changes in the load of the axle, the elastic beam will directly transmit the force to the oil-pneumatic spring 11, and at the same time pass it to another oil-pneumatic spring 11 through the balance arm 61, thereby reach a new balance. The oil-pneumatic spring 11 connects the elastic beam and the vehicle frame 81 to bear the chassis load and shock absorption. The upper and lower thrust rods 71, 41 transmit force to realize driving, ensuring the installation and positioning angle and translation of the vehicle axle. Lateral forces are borne by lateral thrust rods (not shown in the figure). the

The utility model replaces the suspension device of the original ordinary heavy-duty vehicle on the mining vehicle, focuses on solving the common faults of the suspension device of the rear axle, reduces the frequency of maintenance, and reduces the cost of use, thereby improving the reliability of the quality of the whole vehicle. It meets the current requirements for the use of suspension devices for domestic mining vehicles.

Claims (7)

1. A mine vehicle suspension device, characterized in that: comprising: Balance arm: V-shaped, the spine is hinged on the frame between the double rear axles; Two oil-pneumatic springs: the double rear axle is located between the two oil-pneumatic springs, and the outer cylinder of the oil-pneumatic spring is tightly connected to the frame; Two elastic beams: respectively located on both sides of the balance arm; the elastic beam includes the first straight section, the connecting section and the second straight section connected in sequence, the free end of the first straight section is hinged to the push rod of the oil-pneumatic spring on the same side, and the second straight section The free ends of the two straight sections are hinged to one end of the balance arm; the corresponding part of the second straight section to the axle is hinged to the axle; Balance bracket: fixed on the frame between the double rear axles; Two upper thrust rods: respectively located on both sides of the balance bracket; the two ends of each upper thrust rod are respectively hinged to the second straight section of the elastic beam on the same side and the upper part of the balance bracket; Two lower thrust rods: respectively located on both sides of the balance bracket; the two ends of each lower thrust rod are respectively hinged to the lower part of the same side axle and the balance bracket; Two transverse thrust rods: extend along the axle direction, and the two ends of each transverse thrust rod are respectively hinged between the vehicle frame and the axle bag bracket. 2. The suspension device for mining vehicles according to claim 1, wherein the balance arm is arranged in an inverted V shape. 3. The suspension device for mining vehicles according to claim 1, wherein the first straight section of the elastic beam is located below the second straight section. 4. The suspension device for mining vehicles according to claim 1, characterized in that: the second straight section of the elastic beam is located above the axle. 5. The suspension device for mining vehicles according to claim 1, characterized in that: the balance arm and the balance bracket are located at the same place of the vehicle frame. 6. The suspension device for mining vehicles according to claim 1, characterized in that: the suspension device is arranged symmetrically as a whole. 7. A suspension device for a mining vehicle, characterized in that it comprises two suspension devices for a mining vehicle according to any one of claims 1 to 6, located at both ends of the axle respectively.
