Abstract
高副式芯棒测量器，包括移动芯棒、测量芯棒、底板和面板，所述面板和底板均是长方体结构，所述面板固定在所述底板上，所述面板上开有长条状的滑移槽，所述滑移槽的两端是圆弧结构；所述底板在滑移槽的一端下方的位置开有一与光孔，所述光孔与底板上面积大的一面垂直，所述测量芯棒穿过滑移槽过渡配合安装在光孔内；所述移动芯棒可移动的安装在滑移槽内，所述移动芯棒与底板接触端是球形状。本实用新型的有意效果：测量尺寸精度高，且结构简单合理，使用方便。
The high sub-type mandrel measuring device includes a moving mandrel, a measuring mandrel, a base plate and a panel. The panel and the base plate are both rectangular parallelepiped structures. The panel is fixed on the base plate. The two ends of the sliding groove are circular arc structures; the bottom plate has a light hole at the position below one end of the sliding groove, and the light hole is perpendicular to the side with a large area on the bottom plate, so The measuring mandrel passes through the sliding groove and is installed in the optical hole through a transition fit; the moving mandrel is movably installed in the sliding groove, and the contact end of the moving mandrel and the bottom plate is in the shape of a ball. The intentional effect of the utility model is that the measurement precision is high, the structure is simple and reasonable, and the use is convenient.
Description
Technical field
The utility model relates to a kind of higher pair formula plug measuring appliance.
Background technology
Two dovetail class size detection special measurement instrument, see Fig. 1-3, comprise mobile plug 2 ', measure plug 1 ', base plate 4 ' and panel 3 ', described panel 3 ' and base plate 4 ' all are rectangular structure, the described base plate 4 of described panel 3 ' be fixed on ' on, described panel 3 ' on have the slippage slot 5 of strip ', described slippage slot 5 ' two ends are arc structures; Described base plate 4 ' slippage slot 5 ' an end below the position have one with unthreaded hole 6 ', described unthreaded hole 6 ' vertical with the one side that base plate 4 ' last area is big, described measurement plug 1 ' pass slippage slot 5 ' transition fit be installed in unthreaded hole 6 ' in; Described mobile plug 2 ' movably be installed in slippage slot 5 ' in.The two dovetail class size detection special measurement instrument of this kind are used wider in the dimension process that detects two dovetail class Shape Parts, accuracy of detection is also higher, but because mobile plug 2 ' be face with base plate 4 ' surface of contact to contact, make friction force between the two bigger, moving 2 ' time of plug with measurer, used ergometry is bigger, and causes that accuracy of detection decreases in the testing process.
Summary of the invention
For solving the problem that reduces with the precision of two dovetail class size detection special measurement instrument in measuring process, the utility model provides a kind of measuring accuracy high higher pair formula plug measuring appliance.
The technical solution of the utility model:
Higher pair formula plug measuring appliance, comprise mobile plug, measure plug, base plate and panel, described panel and base plate all are rectangular structure, and described panel is fixed on the described base plate, have the slippage slot of strip on the described panel, the two ends of described slippage slot are arc structures; The position of described base plate below an end of slippage slot has one and unthreaded hole, and the one side that area is big on described unthreaded hole and the base plate is vertical, and described measurement plug passes the slippage slot transition fit and is installed in the unthreaded hole; Described mobile plug movably is installed in the slippage slot, it is characterized in that: described mobile plug and base plate contact jaw are ball shapes.
Further, described unthreaded hole is fraising.
Further, described panel is fixedlyed connected by straight pin with base plate.
Each face of panel of the present utility model and base plate has certain flatness and roughness requirement, and each corresponding surface has certain depth of parallelism requirement.The one side that area is big on unthreaded hole on the base plate and the base plate has certain verticality requirement, and for fraising, certain roughness and deviation from circular from is arranged; With the measurement plug of corresponding specification requirement be its transition fit, like this, the measurement disc of measuring plug and base plate can reach the vertical requirement of corresponding specification.The upper surface of mobile plug and bottom surface also has certain verticality requirement, mobile plug and base plate contact jaw are ball shapes, make that the contact form of its base plate surface of contact is the higher pair contact of a contact, thereby the ergometry in the time of being reduced in slippage in the testing process and moving plug can further improve accuracy of detection.
In measuring process, as long as the part of two dovetails and so on shape is lain on the panel of higher pair formula plug measuring appliance described in the utility model, measure the plug place wherein simultaneously touching earlier, again mobile plug is moved to the another side contact of dovetail by the slippage slot in the panel, measure the physical size of dovetail with measurer, also can detect the error of perpendicularity value (gap of detecting two surface of contact with clearance gauge gets final product) of each shape face of dovetail and reference field simultaneously.
When using the utility model to measure, the verticality that the end face of twin-core rod and plug are measured between the disc is not got in touch with the part dimension measurement of two dovetails and so on shape, when detecting two dovetails and so on Shape Parts, as long as measure the distance of the measurement disc outer end of mobile plug to the measurement disc outer end of measuring plug; Simultaneously, because the twin-core rod all is inserted among the panel, its degree of freedom has been subjected to control, has changed unsteady detection problem; Mobile plug contacts with the point of base plate, and the ergometry when being reduced in slippage in the testing process and moving plug can further improve accuracy of detection.
Effect intentionally of the present utility model: measurement size precision height, and simple and reasonable, easy to use.
Description of drawings
Fig. 1 is the vertical view of two dovetail class size detection special measurement instrument.
Fig. 2 be two dovetail class size detection special measurement instrument along A-A among Fig. 1 to cut-open view.
Fig. 3 be two dovetail class size detection special measurement instrument along B-B among Fig. 1 to cut-open view.
Fig. 4 is a vertical view of the present utility model.

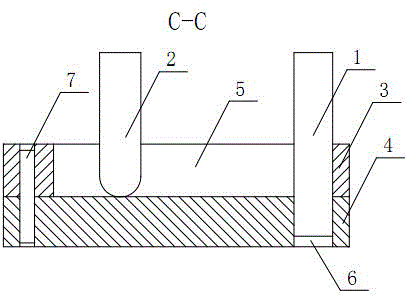

Fig. 5 be the utility model along C-C among Fig. 4 to cut-open view.
Fig. 6 be the utility model along D-D among Fig. 4 to cut-open view.
Fig. 7 is the utility model measuring process synoptic diagram.
Embodiment
With reference to Fig. 4-6, higher pair formula plug measuring appliance, comprise mobile plug 2, measure plug 1, base plate 4 and panel 3, described panel 3 and base plate 4 all are rectangular structure, described panel 3 is fixed on the described base plate 4, have the slippage slot 5 of strip on the described panel 3, the two ends of described slippage slot 5 are arc structures; The position of described base plate 4 below an end of slippage slot 5 have one with unthreaded hole 6, the one side that area is big on described unthreaded hole and the base plate 4 is vertical, described measurement plug 1 passes slippage slot 5 transition fit and is installed in the unthreaded hole 6; Described mobile plug 2 movably is installed in the slippage slot 5, and described mobile plug 2 is ball shapes with base plate 4 contact jaws.
Described unthreaded hole 6 is fraisings.
Described panel 3 is fixedlyed connected by straight pin 7 with base plate 4.
Each face of panel 3 of the present utility model and base plate 4 has certain flatness and roughness requirement, and each corresponding surface has certain depth of parallelism requirement.The one side that area is big on unthreaded hole 6 on the base plate 4 and the base plate 4 has certain verticality requirement, and for fraising, certain roughness and deviation from circular from is arranged; With the measurement plug 1 of corresponding specification requirement be its transition fit, like this, the measurement disc of measuring plug 1 and base plate can reach the vertical requirement of corresponding specification.Mobile plug 2 also has certain verticality requirement with the upper surface of bottom surface 4, mobile plug 2 is ball shapes with base plate 4 contact jaws, make that its contact form with base plate 4 surface of contact is the higher pair that a contacts contact, thereby the ergometry in the time of being reduced in slippage in the testing process and moving plug 2 can further improve accuracy of detection.
In measuring process, see Fig. 7, as long as the part 8 of two dovetails and so on shape is lain on the panel 3 of higher pair formula plug measuring appliance described in the utility model, measure plug 1 place wherein simultaneously touching earlier, again mobile plug 2 is moved to the another side contact of dovetail by the slippage slot in the panel 35, measure the physical size of dovetail with measurer, also can detect the error of perpendicularity value (gap of detecting two surface of contact with clearance gauge gets final product) of each shape face of dovetail and reference field simultaneously.
When using the utility model to measure, the verticality that the end face of twin-core rod and plug are measured between the disc is not got in touch with the part dimension measurement of two dovetails and so on shape, when detecting two dovetails and so on Shape Parts, as long as measure the distance of the measurement disc outer end of mobile plug 2 to the measurement disc outer end of measuring plug 1; Simultaneously, because the twin-core rod all is inserted among the panel, its degree of freedom has been subjected to control, has changed unsteady detection problem; Mobile plug 2 contacts with the point of base plate 4, and the ergometry when being reduced in slippage in the testing process and moving plug 2 can further improve accuracy of detection.
The described content of this instructions embodiment only is enumerating the way of realization of utility model design; protection domain of the present utility model should not be regarded as only limiting to the concrete form that embodiment states, protection domain of the present utility model also reach in those skilled in the art according to the utility model design the equivalent technologies means that can expect.
