本实用新型公开一种高压电线杆稳定装置，包括三角形框架，三角形框架上设置有挡渣筒固定架，挡渣筒固定架上设置有挡渣筒，挡渣筒的中部与三角形框架之间设置有侧支撑梁，在挡渣筒的中部设置有套筋，侧支撑梁设置在套筋与三角形框架之间。本实用新型结构简单，只需要三根废弃的角钢或者槽钢就可以构成框架，挡渣筒固定架和侧支撑梁均可以用废弃的钢板或角钢或槽钢等边角料，不需要专门准备材料，节省了成本。同时在使用时，不用在地上挖掘大坑，只要将安装好的电线杆插接进本实用新型的挡渣筒内，用推土机将其推到相应的位置，即可架设高压线路，移动非常方便，由于设置有侧支撑梁，避免了高压电线杆在推动过程中倾斜歪倒，使用安全可靠，降低了工人的劳动强度，减少了人工，节约了成本。
The utility model discloses a stabilizing device for a high-voltage electric pole, which comprises a triangular frame, on which a slag-retaining cylinder fixing frame is arranged, on which a slag-retaining cylinder is arranged, and a slag-retaining cylinder is arranged between the middle part of the slag-retaining cylinder and the triangular frame There is a side support beam, and a set of ribs is arranged in the middle of the slag retaining cylinder, and the side support beam is arranged between the set of ribs and the triangular frame. The utility model has a simple structure, and only needs three discarded angle steels or channel steels to form a frame, and both the waste steel plates, angle steels or channel steels and other leftover materials can be used for the slag retaining tube fixing frame and side support beams, without special preparation of materials, saving costs. At the same time, when in use, there is no need to dig a large pit on the ground, as long as the installed utility pole is plugged into the slag retaining cylinder of the utility model, and the bulldozer is used to push it to the corresponding position, the high-voltage line can be erected, and the movement is very convenient , due to the side support beams, avoiding the tilting of the high-voltage utility pole during the pushing process, the use is safe and reliable, the labor intensity of the workers is reduced, the labor is reduced, and the cost is saved.
Description
Technical field
The utility model relates to a kind of stabilising arrangement of power line bar.
Background technology
The running of mine main equipment is to use high-tension electricity as power, and power line uses concrete wire or wooden pole.The mobile high-voltage line set up the wooden pole that needs 6-8 rice. because equipment such as power shovel move frequently, electric pole often needs mobile.Whenever move once, the linesman promptly needs to excavate the hollow place of a degree of depth more than one meter, is used for burying underground electric pole and it is fixed, and guarantees the stability of stringing.Waste great amount of manpower like this, and working strength of workers is also bigger.
Summary of the invention
The purpose of this utility model is to overcome above-mentioned deficiency a kind of power line bar stabilising arrangement is provided.
The purpose of this utility model is achieved through the following technical solutions:
A kind of power line bar stabilising arrangement comprises triangular framing, and triangular framing is provided with the sediment block canister fixed mount, and the sediment block canister fixed mount is provided with sediment block canister, is provided with the side brace summer between the middle part of sediment block canister and the triangular framing.
Above-mentioned pressure electric pole stabilising arrangement is provided with the cover muscle at the middle part of sediment block canister, and the side brace summer is arranged between cover muscle and the triangular framing.
Above-mentioned power line bar stabilising arrangement, described sediment block canister fixed mount crosses the circumscribed circle center of circle of triangular framing by three and three steel plates on summit constitute, and the center of circle at sediment block canister place overlaps with the crosspoint of three steel plates.
Above-mentioned power line bar stabilising arrangement, a steel plate of described side brace summer, sediment block canister fixed mount or its extended line and pushing off the slag barrel form right angle triangle.
Above-mentioned power line bar stabilising arrangement, an end of described side brace summer and the mid point on any limit of triangular framing or the welding of place, any summit, the other end and the welding of cover muscle.
Adopt technique scheme, the utility model has following advantage: the utility model is simple in structure, only need three discarded angle steel or channel-section steel just can constitute framework, sediment block canister fixed mount and side brace summer all can be used discarded steel plate or leftover pieces such as angle steel or channel-section steel, do not need to prepare material specially, provide cost savings.Simultaneously in use, not be used in and excavate on the ground hollow place,, push it to corresponding position with bulldozer as long as mounted electric pole is pegged graft in the sediment block canister into of the present utility model, can set up high-tension line, mobile very convenient, owing to be provided with the side brace summer, avoided the power line bar to skew in the pushing course medium dip, safe and reliable, reduce working strength of workers, reduced manually, saved cost.
Description of drawings

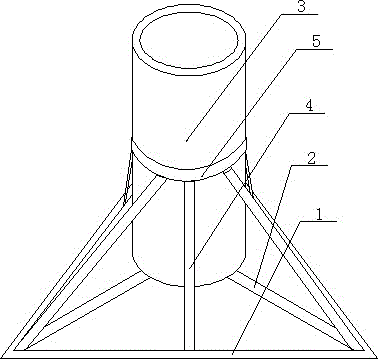

Fig. 1 is a structural representation of the present utility model.
Fig. 2 is the vertical view of Fig. 1.
The specific embodiment
A kind of power line bar stabilising arrangement as depicted in figs. 1 and 2, comprise triangular framing 1, triangular framing 1 is provided with sediment block canister fixed mount 2, sediment block canister fixed mount 2 is provided with sediment block canister 3, be provided with side brace summer 4 between the middle part of sediment block canister 3 and the triangular framing 1, be provided with cover muscle 5 at the middle part of sediment block canister 3, side brace summer 4 is arranged between cover muscle 5 and the triangular framing 1, described sediment block canister fixed mount 2 crosses the circumscribed circle center of circle of triangular framing by three and three steel plates on summit constitute, the center of circle at sediment block canister place overlaps with the crosspoint of three steel plates, described side brace summer, a steel plate of sediment block canister fixed mount or its extended line and pushing off the slag barrel form right angle triangle, one end of described side brace summer and the mid point on any limit of triangular framing or the welding of place, any summit, the other end and the welding of cover muscle.
Claims (5)
1. power line bar stabilising arrangement, comprise triangular framing (1), triangular framing (1) is provided with sediment block canister fixed mount (2), sediment block canister fixed mount (2) is provided with sediment block canister (3), is provided with side brace summer (4) between the middle part of sediment block canister (3) and the triangular framing (1).
2. according to the described power line bar of claim 1 stabilising arrangement, it is characterized in that: be provided with cover muscle (5) at the middle part of sediment block canister (3), side brace summer (4) is arranged between cover muscle (5) and the triangular framing (1).
3. power line bar stabilising arrangement according to claim 1 and 2, it is characterized in that: described sediment block canister fixed mount (2) crosses the circumscribed circle center of circle of triangular framing by three and three steel plates on summit constitute, and the center of circle at sediment block canister place overlaps with the crosspoint of three steel plates.
4. power line bar stabilising arrangement according to claim 3 is characterized in that: a steel plate of described side brace summer, sediment block canister fixed mount or its extended line and pushing off the slag barrel form right angle triangle.
5. power line bar stabilising arrangement according to claim 4 is characterized in that: an end of described side brace summer and the mid point on any limit of triangular framing or the welding of place, any summit, the other end and the welding of cover muscle.
