The utility model relates to building materials, in particular to a cement concrete composite self-insulation building block, which overcomes shortcomings of the prior art, is material-saving and has insulation effect. The building block is rectangular, an outer wall of a rectangular building block body and an inner wall of the rectangular building block body form the integral cement concrete composite self-insulation building block, an inverted-T-shaped groove is designed on the outer wall of the rectangular building block body, and a T-shaped groove is designed on the inner wall of the rectangular building block body. Insulation filling is poured inside the building block. The cement concrete composite self-insulation building block has the advantages that the cement concrete composite self-insulation building block is fine in insulation effect, high in strength, simple in production method, light in dead weight, low in water absorption and drying shrinkage and fine in sound insulation effect, is nonflammable, can meet the design requirement of construction on saving energy by 65% and fire protection requirements, and is suitable to be popularized and used.

Description

A kind of cement concrete composite thermal self-insulation building block
Technical field
The utility model relates to a kind of constructional materials, is specifically related to a kind of cement concrete composite thermal self-insulation building block.
Background technology
At present, building trade mainly adopts common brick and the materials for wall of some constructional materials as inner, external wall.Some is heavier for these materials, installs inconvenient; Performances such as some insulation, heat insulation, sound insulation, protection against the tide are poor.Along with the progress of society, scientific and technological constant development of economy is attached most importance to being considered to of aspects such as heat-insulating property of construction wall.Therefore, people have proposed the each side requirement of energy-saving and environmental protection, insulation to body of wall.Current, seek and replace common brick, the materials for wall that is better than common brick on quality and price, particularly nation-building portion propose will reach energy-conservation 50% requirement to wall thermal insulating, and making the energy and improving the building thermal technique condition has become pressing for of builing industry and even entire society.Technology such as the foamed brick of traditional common brick and various combined walls have appearred replacing in succession.As inside and outside heat-preserving wall, hollow concrete block wall, etc.But all there are drawbacks such as cost height, heat-insulating property is poor, floor space is big, intensity is low in these bodies of wall.
The utility model content
The purpose of this utility model is in order to solve deficiency of the prior art, provide a kind of can economical with materials, intensity height, plyability coagulating cement earth building blocks with insulation effect.
A kind of cement concrete composite thermal self-insulation building block, building block be shaped as rectangle, wherein rectangle building block body lateral wall and rectangle building block body inside wall have been formed the integral body of this utility model.Rectangle building block body lateral wall has the design of ⊥ type groove, and rectangle building block body inside wall has the design of T type groove.Wherein connect before and after the ⊥ type groove of rectangle building block body lateral wall, connect before and after the T type groove of rectangle building block body inside wall.The length of this utility model building block is 390 millimeters, and width is 240 millimeters.Heat insulating stuffing has been built in inside in building block, and this heat insulating stuffing is a foam concrete.
Cement concrete composite thermal self-insulation building block provided by the utility model has high insulating effect, advantage that intensity is high.Simultaneously, its production method is simple, and the concrete composite thermal self-insulation building block of producing has from heavy and light, water absorption rate is low, drying shrinkage is little, soundproof effect is good characteristics, can satisfy the designing requirement of building energy conservation 65%.The utility model can better economize on resources, and is fit to promote the use of.
Description of drawings

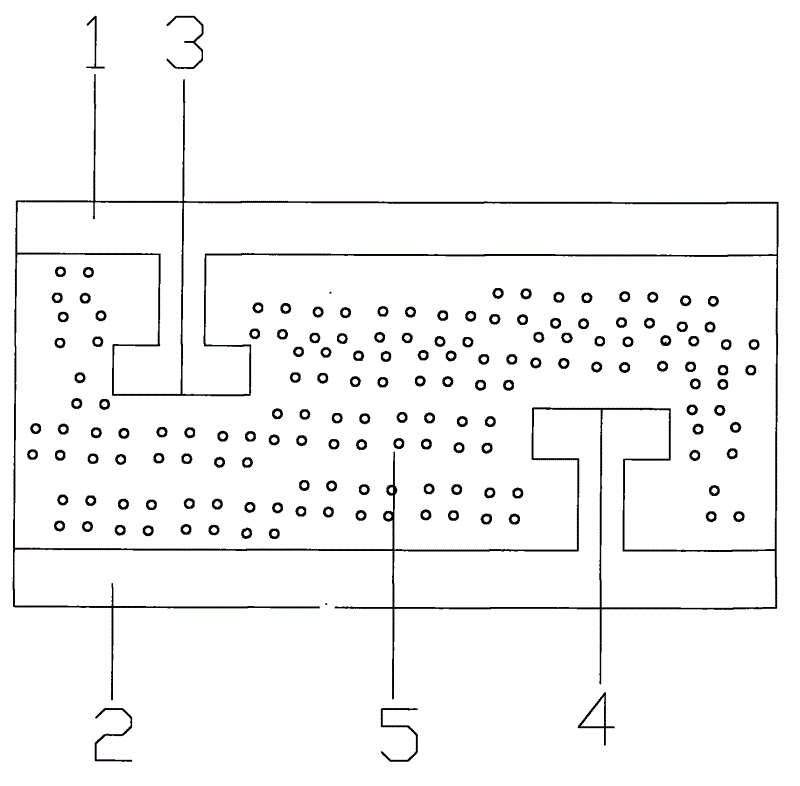

Fig. 1 is a structural representation of the present utility model;
Among the figure: 1, rectangle building block body lateral wall; 2, rectangle building block body inside wall; 3, ⊥ type groove; 4, T type groove; 5, heat insulating stuffing.
The specific embodiment
Following examples are used to illustrate the utility model, but are not used for limiting scope of the present utility model.
A kind of cement concrete composite thermal self-insulation building block also comprises the building block body that adopts ordinary concrete to make through molding apparatus, building block be shaped as rectangle, wherein inboard 2 walls of rectangle building block body lateral wall 1 and rectangle building block body have been formed the integral body of this utility model.Rectangle building block body lateral wall 1 has 3 designs of ⊥ type groove, and rectangle building block body inside wall 2 has 4 designs of T type groove.Wherein ⊥ type groove 3 front and back of rectangle building block body lateral wall 1 connect, and T type groove 4 front and back of rectangle building block body inside wall 2 connect.This structure design can better economize on resources, and reduces the expenditure of construction cost.Simultaneously, this body of wall adopts the thin seam of adhesive mortar to build by laying bricks or stones.The length of this utility model building block is 390 millimeters, and width is 240 millimeters.Built heat insulating stuffing 5 in the inside of building block, this heat insulating stuffing 5 is a foam concrete.This foam concrete can reach better insulation and soundproof effect.
Obviously, the foregoing description of the present utility model only is for the utility model example clearly is described, and is not to be qualification to embodiment of the present utility model.For those of ordinary skill in the field, can also make other changes in different forms on the basis of the above description.Here can't give exhaustive to all embodiments.Everyly belong to the row that conspicuous variation that the technical solution of the utility model extends out or change still are in protection domain of the present utility model.

Claims (5)

1. cement concrete composite thermal self-insulation building block, building block be shaped as rectangle, comprise rectangle building block body lateral wall and rectangle building block body inside wall, it is characterized in that the design of ⊥ type groove being arranged at rectangle building block body lateral wall, at rectangle building block body inside wall the design of T type groove is arranged.
2. composite thermal self-insulation building block on a kind of coagulating cement according to claim 1 is characterized in that the ⊥ type groove front and back of rectangle building block body lateral wall connect, and connects before and after the T type groove of rectangle building block body inside wall.
3. composite thermal self-insulation building block on a kind of coagulating cement according to claim 1, the length that it is characterized in that building block are 390 millimeters, and width is 240 millimeters.
4. composite thermal self-insulation building block on a kind of coagulating cement according to claim 3 is characterized in that heat insulating stuffing has been built in the inside of building block.
5. a kind of cement concrete composite thermal self-insulation building block according to claim 4 is characterized in that described heat insulating stuffing is a foam concrete.
