CN202054946U - Steam condensate mixing system for chemical fiber spinning - Google Patents
Steam condensate mixing system for chemical fiber spinning Download PDFInfo
- Publication number
- CN202054946U CN202054946U CN201120114652XU CN201120114652U CN202054946U CN 202054946 U CN202054946 U CN 202054946U CN 201120114652X U CN201120114652X U CN 201120114652XU CN 201120114652 U CN201120114652 U CN 201120114652U CN 202054946 U CN202054946 U CN 202054946U
- Authority
- CN
- China
- Prior art keywords
- tank
- steam condensate
- mixing system
- heater
- hybrid system
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02P—CLIMATE CHANGE MITIGATION TECHNOLOGIES IN THE PRODUCTION OR PROCESSING OF GOODS
- Y02P70/00—Climate change mitigation technologies in the production process for final industrial or consumer products
- Y02P70/50—Manufacturing or production processes characterised by the final manufactured product
- Y02P70/62—Manufacturing or production processes characterised by the final manufactured product related technologies for production or treatment of textile or flexible materials or products thereof, including footwear
Landscapes
- Spinning Methods And Devices For Manufacturing Artificial Fibers (AREA)
Abstract
本实用新型涉及一种混合系统，尤其涉及一种用在化纤纺丝设备中的蒸汽冷凝水混合系统。包括加热器，所述的加热器与蒸汽冷凝水混合系统相连通，所述的蒸汽冷凝水混合系统包括疏水管、储水池、连通管和油剂配制罐，所述的加热器和储水池通过疏水管相连通，所述的储水池和油剂配制罐通过连通管相连通，所述的油剂配制罐的侧壁设有排出口。用于化纤纺丝的蒸汽冷凝水混合系统结构简单，操作方便，节省能源，降低成本。
The utility model relates to a mixing system, in particular to a steam condensed water mixing system used in chemical fiber spinning equipment. Including a heater, the heater communicates with the steam condensate mixing system, the steam condensate mixing system includes a drain pipe, a water storage tank, a communication pipe and an oil preparation tank, and the heater and the water storage tank pass through The drain pipe is connected, the water storage tank and the oil preparation tank are connected through the communication pipe, and the side wall of the oil preparation tank is provided with a discharge port. The steam condensate water mixing system for chemical fiber spinning has simple structure, convenient operation, energy saving and cost reduction.
Description
Technical field
The utility model patent relates to a kind of hybrid system, relates in particular to a kind of steam condensate (SC) hybrid system that is used in the chemical fibre spinning equipment.
Background technology
In at present traditional chemical fibre spinning equipment, each all through the drain valve inflow Storm Sewer Network of draining, causes very big energy waste, the effectively utilization of can not accomplishing to circulate with condensed water behind the heat-obtaining of vapour position.
Summary of the invention
The utility model mainly is that the deficiencies in the prior art, the steam condensate (SC) hybrid system that is used for the chemical fibre spinning that provides a kind of energy to make full use of are provided.
Above-mentioned technical problem of the present utility model is mainly solved by following technical proposals:
A kind of steam condensate (SC) hybrid system that is used for the chemical fibre spinning, comprise heater, described heater is connected with the steam condensate (SC) hybrid system, described steam condensate (SC) hybrid system comprises drain pipe, tank, communicating pipe and finish preparing tank, described heater and tank are connected by drain pipe, described tank and finish preparing tank were connected by communicating pipe, and the sidewall of described finish preparing tank is provided with outlet.
The condensed water that drain valve is discharged converges, and is used as finish prepared and diluted liquid, and steam water is through the deionization processing, can be used for prepared and diluted liquid, saves a large amount of electric power and water resource, has reduced production cost simultaneously.
As preferably, be provided with drain valve in the described drain pipe, be provided with tubing pump in described communicating pipe, described outlet is the draining tap.
As preferably, an end of described drain pipe is connected the top of tank, and the end of described communicating pipe is connected the bottom sidewall of tank, and the other end of described communicating pipe is connected the top of finish preparing tank.
Therefore, the steam condensate (SC) hybrid system that is used for the chemical fibre spinning of the present utility model, simple in structure, easy to operate, save the energy, reduce cost.
Description of drawings

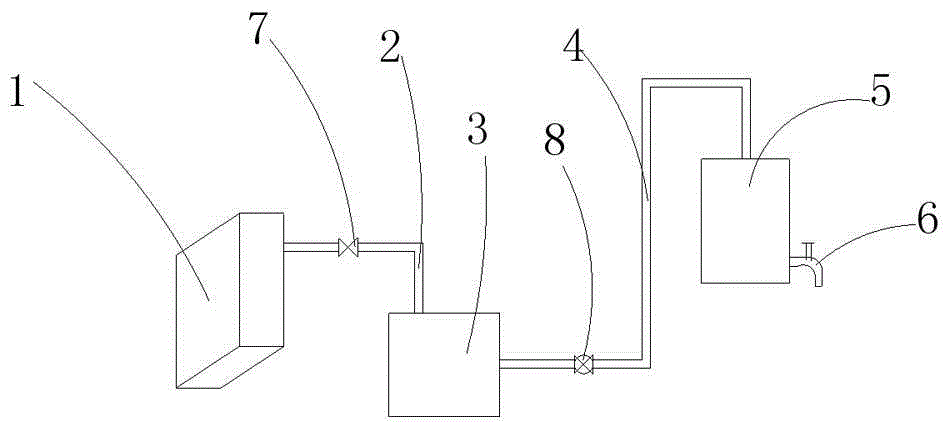

Fig. 1 is a structural representation of the present utility model.
The specific embodiment
Below by embodiment, and in conjunction with the accompanying drawings, the technical solution of the utility model is described in further detail.
Embodiment 1: as shown in Figure 1, a kind of steam condensate (SC) hybrid system that is used for the chemical fibre spinning, comprise heater 1, described heater 1 is connected with the steam condensate (SC) hybrid system, described steam condensate (SC) hybrid system comprises drain pipe 2, tank 3, communicating pipe 4 and finish preparing tank 5, described heater 1 and tank 3 are connected by drain pipe 2, described tank 3 and finish preparing tank 5 were connected by communicating pipe 4, the sidewall of described finish preparing tank 5 is provided with outlet 6, be provided with drain valve 7 in the described drain pipe 2, be provided with tubing pump 8 in described communicating pipe 4, described outlet 6 is the draining tap, one end of described drain pipe 2 is connected the top of tank 3, the end of described communicating pipe 4 is connected the bottom sidewall of tank 3, and the other end of described communicating pipe 4 is connected the top of finish preparing tank 5.
Claims (3)
1. steam condensate (SC) hybrid system that is used for the chemical fibre spinning, it is characterized in that: comprise heater (1), described heater (1) is connected with the steam condensate (SC) hybrid system, described steam condensate (SC) hybrid system comprises drain pipe (2), tank (3), communicating pipe (4) and finish preparing tank (5), described heater (1) and tank (3) are connected by drain pipe (2), described tank (3) and finish preparing tank (5) were connected by communicating pipe (4), and the sidewall of described finish preparing tank (5) is provided with outlet (6).
2. the steam condensate (SC) hybrid system that is used for the chemical fibre spinning according to claim 1, it is characterized in that: be provided with drain valve (7) in the described drain pipe (2), be provided with tubing pump (8) in described communicating pipe (4), described outlet (6) is the draining tap.
3. the steam condensate (SC) hybrid system that is used for the chemical fibre spinning according to claim 1 and 2, it is characterized in that: an end of described drain pipe (2) is connected the top of tank (3), the end of described communicating pipe (4) is connected the bottom sidewall of tank (3), and the other end of described communicating pipe (4) is connected the top of finish preparing tank (5).
