Abstract
本实用新型涉及一种复合管，特别是涉及一种聚氨酯螺旋复合耐磨管，聚氨酯螺旋复合耐磨管，从外到内由聚氨酯防腐层、轻质螺旋加强钢管、聚氨酯耐磨层组成；轻质螺旋加强钢管表面附着有聚氨酯防腐层，轻质螺旋加强钢管内衬聚氨酯耐磨层，轻质螺旋加强钢管内壁呈麻纹状，增加了粗糙度，增强了聚氨酯耐磨层与轻质螺旋加强钢管附着力，轻质螺旋加强钢管外壁附着有波峰螺旋加强筋，增强了轻质螺旋加强钢管的强度、减低了生产成本、重量比普通钢管可减轻30%，本实用新型轻质螺旋加强钢管内壁呈麻纹状，增加了粗糙度，增强了聚氨酯耐磨层与轻质螺旋加强钢管附着力，避免了轻质螺旋加强钢管与聚氨酯耐磨层的分离问题。
The utility model relates to a composite pipe, in particular to a polyurethane spiral composite wear-resistant pipe. The polyurethane spiral composite wear-resistant pipe is composed of a polyurethane anti-corrosion layer, a lightweight spiral reinforced steel pipe and a polyurethane wear-resistant layer from the outside to the inside; The surface of the high-quality spiral reinforced steel pipe is attached with a polyurethane anti-corrosion layer, and the lightweight spiral reinforced steel pipe is lined with a polyurethane wear-resistant layer. Steel pipe adhesion, the outer wall of the lightweight spiral reinforced steel pipe is attached with wave crest spiral reinforcing ribs, which enhances the strength of the lightweight spiral reinforced steel pipe, reduces the production cost, and can reduce the weight by 30% compared with ordinary steel pipes. It is grainy, which increases the roughness, enhances the adhesion between the polyurethane wear-resistant layer and the light spiral reinforced steel pipe, and avoids the separation of the light spiral reinforced steel pipe and the polyurethane wear-resistant layer.
Description
技术领域 technical field
本实用新型涉及一种复合管，特别是涉及一种聚氨酯螺旋复合耐磨管。 The utility model relates to a composite pipe, in particular to a polyurethane spiral composite wear-resistant pipe.
背景技术 Background technique
在现有技术中，传统的聚氨酯复合管从外到内分别由油漆防腐层、钢管、聚氨酯三层组成，在使用过程中主要存在以下缺点：（1）聚氨酯喷涂在钢管内壁，因钢管内壁较为光滑，长时间使用容易导致聚氨酯层脱落；（2）因钢管与聚氨酯层的膨胀系数不同，在受热条件下容易引起钢管和聚氨酯层的分离。 In the existing technology, the traditional polyurethane composite pipe is composed of three layers of paint anti-corrosion layer, steel pipe and polyurethane from the outside to the inside. During use, there are mainly the following disadvantages: (1) Polyurethane is sprayed on the inner wall of the steel pipe, because the inner wall of the steel pipe is relatively Smooth, long-term use will easily cause the polyurethane layer to fall off; (2) Due to the different expansion coefficients of the steel pipe and the polyurethane layer, it is easy to cause the separation of the steel pipe and the polyurethane layer under heated conditions.
发明内容 Contents of the invention
本实用新型所要解决的技术问题在于针对现有技术的不足，提供了一种聚氨酯螺旋复合耐磨管。 The technical problem to be solved by the utility model is to provide a polyurethane spiral composite wear-resistant pipe for the deficiencies of the prior art.
本实用新型采用的技术方案是： The technical scheme that the utility model adopts is:
聚氨酯螺旋复合耐磨管，从外到内由聚氨酯防腐层、轻质螺旋加强钢管、聚氨酯耐磨层组成；轻质螺旋加强钢管表面附着有聚氨酯防腐层，轻质螺旋加强钢管内衬聚氨酯耐磨层，轻质螺旋加强钢管与聚氨酯耐磨层粘连在一起，轻质螺旋加强钢管内壁呈麻纹状，增加了粗糙度，增强了聚氨酯耐磨层与轻质螺旋加强钢管附着力。 Polyurethane spiral composite wear-resistant pipe is composed of polyurethane anti-corrosion layer, light-weight spiral reinforced steel pipe and polyurethane wear-resistant layer from outside to inside; the surface of light-weight spiral-reinforced steel pipe is attached with polyurethane anti-corrosion layer, and the light-weight spiral-reinforced steel pipe is lined with polyurethane wear-resistant layer, the lightweight spiral reinforced steel pipe and the polyurethane wear-resistant layer are adhered together, the inner wall of the lightweight spiral reinforced steel pipe is textured, which increases the roughness and enhances the adhesion between the polyurethane wear-resistant layer and the lightweight spiral reinforced steel pipe.
所述轻质螺旋加强钢管外壁附着有波峰螺旋加强筋，增强了轻质螺旋加强钢管的强度、减低了生产成本、重量比普通钢管可减轻30%。 The outer wall of the light-weight spiral reinforced steel pipe is attached with wave-crested spiral reinforcement ribs, which enhances the strength of the light-weight spirally reinforced steel pipe, reduces production costs, and can reduce the weight by 30% compared with ordinary steel pipes.
本实用新型具有优异的耐磨性，由于内衬聚氨酯有较好的弹性，大大减轻了介质对管道内壁的直接强烈冲刷造成的磨损，其耐磨寿命是钢管的十几倍；内衬聚氨酯弹性体具有对称的分子结构，是对外呈无极性状态，形成不了对浆液中的Ca2+、Co32-、HCO3、OH等离子的吸附作用，形不成垢层，因此具有较好的耐酸、耐碱、防结垢性能；轻质螺旋加强钢管内壁呈麻纹状，增加了粗糙度，增强了聚氨酯耐磨层与轻质螺旋加强钢管附着力，避免了轻质螺旋加强钢管与聚氨酯耐磨层的分离问题。 The utility model has excellent wear resistance, because the lining polyurethane has good elasticity, which greatly reduces the wear caused by the direct and strong washing of the inner wall of the pipeline by the medium, and its wear-resistant life is more than ten times that of the steel pipe; the lining polyurethane is elastic The body has a symmetrical molecular structure and is in a non-polar state to the outside. It cannot form an adsorption effect on Ca2+, Co32-, HCO3, OH and other ions in the slurry, and cannot form a scale layer. Therefore, it has good acid resistance, alkali resistance and anti-coagulation. Scale performance; the inner wall of the light-weight spiral reinforced steel pipe is grainy, which increases the roughness, enhances the adhesion between the polyurethane wear-resistant layer and the light-weight spiral-reinforced steel pipe, and avoids the separation of the light-weight spiral-reinforced steel pipe and the polyurethane wear-resistant layer.
附图说明 Description of drawings

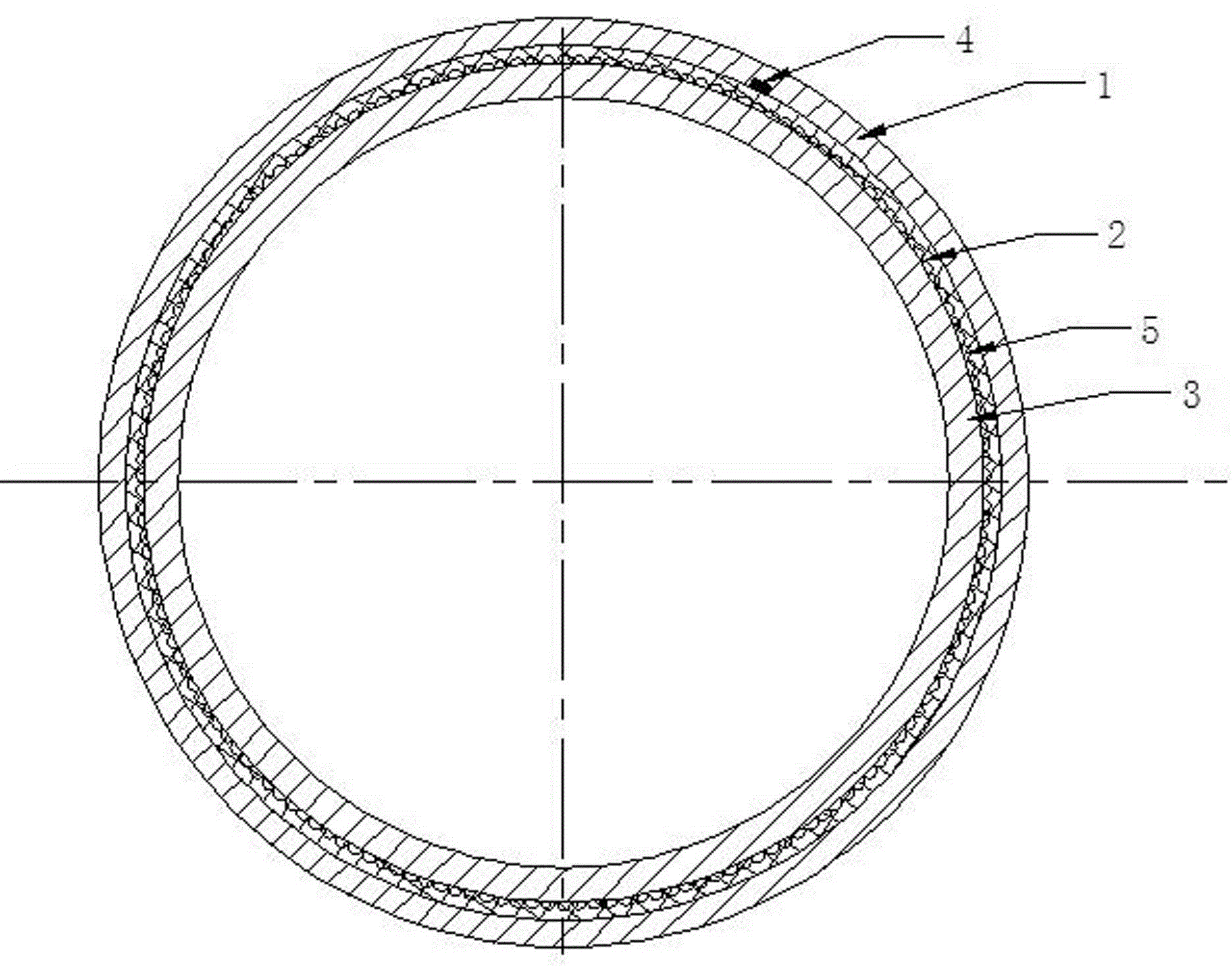

图1为本实用新型结构剖面图。 Fig. 1 is a structural sectional view of the utility model.

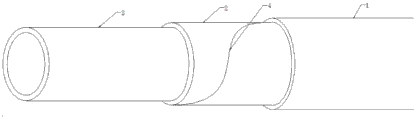

图2为本实用新型结构示意图。 Fig. 2 is a structural schematic diagram of the utility model.
具体实施方式 Detailed ways
如图1所示，聚氨酯螺旋复合耐磨管从外到内由聚氨酯防腐层1、轻质螺旋加强钢管2、聚氨酯耐磨层4组成；轻质螺旋加强钢管2表面附着有聚氨酯防腐层1，轻质螺旋加强钢管2内衬聚氨酯耐磨层4，轻质螺旋加强钢管2与聚氨酯耐磨层4粘连在一起，轻质螺旋加强钢管2内壁呈麻纹状3，增加了粗糙度，增强了聚氨酯耐磨层4与轻质螺旋加强钢管2附着力，轻质螺旋加强钢管2外壁附着有波峰螺旋加强筋5，增强了轻质螺旋加强钢管2的强度，在同样强度情况比普通钢管减轻30%的重量，同时减低了生产成本。
As shown in Figure 1, the polyurethane spiral composite wear-resistant pipe is composed of polyurethane anti-corrosion layer 1, light-weight spiral reinforced
本实用新型广泛应用于电力、冶金矿山、石油化工、煤炭、建材等领域的耐磨、耐腐蚀、防结垢的管路输送系统。 The utility model is widely used in wear-resistant, corrosion-resistant and anti-scaling pipeline conveying systems in the fields of electric power, metallurgical mines, petrochemical industry, coal, building materials and the like.
