Abstract
本实用新型涉及一种电力系统带电作业的架空线路带电作业导线固定装置，包括绝缘杆、导线固定夹，绝缘杆顶端设有螺纹结构，螺纹结构端部设有固定块；导线固定夹设置在螺纹结构上，且其在螺纹结构上的距离可调整，导线固定夹的顶端与固定块之间的空隙装有引流线。与现有技术相比，本实用新型的优点是：该装置用来固定易发生位移的引流线，可以大大提高带电作业的安全性；操作方便，安全可靠。
The utility model relates to a wire fixing device for live work of an overhead line in a power system, which comprises an insulating rod and a wire fixing clip. Structurally, and its distance on the threaded structure can be adjusted, and the gap between the top of the wire fixing clip and the fixing block is equipped with a drain wire. Compared with the prior art, the utility model has the advantages that: the device is used to fix the drainage wire that is prone to displacement, which can greatly improve the safety of live work; it is easy to operate, safe and reliable.
Description
技术领域 technical field
本实用新型涉及一种电力系统带电作业的绝缘手工工具。The utility model relates to an insulating hand tool for live work in a power system.
背景技术 Background technique
现有技术中，在同杆架设双回水平排列的杆塔上对上回线进行带电作业，作业人员与绝缘抖臂车无法穿越下回导线，必须使用长杆断线钳断进行断引。存在的问题是：断引时，引流线在应力作用下易产生位移而误碰其它带电体导致相间短路。In the prior art, live work is carried out on the upper circuit on the double-circuit horizontally arranged pole towers erected on the same pole. The operator and the insulating arm shaker cannot pass through the lower circuit, and must use long-pole bolt cutters to break and lead. The existing problem is: when the lead is disconnected, the drain wire is prone to displacement under the action of stress and accidentally touches other charged bodies, resulting in a short circuit between phases.
发明内容 Contents of the invention
本实用新型的目的是提供一种架空线路带电作业导线固定装置，该装置用来固定易发生位移的引流线，可以大大提高带电作业的安全性；操作方便，安全可靠。The purpose of this utility model is to provide a wire fixing device for overhead line live work, which is used to fix the drainage wire that is prone to displacement, which can greatly improve the safety of live work; it is easy to operate, safe and reliable.
为实现上述目的，本实用新型通过以下技术方案实现：In order to achieve the above object, the utility model is realized through the following technical solutions:
一种架空线路带电作业导线固定装置，包括绝缘杆、导线固定夹，绝缘杆顶端设有螺纹结构，螺纹结构端部设有固定块；导线固定夹设置在螺纹结构上，且其在螺纹结构上的距离可调整，导线固定夹的顶端与固定块之间的空隙装有引流线。A wire fixing device for live work on overhead lines, comprising an insulating rod and a wire fixing clip, the top of the insulating rod is provided with a threaded structure, and the end of the threaded structure is provided with a fixing block; the wire fixing clip is arranged on the threaded structure, and it The distance can be adjusted, and the gap between the top of the wire fixing clip and the fixing block is equipped with a drain wire.
与现有技术相比，本实用新型的优点是：Compared with the prior art, the utility model has the advantages of:
该装置用来固定易发生位移的引流线，可以大大提高带电作业的安全性；操作方便，安全可靠。The device is used to fix the drainage wire that is prone to displacement, which can greatly improve the safety of live work; it is easy to operate, safe and reliable.
附图说明 Description of drawings

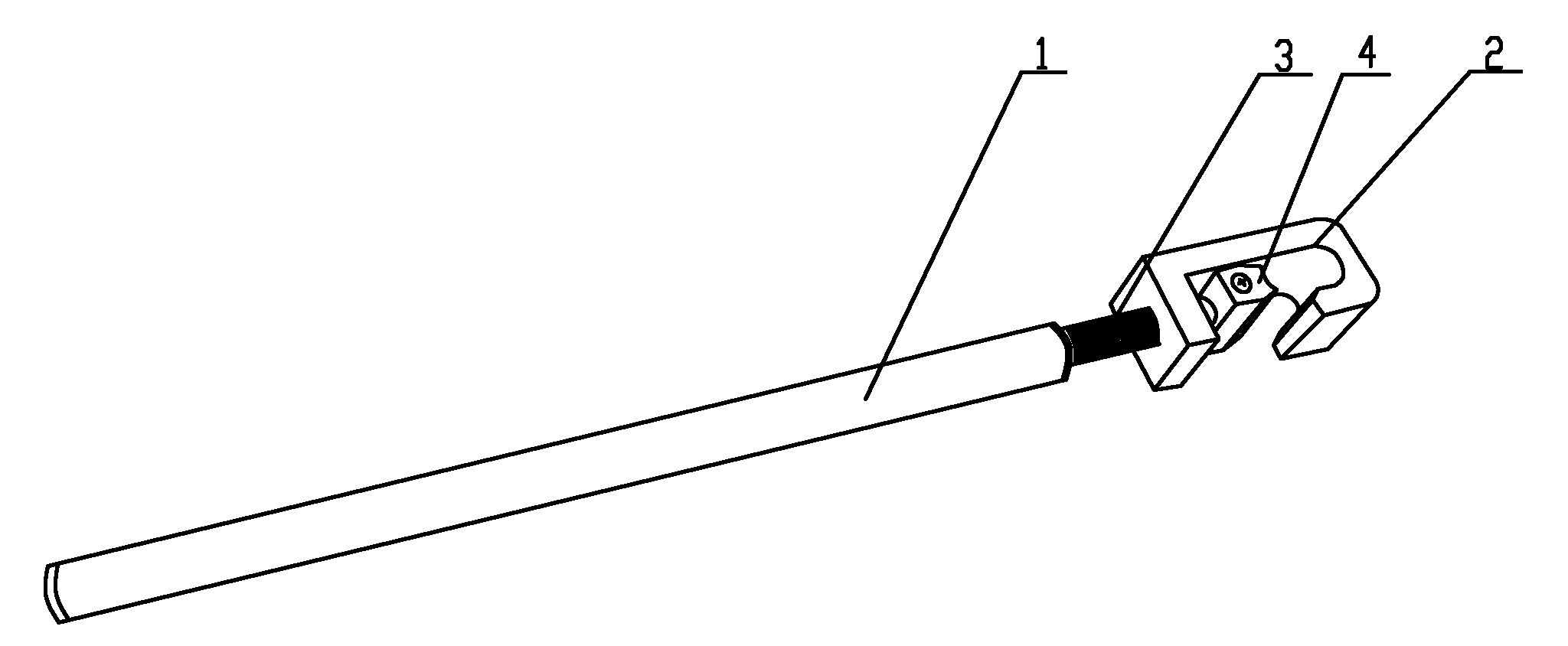

图1为架空线路带电作业导线固定装置的结构示意图。Fig. 1 is a structural schematic diagram of a wire fixing device for live work on an overhead line.
1-绝缘杆 2-导线固定夹 3-螺纹结构 4-固定块1-insulating rod 2-wire fixing clip 3-thread structure 4-fixing block
具体实施方式 Detailed ways
见图1，一种10kV架空线路带电作业导线固定装置，包括绝缘，1、导线固定夹2，绝缘杆1顶端设有螺纹结构3，螺纹结构3端部设有固定块4；导线固定夹2设置在螺纹结构3上，且其在螺纹结构3上的距离可调整，导线固定夹2的顶端与固定块4之间的空隙装有引流线。此固定装置需伸缩自如并能与引流线保持足够的安全距离，可以大大提高带电作业的安全性。As shown in Fig. 1, a 10kV overhead line live working wire fixing device includes insulation, 1,
