CN202021868U - Three-dimensional printed fabric - Google Patents
Three-dimensional printed fabric Download PDFInfo
- Publication number
- CN202021868U CN202021868U CN201120049775XU CN201120049775U CN202021868U CN 202021868 U CN202021868 U CN 202021868U CN 201120049775X U CN201120049775X U CN 201120049775XU CN 201120049775 U CN201120049775 U CN 201120049775U CN 202021868 U CN202021868 U CN 202021868U
- Authority
- CN
- China
- Prior art keywords
- fluff
- flower
- printed
- fine hair
- fabric
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 239000004744 fabric Substances 0.000 title claims abstract description 29
- 239000004753 textile Substances 0.000 abstract 1
- 238000009941 weaving Methods 0.000 description 4
- 238000005516 engineering process Methods 0.000 description 2
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000007812 deficiency Effects 0.000 description 1
- 239000000463 material Substances 0.000 description 1
- 238000009418 renovation Methods 0.000 description 1
Images
Landscapes
- Details Of Garments (AREA)
Abstract
The utility model relates to a fabric, which belongs to the field of textile fabrics. A three-dimensional printed fabric comprises base cloth (1), and is characterized in that: the upper surface of the base cloth (1) is provided with a printed layer (2); a fluff layer (3) is formed on the printed layer (2); the printed layer (2) comprises printed flower patterns (21); the fluff layer (3) comprises fluff flower patterns (31) and fluff blocks (32) of which the patterns are consistent; the fluff flower patterns (31) cover parts of the printed flower patterns (21); and the fluff blocks (32) have the consistent size and are uniformly distributed around the fluff flower patterns (31). Due to convex fluff with the flower patterns, the three-dimensional printed fabric has soft and comfortable handfeel, the bright and beautiful patterns of the printed fabric are shaded, and hazy feeling and third dimension of the three-dimensional printed fabric are enhanced.
Description
Technical field
The utility model relates to a kind of lining, is widely used in belonging to the weaving face fabric field on the article such as clothes, shoes and hats, headwear, handbag, case and bag and handicraft.
Background technology
Weaving face fabric is a material of making clothes, and the pattern of most of weaving face fabric is by weaving or printing technology is made, and its rich color, pattern are various, and the style renovation is fast, very popular.But mostly these linings are the plane lining, do not have third dimension.
Summary of the invention
The purpose of this utility model is to overcome above-mentioned deficiency, and a kind of relief stereoscopic printing fabric that is rich in is provided.
The purpose of this utility model is achieved in that a kind of stereoscopic printing fabric, comprise base cloth, the upper surface of described base cloth is a printed layers, the top of printed layers is tapetum, described printed layers comprises the printing flower, and described tapetum comprises fine hair flower and fine hair piece, and described fine hair flower is consistent with the fancy of printing flower, and fine hair flower cover part printing flower, described fine hair block size consistent and uniform is distributed in around the fine hair flower.
Compared with prior art, the beneficial effects of the utility model are: the protruding fine hair that has colored shape not only makes stereoscopic printing fabric soft comfortable, and has set off the gorgeous colored shape of printed fabric, has strengthened the dim sense and the third dimension of stereoscopic printing fabric.
Description of drawings
Fig. 1 is the utility model stereoscopic printing fabric floor map.

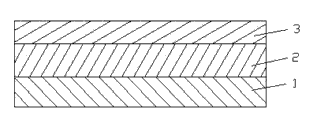

Fig. 2 is the structural representation of the utility model stereoscopic printing fabric.
Wherein: base cloth 1, printed layers 2, tapetum 3, printing spend 21, fine hair spends 31, fine hair piece 32.
The specific embodiment
Referring to Fig. 1 and Fig. 2, the utility model relates to a kind of stereoscopic printing fabric, comprises base cloth 1, and the upper surface of described base cloth 1 is a printed layers 2, and the top of printed layers 2 is tapetum 3.Described printed layers 2 comprises that printing beautiful in colour spends 21; Described tapetum 3 comprises that fine hair spends 31 and fine hair piece 32, fine hair spend 31 and fine hair piece 32 be with of the same colour.Described fine hair spends 31 to spend 21 fancy consistent with printing, and fine hair spends the printing of 31 cover parts to spend 21.Described fine hair piece 32 big or small consistent and uniforms are distributed in fine hair and spend around 31.
Claims (1)
1. stereoscopic printing fabric, comprise base cloth (1), it is characterized in that: the upper surface of described base cloth (1) is printed layers (2), the top of printed layers (2) is tapetum (3), described printed layers (2) comprises printing flower (21), described tapetum (3) comprises fine hair flower (31) and fine hair piece (32), described fine hair flower (31) is consistent with the fancy of printing flower (21), and fine hair flower (31) cover part printing flower (21), the big or small consistent and uniform of described fine hair piece (32) are distributed in fine hair flower (31) on every side.
