Abstract

本实用新型涉及电桩，具体为一种浇注三基电桩。浇注三基电桩，由埋地横杆、主桩组成，三支埋地横杆呈120度放射状连接在主桩底部，埋地横杆埋在地面下1至1.5米，埋地横杆、主桩为钢筋框笼浇注件。本实用新型在现场仅需开挖1至1.5米坑，不需要在地面上拉钢绳，稳定性好。

Figure 201120089351

The utility model relates to an electric pile, in particular to a pouring three-base electric pile. The cast three-base electric pile is composed of buried crossbars and main piles. The three buried crossbars are connected to the bottom of the main pile radially at 120 degrees. The buried crossbars are buried 1 to 1.5 meters below the ground. The buried crossbars, The main pile is a cast steel frame and cage. The utility model only needs to excavate a pit of 1 to 1.5 meters on the site, and does not need to pull steel ropes on the ground, and has good stability.

Figure 201120089351

Description

Cast three base electricity stakes
Technical field
Originally be that utility model relates to the electricity stake, be specially a kind of cast three base electricity stakes.
Background technology
Existing electrical outdoor stake is generally the buried straight cutting of cement casting straight-bar, inclines easily, often needs to draw steel cable to fix, and its safety is low, and floor space is big.
Summary of the invention
The utility model is just at above technical problem, provide a kind of rational in infrastructure, safe and reliable, do not need buried cast three base electricity stakes.
Cast three base electricity stakes, by bury the ground cross bar, king pile is formed, it is characterized in that: three are buried the ground cross bar and are the radial king pile bottom that is connected of 120 degree, bury the ground cross bar and are embedded in 1 to 1.5 meter of underground, bury cross bar, king pile be reinforcing steel bar frame cage pouring piece.
Advantage of the present utility model is: 1 to 1.5 meter hole only need be excavated in the scene, does not need to draw on the ground steel cable, good stability.
Description of drawings

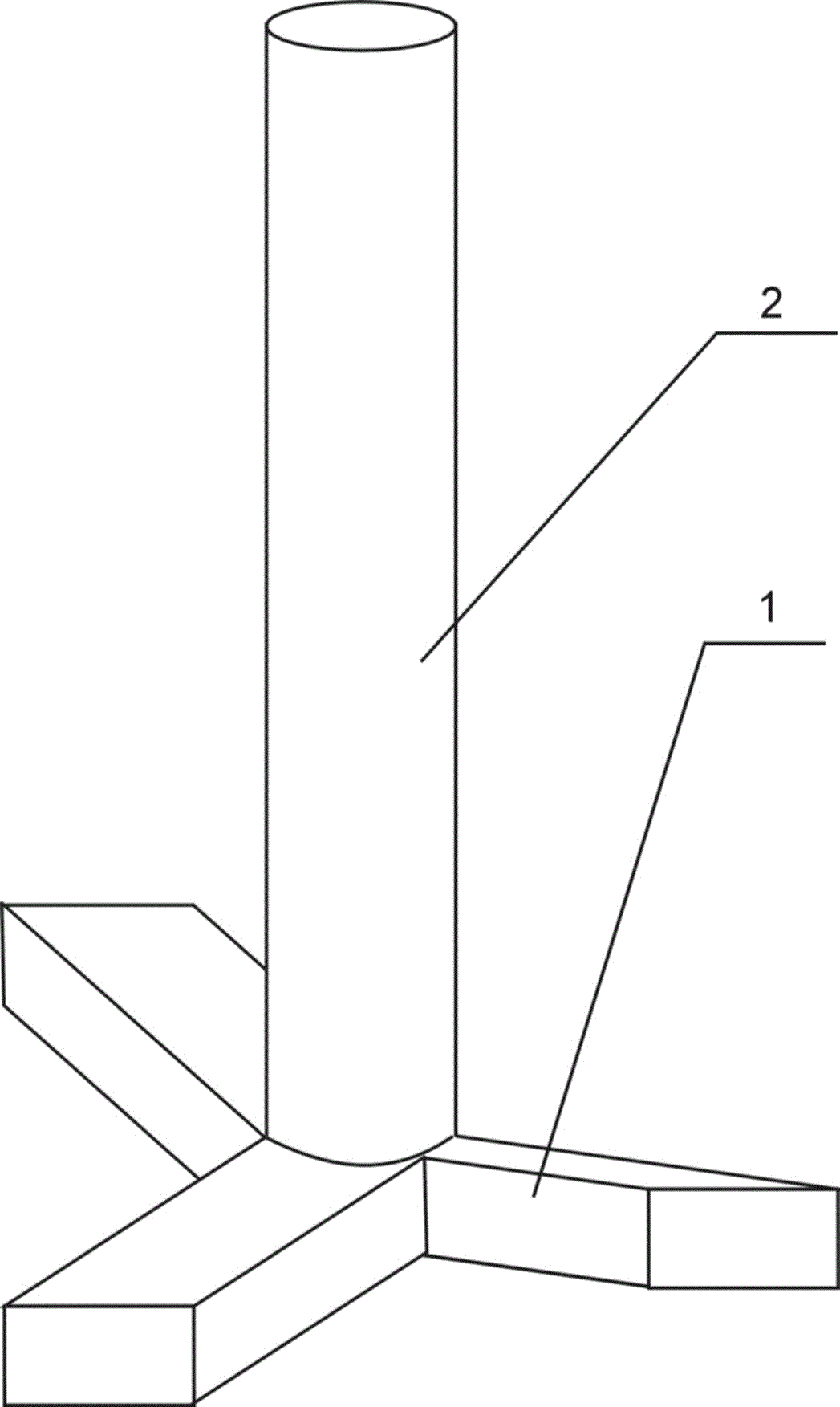

Accompanying drawing 1 is the utility model structural representation.
Wherein, 1---burying ground cross bar, 2---king pile.
The specific embodiment
Cast three base electricity stakes, by bury the ground cross bar, king pile is formed, three are buried the ground cross bar and are the radial king pile bottom that is connected of 120 degree, bury the ground cross bar and are embedded in 1 to 1.5 meter of underground, bury cross bar, king pile be reinforcing steel bar frame cage pouring piece.Bury 1.5 meters of ground cross bar length, burying in ground cross bar and the king pile has reinforcing bar to be connected, and is outward casting cement, structural entity.Cast three base electricity stakes will be delivered at the pulling force of king pile top cable buries the ground cross bar, but three directions bury ground its tilting force of cross bar balance.

Claims (1)

1.浇注三基电桩，由埋地横杆、主桩组成，其特征在于：三支埋地横杆呈120度放射状连接在主桩底部，埋地横杆埋在地面下1至1.5米，埋地横杆、主桩为钢筋框笼浇注件。1. The cast three-base electric pile is composed of buried crossbars and main piles. It is characterized in that: three buried crossbars are connected to the bottom of the main pile radially at 120 degrees, and the buried crossbars are buried 1 to 1.5 meters below the ground , The buried cross bar and the main pile are cast parts of reinforced frame and cage.
