CN202002726U - Detection equipment for detecting brightness of automobile multimedia control panel indicating lamp - Google Patents
Detection equipment for detecting brightness of automobile multimedia control panel indicating lamp Download PDFInfo
- Publication number
- CN202002726U CN202002726U CN2011200513771U CN201120051377U CN202002726U CN 202002726 U CN202002726 U CN 202002726U CN 2011200513771 U CN2011200513771 U CN 2011200513771U CN 201120051377 U CN201120051377 U CN 201120051377U CN 202002726 U CN202002726 U CN 202002726U
- Authority
- CN
- China
- Prior art keywords
- camera
- brightness
- multimedia control
- control panel
- computer
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
- 238000001514 detection method Methods 0.000 title claims abstract description 15
- 230000002950 deficient Effects 0.000 claims description 5
- 238000004519 manufacturing process Methods 0.000 abstract description 6
- 238000000034 method Methods 0.000 description 3
- 208000027418 Wounds and injury Diseases 0.000 description 2
- 230000006378 damage Effects 0.000 description 2
- 208000014674 injury Diseases 0.000 description 2
- 238000012986 modification Methods 0.000 description 2
- 230000004048 modification Effects 0.000 description 2
- 230000000007 visual effect Effects 0.000 description 2
- 230000005540 biological transmission Effects 0.000 description 1
- 230000007812 deficiency Effects 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 238000005259 measurement Methods 0.000 description 1
- 230000000750 progressive effect Effects 0.000 description 1
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02B—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO BUILDINGS, e.g. HOUSING, HOUSE APPLIANCES OR RELATED END-USER APPLICATIONS
- Y02B20/00—Energy efficient lighting technologies, e.g. halogen lamps or gas discharge lamps
- Y02B20/40—Control techniques providing energy savings, e.g. smart controller or presence detection
Landscapes
- Lock And Its Accessories (AREA)
Abstract
本实用新型提供一种检测汽车多媒体控制面板指示灯亮度的检测设备，包括暗箱、摄像头和计算机，暗箱固定于机架上，暗箱的一侧面设有可上下移动的暗箱遮蔽门，暗箱内壁的底面固定有电子板固定底座，暗箱内壁的顶面安装有摄像头，摄像头与电子板固定底座相对，摄像头通过数据线连接至计算机，计算机上连接有显示器。该设备不仅可测出指示灯的亮度值外，还可检测镭射符号的亮度以及镭射符号的形状；大大提高了生产的良率，彻底解决了生产过程中装错键、少装键的问题。
The utility model provides a detection device for detecting the brightness of an indicator light on a multimedia control panel of an automobile, which comprises a camera obscura, a camera and a computer. An electronic board fixing base is fixed, a camera is installed on the top surface of the inner wall of the dark box, the camera is opposite to the electronic board fixing base, the camera is connected to a computer through a data line, and a display is connected to the computer. This equipment can not only measure the brightness value of the indicator light, but also detect the brightness of the laser symbol and the shape of the laser symbol; it greatly improves the yield rate of production, and completely solves the problem of installing wrong keys or fewer keys in the production process.
Description
Technical field
The utility model relates to a kind of checkout equipment that detects the brightness of car multimedia control panel pilot lamp.
Background technology
Detect the correctness of radium-shine symbol on the car multimedia control system panel; it is identical that automobile industry product structure occurs through regular meeting; the situation of the radium-shine symbol similarities and differences; for guaranteeing in the assembling process; the phenomenon of mistake dress appears in operator, need be designed for the equipment that detects car multimedia control panel pilot lamp and radium-shine symbol brightness.Detect the brightness value of car multimedia control system panel leds, contrast with setting numerical value by the numerical value of measuring, product was whether qualified during judgement was produced; Detect the brightness value of radium-shine symbol on the car multimedia control system panel, contrast with setting numerical value by the numerical value of measuring, product was whether qualified during judgement was produced.
The utility model content
The purpose of this utility model is to overcome the deficiency that prior art exists, and a kind of checkout equipment that detects the brightness of car multimedia control panel pilot lamp is provided.
The purpose of this utility model is achieved through the following technical solutions:
Detect the checkout equipment of car multimedia control panel pilot lamp brightness, characteristics are: comprise camera bellows, camera and computing machine, described camera bellows is fixed on the frame, one side of camera bellows is provided with camera bellows moving up and down and covers door, the bottom surface of camera bellows inwall is fixed with the electron plate firm banking, and the end face of camera bellows inwall is equipped with camera, and described camera is relative with the electron plate firm banking, camera is connected to computing machine by data line, is connected with display on the computing machine.
Further, the checkout equipment of above-mentioned detection car multimedia control panel pilot lamp brightness wherein, is equipped with warning device on the described frame, and warning device is connected to computing machine by data line.
Further, the checkout equipment of above-mentioned detection car multimedia control panel pilot lamp brightness, wherein, the below of described camera bellows is provided with the defective products placement platform.
Characteristics that technical solutions of the utility model are outstanding and progressive being mainly reflected in:
The utility model not only can be measured outside the brightness value of pilot lamp, also can detect the brightness of radium-shine symbol and the shape of radium-shine symbol.Improved the yield of producing greatly, thoroughly solved and adorned wrong key in the production run, adorned the problem of key less, the sense cycle of this equipment can go to adjust the phenomenon that can not cause product to pile up according to the cycle of demand in the production reality.The use of this equipment allows two operations of original check printing opacity and camera detected symbol be integrated, and reduced the utilization in personnel in producing and space.This operation of equipment is also very convenient, and operator only need be pressed start button, just can realize full automatic detection, and this equipment do not have injury to human body, and there is not pollution in surrounding environment yet.
Description of drawings
Below in conjunction with accompanying drawing technical solutions of the utility model are described further:

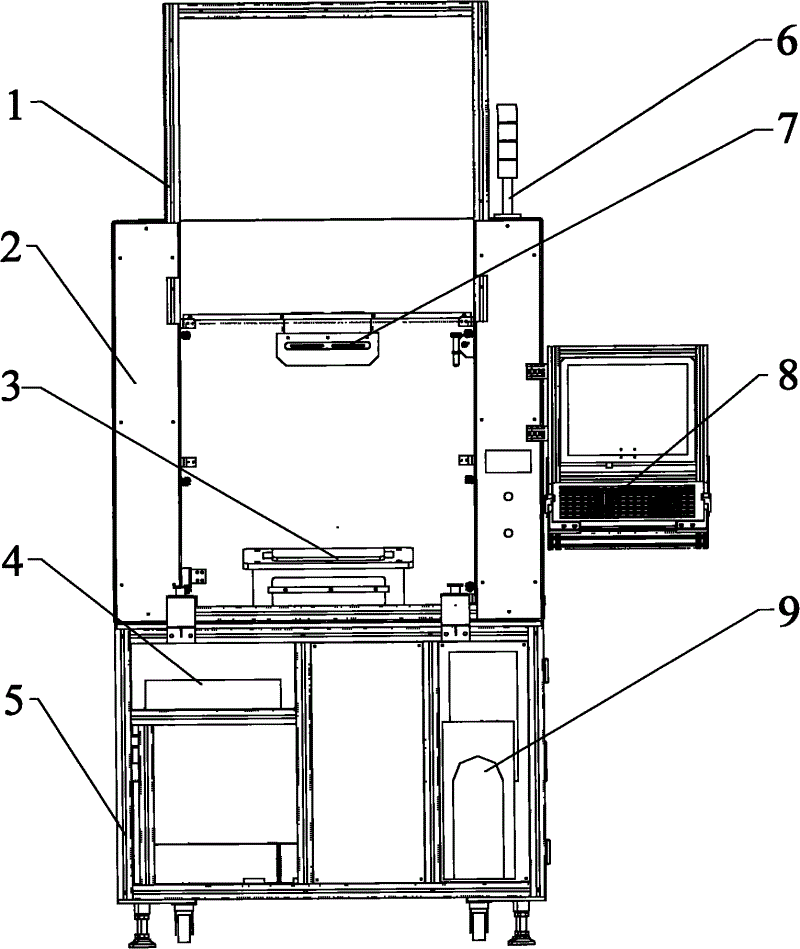

Fig. 1: structural representation of the present utility model.
The implication of each Reference numeral sees the following form among the figure:
Embodiment
As shown in Figure 1, detect the checkout equipment of car multimedia control panel pilot lamp brightness, comprise camera bellows 2, camera 7 and computing machine 9, camera bellows 2 is fixed on the frame 5, and a side of camera bellows 2 is provided with camera bellows moving up and down and covers door 1, and the bottom surface of camera bellows inwall is fixed with electron plate firm banking 3, the end face of camera bellows inwall is equipped with camera 7, camera 7 is relative with electron plate firm banking 3, and camera 7 is connected to computing machine 9 by data line, is connected with display 8 on the computing machine 9; The below of camera bellows 2 is provided with defective products placement platform 4; Warning device 6 is installed on the frame 5, and warning device 6 is connected to computing machine 9 by data line.
During concrete the application, the opening power master switch starts and calculates, and 9, enter into detection system, operate according to the prompting at the main interface on the display 8.Product is put on the electron plate firm banking 3, presses start button, equipment will carry out full automatic detection.Behind the device start, camera bellows covers door 1 closes automatically, and the pressure head on the electronic stationary plate is pneumatic control, can compress product automatically when closing the door.After camera bellows covered door 1 and shuts, electron plate can be lighted panel, and camera 7 is presented to the real images in the camera bellows 2 on the display 8, and detects the brightness of each pilot lamp and radium-shine symbol automatically, for radium-shine symbol, also has the shape recognition function.When the survey product was bad, after measurement finished, warning device 6 was reported to the police, and the prompting operator is put into defective products placement platform 4 with product, will put in after taking out by the defective products holder again, and the sensor sensing of the inside is to just working on.After each the warning,, system is resetted, so that detect next time by reset button.
The programmed control part mainly is by computerese Visual basic, carry out the programming of working procedure, and the brightness of label view image system detection pilot lamp, finally, carry out the integrated of system by the programmable logic controller (PLC) of OMRON digital operation operation electronic system.
At the detection of LED, zone of artificial delimitation, camera is cast out wherein brightness and is crossed bright and low excessively point by measuring numerous point on the LED zone, measures the numerical value of other luminous points, and draws its mean value, the numerical value that promptly finally demonstrates; At the detection of radium-shine symbol, principle is similar with detection LED, in measuring process, casts out non-luminous point, measures the mean value of radium-shine symbol brightness.
The utility model is used to detect the brightness value of car multimedia control system face onboard led and radium-shine symbol, by with the contrast of calibration value, judge the quality of panel light transmission performance with this, thereby solve in actual applications the visual problem that luminance difference brings to the consumer; Detect the correctness of radium-shine symbol on the car multimedia control system panel, judged whether neglected loading or misloading button.Thereby not only can measure outside the brightness value of pilot lamp, also can detect the brightness of radium-shine symbol and the shape of radium-shine symbol.Improved the yield of producing greatly, thoroughly solved and adorned wrong key in the production run, adorned the problem of key less, the sense cycle of this equipment can go to adjust the phenomenon that can not cause product to pile up according to the cycle of demand in the production reality.The use of this equipment allows two operations of original check printing opacity and camera detected symbol be integrated, and reduced the utilization in personnel in producing and space.This operation of equipment is also very convenient, and operator only need be pressed start button, just can realize full automatic detection, and this equipment do not have injury to human body, and there is not pollution in surrounding environment yet.
What need understand is: the above only is a preferred implementation of the present utility model; for those skilled in the art; under the prerequisite that does not break away from the utility model principle; can also make some improvements and modifications, these improvements and modifications also should be considered as protection domain of the present utility model.
