Abstract
The utility model discloses a comprehensive utilization system of household sewage. The comprehensive utilization system comprises a laundry machine sewage supply pipe, a filter I, a kitchen vegetable sink sewage supply pipe, a filter II, a sewage sedimentation tank, a toilet water closet water supply pipe, a water closet water tank, a sewage sedimentation tank sewage outlet, a sewage sedimentation tank gas outlet and the like, wherein sewage drained from a laundry machine flows into the sewage sedimentation tank through the laundry machine sewage supply pipe and the filter I; sewage drained from a kitchen vegetable sink flows into the sewage sedimentation tank after passing through the kitchen vegetable sink sewage supply pipe and being filtered by the filter II; the sewage precipitates in the sedimentation tank and is treated by drugs to become secondary sewage which is connected to the water closet water tank through the water closet water supply pipe and is taken as toilet flushing water; and produced gas is exhausted outdoors through the sewage sedimentation tank gas outlet. The comprehensive utilization system has the characteristics of extensive application and water saving.
Description
Technical field:
The utility model relates to a kind of household sewage utilization system, is used for civil building and needs the plumbing occasion.
Background technology:
At present, using water wisely is one of content of building energy conservation, and making full use of household sewage is the direction of building water-saving and water, and it is necessary therefore to develop a kind of household sewage utilization system.
Have based on this, the applicant makes the utility model.
The utility model content:
In order to address the above problem, the purpose of this utility model is to provide a kind of household sewage utilization system, have be widely used, cost is low, pollution-free, the water saving characteristics.
For achieving the above object, the utility model adopts following technical scheme: a kind of household sewage utilization system, it is characterized in that: comprise washing machine sewage water service pipe, first strainer, detention tank, second strainer, kitchen vegetable sink sewage water service pipe, the kitchen vegetable sink, lavatory flush toilet water service pipe, toilet flush, washing machine, the detention tank dirt-discherging outlet, the detention tank gas outlet, wherein, washing machine sewage water service pipe links to each other with washing machine, first strainer links to each other with washing machine sewage water service pipe, kitchen vegetable sink sewage water service pipe links to each other with the kitchen vegetable sink, second strainer links to each other with kitchen vegetable sink sewage water service pipe, detention tank respectively with first strainer, second strainer links to each other, the flush toilet water service pipe toilet flush that links to each other with detention tank in lavatory links to each other with lavatory flush toilet water service pipe, be provided with the detention tank gas outlet on the top of detention tank, be provided with the detention tank dirt-discherging outlet in the bottom of detention tank.
The beneficial effects of the utility model are as follows: a kind of household sewage utilization system of the present utility model, washing machine drainage sewage and kitchen vegetable sink sewage filter the back through filter and flow into detention tank, sewage precipitates in sedimentation basin with dosing to be handled, become B-grade sewage, receive water-closet tank by pipe, make flushing supply.The utlity model has the characteristics that are widely used, economize on water.
The utility model is described in further detail below in conjunction with the drawings and specific embodiments.
Description of drawings:

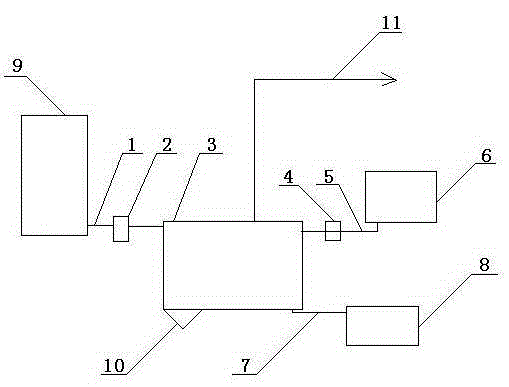

Fig. 1 is a structural representation of the present utility model.
The specific embodiment:
As shown in Figure 1, a kind of household sewage utilization system, comprise washing machine sewage water service pipe 1, first strainer 2, detention tank 3, second strainer 4, kitchen vegetable sink sewage water service pipe 5, kitchen vegetable sink 6, lavatory flush toilet water service pipe 7, toilet flush 8, washing machine 9, detention tank dirt-discherging outlet 10, detention tank gas outlet 11 compositions such as grade, wherein, washing machine sewage water service pipe 1 links to each other with washing machine 9, first strainer 2 links to each other with washing machine sewage water service pipe 1, kitchen vegetable sink sewage water service pipe 5 links to each other with kitchen vegetable sink 6, second strainer 4 links to each other with kitchen vegetable sink sewage water service pipe 5, detention tank 3 respectively with first strainer 2, second strainer 4 links to each other, flush toilet water service pipe 7 toilet flush 8 that links to each other with detention tank 3 in lavatory links to each other with lavatory flush toilet water service pipe 7, be provided with detention tank gas outlet 11 on the top of detention tank 3, be provided with detention tank dirt-discherging outlet 10 in the bottom of detention tank 3.
The utility model operating principle is as follows: the draining sewage of washing machine 9 flows into detention tank 3 through washing machine sewage water service pipe 1 and strainer 2, the sewage of kitchen vegetable sink 6 flows into detention tank 3 after kitchen vegetable sink sewage water service pipe 5 and strainer 4 filtrations simultaneously, sewage precipitates in detention tank 3 with dosing to be handled, become B-grade sewage, receive water-closet tank 8 by flush toilet water service pipe 7, make flushing supply.Dosing makes sewage become clear in detention tank 3, and the gas of generation is discharged to outdoor by detention tank gas outlet 11, and mud and residue are then discharged by the detention tank dirt-discherging outlet 10 of detention tank 3.
Claims (1)
1. household sewage utilization system, it is characterized in that: comprise washing machine sewage water service pipe, first strainer, detention tank, second strainer, kitchen vegetable sink sewage water service pipe, the kitchen vegetable sink, lavatory flush toilet water service pipe, toilet flush, washing machine, the detention tank dirt-discherging outlet, the detention tank gas outlet, wherein, washing machine sewage water service pipe links to each other with washing machine, first strainer links to each other with washing machine sewage water service pipe, kitchen vegetable sink sewage water service pipe links to each other with the kitchen vegetable sink, second strainer links to each other with kitchen vegetable sink sewage water service pipe, detention tank respectively with first strainer, second strainer links to each other, the flush toilet water service pipe toilet flush that links to each other with detention tank in lavatory links to each other with lavatory flush toilet water service pipe, be provided with the detention tank gas outlet on the top of detention tank, be provided with the detention tank dirt-discherging outlet in the bottom of detention tank.
