The utility model discloses a bionic fingers-messaging back-rubbing device, which comprises a main body, contacts, two handles and a rubbing cloth, wherein the two handles are respectively connected with the two ends of the main body; the rubbing cloth wraps outside the main body; the main body is made of textile fibre; and the contacts are attached to one side of the main body through thermoforming. Compared with the traditional back-rubbing product, the main body of the bionic fingers-messaging back-rubbing device disclosed by the utility model is provided with a plurality of messaging contacts, and the main body which is attached with the messaging contacts is wrapped by the rubbing cloth, so that the bionic fingers-messaging back-rubbing device has the following advantages that: the messaging contacts are attached to the main body through thermoforming, and the fibre structure of the main body itself is not destructed, therefore the bionic fingers-messaging back-rubbing device has good exfoliating ability, and is more solid and durable; due to circular holes designed in the centers of the contacts, the flexibility and the elasticity of the contacts are increased, and the messaging effect is further improved at the same time; and the handles at the two ends of the bionic fingers-messaging back-rubbing device can bring convenience for people to message and rub their own backs.
Description
Technical field
The utility model relates to a kind of bath article, specifically, relates to a kind of bionical finger massage back rubbing device.
Background technology
Shower is had a bath and can not only be removed the sweat mixed with dirt greasy dirt, can also eliminate fatigue, relaxes the muscles and stimulate the blood circulation, and improves sleep, improves the metabolic function and the premunition of skin.
The instrument of giving a rubdown with a damp towel the bath article that is absolutely necessary.The common on the market shower instrument of giving a rubdown with a damp towel comprises following a few class: (1) towel, at the instrument of giving a rubdown with a damp towel when industrialization is produced as yet, through the common substitute of folding common towel as the instrument of giving a rubdown with a damp towel, but the cutin infiltration that can make body skin like this is in the countless cotton fibre of towel, make towel become dirty, influence continues to use; (2) chalina, the chalina of shower usefulness are to make after the sponge gourd drying that individuality is bigger is handled, and facts have proved that its exfoliation is unsatisfactory, only are suitable as the instrument that massage is invigorated blood circulation; (3) wash towel, the wash towel of selling on the market are a kind of crude fibre textiles, and its exfoliation is better than chalina, but owing to be a kind of thin textile, are being easy to tear breakage through the shower water logging and after repeatedly using.
As the improvement of instrument that above-mentioned shower is given a rubdown with a damp towel, Chinese patent CN 2584101 discloses a kind of massage type back rubbing device, and by drawstring, the cloth of shaking hands, give a rubdown with a damp towel, hollow contact, clean skin rod, skin care item and lid constitute, wherein, embedding is marked with hollow contact on the drawstring.This massage type back rubbing device promotes to give a rubdown with a damp towel cloth by drawstring and hollow contact, and the repeated friction human body skin is removed cutin.
The above-mentioned massage type mode that the hollow contact of cloth adopts embedding to annotate of giving a rubdown with a damp towel is fixed on the drawstring, after repeatedly using, drawstring is owing to the effect of long-term pulling force, and the tightness degree of its textile fabric can change to some extent, the easily loosening and cracking in the junction of hollow contact and drawstring causes hollow contact to come off.Therefore, need a kind of durable and bionical finger massage back rubbing device that have exfoliating ability preferably.
Summary of the invention
Technical problem to be solved in the utility model provides a kind of bionical finger massage back rubbing device, it is provided with a plurality of massage contacts on body, it is external that the cloth of giving a rubdown with a damp towel is wrapped in the basis that is attached with massage contact, the massage contact of this bionical finger massage back rubbing device is attached on the body through heat ductile forming, do not destroy the fibre structure of body itself, make bionical finger massage back rubbing device more durable when having exfoliating ability preferably.
In order to achieve the above object, the utility model proposes a kind of bionical finger massage back rubbing device, comprise body, be arranged on a plurality of contacts on the described body, two handles that are connected to described body two ends, be wrapped in described the external cloth of giving a rubdown with a damp towel, described body is a textile fabric, and described contact is attached to a side of described body through thermoplastic shaping or stickup.
Above-mentioned bionical finger massage back rubbing device, described body is a rectangle, described handle is fixedlyed connected with two minor faces of described body respectively.
Above-mentioned bionical finger massage back rubbing device, described contact is the hollow hemisphere type.
Above-mentioned bionical finger massage back rubbing device, described dome-type contact is being provided with a circular hole perpendicular to described body direction.
Above-mentioned bionical finger massage back rubbing device, described circular hole is coaxial with described dome-type contact.
Above-mentioned bionical finger massage back rubbing device, the opposite side of described body also is attached with described contact.
With respect to existing chopping product, the bionical finger of the utility model massage back rubbing device is provided with a plurality of massage contacts on body, and it is external that the cloth of giving a rubdown with a damp towel is wrapped in the basis that is attached with massage contact, and the advantage of bionical finger massage back rubbing device is as follows:
1, the massage contact of this bionical finger massage back rubbing device is attached on the body through heat ductile forming, does not destroy the fibre structure of body itself, makes bionical finger massage back rubbing device more durable when having exfoliating ability preferably;
2, the circular hole of contact center design has increased the flexibility and the elasticity of contact, has also further improved massage effect simultaneously;
3, the handle at bionical finger massage back rubbing device two ends can make the people massage the back of cleaning oneself easily.
Description of drawings
By the description of its exemplary embodiment being carried out below in conjunction with accompanying drawing, the above-mentioned feature and advantage of the utility model will become apparent and understand easily.
Fig. 1 is the body that is attached with contact;

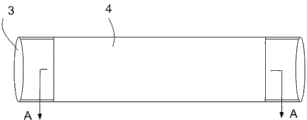

Fig. 2 is the bionical finger massage back rubbing device structural representation of band handle;
Fig. 3 is the A-A profile of Fig. 2
Fig. 4 is another embodiment of bionical finger massage back rubbing device shown in Figure 3;
The reference numeral explanation:
1-body, 2-contact, 3-handle, the 4-cloth of giving a rubdown with a damp towel.
The specific embodiment
Below in conjunction with accompanying drawing the utility model is described in further detail.
As shown in Figure 1, bionical finger massage back rubbing device comprises body 1, contact 2, two handles 3 that are connected to body 1 two ends, be wrapped in the outer cloth 4 of giving a rubdown with a damp towel of body 1, body 1 is a textile fabric, and contact 2 is attached to a side of body 1 through thermoplastic shaping or other seccotines.The material of contact 2 can be selected rubber for use, and other can not scratch the material of skin can to select softer plastics or silica gel etc. for use yet.
The shape of body 1 and size can be decided arbitrarily according to user's needs, can be circle, rectangle etc. as the shape of body 1.Preferably, body 1 adopts the rectangle textile fabric, and handle 3 is fixedlyed connected with two minor faces of body 1 respectively, and the long limit of rectangle is 5 to 10 times of minor face, and like this, the contact that is arranged in rows can evenly stimulate human body skin.
The shape of the contact 2 of bionical finger massage back rubbing device also can adopt the method for heat ductile forming to determine arbitrarily, but does not preferably have sharp-pointed corner angle, in order to avoid scratch skin.A kind of preferred shape of contact 2 is a dome-type, and the projection of a plurality of dome-types is promptly arranged on a surface of body 1.
Further, on dome-type contact 2, be provided with a circular hole perpendicular to described body direction.Circular hole is preferably coaxial with dome-type contact 2, and is stressed so even, can make bionical finger massage back rubbing device more durable in use.Circular hole can run through whole contact, as shown in Figure 3; Circular hole also can not run through contact, and only stretches into the part of contact, and as shown in Figure 4, such design can make contact 2 more securely attached on the body 1.
Contact 2 can arbitrarily distribute on body 1, but for stress equalization, contact 2 is arranged in multirow, and line space is from about equally.During use, contact 2 moves under the pulling of body 1, and the cloth 4 of giving a rubdown with a damp towel also moves under the pulling of body 1, and contact 2 compresses the cloth 4 of giving a rubdown with a damp towel, makes the cloth 4 of giving a rubdown with a damp towel produce suitable frictional force on the skin of human body, plays the effect that massage is given a rubdown with a damp towel.
As shown in Figure 2, bionical finger massage back rubbing device also is connected with two handles in two ends.Handle can more conveniently use, when chopping is massaged in an especially independent individual demand.Spaced contact is divided into many folding sections with body 1, and these folding sections can be fitted with back shape, and bionical finger massage back rubbing device is closely contacted with the back.When the user spurred the both sides handle, body 1 moved, but still fitted tightly with the back.
Further, can a plurality of contacts all be set in the both sides of the body 1 of bionical finger massage back rubbing device,, can also use the contact of opposite side if the long-time contact of back one side that uses damages, be unlikely to after the side contact damage bionical finger massage back rubbing device directly to be abandoned, reduced environmental pressure.
It should be noted that; above content is to further describing that the utility model is done in conjunction with concrete embodiment; can not assert that the specific embodiment of the present utility model only limits to this; under above-mentioned guidance of the present utility model; those skilled in the art can carry out various improvement and distortion on the basis of the foregoing description, and these improvement or distortion drop in the protection domain of the present utility model.
Claims (6)
1. bionical finger massage back rubbing device comprises body, is arranged on a plurality of contacts on the described body, two handles that are connected to described body two ends, is wrapped in described the external cloth of giving a rubdown with a damp towel, it is characterized in that:
Described contact is attached to a side of described body through thermoplastic shaping or stickup.
2. bionical finger massage back rubbing device according to claim 1 is characterized in that:
Described body is a rectangle, and described handle is fixedlyed connected with two minor faces of described body respectively.
3. bionical finger massage back rubbing device according to claim 1 is characterized in that:
Described contact is the hollow hemisphere type.
4. bionical finger massage back rubbing device according to claim 3 is characterized in that:
Described dome-type contact is being provided with a circular hole perpendicular to described body direction.
5. bionical finger massage back rubbing device according to claim 4 is characterized in that:
Described circular hole is coaxial with described dome-type contact.
6. bionical finger massage back rubbing device according to claim 1 is characterized in that:
The opposite side of described body also is attached with described contact.
