Abstract

An elastic pedal rowing exerciser belongs to the field of sports fitness equipment. The armrest (3) is installed on the upper end of the armrest frame (4), the lower end is connected with the upper end of the spring (6) through the upper rotating shaft (5), and the lower end of the spring (6) is connected with the pedal (8) through the lower rotating shaft (7). In one piece, the pedal (8) is connected through the upper fixed shaft (2) and the lower fixed shaft (9), and is fixed on the bottom pad (1). The utility model has the advantages of simple structure, small volume, convenient transportation without limitation of place and time, easy operation and wide application range, and is a necessary fitness equipment for schools and families.

Description

Elastic pedal rowing exerciser

technical field

The utility model relates to an elastic pedal rowing exerciser, which belongs to the field of fitness equipment.

technical background

Along with the carrying out of the national body-building campaign, many people utilize sooner or later to carry out physical exercise, owing to being subjected to the limitation of time and place, can't satisfy this desire. Although there are many body-building equipments at present, there are still relatively few exercises for the waist and legs. Fitness equipment to meet people's living requirements.

Due to the limitation of venues and equipment in physical exercise, many athletes often suffer from injuries during training. The serious ones are paralyzed, and the mild ones have backache and leg pain, which brings a lot of inconvenience to sports career. After the creation of the elastic pedal rowing exerciser, the auxiliary exercise effect is brought to athletes in training. It can also be used in home and office entertainment places, and it is a necessary fitness equipment for schools and families.

Utility model content

According to the deficiencies in the prior art above, the technical problem to be solved by the utility model is: to provide a kind of elastic pedal rowing exerciser which is simple in structure, practical in operation, and free from space and time constraints.

The technical solution adopted by the utility model to solve the technical problems is: the elastic pedal rowing exerciser, which is characterized in that: it includes an armrest, an armrest frame, an upper shaft, a spring, a lower shaft, a pedal, an upper fixed shaft, a lower fixed shaft, a bottom Pad, the armrest is installed on the upper end of the armrest frame, the lower end is integrated with the upper end of the spring through the upper rotating shaft, the lower end of the spring is integrated with the pedal through the lower rotating shaft, and the pedal is connected through the upper fixed shaft and the lower fixed shaft, and is fixed on the bottom pad. Practitioners stand on the swing board, hold the handrail, and step up and down to practice.

When in use, the human body stands on the pedals with both feet, holds the armrest frame with both hands and swings back and forth, presses down with both feet, and uses the feet of the person to push down one by one to make the spring stretch and contract. Exercise to strengthen the muscles of the lower back and legs. It can effectively exercise the strength of the muscles of the lower limbs, especially the exercise of the lower back. It can relieve the symptoms of back pain and improve the physiological activity of the lower back muscles.

Compared with the prior art, the utility model has the beneficial effects that: when people stand on the pedal, the safety factor is relatively large, and injury accidents are not easy to occur. The elastic pedal rowing exerciser makes full use of the mechanical principle of the spring to make the spring shrink and stretch evenly. The strength of the human body's waist and leg muscles is as great as the stretching pressure, and it makes the whole foot produce pressure and increases the muscle group of the foot.

-1-Ground strength, speed up the blood circulation in the waist, legs and soles of the feet, strengthen the muscles of the waist, feet and legs, improve the function of exercising the body, and have an auxiliary therapeutic effect on the recovery of patients with joint pain and waist and leg pain. The utility model has the advantages of simple structure, small volume, no limitation of place and time, convenient transportation and easy operation, and is more suitable for teenagers, middle-aged and elderly people, general physical exercise and professional sports players, and auxiliary treatment of related diseases.

Description of drawings

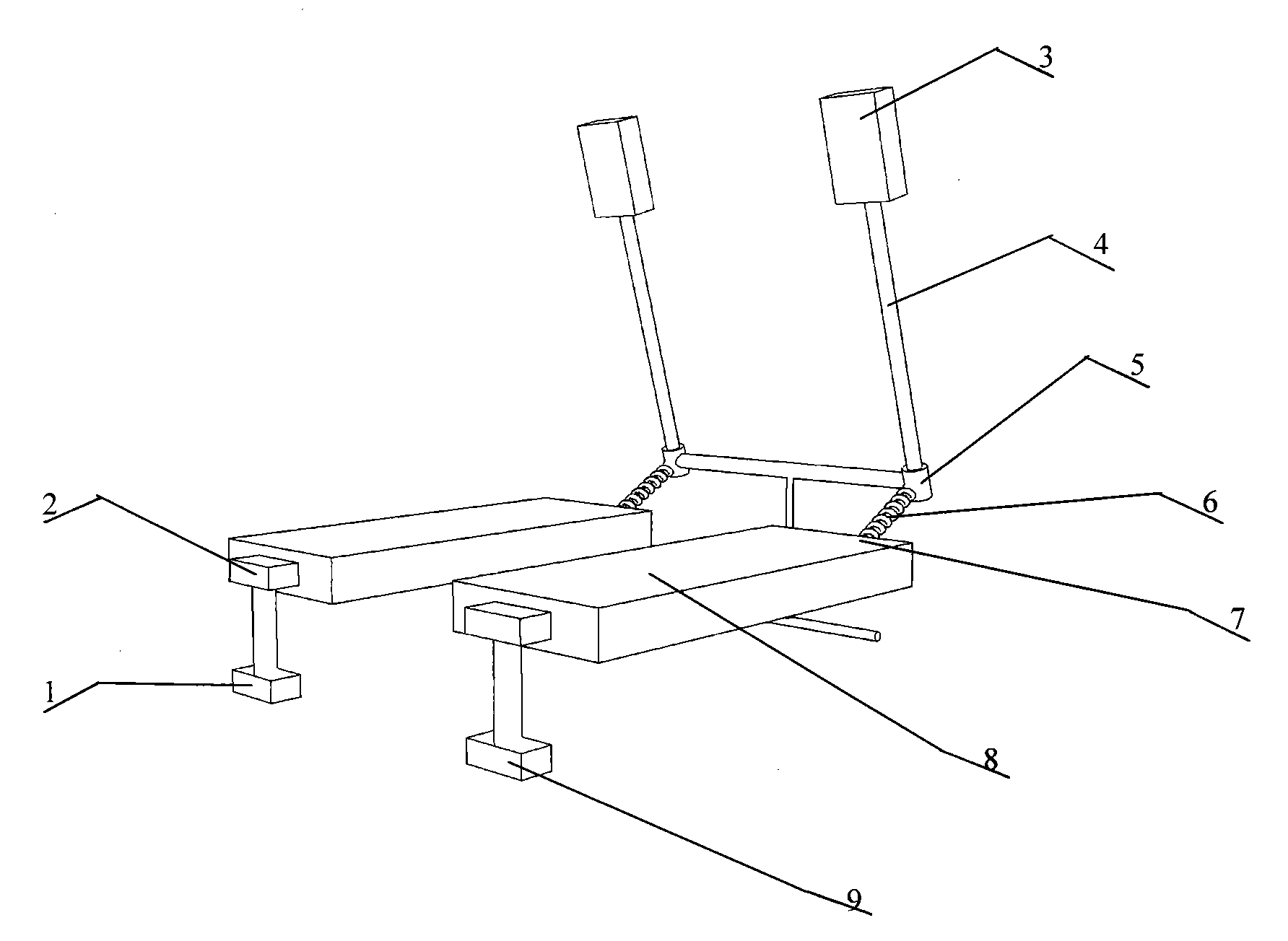

Fig. 1 is the best example of the utility model elastic pedal rowing exerciser, wherein: (1) base (2) fixed shaft (3) armrest (4) armrest frame (5) upper rotating shaft (6) spring (7) Rotating shaft (8) pedal (9) lower fixed shaft

Detailed ways

Below in conjunction with accompanying drawing, the utility model elastic pedal rowing exerciser is further described:

As shown in the figure: Elastic pedal rowing exerciser, the armrest 3 is installed on the upper end of the armrest frame 4, the lower end is integrated with the upper end of the spring 6 through the upper rotating shaft 5, and the lower end of the spring 6 is integrated with the pedal 8 through the lower rotating shaft 7, and the pedal 8 is connected by the upper fixed shaft 2 and the lower fixed shaft 9, and is fixed on the base 1. Practitioners stand on the swing board, hold the handrail, and step up and down to practice.

The spring can be replaced with the strength of the waist and leg muscles of the human body.

When in use, the human body stands on the pedals with both feet, holds the armrest frame with both hands and swings back and forth, presses down with both feet, and uses the feet of the person to push down one by one to make the spring stretch and contract. Exercise to strengthen the muscles of the lower back and legs. It can effectively exercise the strength of the muscles of the lower limbs, especially the exercise of the lower back. It can relieve the symptoms of back pain and improve the physiological activity of the lower back muscles.

Claims (3)

1. elasticity pedal rowing machine is characterized in that: in arm-rest frame (4) upper end handrail (3) is installed, the lower end fuses by the upper end of last rotating shaft (5) and spring (6).

2. elasticity pedal rowing machine according to claim 1 is characterized in that: the lower end of spring (6) fuses by lower rotary shaft (7) and pedal (8).

3. elasticity pedal rowing machine according to claim 1 is characterized in that: pedal (8) is connected with following fixed axis (9) by last fixed axis (2), is fixed on the heelpiece (1).
