Abstract
An electric massaging cap comprises a cap casing and a massaging device mounted in the cap casing, and is characterized in that the massaging device comprises a transverse massaging mechanism and two vertical massaging mechanisms, wherein the transverse massaging mechanism is positioned in the middle of the cap casing, and the two vertical massaging mechanisms are positioned on two sides of the transverse massaging mechanism respectively. In comparison to the prior art, the electric massaging cap has the advantages that rollers are used in the transverse massaging mechanism and the vertical massaging mechanisms and in rolling contact with the head of a user, so that acupuncture points, such as governor meridian, baihui acupoint, urinary bladder channel, gallbladder channel, temple and the like, on the head of the user can be effectively massaged, and senility delaying can be achieved. Furthermore, massaging effect of each contacting area can be enhanced by means of retractable transverse massaging protrusions and retractable vertical massaging protrusions. Rollers can rotate reversibly by the aid of a micro motor capable of bidirectionally rotating, so that the head can be massaged better.
Description
Technical field
This utility model relates to a kind of equipment that head is massaged, more specifically to a kind of electric massage medicated cap.
Background technology
Existing massage medicated cap when imitating manual massage's head mostly, is pushed the action of head, and the massage machine that adopts inflatable or water-filling pushes the head of user, thereby plays massage effect.
As the disclosed a kind of head health care massage medicated cap of Chinese patent literature CN2426737 " head health care massage medicated cap ", be provided with inner chamber between medicated cap internal layer and the medicated cap skin; Lumen port is installed control valve by pipe, is connected with pressure ball in the end of pipe; Can pour water (gas) by control valve, pressure ball in the inner chamber; In sew up or is bonded with at place, the outer lower edge of medicated cap, carry secretly, carry secretly down; Medicated cap internal layer inboard is evenly equipped with protruding grain.Utilize water (gas) to press chamber, protruding micelle to become physiotherapy with the extruding row of scalp, whole body QI and blood is adjusted in scalp irritation brain echo area.
But this massage medicated cap can only push, and therefore the effect of massage is good inadequately, can't replace the manual massage, and head is massaged fully.
Summary of the invention
The purpose of this utility model is that prior art is improved, and a kind of electric massage medicated cap is provided, and can substantially improve the effect of massage, and the technical scheme of employing is as follows:
Electric massage medicated cap of the present utility model comprises medicated cap shell, massage machine, and described massage machine is installed in the medicated cap shell, it is characterized in that: described massage machine comprises horizontal massage mechanism, and described horizontal massage mechanism is positioned at the middle part of medicated cap shell.
Described horizontal massage mechanism comprises driving device, at least two horizontal massage cylinders, at least two lateral rotation axles, laterally the number of massage cylinder is identical with the number of lateral rotation axle, and laterally massage cylinder is corresponding one by one with the lateral rotation axle, and each horizontal massage cylinder is set in respectively on the corresponding lateral rotation axle; The two ends of described each lateral rotation axle are rotating respectively to be fixed on the medicated cap shell, and each lateral rotation axle is parallel to each other, and driving device connects a lateral rotation axle, between two adjacent lateral rotation axles by gear drive.
Described massage machine also comprises two vertical massage mechanisms, described two vertical massage mechanisms lay respectively at the both sides of horizontal massage mechanism, described vertical massage mechanism comprises at least one vertical massage cylinder, at least one vertical rotation axle, the number of vertical massage cylinder is identical with the number of vertical rotation axle, and vertical massage cylinder is corresponding one by one with the vertical rotation axle, and described vertical massage cylinder is set on the corresponding vertical rotation axle; Described vertical rotation axle is rotating to be fixed on the medicated cap shell, and described vertical rotation axle is vertical with the lateral rotation axle, and a lateral rotation axle of vertical rotation axle and horizontal massage mechanism is by a pair of bevel gear transmission.
In order to play better massage effect, the surface of described each horizontal massage cylinder is provided with at least one laterally protruding fourth of massage, and the surface of described vertical massage cylinder is provided with the protruding fourth of at least one vertical massage.
In order further to improve massage effect, the protruding fourth of described horizontal massage has inner chamber, the surface of described horizontal massage cylinder has first pit, be provided with first spring in first pit, the bottom of described first spring is fixed on first pit bottom, and the top of first spring connects the laterally top of the protruding fourth inner chamber of massage.
Drop out in first pit for fear of the protruding fourth of horizontal massage, preferred scheme, the vertical diameter of the protruding fourth of described horizontal massage is less than the diameter at the first pit top end opening place, laterally the diameter of the protruding fourth of massage bottom is greater than the diameter at the first pit top end opening place, and the protruding fourth of so horizontal massage just can't drop out in first pit.
In order to play better massage effect, the protruding fourth of described vertical massage has inner chamber, the surface of described vertical massage cylinder has second pit, be provided with second spring in second pit, the bottom of described second spring is fixed on second pit bottom, and the top of second spring connects the top of the protruding fourth inner chamber of vertical massage.
Drop out in second pit for fear of the protruding fourth of vertical massage, preferred scheme, the vertical diameter of the protruding fourth of described vertical massage is less than the diameter at the second pit top end opening place, the diameter of the protruding fourth of vertical massage bottom is greater than the diameter at the second pit top end opening place, and the protruding fourth of so vertical massage just can't drop out in second pit.
Since laterally the protruding fourth of massage, vertically massage protruding fourth and can stretch, can not apply excessive power to people's head, can play better massage effect.
Described driving device is a Vidacare corp, comprise battery case, switch, micromachine that can two-way rotation, battery case, switch, micromachine are electrically connected successively, and the output shaft of micromachine connects a lateral rotation axle of horizontal massage mechanism by gear drive.This lateral rotation axle of described minitype motor driving rotates, thereby drives other lateral rotation axle and the rotation of vertical rotation axle.
This utility model beneficial effect against existing technologies is, because laterally massage mechanism, vertical massage mechanism adopt cylinder to contact with the head rolling of user, therefore can effectively massage the governor vessel of user head, Baihui, urinary bladder channel, gallbladder meridian, temple etc., play function in delaying senility; And the protruding fourth of telescopic horizontal massage, vertically massage protruding fourth and can strengthen massage effect to each contact area, avoid the user head to be subjected to excessive power; And micromachine that can two-way rotation makes the cylinder can forward or reverse, and head is better massaged.
Description of drawings

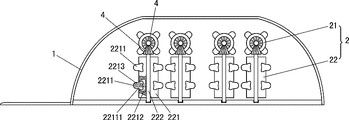

Fig. 1 is the cutaway view of this utility model preferred embodiment;
Fig. 2 is the left view of preferred embodiment shown in Figure 1;
Fig. 3 is the circuit theory diagrams of driving device.
The specific embodiment
As Figure 1-3, electric massage medicated cap electric massage medicated cap in this preferred embodiment comprises medicated cap shell 1, massage machine 2, and described massage machine 2 is installed in the medicated cap shell 1, described massage machine 2 comprises horizontal massage mechanism 21, and described horizontal massage mechanism 21 is positioned at the middle part of medicated cap shell 1.
Described horizontal massage mechanism 21 comprises the horizontal massage cylinder of driving device 213, four 211, four lateral rotation axles 212, and laterally massage cylinder 211 is corresponding one by one with lateral rotation axle 212, and each horizontal massage cylinder 211 is set in respectively on the corresponding lateral rotation axle 212; The two ends of described each lateral rotation axle 212 are rotating respectively to be fixed on the medicated cap shell 1, and each lateral rotation axle 212 is parallel to each other, and driving device 213 connects between 212, two adjacent lateral rotation axles 212 of lateral rotation axles by gear 3 transmissions.
Described massage machine 2 also comprises two vertical massage mechanisms 22, described two vertical massage mechanisms 22 lay respectively at the both sides of horizontal massage mechanism 21, described vertical massage mechanism 22 comprises four vertical massage cylinders 221, four vertical rotation axles 222, and vertical massage cylinder 221 is corresponding one by one with vertical rotation axle 222, and described vertical massage cylinder 221 is set on the corresponding vertical rotation axle 222; Described vertical rotation axle 222 rotating being fixed on the medicated cap shell 1, described vertical rotation axle 222 is vertical with lateral rotation axle 212, and a lateral rotation axle 212 of vertical rotation axle 222 and horizontal massage mechanism 21 is by a pair of bevel gear 4 transmissions.Promptly a bevel gear 4 is fixed on above-mentioned vertical rotation axle 222 tops, and another bevel gear 4 is fixed on above-mentioned lateral rotation axle 212 ends, and this a pair of bevel gear 4 is meshing with each other.
In order to play better massage effect, the surface of described each horizontal massage cylinder 211 is provided with the protruding fourth 2111 of a plurality of horizontal massages, and the surface of described vertical massage cylinder 221 is provided with the protruding fourth 2211 of a plurality of vertical massages.
In order to play better massage effect, the protruding fourth 2111 of described horizontal massage has inner chamber 21111, the surface of described horizontal massage cylinder 211 has first pit 2112, be provided with first spring 2113 in first pit 2112, the bottom of described first spring 2113 is fixed on first pit, 2112 bottoms, and the top of first spring 2113 connects the laterally top of the protruding fourth inner chamber 21111 of massage.
The protruding fourth 2111 vertical diameters of described horizontal massage are less than the diameter at first pit, 2112 top end opening places, laterally the diameter of the protruding fourth of massage 2111 bottoms is greater than the diameter at first pit, 2112 top end opening places, and the protruding fourth 2111 of so horizontal massage just can't drop out in first pit 2112.
In order to play better massage effect, the protruding fourth 2211 of described vertical massage has inner chamber 22111, the surface of described vertical massage cylinder 221 has second pit 2212, be provided with second spring 2213 in second pit 2212, the bottom of described second spring 2213 is fixed on second pit, 2212 bottoms, and the top of second spring 2213 connects the top of the protruding fourth inner chamber 22111 of vertical massage.
The protruding fourth 2211 vertical diameters of described vertical massage are less than the diameter at second pit, 2212 top end opening places, the diameter of the protruding fourth of vertical massage 2211 bottoms is greater than the diameter at second pit, 2212 top end opening places, and the protruding fourth 2211 of so vertical massage just can't drop out in second pit 2212.
Described driving device 213 is a Vidacare corp, comprise battery case 2131, switch 2132, micromachine 2133 that can two-way rotation, battery case 2131, switch 2132, micromachine 2133 are electrically connected successively, and the output shaft of micromachine 2133 connects a lateral rotation axle 212 of horizontal massage mechanism 21 by gear drive.Micromachine 2133 drives this lateral rotation axle 212 and rotates, and drive other lateral rotation axle 212 rotations thereby pass through gear 3, and each lateral rotation axle 212 drives 222 rotations of corresponding vertical rotation axle by a pair of bevel gear 4.
The above is preferred embodiment of the present utility model only, is not to be used for limiting practical range of the present utility model; Be all equivalents of being done according to claim scope of the present utility model, be this utility model claim scope and cover.
Claims (9)
1. an electric massage medicated cap comprises medicated cap shell, massage machine, and described massage machine is installed in the medicated cap shell, it is characterized in that: described massage machine comprises horizontal massage mechanism, and described horizontal massage mechanism is positioned at the middle part of medicated cap shell.
2. electric massage medicated cap as claimed in claim 1, it is characterized in that: described horizontal massage mechanism comprises driving device, at least two horizontal massage cylinders, at least two lateral rotation axles, laterally the number of massage cylinder is identical with the number of lateral rotation axle, and laterally massage cylinder is corresponding one by one with the lateral rotation axle, and each horizontal massage cylinder is set in respectively on the corresponding lateral rotation axle; The two ends of described each lateral rotation axle are rotating respectively to be fixed on the medicated cap shell, and each lateral rotation axle is parallel to each other, and driving device connects a lateral rotation axle, between two adjacent lateral rotation axles by gear drive.
3. electric massage medicated cap as claimed in claim 2, it is characterized in that: described massage machine also comprises two vertical massage mechanisms, described two vertical massage mechanisms lay respectively at the both sides of horizontal massage mechanism, described vertical massage mechanism comprises at least one vertical massage cylinder, at least one vertical rotation axle, the number of vertical massage cylinder is identical with the number of vertical rotation axle, and vertical massage cylinder is corresponding one by one with the vertical rotation axle, and described vertical massage cylinder is set on the corresponding vertical rotation axle; Described vertical rotation axle is rotating to be fixed on the medicated cap shell, and described vertical rotation axle is vertical with the lateral rotation axle, and a lateral rotation axle of vertical rotation axle and horizontal massage mechanism is by a pair of bevel gear transmission.
4. electric massage medicated cap as claimed in claim 3 is characterized in that: the surface of described each horizontal massage cylinder is provided with at least one laterally protruding fourth of massage, and the surface of described vertical massage cylinder is provided with the protruding fourth of at least one vertical massage.
5. electric massage medicated cap as claimed in claim 4, it is characterized in that: the protruding fourth of described horizontal massage has inner chamber, the surface of described horizontal massage cylinder has first pit, be provided with first spring in first pit, the bottom of described first spring is fixed on first pit bottom, and the top of first spring connects the laterally top of the protruding fourth inner chamber of massage.
6. electric massage medicated cap as claimed in claim 5 is characterized in that: the vertical diameter of the protruding fourth of described horizontal massage is laterally massaged the diameter of the diameter of protruding fourth bottom greater than the first pit top end opening place less than the diameter at the first pit top end opening place.
7. electric massage medicated cap as claimed in claim 6, it is characterized in that: the protruding fourth of described vertical massage has inner chamber, the surface of described vertical massage cylinder has second pit, be provided with second spring in second pit, the bottom of described second spring is fixed on second pit bottom, and the top of second spring connects the top of the protruding fourth inner chamber of vertical massage.
8. electric massage medicated cap as claimed in claim 7 is characterized in that: the vertical diameter of the protruding fourth of described vertical massage is vertically massaged the diameter of the diameter of protruding fourth bottom greater than the second pit top end opening place less than the diameter at the second pit top end opening place.
9. electric massage medicated cap as claimed in claim 8, it is characterized in that: described driving device is a Vidacare corp, comprise battery case, switch, micromachine that can two-way rotation, battery case, switch, micromachine are electrically connected successively, and the output shaft of micromachine connects a lateral rotation axle of horizontal massage mechanism by gear drive.
