CN201965363U

CN201965363U - a new type of glasses

Info

Publication number: CN201965363U
Application number: CN201120018356XU
Authority: CN
Inventors: 林秀螺
Original assignee: Individual
Current assignee: Individual
Priority date: 2011-01-20
Filing date: 2011-01-20
Publication date: 2011-09-07
Anticipated expiration: 2021-01-20

Abstract

The utility model is a novel pair of glasses, which mainly comprises a frame and two glasses legs hinged on the side of the frame, wherein a decorative piece is detachably assembled on the glasses legs, and the decorative piece has a decorative surface and a bonding surface, and a card block is protruded from the bonding surface, and magnets are embedded on both sides of the card block; a groove matching with the decorative piece card block is provided on the glasses legs, and magnets with opposite magnetic poles are provided on both sides of the groove corresponding to the positions of the aforementioned card block magnets, so that the card block of the decorative piece is correspondingly placed in the groove of the glasses legs, and at the same time, the magnets on both sides of the card block and the magnets of the groove are adsorbed in pairs, so that the decorative piece is positioned in the groove.

Description

A kind of novel glasses

Technical field

The utility model relates to the technical field of glasses.

Background technology

Glasses are except that having good protecting the order effect, instantly also as following the fashion in people's daily life, a kind of ornament of individual character, therefore improve the ornamental of glasses, it is the direction of many spectacles industry research and development, at present except the Mechanical Builds of spectacle-frame is done the various variations, can also on leg of spectacles, increase various patterns is set, literal, the sign of letter and product, but the decorative parts of existing most of glasses can not be changed, the user is if want according to clothes, hair style, when mood is arranged in pairs or groups the glasses of different gadgets, the glasses that must have a plurality of different gadgets have increased user's financial burden for you to choose virtually.

The utility model content

Therefore, the utility model provides a kind of novel glasses of replaceable gadget at above-mentioned the deficiencies in the prior art.

For reaching above-mentioned purpose, technical solution of the present utility model is: a kind of novel glasses, mainly include mirror holder, be articulated in two legs of spectacles of mirror holder sidepiece, separable activity winding one gadget on this leg of spectacles wherein, this gadget has a decorative cover and a faying face, protrude formation one fixture block on this faying face, and be embedded with magnet in the both sides of fixture block; Described leg of spectacles is provided with the groove that matches with this gadget fixture block, and the position of the corresponding aforementioned fixture block magnet in the both sides of this groove is provided with the opposite magnet of magnetic pole.

Further, this groove is to the side extension of postponing, the end face symmetry of this extension be provided with two catch, utilize this extension and two catch to form a draw-in groove.

The xsect of this fixture block is the T type.

This decorative cover can be the geometric configuration moulding, can be decorated with various patterns, literal or letter on the face.

Gadget of the present utility model adopts the above-mentioned movable winding that cooperates with glasses, and the person of being easy to use matches different gadgets as required, and need not to purchase separately glasses, and cost saving and replacing and use are more flexible.

Description of drawings

Fig. 1 is a schematic appearance of the present utility model;

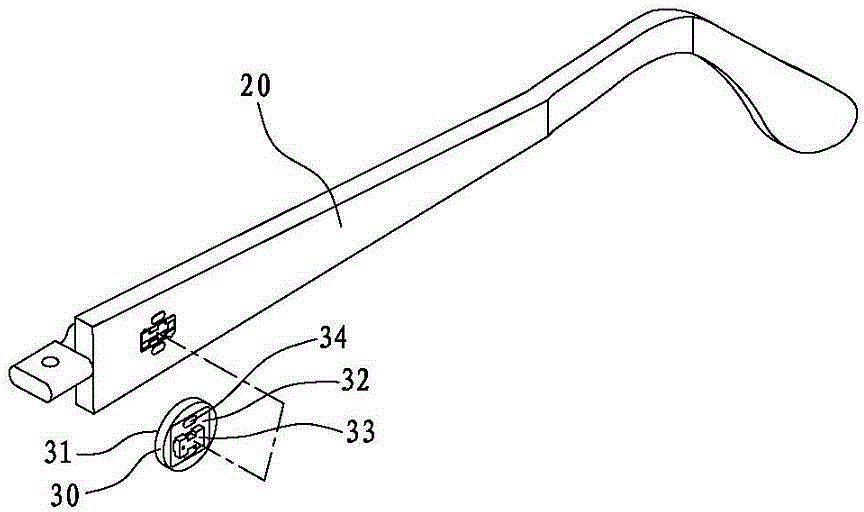

Fig. 2 is the STRUCTURE DECOMPOSITION synoptic diagram of the utility model leg of spectacles and gadget;

Fig. 3 is Fig. 2 partial enlarged drawing;

Fig. 4 is the combination synoptic diagram of the utility model leg of spectacles and gadget;

Fig. 5 is the side view of the utility model gadget.

Embodiment

Below in conjunction with drawings and the specific embodiments the utility model is explained.

Extremely shown in Figure 5 as Fig. 1, be a kind of novel glasses of the present utility model, mainly include mirror holder 10, be articulated in two legs of spectacles 20 of mirror holder sidepiece, wherein, separable activity winding one gadget 30 on this each leg of spectacles 20, this gadget 30 can be located on the optional position of leg of spectacles, the preferred gadget 30 of present embodiment is to be located on the lateral surface of leg of spectacles 20, this gadget 30 has a decorative cover 31 and a faying face 32, this decorative cover 31 can be shape arbitrarily, can be decorated with various patterns on the face, literal or letter etc. protrude on this faying face 32 and are formed with the fixture block 33 that an xsect is the T type, and be embedded with magnet 34 in the both sides of fixture block 33;

Described leg of spectacles 20 is provided with the groove 21 that matches with this gadget 30 faying face fixture blocks 33, the position of corresponding aforementioned fixture block 33 magnet 34 in the both sides of this groove 21 is provided with the opposite magnet of magnetic pole 22, utilize the suction-operated of magnet, can fixture block 33 be snapped in the groove automatic contraposition; Further, this groove 21 is to the side extension 23 of postponing, the end face symmetry of this extension 23 be provided with two catch 24, utilize this extension 23 and two catch 24 to form a draw-in groove.

During installation, fixture block 33 correspondences of gadget 30 are inserted in the groove 21 of leg of spectacles 20, the magnet 34 of while fixture block 33 both sides and the corresponding in twos absorption of magnet 22 of groove 21, gadget 30 is positioned in the groove 21, afterwards gadget 30 is pushed to the extension 23 of groove 21 1 sides, make fixture block 33 1 end stoppers in draw-in groove, and be subjected to stopping of two catch 24, prevent that with strong fix gadget 30 from deviating from groove 21.Gadget 30 also can be arranged on the picture frame of glasses in addition except above-mentioned being arranged on the leg of spectacles, the purpose of same attainable cost utility model.

Claims

1. novel glasses, mainly include mirror holder, be articulated in two legs of spectacles of mirror holder sidepiece, it is characterized in that: separable activity winding one gadget on this leg of spectacles, this gadget has a decorative cover and a faying face, protrude formation one fixture block on this faying face, and be embedded with magnet in the both sides of fixture block;

Described leg of spectacles is provided with the groove that matches with this gadget fixture block, and the position of the corresponding aforementioned fixture block magnet in the both sides of this groove is provided with the opposite magnet of magnetic pole.

2. a kind of novel glasses as claimed in claim 1 is characterized in that: further, this groove is to the side extension of postponing, the end face symmetry of this extension be provided with two catch, utilize this extension and two catch to form a draw-in groove.

3. a kind of novel glasses as claimed in claim 1 is characterized in that: the xsect of this fixture block is the T type.
