The utility model discloses a straw shifting mechanism of a lower cutting knife of a crawler harvester, which comprises a lower cutting knife installed at the front of a travelling crawler, wherein the lower cutting knife comprises a fixed knife bar and a movable knife bar with cutting teeth, the head end of a straw shifting device is fixedly connected with the middle part of the movable knife bar by a connecting component and is also positioned above the movable knife bar, the straw shifting device carries out reciprocating movement along with the movable knife bar, an included angle alpha formed by a bar body of the straw shifting device and the movable knife bar is 5 to 45 degrees, and the front edge of the straw shifting device is evenly distributed with sawteeth. By the conditions that the head end of the straw shifting device is fixedly connected with the middle part of the movable knife bar by the connecting component and is also positioned above the movable knife bar and the straw shifting device also carries out the reciprocating movement along with the movable knife bar according to the straw shifting mechanism of the lower cutting knife of the crawler harvester, straw heads which are cut off by the middle part of the lower cutting knife are continuously pushed and conveyed to an end head part by the sawteeth on the straw shifting device, fall off, then are rolled by the travelling crawler, fall off from the lower cutting knife completely and also fall to the ground so as to reach that straws which are cut off by the middle part are transferred to the end head part and lodge, so that the technical problem of easy grass accumulation at the middle part of the lower cutting knife is solved very well.
Description
Technical field
The utility model relates to a kind of caterpillar band harvester, is specifically related to a kind of caterpillar band harvester lower cutter device.
Background technology
Existing caterpillar band harvester utilizes the upper cutter knife in the ceding of Taiwan that the grain ear of crops such as rice wheat is raised after point cuts off, and can stay higher surplus stubble, is contained in the following cutter of the reaping hook back lower place, can cut once more surplus stubble and reduce highly, cultivates to adapt to the follow-up of field.Following cutter is arranged on grain header traveling crawler the place ahead, distance between its width and the left and right sides crawler belt outside is unanimous on the whole, after the stalk that is partly cut off by the following two ends of cutter falls, the crawler belt that the stalk head can be walked later rolls throws oneself on the ground, thereby involving whole section stalk successfully falls from following cutter, therefore, long-pending careless phenomenon can not take place on the cutter down in the stalk that partly cuts off of two ends; But the stalk that cuts off between the crawler belt inboard, the left and right sides, promptly by the stalk that cuts off in the middle part of the following cutter, because of the stalk head that lodges can not be subjected to rolling of crawler belt, the influence that stalk is subjected to rice wheat stubble and is interweaved, be easy to stop and pull on following cutter and rear body, and constantly accumulation forms bigger long-pending careless group, and pushing the place ahead crops have a strong impact on the harvesting operation.
Summary of the invention
Defective at the prior art existence, the technical problems to be solved in the utility model is, cutter stalk poking mechanism under a kind of caterpillar band harvester is provided, it can push the stalk that descends the cutter middle part to cut off to end portion, make the stalk of lodging can be subjected to crawler belt and roll and throw oneself on the ground, avoid down the cutter middle part long-pending careless phenomenon to occur.
The technical solution adopted in the utility model is, cutter stalk poking mechanism under a kind of caterpillar band harvester, comprise the following cutter that is installed in traveling crawler the place ahead, following cutter comprises the moving knife bar of stationary knife bar and band cutting teeth, dial stalk device head end through connector fixedly connected moving knife bar middle part and be positioned at moving knife bar top, it is reciprocating to dial stalk device servo-actuated knife bar, and its body of rod and moving knife bar angle α are 5
o-45
o, dial the uniform sawtooth in stalk device forward position.
In the following cutter course of work, the stalk device servo-actuated knife bar of dialling that is fixedly connected on moving knife bar top constantly moves back and forth fast, by the stalk that cuts off in the middle part of the following cutter, in the lodging process, its stalk head is subjected to dialling the repeatedly propelling movement effect of stalk device sawtooth, can move to down the cutter end portion step by step, drop into down in the space between cutter and the traveling crawler, rolled by traveling crawler subsequently and throw oneself on the ground, roll the stalk head of throwing oneself on the ground and to involve whole section stalk and fully fall, thereby avoid down the cutter middle part careless phenomenon to occur amassing from following cutter.
The angle α that the above-mentioned group of stalk device body of rod become with the moving knife bar is 10
o-40
o, suitable angle setting can make angle tooth efficient when pushing the stalk head of dialling the stalk device higher, better effects if, and further optimizing angle is 15
o-35
o
Above-mentioned sawtooth be shaped as right angled triangle.Wherein a right-angle side is perpendicular to group stalk device body of rod and towards following cutter end portion.The sawtooth of right angled triangle can make sawtooth efficient when pushing the stalk head higher, is difficult for rewinding the stalk head during return motion, pushes better effects if.
The tail end of above-mentioned group of stalk device also is provided with to hold up and send handle, and holding up the angle that send handle and dial between the stalk device body of rod is 20
o-85
oHold up and send handle further to hold up and deliver to down the cutter end portion, successfully drop into traveling crawler the place ahead, reduce part stalk head still falls into the cutter central region dialling the tail end landing of stalk device phenomenon moving to the stalk head of dialling stalk device tail end.
Above-mentioned hold up send sawtooth is set on the handle, can improve to hold up and send holding up of bar to send effect.
The utility model will be by dialling stalk device head end through the fixedly connected moving knife bar of connector middle part and be positioned at moving knife bar top, and it is reciprocating to dial stalk device servo-actuated knife bar, the stalk head that cut off at the cutter middle part under the feasible quilt is constantly pushed to end portion by the sawtooth on group stalk device and falls, rolled by traveling crawler subsequently and fully come off and throw oneself on the ground from following cutter, the stalk that has cut off in the middle part of having realized is transferred to the end portion lodging, thus the fine easily long-pending careless technical problem in time cutter middle part that solved.
Description of drawings
Fig. 1 is the structural representation of a kind of embodiment of the utility model.
Fig. 2 dials first kind of embodiment schematic top plan view of stalk device in the utility model.
Fig. 3 dials second kind of embodiment schematic top plan view of stalk device in the utility model.
Fig. 4 dials the third embodiment schematic top plan view of stalk device in the utility model.
Embodiment
Below, in conjunction with the accompanying drawings embodiment of the present utility model is described further.
Fig. 1 shows the embodiment of cutter stalk poking mechanism under a kind of caterpillar band harvester, comprise the following cutter 2 that is installed in traveling crawler 1 the place ahead, following cutter 2 comprises the moving knife bar 22 of stationary knife bar 21 and band cutting teeth, the end portion of following cutter 2 comprises a district of left end and the b district of right-hand member, the middle part is meant and is positioned at the b district in cutter 2 stage casings down, dialling stalk device 3 head ends is fixedly connected on moving knife bar 22 middle parts (b district) and is positioned at moving knife bar 22 tops through connector 4, moving knife bar 22 moves back and forth under the driving of shift fork 5, the surplus stubble of cutting crop, it is reciprocating to dial stalk device 3 servo-actuated knife bars 22, and dialling stalk device 3 bodies of rod and moving knife bar 22 angle α is 5
o, dial the uniform sawtooth 31 in stalk device 3 forward positions.
By the stalk that descends cutter 2 middle parts (b district) to cut off, in the lodging process, its stalk head is subjected to dialling the repeatedly propelling movement effect of stalk device 3 sawtooth 31, can move to right-hand member head c district step by step, drop into down the space between cutter 2 and the traveling crawler 1, rolled by traveling crawler 1 subsequently and throw oneself on the ground, rolled the stalk head of throwing oneself on the ground by traveling crawler 1 and can involve whole section stalk fully from descending cutter 2 to fall, (b district) cuts off the stalk transfer lodging in termination c district to the right in the middle part of having realized, thereby avoids down cutter 2 middle parts (b district) long-pending careless phenomenon to occur.

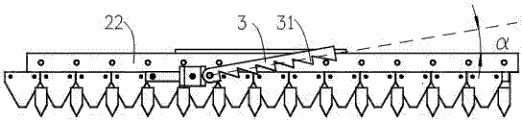

Fig. 2 shows and dials first kind of embodiment of stalk device in the utility model, and the angle α that group stalk device 3 bodies of rod are become with moving knife bar 22 is 10
o, dial uniform sawtooth 31 on the forward position of stalk device 3, sawtooth 31 be shaped as right angled triangle.
Fig. 3 shows and dials second kind of embodiment of stalk device in the utility model, and the angle α that group stalk device 3 bodies of rod are become with moving knife bar 22 is 20
o, uniform sawtooth 31 on the forward position of group stalk device 3, the tail end setting of group stalk device 3 is held up and is sent handle 32, and holding up the angle β that send handle 32 and dial between stalk device 3 bodies of rod is 50
o

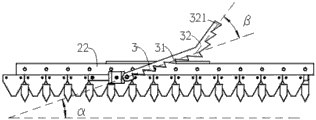

Fig. 4 shows and dials the third embodiment of stalk device in the utility model, and the angle α that group stalk device 3 bodies of rod are become with moving knife bar 22 is 30
o, uniform sawtooth 31 on the forward position of group stalk device 3, the tail end setting of group stalk device 3 is held up and is sent handle 32, and holding up the angle β that send handle 32 and dial between stalk device 3 bodies of rod is 30
o, hold up and send uniform sawtooth 321 on the handle 32.
Claims (10)
1. cutter stalk poking mechanism under the caterpillar band harvester, comprise the following cutter that is installed in traveling crawler the place ahead, following cutter comprises the moving knife bar of stationary knife bar and band cutting teeth, it is characterized in that dialling stalk device head end through connector fixedly connected moving knife bar middle part and be positioned at moving knife bar top, it is reciprocating to dial stalk device servo-actuated knife bar, and its body of rod and moving knife bar angle α are 5
o-45
o, dial the uniform sawtooth in stalk device forward position.
2. cutter stalk poking mechanism under the caterpillar band harvester as claimed in claim 1 is characterized in that the angle α that group stalk device body of rod is become with the moving knife bar is 10
o-40
o
3. cutter stalk poking mechanism under the caterpillar band harvester as claimed in claim 2 is characterized in that the angle α that group stalk device body of rod is become with the moving knife bar is 15
o-35
o
4. as cutter stalk poking mechanism under each described caterpillar band harvester of claim 1-3, it is characterized in that the right angled triangle that is shaped as of sawtooth.
5. as cutter stalk poking mechanism under each described caterpillar band harvester of claim 1-3, the tail end that it is characterized in that dialling the stalk device also is provided with to hold up and send handle.
6. cutter stalk poking mechanism under the caterpillar band harvester as claimed in claim 4, the tail end that it is characterized in that dialling the stalk device also is provided with to hold up and send handle.
7. cutter stalk poking mechanism under the caterpillar band harvester as claimed in claim 5, it is characterized in that holding up the angle that send handle and dial between the stalk device body of rod is 20
o-85
o
8. cutter stalk poking mechanism under the caterpillar band harvester as claimed in claim 6, it is characterized in that holding up the angle that send handle and dial between the stalk device body of rod is 20
o-85
o
9. cutter stalk poking mechanism under the caterpillar band harvester as claimed in claim 7 is characterized in that holding up sending sawtooth is set on the handle.
10. cutter stalk poking mechanism under the caterpillar band harvester as claimed in claim 8 is characterized in that holding up sending sawtooth is set on the handle.
