CN201932694U - Mechanical transporting mechanism of porcelain insulator - Google Patents
Mechanical transporting mechanism of porcelain insulator Download PDFInfo
- Publication number
- CN201932694U CN201932694U CN2010206433719U CN201020643371U CN201932694U CN 201932694 U CN201932694 U CN 201932694U CN 2010206433719 U CN2010206433719 U CN 2010206433719U CN 201020643371 U CN201020643371 U CN 201020643371U CN 201932694 U CN201932694 U CN 201932694U
- Authority
- CN
- China
- Prior art keywords
- cylinder
- frame
- air cylinder
- porcelain insulator
- supporting plate
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 239000012212 insulator Substances 0.000 title claims abstract description 23
- 229910052573 porcelain Inorganic materials 0.000 title claims abstract description 21
- 238000004519 manufacturing process Methods 0.000 abstract description 3
- 238000005516 engineering process Methods 0.000 description 2
- 239000000463 material Substances 0.000 description 2
- 238000000034 method Methods 0.000 description 2
- 238000012423 maintenance Methods 0.000 description 1
- 238000000465 moulding Methods 0.000 description 1
- 230000001737 promoting effect Effects 0.000 description 1
Images
Landscapes
- Specific Conveyance Elements (AREA)
Abstract
本实用新型公开了一种瓷绝缘子机械转运机构，包括机架，其特征在于：在机架上设有第一气缸(10)，第一气缸(10)连接夹持气缸(5)和弧形夹板(4)，在机架上设有第二气缸(13)，第二气缸(13)连接提升气缸(7)和托板(12)。本实用新型采用气缸机构对瓷绝缘子进行加工过程中的转运，气缸机构响应速度快，生产效率高。由于夹板、托板可以配有不同规格，故对不同尺寸的绝缘子都可适用。同现有技术相比，本实用新型可代替人工转运，降低劳动强度，节约人工成本。
The utility model discloses a mechanical transfer mechanism for porcelain insulators, which comprises a frame, and is characterized in that: a first air cylinder (10) is arranged on the frame, and the first air cylinder (10) is connected with a clamping air cylinder (5) and an arc-shaped The splint (4) is provided with a second air cylinder (13) on the frame, and the second air cylinder (13) connects the lifting air cylinder (7) and the supporting plate (12). The utility model adopts a cylinder mechanism to transfer the porcelain insulator during processing, and the cylinder mechanism has fast response speed and high production efficiency. Since the splint and supporting plate can be equipped with different specifications, it is applicable to insulators of different sizes. Compared with the prior art, the utility model can replace manual transfer, reduce labor intensity and save labor cost.
Description
Technical field
The utility model relates to a kind of porcelain insulator machinery transshipment acitivity, belongs to porcelain insulator processing transportation technology field.
Background technology
Blank is transferred to another station mainly by a dead lift from a station in the dish type porcelain insulator molding procedure at present, and labour intensity is big, inefficiency.
Summary of the invention
The purpose of this utility model is: a kind of porcelain insulator machinery transshipment acitivity is provided, replaces a dead lift, reduce labour intensity.
The utility model is to constitute like this: porcelain insulator machinery transshipment acitivity, comprise frame, and on frame, be provided with first cylinder, first cylinder connects gripper cylinder and curved splint, is provided with second cylinder on frame, and the connection of second cylinder promotes cylinder and supporting plate.
Above-mentioned porcelain insulator machinery transshipment acitivity is provided with the clamping guide piece on curved splint.
Above-mentioned porcelain insulator machinery transshipment acitivity is provided with the lifting guide piece on supporting plate.
Above-mentioned porcelain insulator machinery transshipment acitivity is provided with guide rail on frame, guide rail is connected with first cylinder, second cylinder respectively.
Above-mentioned porcelain insulator machinery transshipment acitivity is provided with first load-transfer device, second load-transfer device on frame, be provided with the processing fore-set between first load-transfer device and second load-transfer device.
The utility model adopts cylinder mechanism that porcelain insulator is carried out transhipment in the course of processing, and the cylinder mechanism speed of response is fast, the production efficiency height.Because clamping plate, supporting plate can be furnished with different size, so all applicable to the insulator of different size.Compare with prior art, the present invention can replace man-handling of materials, reduces labour intensity, saves cost of labor.
Description of drawings

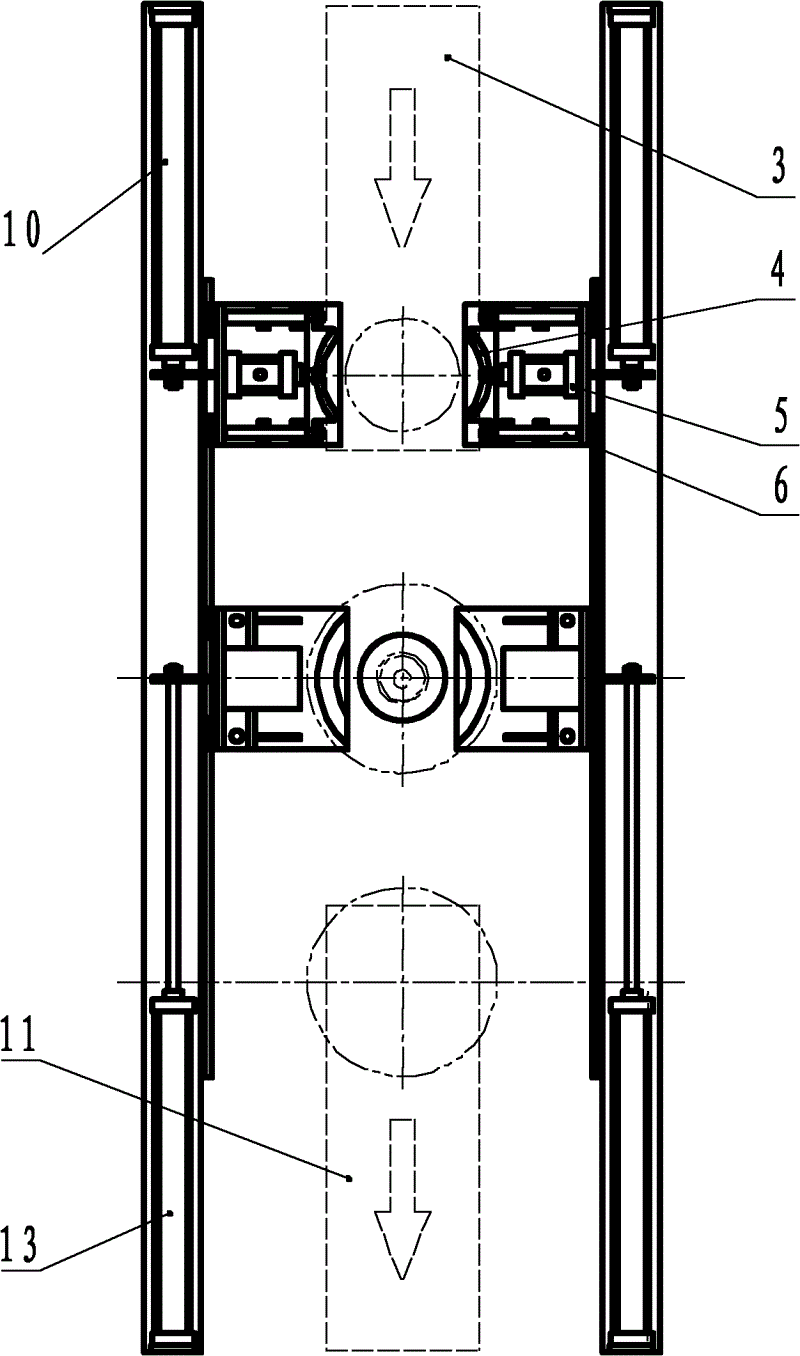

Accompanying drawing 1 is a structural representation of the present utility model;
Accompanying drawing 2 promotes the structural representation of cylinder and supporting plate for the utility model.
The specific embodiment
Embodiment of the present utility model.Porcelain insulator machinery transshipment acitivity is made the frame of processing transportation usefulness shown in Fig. 1-2, first load-transfer device 3, second load-transfer device 11 are installed on frame, and processing fore-set 2 is set between first load-transfer device 3 and second load-transfer device 11.During production, the workpiece 1 of porcelain insulator need move on the station of processing fore-set 2 from first load-transfer device 3, finishes the compacting to workpiece 1, and workpiece 1 is pressed into the plate-like blank.Fore-set 2 jackings held up workpiece 1 after workpiece 1 compacting was finished, and moved to then on second load-transfer device 11, delivered to down operation.
As shown in Figure 1, first cylinder, 10, the first cylinders 10 are installed on frame are connected gripper cylinder 5 and curved splint 4, second cylinder, 13, the second cylinders 13 also are installed on frame are connected lifting cylinder 7 and supporting plate 12.
Connect clamping guide piece 6 on curved splint 4, it is stable that maintenance gripper cylinder 5 moves, and clamping is more firm.
On supporting plate 12, connect lifting guide piece 8, keep promoting stable that cylinder 7 moves.
Working process is as follows: workpiece 1 (column blank) passes to station No. 1 through belt conveyor 3, promotes arcuation clamping plate 4 by cylinder 5 and clamps, and is transported on No. 2 stations can be with workpiece 1 under the restriction of the promotion of cylinder 10 and line slideway 9 stable then.Workpiece 1 is return to the exhaust hood 10 that puts in place, and arcuation clamping plate 4 are return original position.
Circulate and so forth, can realize the input and output material of workpiece 1.
Claims (5)
