Abstract
本实用新型涉及一种花盆，尤其是涉及一种多功能水培花盆。一种多功能水培花盆，包括底座，其特征在于所述的底座上方设有水培筒，所述的水培筒内部上方架设有定植杯，所述的定植杯上设有若干个植物生长孔，所述的水培筒底部设有增氧发生器，所述的增氧发生器与设置在底座内部的控制芯片相连。本实用新型具有能够实现增氧功能、可实现花鱼共养、外形美观、具有照明功能、具有音乐功能等特点。
The utility model relates to a flowerpot, in particular to a multifunctional hydroponic flowerpot. A multifunctional hydroponic flower pot, comprising a base, characterized in that a hydroponic tube is arranged above the base, a planting cup is set above the interior of the hydroponic tube, and several plants are arranged on the planting cup The growth hole, the bottom of the hydroponic cylinder is provided with an aeration generator, and the aeration generator is connected with a control chip arranged inside the base. The utility model has the characteristics of being able to realize the function of increasing oxygen, realizing co-cultivation of flowers and fish, beautiful appearance, lighting function, music function and the like.
Description
技术领域technical field
本实用新型涉及一种花盆，尤其是涉及一种多功能水培花盆。The utility model relates to a flowerpot, in particular to a multifunctional hydroponic flowerpot.
背景技术Background technique
众所周知，花盆是人们日常生活中常用的种植植物的器具，目前市场上的花盆种类繁多、结构各异，但是大多数花盆不仅外形单一，而且功能简单，只能实现单一的种植花卉植物的功能。此外，目前市场上的许多花盆通气性较差，种植成活率不高，且不具备照明、音乐和增氧等功能。许多放置在办公室的盆景无法满足人们对灯光和音乐的多重需要，实用性不高。As we all know, flowerpots are commonly used utensils for planting plants in people's daily life. At present, there are many kinds of flowerpots and different structures on the market, but most flowerpots not only have a single shape, but also have simple functions, and can only realize a single planting of flowers and plants. function. In addition, many flower pots currently on the market have poor ventilation, low planting survival rates, and do not have functions such as lighting, music, and oxygen enhancement. Many bonsai placed in the office cannot meet people's multiple needs for lighting and music, and are not very practical.
发明内容Contents of the invention
本实用新型主要是针对现有技术所存在的上述技术问题，提供一种能够实现增氧功能、可实现花鱼共养、外形美观、具有照明功能、具有音乐功能的多功能水培花盆。The utility model mainly aims at the above-mentioned technical problems existing in the prior art, and provides a multifunctional hydroponic flower pot capable of increasing oxygen, co-cultivating flowers and fish, having beautiful appearance, lighting function and music function.
本实用新型的上述技术问题主要是通过下述技术方案得以解决的：一种多功能水培花盆，包括底座，其特征在于所述的底座上方设有水培筒，所述的水培筒内部上方架设有定植杯，所述的定植杯上设有若干个植物生长孔，所述的水培筒底部设有增氧发生器，所述的增氧发生器与设置在底座内部的控制芯片相连。本实用新型中的水培筒可用做养鱼，水培筒底部设置的增氧发生器用于为水培筒内增氧，水培筒内部上方架设的定植杯用于种植花卉，花卉植物的根部可穿过定植杯上开设的若干个植物生长孔进入下方水培筒内的水中，而水中养殖的鱼类也可以食用植物的老根，从而达到花鱼共养的良性循环。The above-mentioned technical problems of the utility model are mainly solved by the following technical solutions: a multifunctional hydroponic flower pot, including a base, is characterized in that a hydroponic tube is arranged above the base, and the hydroponic tube A planting cup is erected above the interior, and several plant growth holes are arranged on the planting cup, and an aeration generator is provided at the bottom of the hydroponic cylinder, and the aeration generator and the control chip arranged inside the base connected. The hydroponic tube in the utility model can be used for fish farming, the oxygen generator installed at the bottom of the hydroponic tube is used to increase oxygen in the hydroponic tube, and the planting cup erected above the inside of the hydroponic tube is used for planting flowers and the roots of flower plants It can pass through several plant growth holes opened on the planting cup and enter the water in the hydroponic tube below, and the fish cultured in the water can also eat the old roots of the plants, so as to achieve a virtuous cycle of co-cultivation of flowers and fish.
作为优选，所述的底座上设有USB音响接口，所述的USB音响接口与底座上开设的扬声孔电连接。底座上设置的USB音响接口可用于接入MP3等音乐播放装置，底部的扬声孔可用于播放音乐。Preferably, the base is provided with a USB audio interface, and the USB audio interface is electrically connected to the speaker hole opened on the base. The USB audio interface provided on the base can be used to access music player devices such as MP3, and the speaker hole at the bottom can be used to play music.
作为优选，所述的底座上设有彩色灯组，所述的彩色灯组与控制芯片电连接。通过控制芯片控制底座上设置的彩色灯组，外形美观，结构新颖，使用方便。Preferably, the base is provided with a group of colored lamps, and the group of colored lamps is electrically connected to the control chip. The color lamp group arranged on the base is controlled by a control chip, the appearance is beautiful, the structure is novel, and the use is convenient.
作为优选，所述的底座上设有增氧开关、音乐开关和灯光开关，所述的增氧开关、音乐开关和灯光开关均与控制芯片电连接。控制芯片用于控制音乐开关、增氧发生器的开关、灯光的开关，使用方便。Preferably, the base is provided with an oxygen enrichment switch, a music switch and a light switch, and the oxygen enrichment switch, music switch and light switch are all electrically connected to the control chip. The control chip is used to control the music switch, the switch of the oxygen generator, and the switch of the light, which is easy to use.
作为优选，所述的底座上设有排水阀。排水阀方便使用者更换水培筒内的水。Preferably, the base is provided with a drain valve. The drain valve is convenient for users to replace the water in the hydroponic cylinder.
作为优选，所述的定植杯呈碗状，定植杯的下表面和定植杯的侧部均开设有若干个植物生长孔。碗状的定植杯的侧部和底部均设置有若干个种植孔，方便植物的根须从各个方向伸入水中。Preferably, the planting cup is bowl-shaped, and several plant growth holes are opened on the lower surface of the planting cup and the sides of the planting cup. The side and the bottom of the bowl-shaped planting cup are provided with several planting holes, so that the roots of the plants can extend into the water from all directions.
作为优选，所述的底座上连接有电源线。可通过底座上连接的电源线为该装置提供电能。Preferably, a power cord is connected to the base. The unit can be powered by a power cord connected to the base.
因此，本实用新型具有能够实现增氧功能、可实现花鱼共养、外形美观、具有照明功能、具有音乐功能等特点。Therefore, the utility model has the characteristics of being able to realize the function of increasing oxygen, realizing co-cultivation of flowers and fish, beautiful appearance, lighting function and music function.
附图说明Description of drawings

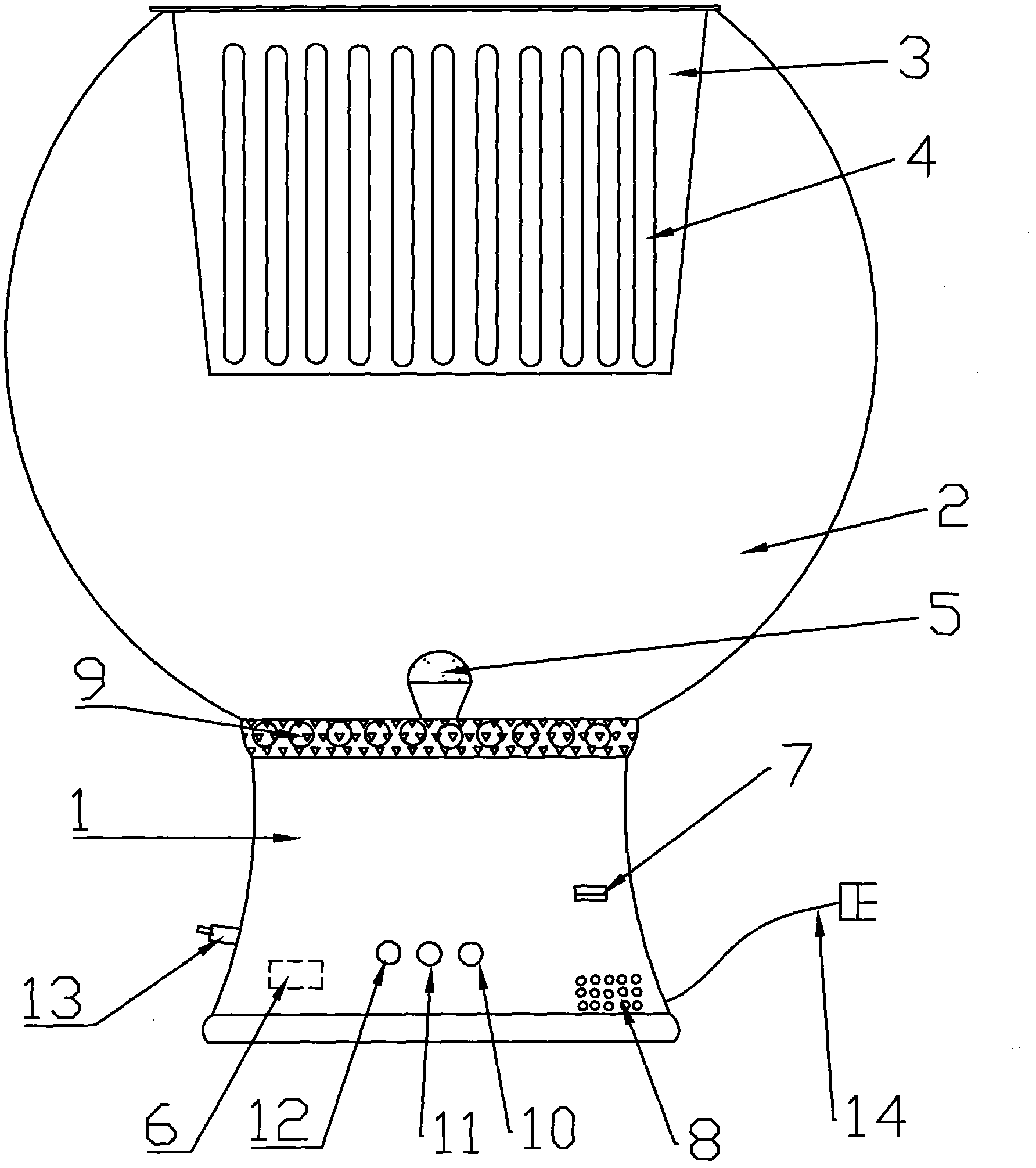

附图1是本实用新型的一种结构示意图。Accompanying drawing 1 is a kind of structural representation of the utility model.
附图2是本实用新型中定植杯的一种结构立体示意图。Accompanying
具体实施方式Detailed ways
下面通过实施例，并结合附图，对本实用新型的技术方案作进一步具体的说明。The technical solutions of the present utility model will be further specifically described below through the embodiments and in conjunction with the accompanying drawings.
实施例1：Example 1:
如说明书附图1、2所示，一种多功能水培花盆，包括底座1，底座上方设有水培筒2，水培筒内部上方架设有定植杯3，定植杯上设有若干个植物生长孔4，水培筒底部设有增氧发生器5，增氧发生器与设置在底座内部的控制芯片6相连。底座上设有USB音响接口7，USB音响接口与底座上开设的扬声孔8电连接。底座上设有彩色灯组9，彩色灯组与控制芯片电连接。底座上设有增氧开关10、音乐开关11和灯光开关12，增氧开关、音乐开关和灯光开关均与控制芯片电连接。底座上设有排水阀13。定植杯呈碗状，定植杯的下表面和定植杯的侧部均开设有若干个植物生长孔。底座上连接有电源线14。As shown in Figures 1 and 2 of the description, a multifunctional hydroponic flowerpot includes a base 1, a
本实用新型中的水培筒可用做养鱼，水培筒底部设置的增氧发生器用于为水培筒内增氧，水培筒内部上方架设的定植杯用于种植花卉，花卉植物的根部可穿过定植杯上开设的若干个植物生长孔进入下方水培筒内的水中，而水中养殖的鱼类也可以食用植物的老根，从而达到花鱼共养的良性循环。The hydroponic tube in the utility model can be used for fish farming, the oxygen generator installed at the bottom of the hydroponic tube is used to increase oxygen in the hydroponic tube, and the planting cup erected above the inside of the hydroponic tube is used for planting flowers and the roots of flower plants It can pass through several plant growth holes opened on the planting cup and enter the water in the hydroponic tube below, and the fish cultured in the water can also eat the old roots of the plants, so as to achieve a virtuous cycle of co-cultivation of flowers and fish.
应理解，该实施例仅用于说明本实用新型而不用于限制本实用新型的范围。此外应理解，在阅读了本实用新型讲授的内容之后，本领域技术人员可以对本实用新型作各种改动或修改，这些等价形式同样落于本申请所附权利要求书所限定的范围。It should be understood that this embodiment is only used to illustrate the utility model but not to limit the scope of the utility model. In addition, it should be understood that after reading the content taught by the utility model, those skilled in the art can make various changes or modifications to the utility model, and these equivalent forms also fall within the scope defined by the appended claims of the application.
