CN201911183U - Fish and vegetable co-existing small household device - Google Patents
Fish and vegetable co-existing small household device Download PDFInfo
- Publication number
- CN201911183U CN201911183U CN2010206680114U CN201020668011U CN201911183U CN 201911183 U CN201911183 U CN 201911183U CN 2010206680114 U CN2010206680114 U CN 2010206680114U CN 201020668011 U CN201020668011 U CN 201020668011U CN 201911183 U CN201911183 U CN 201911183U
- Authority
- CN
- China
- Prior art keywords
- fish
- family
- tank
- dingus
- lower half
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Lifetime
Links
Images
Classifications
-
- A—HUMAN NECESSITIES
- A01—AGRICULTURE; FORESTRY; ANIMAL HUSBANDRY; HUNTING; TRAPPING; FISHING
- A01G—HORTICULTURE; CULTIVATION OF VEGETABLES, FLOWERS, RICE, FRUIT, VINES, HOPS OR SEAWEED; FORESTRY; WATERING
- A01G31/00—Soilless cultivation, e.g. hydroponics
- A01G31/02—Special apparatus therefor
-
- A—HUMAN NECESSITIES
- A01—AGRICULTURE; FORESTRY; ANIMAL HUSBANDRY; HUNTING; TRAPPING; FISHING
- A01G—HORTICULTURE; CULTIVATION OF VEGETABLES, FLOWERS, RICE, FRUIT, VINES, HOPS OR SEAWEED; FORESTRY; WATERING
- A01G9/00—Cultivation in receptacles, forcing-frames or greenhouses; Edging for beds, lawn or the like
- A01G9/24—Devices or systems for heating, ventilating, regulating temperature, illuminating, or watering, in greenhouses, forcing-frames, or the like
- A01G9/249—Lighting means
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02P—CLIMATE CHANGE MITIGATION TECHNOLOGIES IN THE PRODUCTION OR PROCESSING OF GOODS
- Y02P60/00—Technologies relating to agriculture, livestock or agroalimentary industries
- Y02P60/20—Reduction of greenhouse gas [GHG] emissions in agriculture, e.g. CO2
- Y02P60/21—Dinitrogen oxide [N2O], e.g. using aquaponics, hydroponics or efficiency measures
Landscapes
- Life Sciences & Earth Sciences (AREA)
- Environmental Sciences (AREA)
- Hydroponics (AREA)
Abstract
The utility model relates to a fish and vegetable co-existing small household device. The device comprises a bracket, a lamp plate, a lampshade, a water flume, a fish tank, a water pipe, a fixing frame and a water pump, wherein the bracket comprises an upper half part and a lower half part; the upper half part is formed by buckling and connecting a front housing and a back housing; the lower half part is cylinder-shaped; the lamp plate and the lampshade are mounted at the top of the bracket; the fixing frame is placed in the fish tank; the bracket is placed on the fixing frame; the water flume is placed in the lower half part of the bracket; the water pump is placed in the fish tank; and liquid is supplied to the water flume through the water pipe; and redundant liquid in the water flume can flow out and return to the fish tank, thereby forming a cycle. The hydroponic device provided by the utility model is ingenious, attractive, convenient and practical, is convenient to operate and clean, can be simultaneously used for illumination, fish raising and hydroponic plant or vegetable cultivation, can be placed in any indoor place, achieves the effects of decoration and illumination, can be further used for raising fishes and beautifying the environment, and can reduce the content of harmful gases, such as CO2, and the like in air; moreover, green, clean and edible fresh vegetables can be acquired after a certain time.
Description
Technical field
The utility model relates to a kind of fish and vegetable symbiotic family dingus, be meant especially a kind of indoor use, can regulate the oxygen content in the room air and have illumination concurrently and view and admire, the microphyte hydroponic device of the effect of beautifying the environment such as decoration, belong to the soilless plant cultivation facility of agricultural mechanical field.
Background technology
Along with people's living standard progressively improve and to the change of food needs, health, green, environmental protection, life style is more and more paid attention to easily, health, nutrition, healthy food more and more are subjected to liking of people, and wherein the victual of green non-pollution, fresh cleaning is particularly important to people's the modern life.Become the important topic that people pay close attention to and how to produce this vegetables efficiently.
Around living environment, plant flowers, plants and trees and not only have the effect of beautifying the environment, and has an effect of regulating oxygen content in the air, but development along with society, the population concentrations is in the city, make and produce crowding phenomenon on the limited soil in the city, the people that inhabit the city limit because of the soil, and the space that can have is rare day by day, therefore become the main mode that people in the city arrange environment and improve indoor air quality a few basin house plants of indoor placement.In order to realize soilless culture in the darker place of indoor light, the needs exploitation is a kind of can to provide illumination, can satisfy the light source of green vegetables and plant growing again, the miniature house plant hydroponic device that can also beautify the environment.
The utility model content
The purpose of this utility model provides a kind of fish and vegetable symbiotic family dingus, and is exquisite attractive in appearance, and convenient practicality is easy to operate.Both can be used as illuminations, the fish culture apparatus of family life, can be used as environment-friendly decorative product, air purifier, natural oxygen-bar again, also can well satisfy the needs of people's daily life victual.The utility model combines plant physiology, cultivation technique without soil, physical regulating growth and diseases prevention technology and designs one and have multi-functional house plant culturing device.At indoor sunlight and the soil of not needing, just can realize vegetables and cultivation of plants.
For realizing the purpose of this utility model, take following technical scheme:
A kind of fish and vegetable symbiotic family dingus, it is characterized in that: comprise support, lamp plate, lampshade, tank, fish jar, water pipe, fixed mount and water pump, described support comprises the first half and Lower Half, the first half is fastened and connected by fore shell and back cover and forms, Lower Half is a tubular, lamp plate and lampshade are installed in the top of support, and fixed mount is placed in the fish jar, and support is placed on the fixed mount; Tank is positioned in the Lower Half of support, and water pump is positioned in the fish jar, and by water pipe feed trough feed flow, excess liquid flows out in the tank, gets back in the fish jar, forms circulation.
A kind of optimized technical scheme is characterized in that: described tank is provided with the field planting plate, on the field planting plate field planting hole is set, and places planting cup in the field planting hole.
A kind of optimized technical scheme is characterized in that: the spacing between the described field planting hole equates that the quantity of described field planting hole is 6.
A kind of optimized technical scheme is characterized in that: the diameter of described field planting hole is 1.5-3.5cm.
A kind of optimized technical scheme is characterized in that: described lamp plate is the LED lamp plate, can satisfy the plant growing needs.
A kind of optimized technical scheme is characterized in that: the Lower Half of described support is big, a following young drum suitable for reading, and tank is a disc, and tank is supported on the Lower Half of support.
A kind of optimized technical scheme is characterized in that: the height of described tank is 5-20cm.
A kind of optimized technical scheme is characterized in that: described fixed mount is a drum, is provided with opening around the cylinder.
A kind of optimized technical scheme is characterized in that: the top of described support also is provided with louvre.
Advantage of the present utility model:
1, the utility model is the fish and vegetable symbiotic device that desk lamp, flowerpot and fish jar roll into one, and can be placed in indoor (as zones such as dining room, parlor, office, chess and card rooms), the especially more weak place of light Anywhere.Have following function: 1) illumination functions, 2) function of breeding fish, 3) decorate, beautifying functions, 4) but hydroponic plant or vegetables reduce airborne CO
2Content and other pernicious gases can obtain safe, green, clean, edible fresh vegetables again behind the certain hour.This device has been integrated technology such as semiconductor light emitting, plant light filling, water culture and plant nutrition, and bright and green gets both.LED lamp and hydroponic device combined not only can improve photosynthetic efficiency but also can purify air.This device belongs to the urban agriculture field, and development potentiality is huge.
2, device of the present utility model is exquisite attractive in appearance, convenient practicality, operation, easy to clean.Can be used as the environment-friendly decorative product, air purifier, natural oxygen-bar of family life etc., become the necessary article of the comfortable convenient life of Modern Family, realize low-carbon (LC), intelligence, environmental protection, healthy life.
Below by the drawings and specific embodiments the utility model is described further, but and does not mean that restriction the utility model protection domain.
Description of drawings

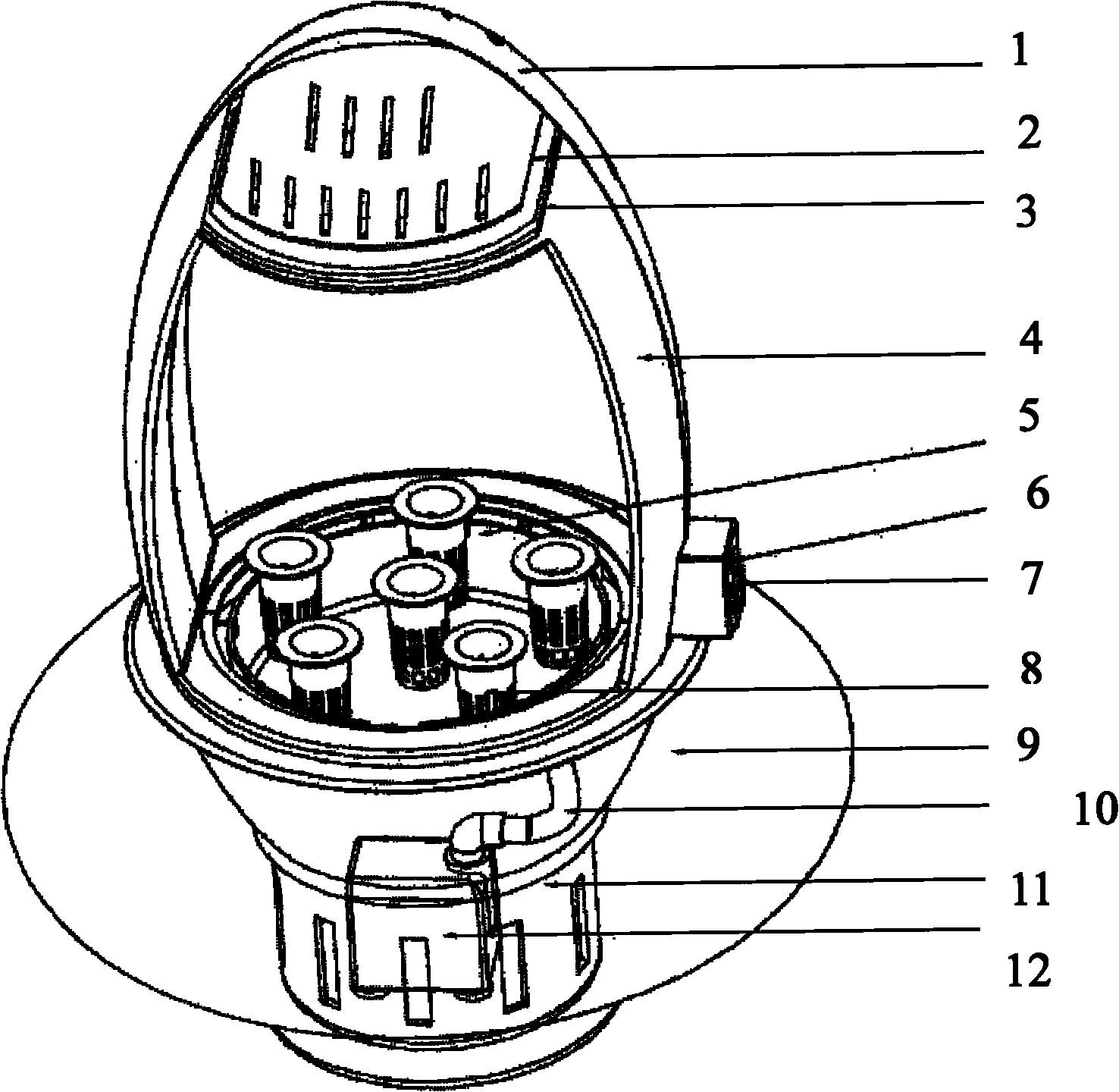

Fig. 1 is the perspective structure schematic diagram of fish and vegetable symbiotic family dingus.
Embodiment
As shown in Figure 1, be the perspective structure schematic diagram of the utility model fish and vegetable symbiotic family dingus; Wherein, 1 is back cover, and 2 is lamp plate, and 3 is lampshade, and 4 is fore shell, and 5 is tank, and 6 is pump switch, and 7 are supply socket, and 8 is planting cup, and 9 is fish jar, and 10 is water pipe, and 11 is fixed mount, and 12 is water pump.
Fish and vegetable symbiotic of the present utility model family dingus, comprise support, lamp plate 2, lampshade 3, tank 5, fish jar 9, water pipe 10, fixed mount 11 and water pump 12, described support comprises the first half and Lower Half, the first half is fastened and connected by fore shell 4 and back cover 1 and forms, Lower Half is the upper and lower tubular that there is not the end, lamp plate 2 and lampshade 3 are installed in the top of support, fixed mount 11 is placed in the fish jar, fixed mount 11 is the upper and lower drum that does not have the end, be provided with opening around the cylinder, to make things convenient for the circulation of water, fish also can free in and out by opening simultaneously.Support is placed on the fixed mount 11, and the support Lower Half is contacted with fixed mount 11.Tank 5 is provided with the field planting plate, and the field planting plate is positioned over tank 5 tops, and equally spaced field planting hole is set on the field planting plate, and the quantity of field planting hole is 6, and the diameter of field planting hole is 2.5cm.Place a planting cup 8 in each field planting hole, planting cup 8 bottoms are network, and the plant field planting is on it.Side at the support of fish and vegetable symbiotic of the present utility model family dingus also is provided with pump switch 6 and supply socket 7.
Tank 5 is positioned over the Lower Half inside of support, and the Lower Half of support is big, a following young drum suitable for reading, and tank 5 is a disc, and the height of tank 5 is 8cm.The outward flange of tank 5 is supported on the inward flange of Lower Half of support.Water pump 12 is positioned in the fish jar 9, and by water pipe 10 feed troughs 5 feed flows, excess liquid is overflowed in the tank 5, gets back in the fish jar 9, forms the nutrient solution circulation.Support of the present utility model, tank 3, fixed mount 11, field planting plate and water pipe 10 all adopt the PVC material to make, and fish jar 9 is a fishbowl.
Pour nutrient solution or water in the fish jar with fish and vegetable symbiotic of the present utility model family dingus, connect power supply, make nutrient solution or water flow into tank, after the circulation of nutrient solution or water circulation was normal, the field planting plant can planting vegetable or flowers and plants, base of the plant is fixed in the planting cup with the field planting sponge, put into field planting hole, the plant root just in time is soaked in the tank interior nutrient solution or water, draws nutrient.By the time opening of control of pump, can realize the timing automatic circulation of nutrient solution or water.Can be as required regularly or not timing carry out nutrient solution or water circulation, as circulating feed flow 2 times every day, each 30 minutes, can satisfy one day liquid manure demand of raise crop.
Can directly pour water in the fish jar, the excreta of fish can enter tank along with the circulation of water, as the nutrient component of hydroponic plant; Simultaneously, cleared up the excreta in the fish jar, therefore in this device, hydroponic plant can reach the purpose of doulbe-sides' victory with breeding fish.
Hydroponic device of the present utility model is divided into tank and field planting plate two parts, is very easy to monitoring of device internal environment and the cleaning of pipe interior dirt.The field planting plate not only can avoid foreign material to fall into groove, but also can shading, heat insulation, insulation, make that nutrient solution is in the dark surrounds in the groove, and temperature keeps relative stability, therefore can keep plant root and solution temperature environment better, be more conducive to growth and development of plant, improve crop quality and output.
The utility model is based on water culture technology growth principle, and root system of plant can fully absorb nutrition in airtight stable water planting environment, but the plant healthy growth and development.Tank is contained with the nutrient solution for root system of plant absorption, vine growth and development, and the space environment of nutrient absorption, normal growth is provided for root system of plant.
LED lamp plate of the present utility model can provide plant growing required light, hydroponic device can satisfy vegetables and the flowers and plants requirement of suitable growth and development environment, amid all these factors, this device can be used for illumination simultaneously, breed fish and hydroponic plant or vegetable growing, can be placed in Anywhere indoor, when playing decoration, illuminating effect, also can breed fish and beautify the environment, reduce airborne CO
2Content and other pernicious gases can obtain safe, green, clean, edible fresh vegetables again behind the certain hour.
Claims (9)
1. fish and vegetable symbiotic family dingus, it is characterized in that: comprise support, lamp plate, lampshade, tank, fish jar, water pipe, fixed mount and water pump, described support comprises the first half and Lower Half, the first half is fastened and connected by fore shell and back cover and forms, Lower Half is a tubular, lamp plate and lampshade are installed in the top of support, and fixed mount is placed in the fish jar, and support is placed on the fixed mount; Tank is positioned in the Lower Half of support, and water pump is positioned in the fish jar, and by water pipe feed trough feed flow, excess liquid flows out in the tank, gets back in the fish jar, forms circulation.
2. fish and vegetable symbiotic according to claim 1 family dingus, it is characterized in that: described tank is provided with the field planting plate, on the field planting plate field planting hole is set, and places planting cup in the field planting hole.
3. fish and vegetable symbiotic according to claim 1 family dingus is characterized in that: the spacing between the described field planting hole equates that the quantity of described field planting hole is 6.
4. fish and vegetable symbiotic according to claim 1 family dingus, it is characterized in that: the diameter of described field planting hole is 1.5-3.5cm.
5. fish and vegetable symbiotic according to claim 1 family dingus, it is characterized in that: described lamp plate is the LED lamp plate.
6. fish and vegetable symbiotic according to claim 1 family dingus is characterized in that: the Lower Half of described support is big, a young drum down suitable for reading, and tank is a disc, and tank is supported on the Lower Half of support.
7. fish and vegetable symbiotic according to claim 1 family dingus, it is characterized in that: the height of described tank is 5-20cm.
8. fish and vegetable symbiotic according to claim 1 family dingus, it is characterized in that: described fixed mount is a drum, is provided with opening around the cylinder.
9. fish and vegetable symbiotic according to claim 1 family dingus, it is characterized in that: the top of described support also is provided with louvre.
