Abstract
The utility model relates to an automatic conveying device of a plastic film continuous sealing machine, which comprises a film bag body conveying belt arranged in front of the plastic film continuous sealing machine and is characterized in that the automatic conveying device is provided with a speed regulating motor and an extrusion exhaust driving band; the extrusion exhaust driving band is arranged above the film bag body conveying belt; the operating direction of the extrusion exhaust driving band is opposite to the operating direction of the film bag body conveying belt; an included angle of 2 to 20 degrees is formed between the extrusion exhaust driving band and the film bag body conveying belt; the gap between the front end of the extrusion exhaust driving band and the film bag body conveying belt is larger than the gap between the rear end of the extrusion exhaust driving band and the film bag body conveying belt; and the speed regulating motor is in driving connection with the film bag body conveying belt and the extrusion exhaust driving band respectively. With the adoption of the automatic conveying device, the labor intensity is reduced, the labor cost is reduced, the production efficiency is improved, the sealing speed is also improved, the output is improved, the sealing position is standardized, the exhaust effect is good, and the operating area is saved.
Description
Technical field
The present invention relates to a kind of automatic conveying device of a kind of plastic film continuous sealing machine, particularly plastic film continuous sealing machine, belong to the capper technical field.
Background technology
The film bag load-transfer device of existing plastic film continuous sealing machine is positioned at the side of plastic film continuous sealing machine, the fuselage length of film bag load-transfer device length and plastic film continuous sealing machine is suitable, carry out bag film when sealing, manual operation, labour intensity is big, inefficiency, seal quality is poor.As application number be CN02227704.8 patent disclosure a kind of plastic film continuous sealing machine, comprise fuselage, motor, transmission device, film bag load-transfer device, go up heat seal add hold load-transfer device, down heat seal add hold load-transfer device, electric heater unit, pinch device, air-cooling device, go up annular knurl clamping conduction band, annular knurl clamping conduction band down, electric heater unit comprises power on heat block and following electro heat piece, air-cooling device comprises fan, goes up cooling block and following cooling block, pinch device comprises wheel and lower whorl, and air-cooling device comprises cooling block, following cooling block and fan.Film bag load-transfer device is positioned at the place ahead of plastic film continuous sealing machine, the same length of its length and fuselage.Application number be CN93202951.5 patent disclosure a kind of double-workbench plastic film continuous sealing machine, in the both sides of fuselage a hot sealing device and conveying workbench have been installed respectively, a cover motor gear transmission device drives two cover driving surfaces and seals.
Packing into often has a large amount of gases in the plastic sheeting of product and exists, if these gases are not discharged, the occupation space of the film bag after sealing so can be very big, give product deposit and transportation is made troubles, also can increase traffic cost simultaneously.So when stating device in the use, the packaging bag that the workman needs to be equipped with product one by one pass through manual work after the air exhaustion in the plastic film, pass through between the upper and lower heat seal clamping load-transfer device of plastic film continuous sealing machine the operational process to the back-end from the front end of film bag load-transfer device, under upper and lower heat seal clamping load-transfer device and the effect of film bag load-transfer device, through heating, compressing, cool off, finish sealing operation.Design in view of the continuous capper of film, workman's generally after plastic sheeting packed product into by workshop, pack into (or in other containers) in the plastic crate, after treating to fill in the plastic crate, plastic crate is carried to the plastic film continuous sealing machine place, carries out exhaust, sealing operation again.Such carrying, exhaust mode have not only expended great amount of manpower and material resources, and labour intensity is very big, and it is low to seal efficient, and exhaust effect is uneven.In addition, this kind mode of operation takes up room greatly.So a kind of automatic transport, automatic exhaust device that can cooperate of market in urgent need with plastic film continuous sealing machine.
Summary of the invention
The objective of the invention is provides a kind of automatic conveying device of plastic film continuous sealing machine in order to satisfy market demand.
The objective of the invention is to be achieved through the following technical solutions, the automatic conveying device of plastic film continuous sealing machine comprises being arranged on the preceding film bag load-transfer device of plastic film continuous sealing machine, it is characterized in that being provided with buncher and extruding exhaust driving band; Extruding exhaust driving band is arranged on described film bag load-transfer device top, extruding exhaust driving band rotation direction is opposite with film bag load-transfer device rotation direction, between extruding exhaust driving band and the film bag load-transfer device one 2-20 ° angle is arranged, gap between extruding exhaust driving band front end and the film bag load-transfer device is greater than the gap between extruding exhaust driving band rear end and the film bag load-transfer device, and described buncher drives with extruding exhaust driving band with film bag load-transfer device respectively and is connected.
Described film bag load-transfer device is provided with the belt conveyor of lengthening, and the preceding band roller of film bag load-transfer device is connected with the output shaft of buncher by the tooth belt transmission device.
Described film bag load-transfer device is provided with supporting plate, and the supporting plate outward flange is provided with positioning plate.
Described extruding exhaust driving band is made of extruding belt and forward and backward band roller, and back band roller is connected with the output shaft of buncher by belt gear.
Described tooth belt transmission device is made of a pair of gear, drive belt and a transmission shaft, a pair of gear is separately positioned on the output shaft of buncher and an end of transmission shaft, two gears are meshing with each other, and drive belt is nested with on the back band roller of the other end of transmission shaft and film bag load-transfer device.
Described film bag load-transfer device rear end is provided with counting machine.
The working process of the automatic conveying device of plastic film continuous sealing machine is: open buncher, plastic film continuous sealing machine, adjustment is arranged so that the operating speed of film bag load-transfer device is consistent with the kinematic velocity of extruding exhaust driving band, rotation direction is opposite (moving to walking around, one is the conter clockwise running, one is the cw running, and film bag load-transfer device is consistent with extruding exhaust driving band approaching face sense of motion).Between extruding exhaust driving band and the film bag load-transfer device gap is arranged, preceding End play is greater than the End play, back, the unsealed plastic film bag that product is housed is positioned on the film bag load-transfer device (adding long conveying belt), the outer peripheral positioning plate of bag film oral area contact supporting plate, bag film advances under the effect of film bag load-transfer device, below extruding exhaust driving band front end enters into extruding exhaust driving band, move on, gradually with after the gas extruding is discharged in the bag film, the bag film oral area enters plastic film continuous sealing machine and seals, and the bag film after sealing advances to film bag load-transfer device tail end and falls into the container that presets on film bag load-transfer device.In film bag load-transfer device rear end counting machine can also be set, the bag film product that seals carries out automatic sense counter when passing through counting machine.
The present invention is skillfully constructed, and is simple and reasonable, manufactures easily, and cost is low, and is supporting easy to install, and in-use performance is good, enhances productivity, and reduces labour intensity, and saving equipment is installed area occupied, minimizing equipment, factory building investment.The automatic conveying device setting is installed in the front side of plastic film continuous sealing machine, during assurance work, make the bag film oral area after the exhaust is directly entered between the upper and lower heat seal clamping load-transfer device of plastic film continuous sealing machine, finish sealing operation, thereby prevent that air from entering in the film bag once more.Lengthening transport tape at film bag automatic conveying device can be provided with its length arbitrarily according to the operation needs.The workman can carry out the product operation of packing into away from a side of plastic film continuous sealing machine at film bag load-transfer device, and unsealed bag film is placed on the film bag load-transfer device, has saved artificial carrying work.Bag film seals after the gas extruding is discharged in the bag film below extruding exhaust driving band front end enters into extruding exhaust driving band, has saved artificial exhaust process.Because the place ahead supporting plate outward flange of film bag load-transfer device is provided with positioning plate, film sack package position unanimity, clean and tidy, attractive in appearance.Bag film after sealing moves under the effect of automatic conveying device, through the automatic sense counter of counting machine hour counter, saves the step of manually counting.The film bag load-transfer device of this device is again a self-bleeding owing to be provided with the belt conveyor of lengthening, and an automatic conveying device can many people be operated simultaneously, and the packaging bag that product is housed is placed on the film bag load-transfer device, carries out self-bleeding and seals.Greatly alleviated labour intensity, reduced labour power, reduced labour cost, increaseed productivity; Simultaneously greatly improve the speed of sealing, increased output, and the seal location normalisation, good exhaust effect, box volume is little, thereby is convenient to transport and deposit.In addition, greatly saved working space, and then also can reduce production costs.
Description of drawings

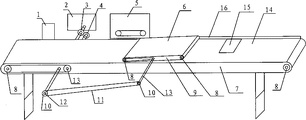

Fig. 1 is a structural representation of the present invention;
Among the figure: 1-counting machine, 2-buncher, 3-gear, 4-gear, 5-plastic film continuous sealing machine, 6-extruding belt, 7-film bag load-transfer device, 8-band roller, 9-extruding exhaust driving band, 10-belt pulley, 11-drive belt, 12-output shaft, 13-transmission shaft, 14-belt conveyor, 15 bag films, 16 positioning plates.
The specific embodiment
The automatic conveying device of plastic film continuous sealing machine is to be provided with to comprise that film bag load-transfer device 7, buncher 2 and extruding exhaust driving band 9 constitute before plastic film continuous sealing machine.Film bag load-transfer device is made of forward and backward band roller 8 and belt conveyor 14, and extruding exhaust driving band is made of forward and backward band roller 8 and drive belt.Film bag load-transfer device is provided with supporting plate, and the supporting plate outward flange before the plastic film continuous sealing machine position (supporting plate is near plastic film continuous sealing machine one lateral edges) is provided with positioning plate 16.Extruding exhaust driving band 9 is arranged on described film bag load-transfer device 14 tops, extruding exhaust driving band rotation direction is opposite with film bag load-transfer device rotation direction, between extruding exhaust driving band and the film bag load-transfer device one 2-20 ° angle is arranged, gap between extruding exhaust driving band front end and the film bag load-transfer device is bigger, and the gap between extruding exhaust driving band rear end and the film bag load-transfer device is less.Buncher drives with extruding exhaust driving band with film bag load-transfer device respectively and is connected, on buncher 2 output shafts 12 gear 3 and belt pulley 10 are set, the belt pulley on the output shaft 12 is connected with the back band roller 8 of extruding exhaust driving band with drive belt by transmission shaft.Gear 3 on the output shaft 12 is connected with the back band roller 8 of film bag load-transfer device with drive belt by transmission shaft 13, gear 4, belt pulley 13, gear 4 and belt pulley 13 are installed in the transmission shaft two ends respectively, gear 3 and gear 4 engagements, the back band roller 8 of belt pulley 13 and film bag load-transfer device is connected by drive belt.In film bag load-transfer device rear end counting machine 1 is set, the bag film 15 that seals is carried out automatic sense counter.The operating speed of extruding exhaust driving band, the operating speed of film bag load-transfer device are consistent with the operating speed of plastic film continuous sealing machine.
Claims (6)
1. the automatic conveying device of plastic film continuous sealing machine comprises being arranged on the preceding film bag load-transfer device of plastic film continuous sealing machine, it is characterized in that being provided with buncher and extruding exhaust driving band; Extruding exhaust driving band is arranged on described film bag load-transfer device top, extruding exhaust driving band rotation direction is opposite with film bag load-transfer device rotation direction, between extruding exhaust driving band and the film bag load-transfer device one 2-20 ° angle is arranged, gap between extruding exhaust driving band front end and the film bag load-transfer device is greater than the gap between extruding exhaust driving band rear end and the film bag load-transfer device, and described buncher drives with extruding exhaust driving band with film bag load-transfer device respectively and is connected.
2. the automatic conveying device of plastic film continuous sealing machine according to claim 1, it is characterized in that described film bag load-transfer device is provided with the belt conveyor of lengthening, the preceding band roller of film bag load-transfer device is connected with the output shaft of buncher by the tooth belt transmission device.
3. the automatic conveying device of plastic film continuous sealing machine according to claim 1 is characterized in that described film bag load-transfer device is provided with supporting plate, and the supporting plate outward flange is provided with positioning plate.
4. the automatic conveying device of plastic film continuous sealing machine according to claim 1 is characterized in that described extruding exhaust driving band is made of extruding belt and forward and backward band roller, and back band roller is connected with the output shaft of buncher by belt gear.
5. the automatic conveying device of plastic film continuous sealing machine according to claim 2, it is characterized in that described tooth belt transmission device is made of a pair of gear, drive belt and a transmission shaft, a pair of gear is separately positioned on the output shaft of buncher and an end of transmission shaft, two gears are meshing with each other, and drive belt is nested with on the back band roller of the other end of transmission shaft and film bag load-transfer device.
6. the automatic conveying device of plastic film continuous sealing machine according to claim 1 is characterized in that described film bag load-transfer device rear end is provided with counting machine.
