The utility model discloses a building construction fitting and particularly relates to a fastening piece for a building construction wood mould and a steel mould in concrete pouring of building construction. A clamping screw rod (2) is movably arranged at the inner left end of a connecting pipe (1) by two shaft sleeves (3), a hook connecting gun (5) is movably arranged at the right end of the connecting pipe (1) by a column pin (10), and a movable fastening plate (4) is movably arranged at the inner lower end of the connecting pipe (1) and is movably connected with the clamping screw rod (2). Compared with the present fastening piece, the fastening piece with reasonable design has the following characteristics: the fastening piece has a compact structure, is firm and durable, has low cost, is firm and reliable to position, is simple and convenient to assemble and disassemble, cannot be easily damaged, has a wide application range, can ensure the quality of a concrete component and cannot cause mortar leakage and deformation; in addition, all components can be recycled, so that the effect of energy saving is obvious.
Description
Technical field: the building operations accessory that the utility model uses when relating to a kind of building operations concreting, specifically be applicable to fastening wooden model, punching block, steel pipe and big beam form, cross beam form, building operations wood, punching block securing member that collar tie beam mould, pillar mould use.
Background technology: at present, China's building field, the cast-in-place template of building of flooring is comparatively simple, but upright support, but post beam cast-in-place construction longitudinally, the support of template is promptly comparatively difficult, particularly column is up to more than 2 meters, higher to the fastening requirement of template at periphery four sides, otherwise concrete weight component can or crack the distortion of bottom Form hanger, influences construction quality or waste material.After its construction method removes normal iron nail and pre-fixes, also need over there side to lay batten, and utilize fastener with two batten fastenings, but the vibration that produces during fluid concrete, the pine that very easily fastener shaken causes template loosening or split cruelly.
The utility model content: the purpose of this utility model is the defective at traditional form of construction work and securing member, designs a kind of building post beam forms securing member of locking and locating and can be recycled.Technical solutions of the utility model are achieved in that described clamping screw 2 usefulness axle sleeves 3 heads are inner on tube connector 1 left side, hook connects rifle 5 usefulness pins 10 heads at tube connector 1 right-hand member, fastening portable plate 4 is movably arranged on lower end in the tube connector 1, and and clamping screw 2 flexible connections.
Effect of the present utility model is: because reasonable in design, compare with existing securing member, have compact conformation, sturdy and durable, cheap, firm position is reliable, loads and unloads easy, not fragile, technical performance is reliable, can guarantee quality of concrete members, not spillage, do not walk type, locking and unclamp operation are simple during construction, not fragile or scrap, and all parts can be recycled, and under the prerequisite of ensuring the quality of products, use several less with other securing member of length distance internal ratio, can save great amount of manpower, financial resources, construction cost is low, and the suitable dimensions scope is wide, and energy-saving effect is obvious.
Description of drawings: Fig. 1 is a front view of the present utility model.
Fig. 2 is the vertical view of Fig. 1.

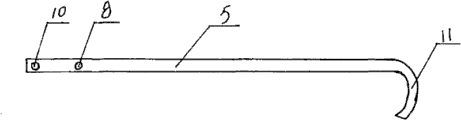

Fig. 3 connects rifle shape schematic diagram for the hook of Fig. 1.
Fig. 4 connects another shape schematic diagram of rifle for the hook of Fig. 1.
The specific embodiment: as shown in Figure 1 and Figure 2, described next tight screw rod 2 left ends are provided with a rotating hole 12, and it is inner on tube connector 1 left side with axle sleeve 3 heads, hook connects rifle 5 usefulness pins 10 heads at tube connector 1 right-hand member, fastening portable plate 4 is movably arranged on lower end in the tube connector 1, and and clamping screw 2 flexible connections.
As Fig. 1, Fig. 2, Fig. 3, shown in Figure 4, described hook connects middle part, rifle 5 left side and is provided with one and ties up a hole 8, right middle fastening devices mounting plate 6, the top is provided with steel ring 9, right-hand member is set to an arc hook, and 11, as shown in Figure 1 and Figure 2, described clamping screw 2 left end fastening devices centring rings 7, and and tube connector 1 left side in the axle sleeve 3 of end device flexibly connect.
As shown in Figure 1 and Figure 2, described fastening portable plate 4 and mounting plate 6 bilateral symmetry, middle part is a semicircular arc under it.
Claims (6)
1. a building operations wood, punching block securing member, it is characterized in that clamping screw (2) is inner on tube connector (a 1) left side with axle sleeve (3) head, hook connects rifle (5) and uses pin (10) head at tube connector (1) right-hand member, fastening portable plate (4) is movably arranged on the interior lower end of tube connector (1), and and clamping screw (2) flexible connection.
2. building operations wood according to claim 1, punching block securing member is characterized in that hook connects rifle (5) left side middle part and is provided with one and ties up a hole (8), right middle fastening devices mounting plate (6), and the top is provided with steel ring (9).
3. building operations wood according to claim 1, punching block securing member, its feature clamping screw (2) left end fastening devices centring ring (7), and and tube connector (a 1) left side in the axle sleeve (3) of end device flexibly connect.
4. building operations wood according to claim 1, punching block securing member is characterized in that fastening portable plate (4) and mounting plate (6) bilateral symmetry, and middle part is a semicircular arc under it.
5. building operations wood according to claim 1, punching block securing member is characterized in that clamping screw (2) left end is provided with a rotating hole (12).
6. building operations wood according to claim 1, punching block securing member is characterized in that hook connects rifle (5) right-hand member and is set to an arc hook (11).
