Abstract
本实用新型公开了一种多功能常压高温蒸炒灶，该多功能常压高温蒸炒灶在现有方案上增加了水夹层，水夹层可以有效的吸收炉壁周围的热能，水夹层中的水由于吸收热能后变成水蒸汽，水蒸汽经过高温蒸汽加热器后，再导入其它用汽设备；传统炉灶为一口锅一个炉门，而本装置中一个炉门可以对应多个锅，使其功能更多；高温加热器、烟道、烟囱设计为活动式，便于拆装，烟气直接排出室外，大大改善室内空气质量；灶体上设计有开水龙头，水夹层多余的开水，可作为饮用水使用，做到物尽其用，通过本实用新型装置，减少了耗煤、耗气量，充分利用炉壁四周热能，减少热能的浪费，降低了运行使用成本。
The utility model discloses a multi-functional atmospheric pressure high-temperature steaming and frying stove. The multifunctional atmospheric pressure and high-temperature steaming and frying stove adds a water interlayer to the existing scheme. The water interlayer can effectively absorb the heat energy around the furnace wall. The water becomes water vapor after absorbing heat energy, and the water vapor is introduced into other steam-using equipment after passing through the high-temperature steam heater; the traditional stove has one pot and one furnace door, but in this device, one furnace door can correspond to multiple pots, so that It has more functions; the high-temperature heater, flue, and chimney are designed to be movable, which is easy to disassemble and assemble, and the flue gas is directly discharged to the outside, which greatly improves the indoor air quality; Drinking water is used to make the best use of everything. Through the device of the utility model, the consumption of coal and gas is reduced, the heat energy around the furnace wall is fully utilized, the waste of heat energy is reduced, and the cost of operation and use is reduced.
Description
Technical field
The utility model relates to a kind of catering facility, is specifically related to a kind of multifunctional steam kitchen range.
Background technology
Along with improving constantly and the enhancing of people's environmental protection concept of people's living standard, requirement to catering facility also has higher requirement, as in the dining room, the restaurant, not only need to improve the efficient of catering facility, wish that also catering facility can energy savings, reduce the consumption coal, air consumption, make catering facility can utilize coal fully, the heat that is produced during gas firing, but the cooking stove frying function is single in the prior art, can only a fire door corresponding frying pan, and consumption coal, the air consumption height can not make full use of furnace wall heat energy all around, the thermal waste amount is big, operation use cost height.
The utility model content
The utility model has overcome the deficiencies in the prior art, provides a kind of consumption coal, air consumption low, can make full use of the multifunctional atmospheric high temperature cooking range of heat energy around the furnace wall.
For solving above-mentioned technical problem, the utility model by the following technical solutions:
A kind of multifunctional atmospheric high temperature cooking range, comprise stove, cold water faucet, grate, burner hearth, frying pan and fire door, frying pan is positioned on the stove table top, cold water faucet is near frying pan, fire door is arranged on the side of stove, grate is positioned at burner hearth, and stove is provided with water interlayer and priming apparatus that communicates with water interlayer and steam exhaust device.
Further to be grate corresponding with fire door and adopt the extended type grate for technical scheme, can place two and above frying pan on it.
Further technical scheme is that water interlayer is between burner hearth and stove furnace wall.
Further technical scheme is that priming apparatus is the inlet water tank that is arranged on the stove.
Further technical scheme is that steam exhaust device comprises air intake, high-temperature steam heater and steam (vapor) outlet, this high-temperature steam heater is a round barrel shape, pipe and outer tube in being divided into, be outer tunnel between pipe formation internal channel, interior pipe and outer tube in it, the high-temperature steam heater is between air intake and steam (vapor) outlet, and connect with outer tunnel, air intake is connected on the stove and with water interlayer and communicates.
Further technical scheme is also to be provided with fume extractor on the stove, and this fume extractor comprises flue and chimney, and flue and high-temperature steam heater and chimney are linked in sequence, and are communicated with the internal channel of high-temperature steam heater, and flue one end is connected with stove.
Further technical scheme is that stove is provided with turning on the tap of being connected with water interlayer.
Further technical scheme is that the high-temperature steam heater is to adopt the movable connection of ring flange with being connected of flue and chimney again.
The technical program can also have the hand hole of being convenient to cleaning and descaling on stove, can prolong the service life of high temperature cooking range like this.
Compared with prior art, the beneficial effects of the utility model are:
In this programme, by between the burner hearth of prior art and furnace wall, being provided with water interlayer, this water interlayer can effectively absorb the heat energy around the furnace wall, and behind the absorption heat energy, the water of water interlayer becomes water vapour, behind the high-temperature steam heater, temperature can reach 150 ℃-240 ℃, and then imports other gas utilization unit, as is used for heating, steamed rice, steamed sweet bun, steaming dish, and bowl, chopsticks, step tool disinfection etc., and the hot water of water interlayer can be emitted by turning on the tap to people and used; This programme has also adopted the extended type grate, make it to design two and above frying pan, change the function that traditional cooking stove can only single cooking, this device high-temperature steam heater is to adopt the movable connection of ring flange with being connected of flue and chimney, like this can easy accessibility, the flue gas that cooking stove produces is discharged outdoor through fume extractor, improve IAQ greatly, by the utility model device, consumption coal, air consumption have been reduced, make full use of heat energy around the furnace wall, reduce the waste of heat energy, reduced the operation use cost.
Description of drawings

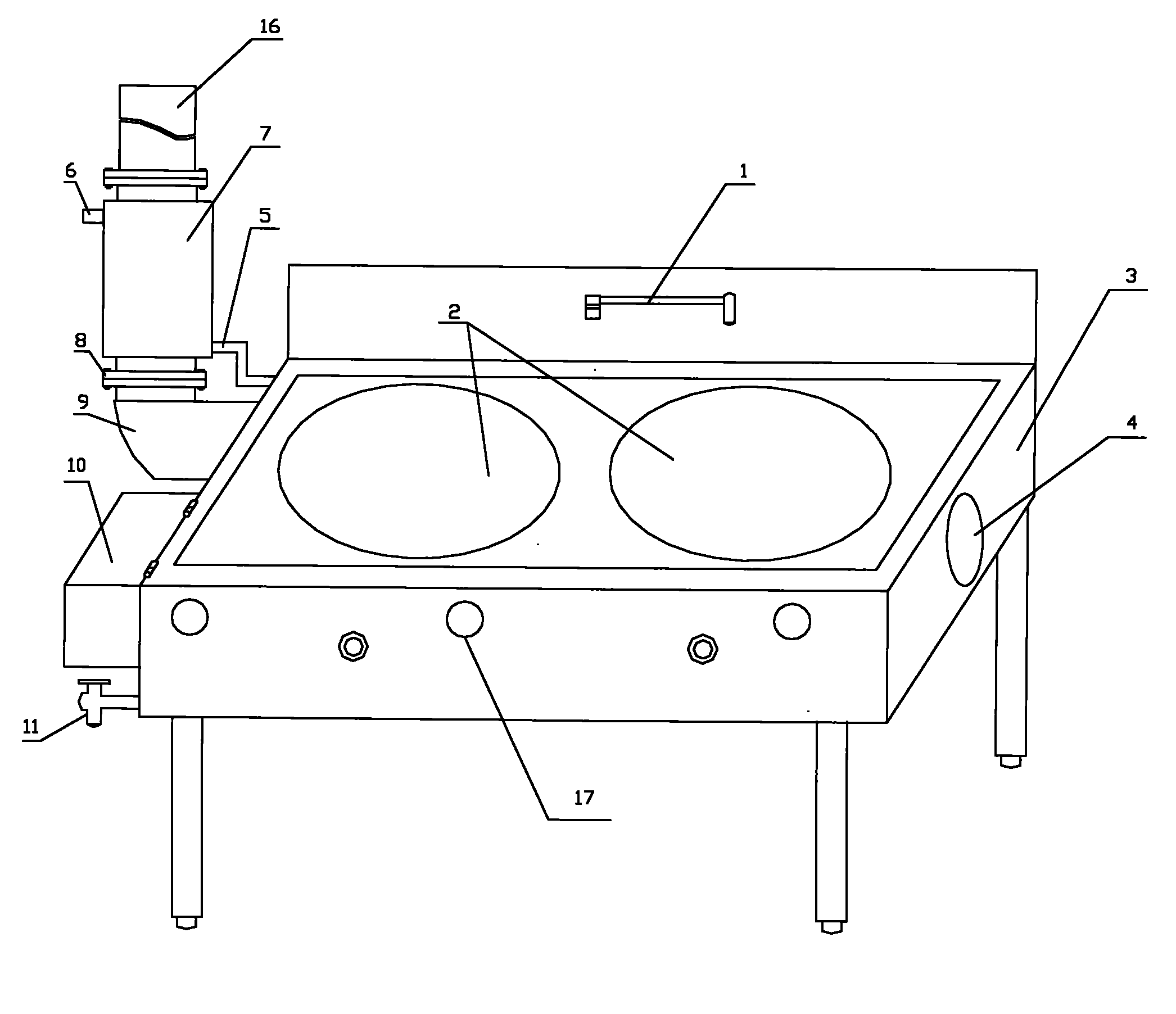

Fig. 1 is the utility model embodiment 1 structural representation.
Fig. 2 is the partial structurtes schematic diagram of the utility model embodiment 1 high-temperature steam heater 7, air intake 5 and steam (vapor) outlet 6.
Fig. 3 is the utility model embodiment 1 broken section structural representation.
Fig. 4 is the utility model embodiment 1 internal structure schematic diagram.
Fig. 5 is the utility model embodiment 2 structural representations.
The specific embodiment
Below in conjunction with accompanying drawing the utility model is further elaborated.
Embodiment 1
As shown in Figure 1, Figure 2, Figure 3 and Figure 4, a kind of multifunctional atmospheric high-temperature steam kitchen range, comprise stove 3, cold water faucet 1, grate 12, burner hearth 19, frying pan 2 and fire door 4, frying pan 2 is positioned in the middle of stove 3 table tops, cold water faucet 1 is near frying pan 2, and fire door 4 is arranged on the side of stove 3, and grate 12 is positioned at burner hearth 19, stove 3 is provided with water interlayer 13, also is provided with the priming apparatus and the steam exhaust device that communicate with water interlayer 13;
Embodiment 2
As Fig. 1, Fig. 2, Fig. 3 and shown in Figure 5, grate 12 and a fire door 4 are corresponding and adopt the extended type grate in the present embodiment, placing frying pan 2 on it is three, i.e. fire door 4 corresponding three frying pans, solved in the traditional scheme fire door 4 and 2 pairs of a frying pan is seasonable, three frying pans 2 need the problem of three fire doors 4, and other structure is identical with structure in the present embodiment 1.
Claims (9)
