CN201869888U

CN201869888U - A new type of human physical massage insole

Info

Publication number: CN201869888U
Application number: CN2010205774398U
Authority: CN
Inventors: 谷廷云
Original assignee: Individual
Current assignee: Individual
Priority date: 2010-10-26
Filing date: 2010-10-26
Publication date: 2011-06-22
Anticipated expiration: 2020-10-26

Abstract

The utility model relates to the technical field of shoe materials, in particular to a novel human body physical massage insole, wherein the upper end surface of the insole is provided with at least one bubble, a spacing zone is formed between the bubbles, and the bubbles are connected to each other through a conduit, the structural design is simple and scientific, the processing and production are convenient, and the massage can be adjusted by the pressure of the human body and the flow of air.

Description

A kind of novel human body physics massage insole

Technical field:

The utility model relates to the furniture technical field, refers in particular to a kind of novel human body physics massage insole.

Background technology:

Pin is people's second heart, and people will have a biconjugate pin that the shoes of health care are arranged to the love of pin exactly, and the shoes of health care are the fatigue of ease people effectively, thereby reach health care function.

At present, the massage footwear on the market are of all kinds, but its structure is all complicated especially, mainly adopts air valve and ambient atmos to exchange and regulates massage, the production cost height, and service life is not long, and is simultaneously fragile.

Also have the prominent massage insole of patent 90204740.2 disclosed gas, its bubble is separate, and the bubble level is identical, and air-flow can not change mutual circulation with the human pressure, and massage effect is bad.

The utility model content:

The purpose of this utility model is at the deficiencies in the prior art, and a kind of novel human body physics massage insole is provided, the simple science of its structural design, and processing is convenient, can be subjected to the pressure of human body, air current flow adjustment massage.

For achieving the above object, the utility model adopts following technical scheme, and the upper surface of shoe-pad is provided with at least more than one bubble, forms intervallum between the bubble, is conducted by conduit between the bubble.

Described bubble be shaped as waveform, triangle, circle, ellipse, prismatic, in square any one.

The level of described bubble is inequality.

Be marked with fluid oil in the described bubble.

The gas amount of being full of is 92%-98% in the described bubble.

The utility model beneficial effect is: the upper surface of shoe-pad is provided with at least more than one bubble, form intervallum between the bubble, be conducted by conduit between the bubble, the simple science of its structural design, processing is convenient, utilizes the physical action of human body gravity, and air-flow produces massage, can effectively massage the acupuncture point of sole, play function of health care.

Description of drawings:

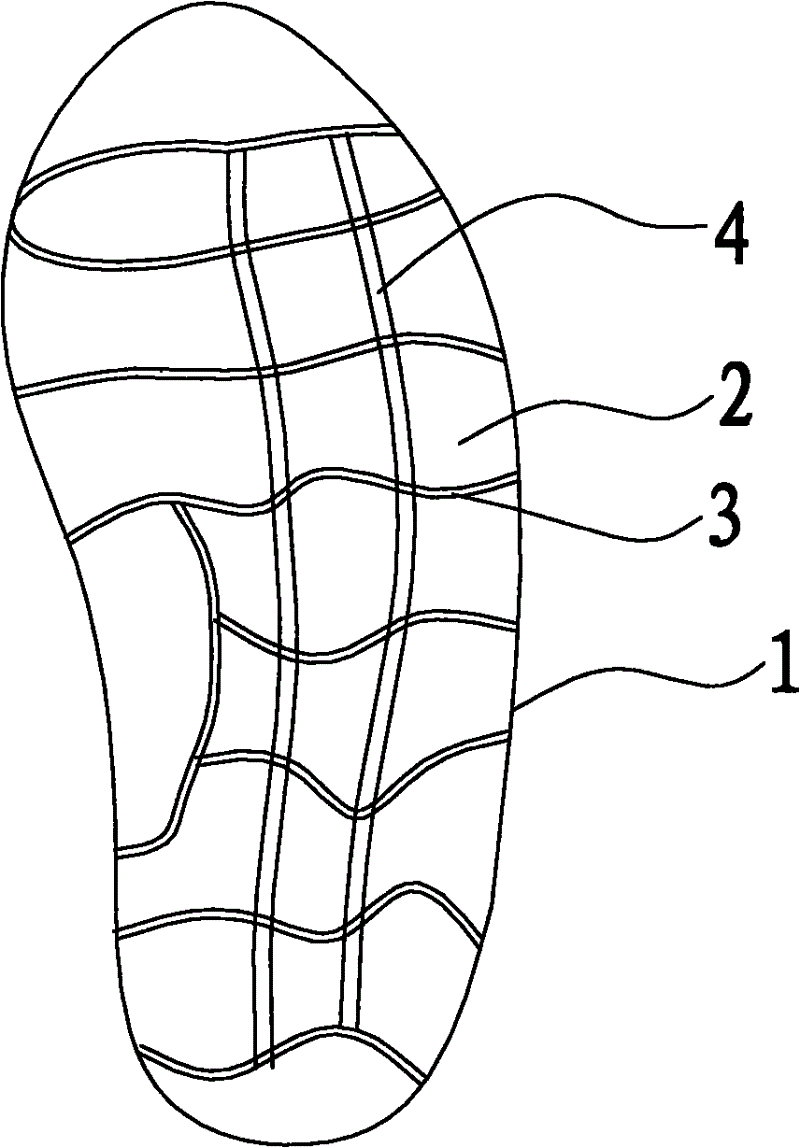

Fig. 1 is a structural representation of the present utility model;

Fig. 2 is the structural representation of the utility model embodiment.

The specific embodiment:

See that Fig. 1 is to shown in Figure 2: the utility model comprises that the upper surface of shoe-pad 1 is provided with at least more than one bubble 2, forms intervallum 3 between the bubble 2, is conducted by conduit 4 between the bubble 2.

Described bubble 2 be shaped as waveform, triangle, circle, ellipse, prismatic, in square any one.

The level of described bubble 2 is inequality.

Described bubble 2 is marked with fluid oil.

The described bubble 2 gas amounts of being full of are 92%-98%%.

The utility model shoe-pad can be processed into slippers, playshoes, sport footwear etc., when people put on the shoes that the utility model shoe-pad produces, as people during in walking, when sole is exerted oneself, bubble 2 meeting pressurizeds under the sole, air-flow can flow to heel portion by conduit 4, when heel is exerted oneself, bubble 2 meeting pressurizeds under the heel, air communication is crossed conduit 4 can flow to foot palm part, utilizes the physical action of human body gravity, and air-flow produces massage, can effectively massage the acupuncture point of sole, play function of health care.

The above only is preferred embodiment of the present utility model, so all equivalences of doing according to the described structure of the utility model patent claim, feature and principle change or modify, is included in the utility model patent claim.

Claims

1. a novel human body physical massage shoe-pad, it comprises shoe-pad (1), is characterized in that: the upper end face of shoe-pad (1) is provided with at least one above air bubble (2), is molded with spacer band (2) between bubble (2) 3), the air bubbles (2) are connected through the conduit (4).

2. A new type of human physical massage insole according to claim 1, characterized in that: the shape of the air bubbles (2) is any one of wavy, triangular, circular, oval, prismatic, and square kind.

3. A novel human body physical massage insole according to claim 1, characterized in that: the plane heights of the air bubbles (2) are different.

4. A new type of human body physical massage insole according to claim 1, characterized in that: said air bubbles (2) are filled with liquid oil.

5. A new type of human body physical massage insole according to claim 1, characterized in that: the air filling capacity in the air bubbles (2) is 92%-98%.
