CN201861177U

CN201861177U - pillow structure

Info

Publication number: CN201861177U
Application number: CN201020599481XU
Authority: CN
Inventors: 唐春湖
Original assignee: Individual
Current assignee: Individual
Priority date: 2010-11-10
Filing date: 2010-11-10
Publication date: 2011-06-15
Anticipated expiration: 2020-11-10

Abstract

The pillow structure of the utility model mainly provides a pillow structure that allows the user's head to lean against and can provide support and support for both sides of the user's head. The pillow structure can be directly combined with a seat, or installed on the seat in an additional manner, so that the user's head can lean against the head pad, and it is optional to choose whether to pull out the side cushions on both sides of the head pad and open them for use. The two side cushions provide support and support for both sides of the user's head, thereby preventing the user's head from shaking without warning.

Description

The headrest structure

Technical field

The utility modelRelevant a kind of headrest, be meant especially a kind of in order to allowing user's head lean on, and can provide support to user's head both sides, according to the headrest structure of support effect.

Background technology

Seat should be to use in the middle of the daily life one of the most general utensil, most seat that people mainly are provided uses of taking, have a rest, and mainly in order to the various affairs of convenient processing, or alleviates the tired out of long drive process.

Common people are when taking seat, how can select and then health to be leaned on the burden of using the reduction vertebra in the chair back place of seat, the position that can be further the height of the chair back be extended to more than user's neck of the more perfect seat of some design leans on for user's head even, to reach the purpose that allows user's health loosen fully.

After the user loosens health fully, even if be in the posture of bearing, also be very easy to enter the state that dysnystaxis is slept, sleeping completely even; Yet, general seat to can provide supporting role only to be the part of the chair back with respect to back head to head.

So that, when on the seat the personnel of taking because sleeping, or can't control the position of head voluntarily because of the restriction of user's physical function the time, can cause discomfort on the contrary because head does not have rocking of early warning, severe patient more likely causes the harm of certain degree to health.

The utility model content

The technical problem that the utility model solved promptly leans at the head that a kind of user of allowing is being provided, and can provide support to user's head both sides, according to the headrest structure of support effect.

The technical solution of the utility model is: a kind of headrest structure includes: a headrest; Two side back cushions, be located at respectively these headrest both sides and can be relatively with outer of this headrest or fold; And be provided with one between these two the side back cushions and the headrest in order to fast the side back cushion is fixed on outer opening or the folded piece of stowed position.

Wherein, this headrest is extended upward by the chair back one of seat and constitutes.

These headrest two ends are provided with for the pilot hole that combines with seat.

This headrest by pad part and a skeleton in conjunction with constitute.

These skeleton two ends are provided with pilot hole.

This headrest is articulated mutually by two pad parts and two skeletons and constitutes.

This two skeletons outboard end is provided with pilot hole.

Each side back cushion be provided with one with the support of folded piece Joint, the pad of each side back cushion is provided with one for the axis hole that is coupling with support.

This folded piece is quick lock mechanism, spiral shell spare mechanism or stage clamping mechanism.

The beneficial effects of the utility model are: headrest structure of the present utility model includes a headrest and two side back cushions; Wherein, two side back cushions be located at respectively these headrest both sides and can be relatively with outer of this headrest or fold; And, be provided with one between these two the side back cushions and the headrest in order to fast the side back cushion is fixed on outer opening or the folded piece of stowed position.

Headrest structure of the present utility model is when implementing, can directly combine with seat, or being installed on seat in the mode that adds uses, except that allowing user's head lean in the headrest, and the side back cushion outwards can be pulled out and open use, by two side back cushions to user's head both sides support is provided, according to the support effect, avoid user's head not have rocking of early warning.

Under the structure attitude that headrest structure of the present utility model directly is used in combination with seat, the described headrest can be extended upward by the chair back one of seat and constitute, and can be provided as the seat use of aircraft, motor bus or train, to increase the comfortableness that the passenger takes.

Add mode is installed under the structure kenel of seat use beyond the headrest structure of the present utility model, the described headrest by pad part and a skeleton in conjunction with constitute, these skeleton two ends are provided with for the pilot hole that combines with seat, increasing the convenience that whole headrest structure is installed and used, and increase the stability of whole headrest structure when using.

Add mode is installed under the structure kenel of seat use beyond the headrest structure of the present utility model, the described headrest is articulated mutually by two pad parts and two skeletons and constitutes, make under untapped state, fold the headrest is folding, with the portable of convenient whole headrest structure, take in.

Add mode is installed under the structure kenel of seat use beyond the headrest structure of the present utility model, and the described headrest is articulated mutually by two pad parts and two skeletons and constitutes; And described two skeleton outboard ends are respectively equipped with for the pilot hole that combines with seat.In order to do under untapped state, can fold the headrest is folding, with the portable of convenient whole headrest structure, take in; And when installing and using, can increase the convenience that whole headrest structure is installed and used, and increase the stability of whole headrest structure when using.

No matter headrest structure of the present utility model is under the structure attitude that directly is used in combination with seat, or add mode is installed under the structure kenel of seat use in addition, described each side back cushion be provided with one with the support of folded piece Joint, the pad of each side back cushion is provided with one for the axis hole that is coupling with support, each side back cushion can be relatively rotated with the headrest, each side back cushion is adjusted to the use angle of the most comfortable to make things convenient for the user.

With on take off and only have the seat that allows user's head lean on merely and compare, no matter headrest structure of the present utility model is under the structure attitude that directly is used in combination with seat, or add mode is installed under the structure kenel of seat use in addition, all can utilize two side back cushions to user's head both sides support is provided, according to the support effect, avoid user's head not have rocking of early warning.So, preferable stable, support effect can be provided user's head.

Especially, whether headrest structure of the present utility model is available for users to freely select two side back cushions of support are outwards pulled out open use, or two side back cushions are inwardly pushed fold, not only have more use and change, also being unlikely influences the original operation of seat, mobile convenience.

Description of drawings

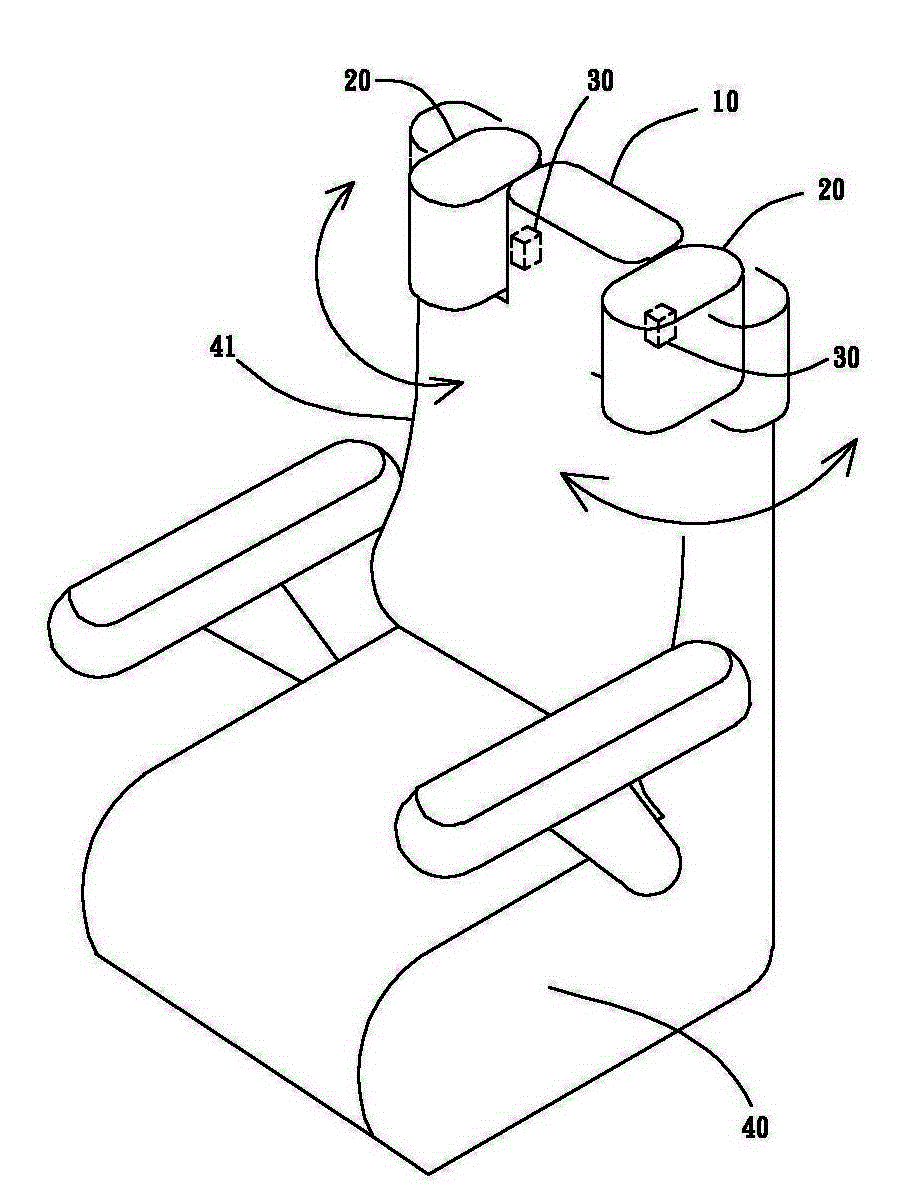

Fig. 1 is the use configuration reference diagram of the utility model first embodiment.

Fig. 2 is the use configuration reference diagram of the utility model second embodiment.

Fig. 3 is the structural representation of the utility model the 3rd embodiment.

Fig. 4 is the structural representation of the utility model the 4th embodiment.

Fig. 5 is the folding folding schematic diagram of the utility model the 4th embodiment.

Fig. 6 is the side squab angle adjustment action schematic diagram of the utility model the 4th embodiment.

Figure number explanation: 10 headrests; 11 pilot holes; 12 pad parts; 13 skeletons; 20 side back cushions; 21 supports; 22 axis holes; 30 folded pieces; 40 seats; 41 chair back.　

The specific embodiment

Shown in the use configuration reference diagram of Fig. 1 the utility model first embodiment, headrest structure of the present utility model includes: a headrest 10 and two side back cushions 20.

Wherein, these two side back cushions 20 are located at these headrest 10 both sides respectively and can relatively and be opened outside this headrest 10 or fold; And, further be provided with one between these two side back cushions 20 and this headrest 10 in order to fast side back cushion 20 is fixed on outer opening or the folded piece 30 of stowed position.

Headrest structure of the present utility model is when implementing, can directly be used in combination as shown in Figure 1 with seat 40, or being installed on seat 40 in the mode that adds as shown in Figure 2 uses, except that allowing user's head lean in the headrest 10, and side back cushion 20 outwards can be pulled out and open use, by 20 pairs of user's heads of two side back cushions both sides support is provided, according to the support effect, avoid user's head not have rocking of early warning.

As shown in Figure 1, under the structure attitude that headrest structure of the present utility model directly is used in combination with seat, this headrest 10 can be extended upward by the chair back 41 one of seat 40 and constitute, and can be provided as the seat use of aircraft, motor bus or train, to increase the comfortableness that the passenger takes.

As shown in Figure 2, add mode is installed under the structure kenel of seat 40 uses beyond headrest structure of the present utility model, the described headrest 10 two ends are provided with for the pilot hole 11 that combines with seat 40 (as wheelchair), increasing the convenience that whole headrest structure is installed and used, and increase the stability of whole headrest structure when using.

Especially, of the present utility model shown in Figure 3, add mode is installed under the structure kenel of seat 40 uses beyond this headrest structure, this headrest 10 is made of in conjunction with institute a pad part 12 and a skeleton 13, these skeleton 13 two ends are provided with for the pilot hole 11 that combines with seat, increasing the convenience that whole headrest structure is installed and used, and increase the stability of whole headrest structure when using.

Especially, at Fig. 4 of the present utility model and shown in Figure 5, add mode is installed under the structure kenel of seat 40 uses beyond this headrest structure, this headrest 10 is articulated mutually by two pad parts 12 and two skeletons 13 and constitutes, make under untapped state, fold the headrest 10 is folding, with the portable of convenient whole headrest structure, take in.

Certainly, add mode is installed under the structure kenel of seat use beyond headrest structure of the present utility model, this headrest 10 except can by pad part 12 and a skeleton 13 one in conjunction with and constitute, this headrest 10 also can be articulated mutually by two pad parts 12 and two skeletons 13 and constitute, use under untapped state, can fold the headrest 10 is folding, with outside making things convenient for portable, taking in.And also be respectively equipped with on this skeleton 13 for the pilot hole 11 that combines with seat 40, use when installing and using, pilot hole 11 respectively wears static line, and static line can be mutual stitch mode or bind mutually to be fixed on the chair back 41 for devil's felt, or be sleeved on the chair back 41 for elastic cord, increase the convenience that whole headrest structure is installed and used, and increase the stability of whole headrest structure when using.

What deserves to be mentioned is, no matter headrest structure of the present utility model is under the structure attitude that directly is used in combination with seat, or add mode is installed under the structure kenel of seat use in addition, this each side back cushion 20 can be as shown in Figure 6, be provided with one with the support 21 of folded piece 30 Joints, then be provided with a confession and the axis hole 22 that this support 21 is coupling on the pad of each side back cushion 20, each side back cushion 20 can be relatively rotated with the headrest 10, make things convenient for the user each side back cushion 20 to be adjusted to the use angle of the most comfortable; In addition, this folded piece 30 can be the quick lock mechanism of the formula of pulling, or is the spiral shell spare mechanism of screw lock mode, also the stage clamping mechanism of the section of can be card mode.

Claims

1. A pillow structure, characterized in that it comprises:

a pad;

Two side cushions are respectively provided on both sides of the headrest and can be expanded or retracted relative to the headrest; and

Between the two side cushions and the head cushion, there is a folding piece for quickly fixing the side cushions in the unfolded or folded position.

2 . The headrest structure according to claim 1 , wherein the head cushion is integrally extended upwards from the seat back of the seat. 3 .

3. The headrest structure according to claim 1, characterized in that, the two ends of the headrest are provided with assembly holes for combining with the seat.

4. The headrest structure according to claim 1, wherein the headrest is composed of a pad and a frame.

5. The headrest structure according to claim 4, characterized in that, two ends of the framework are provided with assembly holes.

6 . The headrest structure according to claim 1 , wherein the headrest is composed of two cushions and two frames pivotally connected to each other. 7 .

7. The headrest structure according to claim 6, wherein the outer ends of the two frames are provided with assembly holes.

8. The headrest structure as claimed in claim 1, 2, 3, 5 or 7, wherein each side cushion is provided with a bracket affixed to the folding member, and the cushion body of each side cushion is provided with a shaft for connecting with the bracket. Connected shaft hole.

9. The headrest structure according to claim 1, 2, 3, 5 or 7, wherein the folding member is a quick lock mechanism, a screw mechanism or a step-by-step locking mechanism.
