Abstract

The utility model discloses a multifunctional environment-friendly and energy-saving stove chimney water heating device, which consists of three parts: a furnace body, a furnace cover and a chimney. The stove shell 2 is sealed and connected with the stove inner shell as a whole, and a gap is set in the middle as a hot water barrel. A hot water tray 16 and a curved water pipe (17) are arranged at the bottom of the stove cover 3, and the outlet pipe 10 is connected with the chimney joint 5 of the furnace body. 9. A hot water cylinder 7 is arranged outside the table, which is connected with the furnace cover 3 by the water inlet pipe 4. The utility model is not only a stove but also a water heater, which can use firewood, briquettes and liquefied petroleum gas as energy sources. After the stove is equipped with a chimney, the room will be smoke-free, dust-free, and gas-free, which is beneficial to health and makes full use of the chimney and stove. It is suitable for urban and rural households, especially for farmers in mountainous areas where firewood combustion is the main energy source.

Description

A multifunctional environment-friendly and energy-saving stove chimney hot water device

1. Technical field:

The utility model relates to a stove water heater for heating hot water for showering, washing face or clothes, and tableware, in particular to a multi-functional environmental protection and energy-saving stove chimney water heating device which utilizes the residual heat of the stove and chimney for heat transfer.

2. Background technology:

The water heaters sold on the market now have various types of water heaters such as electric and liquefied petroleum gas. Although they are beautiful and luxurious and easy to use, they must consume electricity and steam, and the use cost is relatively high, and the purchase price is relatively expensive. Therefore, develop a kind of device that utilizes the waste heat of firewood stove or coal stove and chimney to heat hot water, have better practical value and practical significance.

3. Contents of the invention:

The purpose of the utility model is to provide a stove water heating device with multiple functions, low energy consumption, full use of the waste heat of the stove body and the chimney, safe use and no additional energy consumption.

The utility model multifunctional environment-friendly and energy-saving stove chimney hot water device is composed of three parts: the furnace body, the furnace cover and the chimney; There is a hot water tray and a curved water pipe, and the outlet pipe is connected to the chimney joint of the furnace body. There is a hot water cylinder outside the chimney, and the water inlet pipe is connected to the furnace cover. The furnace body is equipped with a furnace core, a furnace bridge, a furnace bridge bottom plate and a liquefier burner seat. The furnace shell is equipped with a water inlet, a water outlet pipe and a water outlet faucet. The upper part of the furnace body is equipped with a smoke outlet, and the middle part is equipped with a firewood stove door , the lower part is equipped with a vent. One side of the furnace cover is equipped with a fixed connecting rod that is movably connected with the bearing on the chimney joint of the furnace body, and the other side is provided with a handle. The chimney is connected on the chimney joint of the furnace body, the bottom of the hot water cylinder outside the chimney is provided with a water inlet pipe, and the top is also provided with a water outlet for showering. In addition, there is a lid ring on the stove for the convenience of small pots and pans. A damper movable cover is arranged in the air vent, and a stove door leaf is arranged at the stove door.

The working principle of the utility model is: when using cooking to make a fire, a part of heat energy and smoke will be discharged outside through the chimney to transfer heat to the chimney body, so that the water in the hot water cylinder outside the chimney will transfer heat. In addition, the stove body also has part of the heat energy. Heat the water in the stove hot water barrel. If you need hot water urgently, you can put the stove lid hot water tray on the stove mouth to light a fire and heat it. Because of the curved water pipe, it has the function of rapid hot water. If you are not in a hurry to use hot water, you can use the waste heat to transfer heat. When you want to cook and stir-fry, turn the hot water plate of the furnace cover up or turn it. After the food is cooked, turn the hot water plate of the furnace cover back down Use waste heat to heat hot water on the stove mouth.

The multi-functional environmental protection and energy-saving stove chimney hot water device of the utility model can use firewood, coal and liquefied petroleum gas as energy sources. The residual heat of the chimney and the stove body is fully utilized, and hot water for bathing and showering does not consume additional energy.

4. Description of drawings

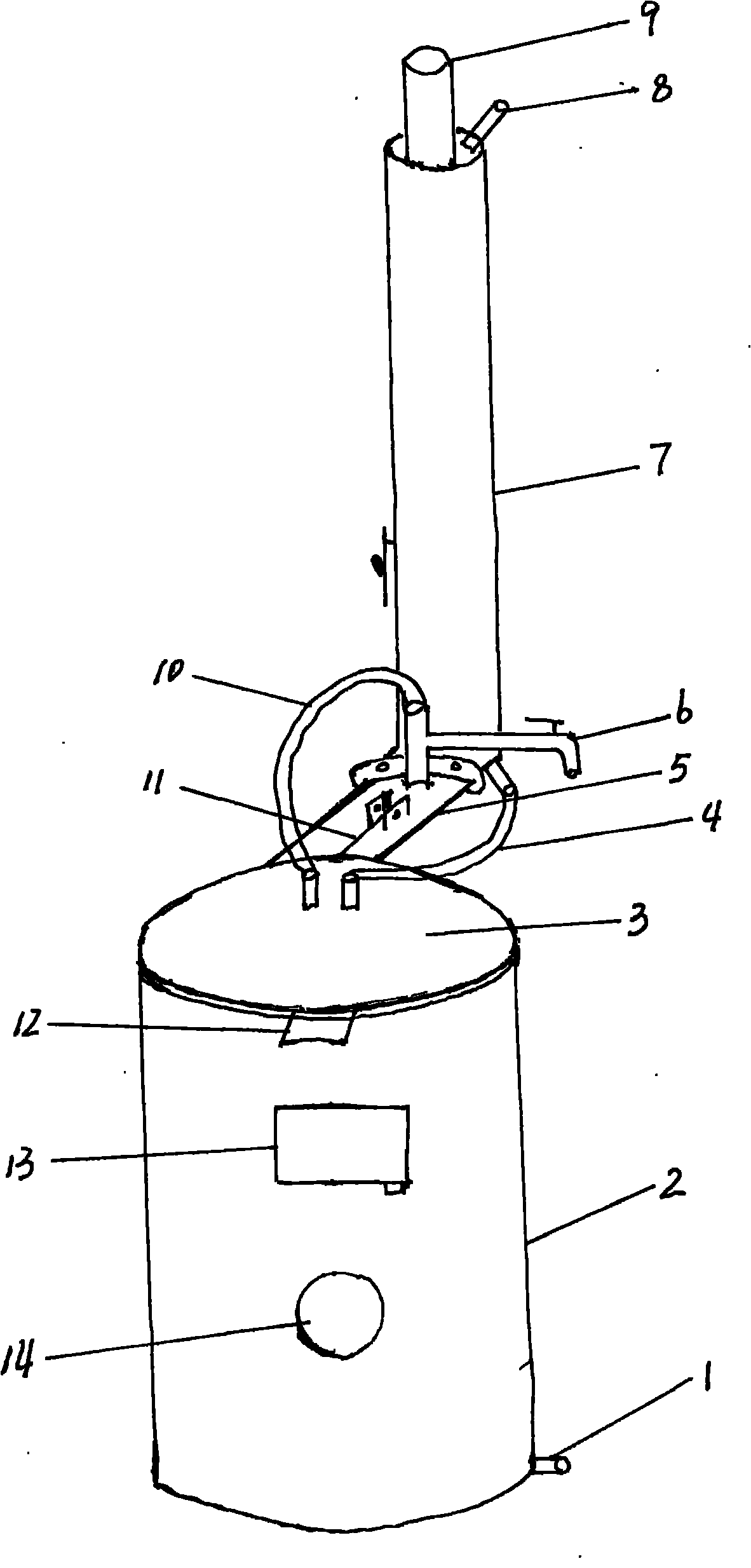

Fig. 1 is a structural schematic diagram of a chimney water heater for a multifunctional environmental protection and energy-saving stove of the present invention.

Fig. 2 is a schematic diagram of the inner shell of the utility model stove.

Fig. 3 is a structural schematic diagram of the furnace cover hot water tray of the present invention.

Fig. 4 is the schematic diagram of the curved water pipe under the boiler cover hot water tray of the present invention.

Fig. 5 is a schematic diagram of the furnace core sleeve in Fig. 2 .

Fig. 6 is a schematic diagram of coal core fixed clearance hook.

Fig. 7 is a schematic diagram of a liquefier burner seat equipped in a stove of the present invention.

Fig. 8 is the bridge plate on the burner seat of the utility model liquefier.

Fig. 9 is a schematic diagram of the movable cover of the air door equipped in the air door of the utility model.

Fig. 10 is a schematic diagram of the bottom plate of the furnace bridge of the present invention.

Fig. 11 is a schematic view of the utility model coal core furnace bridge.

Fig. 12 is a schematic diagram of the furnace cover ring of the present utility model.

Fig. 13 is a schematic diagram of the door leaf of the stove door of the present invention.

5. Specific implementation methods:

As shown in Figures 1 to 13, the utility model is composed of a furnace body, a furnace cover and a chimney. There is a hot water tray 16 and a curved water pipe 17, which are connected with the chimney joint 5 of the furnace body by the water outlet pipe 10; Furnace core, furnace bridge, furnace bridge bottom plate 23 and liquefier burner seat 21 are arranged in the stove body, if when burning firewood, coal furnace core sleeve 19 is taken out, if coal core sleeve is inserted again when burning coal, and put into Coal core furnace bridge 24 and thermal insulation coal core are hooked 20 fixings with coal core fixing clearance. If when burning liquefied gas, need put on liquefier burner seat 21 and burner seat bridge plate 22, put the burner head of liquefier into burner seat bridge plate and get final product. A water inlet 1, a water outlet pipe 10 and a water tap 6 are installed on the shell 2 of the furnace body. The upper part of the furnace body is provided with a smoke outlet 15, the middle part is provided with a stove door 13 for burning firewood and the door leaf 26 of the stove door, and the lower part is provided with an air vent. 14. Equipped with a damper movable cover 18 in the air vent, so that the air can be controlled flexibly. Described furnace cover 3, one side is equipped with fixed connecting rod 11 and the bearing on the chimney joint of furnace body is movably connected, and the other side is provided with handle 12, so that furnace cover hot water tray 3 turns up and down or rotates left and right. Chimney 9 is connected on the body of heater chimney joint 5, and the bottom of hot water cylinder 7 outside the chimney table is provided with water inlet pipe 4, and top is equipped with water outlet 8, so that shower takes over and uses. The utility model is also equipped with a furnace cover ring 25 in order to facilitate the use of small pot bottom cookers such as pressure cookers.

The multifunctional environment-friendly and energy-saving stove chimney water heating device of the utility model is not only a stove but also a water heater, and is suitable for urban and rural households, especially for families whose main energy source is burning firewood. Of course, the utility model also has a single-purpose stove for burning firewood, so there is no need to configure accessories such as coal cores, liquefier burner seats, and a stove specially used for burning coal pellets, so there is no need to configure wood-burning stove bridges, stove doors, etc. Fittings, these transformations all fall within the protection scope of the present utility model.

Claims (5)

1. A multi-functional environmental protection and energy-saving stove chimney water heating device, which is composed of three parts: a furnace body, a furnace cover, and a chimney; it is characterized in that: the stove shell (2) is sealed and connected with the stove inner shell as a whole, and a gap is set in the middle as a heat sink. Water bucket, furnace cover (3) bottom is provided with hot water dish (16) and curved water pipe (17), is connected with body of heater chimney joint (5) by outlet pipe (10); Chimney (9) table is provided with hot water cylinder ( 7), connected with the furnace cover (3) by the water inlet pipe (4). 2. The multifunctional environment-friendly and energy-saving stove chimney water heating device according to claim 1, characterized in that: the stove body is provided with a furnace core, a furnace bridge, a furnace bridge bottom plate (23) and a liquefier burner seat (21), and the furnace body A water inlet (1), a water outlet pipe (10) and a water outlet faucet (6) are installed on the casing, a smoke outlet (15) is arranged on the upper part of the furnace body, a firewood stove door (13) is arranged on the middle part, and an air vent is arranged on the lower part (14). 3. A multifunctional environment-friendly and energy-saving stove chimney water heating device according to claim 1, characterized in that: one side of the furnace cover (3) is equipped with a fixed connecting rod (11) and a bearing on the chimney joint (5) of the furnace body Actively connected, the other side is provided with a handle (12). 4. A multifunctional environment-friendly and energy-saving stove chimney water heating device according to claim 1, characterized in that: the chimney (9) is connected to the chimney joint (5) of the furnace body, and the lower part of the hot water cylinder (7) outside the chimney A water outlet (8) is provided on the top of the water inlet pipe (4). 5. The multifunctional environment-friendly and energy-saving stove chimney water heating device according to claim 1, characterized in that, the stove is equipped with a furnace cover ring (25), and a damper movable cover (18) is placed in the air vent (14), Kitchen door door (13) place is equipped with kitchen door door leaf (26).
