Abstract
The utility model provides a three-side three-claw base seat. The base seat is characterized in that the base seat comprises a three-equal-side foundation seat; a positioning ring is arranged at the central part of the three-equal-side foundation seat; the top surface of the positioning ring protrudes from the three-equal-side foundation seat; a through-hole is formed at the center of the positioning ring; and screw fixing holes are evenly formed on the periphery of the through-hole. The base seat adopts the three-equal-side foundation seat according to the principle that three points determines a plane, guarantees the stability of the base seat, and simultaneously occupies small area; and as the positioning ring is arranged at the central part of the foundation seat, a die is guaranteed not to displace on the base seat.
Description
Technical field
The utility model relates to a kind of mold base.
Background technology
Existing mould generally directly fixes on the ground, perhaps directly places on the ground.If directly fix on the ground, then all very inconvenient when maintenance and installation, if utilize the existing base of mould directly to place on the ground, then stationarity does not reach requirement.Often volume is bigger to have the mold base of suitable stationarity, and is inapplicable under some occasion.
Summary of the invention
The purpose of this utility model provides a kind of stationarity height and the little mold base of floor space.
In order to achieve the above object, the technical solution of the utility model has provided a kind of three limit three-jaw bases, it is characterized in that: comprise the three-equilateral pedestal, middle part at the three-equilateral pedestal is provided with locating ring, the end face of locating ring protrudes in the three-equilateral pedestal, center at locating ring is provided with through hole, is evenly equipped with the screw fixing hole around through hole.
The utility model has adopted three-equilateral pedestal floor space when having guaranteed the base stationarity again little according to 3 principles of determining a plane; Middle part at pedestal is provided with locating ring, guarantees that mould is not shifted on base.
Description of drawings
A kind of three limit three-jaw base schematic diagrames that Fig. 1 provides for the utility model;

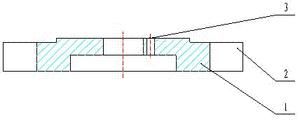

Fig. 2 is the profile of Fig. 1.
The specific embodiment
Specify the utility model below in conjunction with embodiment.
Embodiment
As shown in Figures 1 and 2, a kind of three limit three-jaw bases that provide for the utility model, comprise three-equilateral pedestal 2, be provided with locating ring 1 at the middle part of three-equilateral pedestal 2, the end face of locating ring 1 protrudes in three-equilateral pedestal 2, center at locating ring 1 is provided with through hole, is evenly equipped with screw fixing hole 3 around through hole.
During use, can place the three limit three-jaw bases that the utility model provides in the bottom of mould according to circumstances, perhaps on four angles of the utility model bottom, place the three limit three-jaw bases that a utility model provides respectively.
Claims (1)
1. limit three-jaw base, it is characterized in that: comprise three-equilateral pedestal (2), be provided with locating ring (1) at the middle part of three-equilateral pedestal (2), the end face of locating ring (1) protrudes in three-equilateral pedestal (2), center at locating ring (1) is provided with through hole, is evenly equipped with screw fixing hole (3) around through hole.
