Abstract

The utility model relates to an insulating, energy-saving aluminium alloy casement window, which comprises a window frame, glass and a window sash, the window frame comprises a main window frame and an auxiliary frame, the auxiliary frame is arranged on the periphery of the main window frame, a plurality of fixed plates are arranged on one end surface of the auxiliary frame, which is far from the main window frame, one end surface of the auxiliary frame, which is close to the main window frame, is provided with a mounting hole, a plurality of long holes are arranged at a glass fastener-mounting position on the main window frame, a heat-insulating window mounter is mounted in the long holes, and one end of the heat-insulating window mounter is screwed in the mounting hole of the auxiliary frame. The aluminium alloy casement window can effectively prevent the glass from being scratched or broken by the operation of wall surface decoration, and moreover, when the window needs to be replaced in the future, a wall does not need to be destroyed. Furthermore, the casement window also can reduce indoor and outdoor heat conduction, thus achieving insulating and energy-saving effects.

Description

The flat aluminum window of opening of a kind of heat preservation energy-saving
Technical field
The utility model relates to aluminum window, particularly a kind of flat aluminum window of opening.
Background technology
Casement window in the market is generally " wet method " and installs, be that glass is installed before the door and window hole body of wall facing decoration wet trade, adopt connector fixed gate window frame on the wall base body of hole, then doorframe and window frame and body of wall gap, hole are carried out the mounting means of encapsulation process, usually need the outside scaffold when adopting wet method to install, when changing whole window in the future, also need to destroy body of wall, waste time and energy.And, glass is installed after, the decorative operation and other the operation of body of wall surface layer might be scratched or break glass, cause economic loss.
Summary of the invention
The purpose of this utility model provides a kind of flat aluminum window of opening that is applicable to that dry method is installed, and makes and can after the decorative operation of body of wall surface layer is finished glass be installed again.
For reaching above-mentioned purpose, the flat aluminum window of opening of the utility model, comprise window frame and be installed on window frame interior glass and sash, described window frame comprises master window frame and secondary frame, described secondary frame is arranged at the master window frame periphery, secondary frame is provided with the plurality of fixed sheet away from an end face of master window frame, and secondary frame is provided with installing hole near an end face of master window frame; Described master window frame upper glass profile installation place is provided with some slotted holes, and the heat insulation window erector is installed in the slotted hole, and heat insulation window erector one end is threaded with installing hole on the described secondary frame.
Further described heat insulation window erector comprises plastic seat body and runs through the tapping screw of this plastic seat body that the periphery wall of plastic seat body is provided with draw-in groove.
The cross section of further described secondary each frame of frame is square shape.
Further adopt a kind of glass profile of special shape, this glass profile comprises the flute profile main body, and the side plate of flute profile main body and the junction of base plate are provided with the sealing joint strip installation position, and another side plate of flute profile main body and the connecting portion of base plate are circular arc.
Its master window frame and the preferred heat insulation section of fan frame, glass adopts hollow glass, to reach the purpose of heat preservation energy-saving.
The window frame of Ben Pingkai aluminum window adopts the combining structure that is made of master window frame and secondary frame, can realize the fixing and dismounting of master window frame and secondary frame easily and quickly by the heat insulation window erector, therefore only need before body of wall facing decoration wet trade, secondary frame to be installed in the body of wall of window opening, therefore other parts can be finished installation quickly and easily after the decorative operation of body of wall surface layer is finished, can effectively avoid body of wall facing decoration operation to scratch or break glass.And, when changing window, need not to destroy body of wall in the future.
The production technology of its secondary frame is simple, and cost is low.Its glass button strip adoption arc profile, the sense of outward appearance streamline is strong, and is full real attractive in appearance.
In addition, its master window frame and fan frame adopt heat insulation section, and glass adopts hollow glass, can reduce the conduction of heat of indoor and outdoor, therefore has the function of heat preservation energy-saving.
Description of drawings
Fig. 1 is the flat structural representation of opening aluminum window of embodiment;
Fig. 2 is the A-A sectional view of Fig. 1;

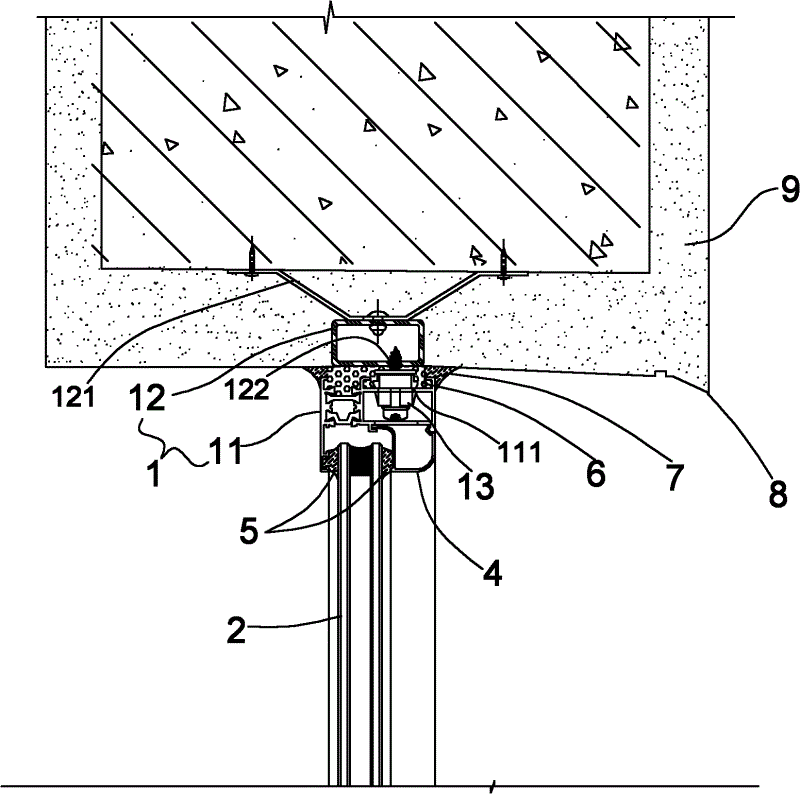

Fig. 3 is installed in the interior structural representation of window opening for it;
Fig. 4 is the structural representation of its glass profile.
The specific embodiment
Below in conjunction with drawings and Examples the utility model is further specified.
Fig. 1-3 shows a kind of 50 series insulating energy-saving casement aluminum windows.Wherein, 1 master window frame that drawn of the window frame among Fig. 1 and Fig. 2, secondary frame does not draw.
With reference to Fig. 1-3, this heat preservation energy-saving is flat to be opened aluminum window and comprises window frame 1, glass 2 and sash 3.Glass 2 is embedded between the window frame 1 by glass profile 4, and glass 2 all is provided with sealing joint strip 5 with contact site, the glass 2 of window frame 1 with the contact site of glass profile 4.Sash 3 is installed in the window frame 1, and sash 3 comprises fan frame 31 and window light 32, and window light 32 is embedded between the fan frame 31 by glass profile 4, and window light 32 all is provided with sealing joint strip with contact site, the window light 32 of fan frame 31 with the contact site of glass profile 4.
Window frame 1 comprises master window frame 11 and secondary frame 12, and described secondary frame 12 is arranged at master window frame 11 peripheries, and secondary frame 12 is provided with plurality of fixed sheet 121 away from an end face of master window frame 11, and secondary frame 12 is provided with installing hole 122 near an end face of master window frame 11; Described master window frame 11 upper glass profile installation places are provided with some slotted holes 111, and heat insulation window erectors 13 are installed in the slotted hole 111, and heat insulation window erector 13 1 ends are threaded with installing hole 122 on the described secondary frame 12, thereby master window frame 11 and secondary frame 12 are fixed as one.
Heat insulation window erector 13 comprises plastic seat body and runs through the tapping screw of this plastic seat body that the plastic seat body periphery wall is provided with draw-in groove.During installation, described plastic seat body is packed in the slotted hole 111 on the master window frame 11, and the edge of slotted hole 111 is snapped in the draw-in groove of plastic seat body periphery wall, thereby plastic seat body is fixed in the master window frame 11.The effect of the pedestal of heat insulation window erector 13 is that heat insulation window erector 13 can not deviate from from slotted hole 111, adopts plastic seat body more closely to combine with the master window frame 11 of aluminum alloy material, certainly, adopts the pedestal of metal material also can realize.In addition, heat insulation window erector 13 also can be made of a tapping screw and a thicker pad.
The cross section of secondary frame 12 each frame is square shape, and the section bar processing technology that the cross section is square shape is simple, and cost is low, and can more firmly fix whole forms.Master window frame 11, fan frame 31 all adopt heat insulation section, and glass 2 and window light 32 all adopt hollow glass.
With reference to Fig. 4, glass profile 4 comprises the flute profile main body, the side plate of flute profile main body and the junction of base plate are provided with sealing joint strip installation position 41, and another side plate of flute profile main body and the connecting portion 42 of base plate are circular arc, and the free end of two side plates is provided with Access Division 43 and 44 respectively.
Among Fig. 3,6 is foamed glue, and 7 is sealant layer, and 9 is the body of wall of window opening, and 8 are the olecranon bar that drips.Before body of wall facing decoration wet trade, only need secondary frame 12 to be installed in the body of wall 9 of window opening by stator 121, after all decorative operation is finished, again master window frame 11 is installed in the window opening, with heat insulation window erector 13 master window frame 11 and secondary frame 12 are fixed together, by glass profile 4 glass 2 is embedded in the window frame then, filling-foam glue 6 in the slit of master window frame 11 and window opening is smeared sealant layer 7 and is got final product in the junction.This aluminum window not only firmly but also insulation, also convenient simultaneously whole window replacing and maintenance in the future.

Claims (5)

1. flat aluminum window of opening, comprise window frame and be installed on window frame interior glass and sash, it is characterized in that: described window frame comprises master window frame and secondary frame, described secondary frame is arranged at the master window frame periphery, secondary frame is provided with the plurality of fixed sheet away from an end face of master window frame, and secondary frame is provided with installing hole near an end face of master window frame; Described master window frame upper glass profile installation place is provided with some slotted holes, and the heat insulation window erector is installed in the slotted hole, and heat insulation window erector one end is threaded with installing hole on the described secondary frame.
2. according to claim 1 putting down opened aluminum window, it is characterized in that: described heat insulation window erector comprises plastic seat body and runs through the tapping screw of this plastic seat body that the periphery wall of plastic seat body is provided with draw-in groove.
3. according to claim 1 putting down opened aluminum window, and it is characterized in that: the cross section of described secondary each frame of frame is square shape.
4. the flat aluminum window of opening according to claim 1, it is characterized in that: the glass profile comprises the flute profile main body, the side plate of flute profile main body and the junction of base plate are provided with the sealing joint strip installation position, and another side plate of flute profile main body and the connecting portion of base plate are circular arc.
5. according to claim 1 putting down opened aluminum window, it is characterized in that: master window frame and fan frame all adopt heat insulation section, and glass adopts hollow glass.
