Abstract
The utility model discloses a novel plate which comprises a plate body and a bottom plate, wherein the bottom plate is positioned below the plate body; symmetric lifting ears are arranged on the bottom plate; a plurality of small holes are formed on the plate body; and a bottom plate nozzle is also arranged on one side of the bottom plate. When the novel plate is in use, cooked vegetable is put in the novel plate, vegetable soup flows into the bottom plate along the small holes, so as not to flow on a desk or spill on and scald the hands of a person who holds the plate; the lifting ears are also arranged on the bottom plate, so as to facilitate moving and avoid the phenomenon that the hands are scalded when the bottom plate is heated; and all that is needed to eat soup or pour soup is to take down the plate body and pour the soup through the bottom plate nozzle. The utility model has the advantages of good effect, simple structure, low cost, convenience of use and the like.
Description
Technical field
The utility model relates to the plate of a kind of separable dish and soup, belongs to tableware.
Background technology
In the life, no matter at home still in the restaurant, the amount of frying when dish for a long time, plate is not contained, often soup is dripping on the desktop of Nonging, and soup also can be spread across the people that carries a tray on hand, easy scald is also unhygienic.
Summary of the invention
At above-mentioned the deficiencies in the prior art, the utility model discloses the novel plate of a kind of separable dish and soup.
The utility model is achieved through the following technical solutions:
A kind of novel plate comprises disk body, comprises that also chassis, chassis are positioned at the disk body below, and the chassis is provided with the ear of carrying of symmetry; Disk body is provided with some apertures, and chassis one side also is provided with the chassis mouth.
During use, dish is contained in the plate, vegetable soup promptly in aperture flows to the chassis, thereby on the desktop that can not do soup dripping or be spread across the people that carries a tray cause scald on hand; Also be provided with on the chassis and carry ear, convenient move and scald can avoid the chassis to be heated the time hand; Need eat soup or when soup outwelled, take off disk body, the soup in the chassis is poured out soup from the chassis mouth be got final product; The utlity model has effective, simple in structure, cost is low, advantage such as easy to use.
Description of drawings

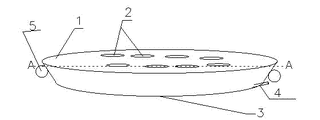

Fig. 1 is the structural representation of novel plate of the present utility model;
Fig. 2 is the cutaway view of A-A line among Fig. 1.
Wherein, 1, disk body; 2, aperture; 3, chassis; 4, chassis mouth; 5 carry ear.
The specific embodiment
Embodiment: a kind of novel plate, form by disk body 1, chassis 3, some apertures 2, wherein, some apertures 2 are arranged on the disk body 1, and chassis 3 is positioned at the below of disk body 1, and disk body 1 edge is provided with chassis mouth 4; Also be provided with on the chassis 3 and carry ear 5.
During use, dish is contained in the plate, vegetable soup promptly in aperture 2 flows to chassis 3, thereby on the desktop that can not do soup dripping or be spread across the people that carries a tray cause scald on hand, also be provided with on the chassis and carry ear 5, convenient move and scald can avoid the chassis to be heated the time hand; Need eat soup or when soup outwelled, take off disk body 1, the soup on 3 li on chassis is poured out soup from chassis mouth 4 be got final product; Have effective, simple in structure, cost is low, advantage such as easy to use.
Claims (1)
1. a novel plate comprises disk body, it is characterized in that, it also comprises the chassis, and the chassis is positioned at the disk body below, and the chassis is provided with the ear of carrying of symmetry; Disk body is provided with some apertures, and chassis one side also is provided with the chassis mouth.
