Abstract
本实用新型公开一种半自动剥肠衣机，底座支架连接进料轴架，进料轴架上装设有进料滚轴；所述的底座支架上装设有进料管固定架，所述的进料管固定架上装设有进料管，所述的底座支架上装设有刀架，所述的刀架上用固定螺丝连接刀片；所述的刀架与进料固定架间装设有刀架弹簧，所述的进料管固定架上装设有出料滑轮支架，其上装设有出料滑轮；所述的底座支架上还装设有压缩空气支架，压缩空气支架上装设有压缩空气喷头，喷头设有压缩空气阀门，阀门与喷头通过压缩空气软管连接；本实用新型是一种结构简单、成本低、工作效率高，劳动强度低、实用的半自动剥肠衣机。
The utility model discloses a semi-automatic casing stripping machine. A base bracket is connected with a feed shaft frame, and a feed roller is installed on the feed shaft frame; A feeding pipe is installed on the tube fixing frame, a knife holder is installed on the base bracket, and the blade is connected with a fixing screw on the knife holder; a knife holder spring is installed between the knife holder and the feeding fixing frame , the feed pipe fixed frame is equipped with a discharge pulley bracket, which is equipped with a discharge pulley; the base bracket is also equipped with a compressed air support, and the compressed air support is equipped with a compressed air nozzle, the nozzle A compressed air valve is provided, and the valve and the nozzle are connected through a compressed air hose; the utility model is a practical semi-automatic casing stripping machine with simple structure, low cost, high work efficiency and low labor intensity.
Description
Technical field
The utility model relates to food processing field, refers more particularly to a kind of semi-automatic stripping casing machine.
Background technology
In the sausage production process, can use some unedible casing (as celluloid casing, cellulose sausage casing) filling at present, after the sausage slaking, this part casing must be removed from the intestines surface.Traditional casing removing method is that peel manually removes, and efficient is extremely low, and easily produces foreign matter and sneak in the product, and product also occurs damaged easily.Having full automatic casing to divest equipment abroad, but cost an arm and a leg, is heavier burden to enterprise.
Summary of the invention
The purpose of this utility model be to overcome above-mentioned weak point of the prior art and provide a kind of simple in structure, cost is low, high efficiency, the semi-automatic stripping casing machine that labour intensity is low, practical.
The utility model is realized in the following way:
A kind of semi-automatic stripping casing machine is characterized in that: base support 3 connects charging pedestal 2, is equiped with charging roller bearing 1 on the charging pedestal 2; Be equiped with feed pipe fixed mount 11 on the described base support 3, be equiped with feed pipe 10 on the described feed pipe fixed mount 11, be equiped with knife rest 5 on the described base support 3, connect blade 17 with fixed screw 15 on the described knife rest 5; 11 of described knife rest 5 and charging fixed mounts are equiped with knife rest spring 14, are equiped with discharging pulley bracket 16 on the described feed pipe fixed mount 11, are equiped with discharging pulley 18 on it; Also be equiped with compressed air support 9 on the described base support 3, be equiped with compressed air shower nozzle 7 on the compressed air support 9, shower nozzle 7 is provided with compressed air valve 6, and valve 6 is connected by compressed-air hose 8 with shower nozzle 7.
Described feed pipe 10 can be regulated by the feed pipe fixed screw 13 that is installed in feed pipe fixed mount 11 belows.
Described knife rest 5 can be regulated by the knife rest set screw 4 that is installed on the knife rest 5.
The utility model advantage is: 1, simple in structure, cost is low, does not use other energy except that compressed air, is easy to promote the use of; 2, change the manual mode of operation that the past sausage divests one by one, reduced manipulation strength, improved operating efficiency; 3, owing to used compressed air and cut the casing blade, can reduce the casing that strips out greatly and sneak into possibility in the product, guarantee food security.
Description of drawings

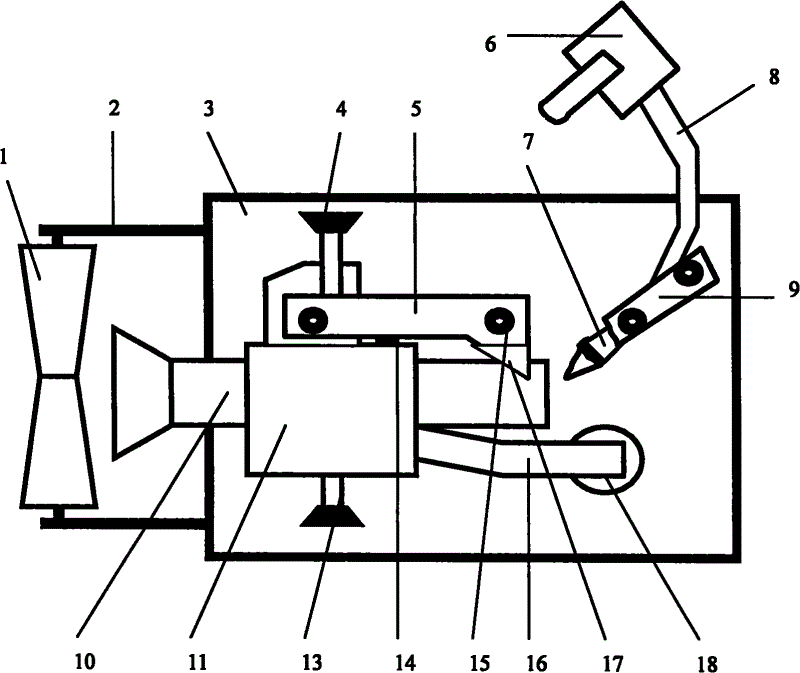

Fig. 1 the utility model structural representation;
The specific embodiment
Now in conjunction with the accompanying drawings, the utility model specific embodiment is described in detail in detail:
As shown in Figure 1, a kind of semi-automatic stripping casing machine is characterized in that: base support 3 connects charging pedestal 2, is equiped with charging roller bearing 1 on the charging pedestal 2; Be equiped with feed pipe fixed mount 11 on the described base support 3, be equiped with feed pipe 10 on the described feed pipe fixed mount 11, be equiped with knife rest 5 on the described base support 3, connect blade 17 with fixed screw 15 on the described knife rest 5; 11 of described knife rest 5 and charging fixed mounts are equiped with knife rest spring 14, are equiped with discharging pulley bracket 16 on the described feed pipe fixed mount 11, are equiped with discharging pulley 18 on it; Also be equiped with compressed air support 9 on the described base support 3, be equiped with compressed air shower nozzle 7 on the compressed air support 9, shower nozzle 7 is provided with compressed air valve 6, and valve 6 is connected by compressed-air hose 8 with shower nozzle 7.
Described feed pipe 10 can be regulated by the feed pipe fixed screw 13 that is installed in feed pipe fixed mount 11 belows.
Described knife rest 5 can be regulated by the knife rest set screw 4 that is installed on the knife rest 5.
Embodiment: the sausage behind the shortening enters in the feed pipe 10 by roller bearing 1, when sausage when feed pipe 10 comes out, the blade 17 of installing cuts the casing of sausage on the knife rest 5, the compressed air of ejection blows out casing along the blade cutting opening and peels off in the compressed air shower nozzle 7 from sausage, operating personnel only need spur the casing that strips out this moment along discharging pulley 18, then the sausage behind the whole piece shortening (about 10-12 rice) is constantly peeled off out.
