Abstract

This utility model relates to a slicing knife that can conveniently, quickly, and safely slice vegetables such as potatoes, and produce slices of uniform thickness. It includes a housing, which is hinged into upper and lower parts, with the upper part equipped with several circular blades. Advantages: First, it makes slicing vegetables such as potatoes more convenient, faster, and safer; second, it produces slices of uniform thickness; and third, it has a simple structure and low manufacturing cost.

Description

slicer

technical field

The utility model relates to a knife, in particular to a slicing knife, which belongs to the field of daily necessities manufacture.

Background technique

When people cut potato slices at home, they need to cut them one by one. Not only is it troublesome and inefficient, but also the thickness of the cut potato slices is inconsistent. Since the potatoes are very slippery after peeling, it is very unsafe to use the knife if you are not careful.

Utility model content

Design purpose: to avoid the deficiencies in the background technology, and to design a slicing tool that can cut vegetables such as potatoes conveniently, quickly and safely, and the slices have the same thickness.

Design scheme: In order to achieve the above purpose, the utility model has been designed as follows: 1. The housing is divided into upper and lower parts hinged, and the upper part is provided with the design of several circular blades, which is one of the technical characteristics of the utility model. The purpose of doing like this is: the casing can be opened and closed, and the blade can cut vegetables such as potatoes in the casing into slices of equal thickness when closed. 2. The design that the upper and lower parts of the housing are provided with handles is the second technical feature of the present utility model. The purpose of doing like this is: through the effect of handle, can make slicing more labor-saving.

Technical solution: a slicing cutter, which includes a shell, the shell is formed by hinged upper and lower parts, and the upper part is provided with a number of circular blades.

Compared with the background technology, the utility model has the following main advantages: firstly, it is more convenient, fast and safe to cut vegetables such as potatoes; secondly, the cut slices have the same thickness.

Description of drawings

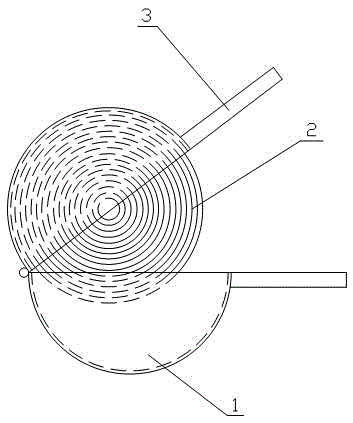

Fig. 1 is a front structural view when the slicing cutter is opened.

Fig. 2 is a front structural diagram when the slicing cutter is closed.

Fig. 3 is a bottom structural view of the upper part of the housing.

Detailed ways

Embodiment 1: with reference to accompanying drawing 1～3. The slicing tool includes a housing 1, which is spherical and is divided into two parts, the upper part and the upper part, which are hinged. The upper part is provided with a number of circular blades 2; the diameter of the middle blade in the blades 2 is the largest, and the other blades on both sides are along the The inner surface of the housing 1 gradually becomes smaller; the upper and lower parts of the housing 1 are provided with handles 3; the inner diameter of the housing 1 can be designed according to the actual situation.

The manufacturing process and installation method of the above-mentioned components all adopt the existing feasible technology. Open the shell 1, put potatoes and other vegetables that need to be sliced into the lower part of the shell 1, then hold the handle 3 with both hands, close the shell 1 to slice the potatoes, etc., and finally open the shell 1, Take out the cut slices.

It should be understood that: although the above-mentioned embodiments have described the design ideas of the present utility model in more detail, the design ideas of the present utility model are not limited to the above description, and any combination, increase or modification that does not exceed the design ideas of the present utility model shall be accepted. fall within the scope of the present utility model.

Claims (3)

1. section cutting tool, it comprises housing (1), it is characterized in that: described housing (1) divides that two parts are hinged up and down forms, and top is provided with some circular shear blades (2).

2. section cutting tool according to claim 1 is characterized in that: the intermediate blades diameter maximum in the described blade (2), other blades on both sides diminish gradually along housing (1) inner surface.

3. section cutting tool according to claim 1 is characterized in that: two parts up and down of described housing (1) are equipped with handle (3).
