CN201812830U - A combined solar photovoltaic module - Google Patents

Abstract

The utility model discloses a large-size combined photovoltaic module, which belongs to the field of photovoltaic power generation. A combined solar photovoltaic module, including a frameless photovoltaic module and a connecting member, characterized in that the connecting member is composed of a frame, a support beam, a detachable frame bead and a support beam bead, and a plurality of frameless photovoltaic modules are placed on On the support beam, the support beam bead is fastened with the support beam to form a whole, and the frame and the frame bead are fastened around the whole to form a combined solar photovoltaic module. The combined photovoltaic module is fast and convenient to install, saves time and materials, and is easy to replace.

Description

A combined solar photovoltaic module

technical field

The utility model relates to a solar photovoltaic component, in particular to a large-size combined photovoltaic component, which belongs to the field of photovoltaic power generation. the

Background technique

With the large-scale application of photovoltaic modules in power stations, how to reduce the cost of using photovoltaic modules has attracted much attention, and reducing the installation cost of photovoltaic modules is an important factor that needs to be considered. During the installation process, the size of the photovoltaic module is a direct factor affecting the installation cost. Compared with installing several small-sized photovoltaic modules in batches, installing one large-sized photovoltaic module at one time can shorten the installation time and save brackets and auxiliary materials. Therefore, making photovoltaic modules into large sizes is one of the ways to reduce installation costs. At present, due to the limitation of solar cell processing equipment, the size of photovoltaic modules cannot be made very large. Even if they are made into large sizes through internal splicing processing, the scrap rate and cost are high. Therefore, how to make the solar photovoltaic module into a large size is a current technical problem while ensuring the reduction of the scrap rate. The Chinese patent No. ZL200920210087.x discloses a connecting member of a solar photovoltaic module with an "I"-shaped cross section. The two sides of the member are provided with slots with the same thickness as the photovoltaic module, which is convenient for installation. However, the connecting member It is not suitable for large-size photovoltaic modules. When the length of the photovoltaic module is greater than the length of the connecting member, the supporting strength is insufficient and the reliability is not high. the

Contents of the invention

The task of the utility model is to provide a large-size combined solar photovoltaic module with low cost, simple structure and easy installation for the deficiencies of the prior art. the

In order to achieve the above tasks, the technical solution adopted by the utility model is: provide a combined solar photovoltaic module, including a frameless photovoltaic module and a connecting member, characterized in that the connecting member consists of a frame, a support beam, a detachable Composed of frame bead and support beam bead, multiple frameless photovoltaic modules are placed on the support beam, and the support beam bead is buckled with the support beam to form a whole, and the frame and frame bead are fastened around the whole to form a combined solar photovoltaic module. the

The frame is a U-shaped extruded profile, the opening of the U-shaped profile is a frame line groove, the bottom is provided with a frame bolt groove, the left side is provided with a frame buckle claw and a frame external pressure groove, and the right top is provided with a Z-shaped buckle. the

The support beam is a convex extruded profile, and the top of the convex profile is provided with support beam buckle claws, and the two sides are provided with support beam sealing grooves. the

The frame bead is an L-shaped extruded profile, and the horizontal and vertical sides of the L-shaped profile are provided with a frame bead sealing groove, and the inner side of the vertical side is also provided with a frame bead buckle. the

The support beam bead is a T-shaped extruded profile, the T-shaped profile is provided with a support beam bead sealing groove on both sides, and a support beam bead buckle claw is provided at the bottom. the

The Z-shaped buckle is connected with a detachable line groove buckle. the

A pressing block is fixed on the outer pressure groove of the frame, and the pressing block is a Z-shaped extruded section bar with serrated protrusions on it. the

The said support beam is an extruded profile, the left side is U-shaped, and the right side is "convex"-shaped. the

Output cables are arranged inside the wire groove of the frame. the

A junction box is placed inside the U-shaped groove of the support beam. the

The beneficial effect of the utility model is: the large-size combined photovoltaic module is composed of a plurality of independent frameless small modules, which can be assembled in the factory in advance, and can be installed as a photovoltaic module on site, which is equivalent to installing multiple modules at the same time. A small-sized photovoltaic module saves time, materials, and is convenient and quick. At the same time, the output cable is hidden in the wire groove of the frame, which is beneficial to the protection of the cable, has high safety, and does not affect the appearance. When a wiring fault occurs, the wire groove buckle can be opened to re-wire; the frame pressure of the photovoltaic module is fastened. Both the bar and the support beam bead can be disassembled, and it is easy to replace when there is a problem with a frameless small-size photovoltaic module. the

Description of drawings

Figure 1: Structural schematic diagram of the utility model

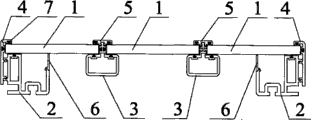

Figure 2: A schematic cross-sectional view of A-A in Figure 1

Figure 3: Schematic diagram of B-B section in Figure 1

Figure 4: Schematic diagram of frame 2 in Figure 1

Figure 5: Schematic diagram of support beam 3 in Figure 1

Figure 6: Schematic diagram of frame bead 4 in Figure 1

Figure 7: Schematic diagram of support beam layer 5 in Figure 1

Figure 8: Schematic diagram of embodiment 1

Figure 9: Schematic diagram of the briquetting block 102 in Figure 8

Figure 10: Schematic diagram of embodiment 2

Figure 11: Schematic cross-sectional view of embodiment 2

Figure 12: Schematic diagram of 3' in Figure 11

In Figure 1-12: Frameless small-size photovoltaic module 1, frame 2, support beam 3, 3' is support beam B, frame bead 4, support beam bead 5, wire groove buckle 6, sealing rubber strip 7, connecting block 8. Output cable 9, frame sealing groove 21, frame buckle claw 22, frame angle hole 23, frame external pressure groove 24, frame bolt groove 25, frame wire groove 26, Z-shaped buckle 27, beam 101, pressure block 102 , Junction box 11, support beam seal groove 31, support beam buckle claw 32, frame bead seal groove 41, frame bead buckle claw 42, support beam bead seal groove 51, support beam bead buckle claw 52. the

The structural principle of the present utility model will be described in detail below in conjunction with the accompanying drawings. the

The utility model is mainly composed of a frameless photovoltaic module 1, a frame 2, a support beam 3, a detachable frame bead 4 and a support beam bead 5. Form a closed rectangle, fix the two ends of the support beam 3 on the frame 2 through the connecting block 8 with self-tapping screws, install the sealing rubber strip 7 in the sealing groove 21 of the frame and the sealing groove 31 of the support beam, and connect the frameless small-sized photovoltaic module 1 Put it on the sealing strip 7 of the frame 2 and the support beam 3, and at the same time, the junction box 11 is placed above the frame slot 26 of the frame 2, and the output cable 9 connected in series and parallel is placed in the frame slot 26, and fastened Groove buckle 6, fasten the frame bead 4 with the sealing rubber strip 7 in the frame bead seal groove 41 on the frame buckle 22 through the frame bead buckle 42, and press the edge of the frameless small-sized photovoltaic module 1, and then Fasten the support beam bead 5 with the sealing rubber strip 7 in the support beam bead seal groove 51 on the support beam clasp 32 through the support beam bead claw 52, and press the edge of the frameless small-sized photovoltaic module 1 to form A combined photovoltaic module. The frame 2 , the support beam 3 , the frame bead 4 , the support beam bead 5 and the groove buckle 6 are all extruded profiles, which are easy to manufacture and low in cost. In the utility model, there are frame external pressure grooves that can be pressed and fixed from the outside at the lower part of the frame, and frame bolt grooves that can be fixed by screws, and the fixing method can be selected according to user needs. the

Detailed ways

Example 1:

The utility model is mainly composed of a frameless photovoltaic module 1, a frame 2, a support beam 3, a detachable frame bead 4 and a support beam bead 5, a plurality of frameless photovoltaic modules 1 are placed on the support beam 3, and the support beam bead 5 is fastened with the support beam 3 to form a whole, and the frame 2 and the frame bead 4 are fastened around the whole to form a combined solar photovoltaic module. the

In this embodiment, the frame 2 adopts a U-shaped extruded profile, as shown in FIG. 4 . On the left, there are two inner buckle-type frame buckle claws 22 and a frame external pressure groove 24. The opening of the U-shaped profile is a frame line groove 26, a frame bolt groove 25 is located at the bottom, and a Z-shaped buckle 27 is located on the top of the right vertical side . The inner buckle frame buckle claw 22 is fastened and fixed with the frame bead buckle claw 42 . The outer pressure groove 24 of the frame is fixed to the bracket through the pressing block 102 . Groove buckle bar 6 is fixed. The supporting beam 3 adopts a convex extruded profile, as shown in FIG. 5 . There is a T-shaped supporting beam sealing groove 31 on both sides of the raised part, and a T-shaped supporting beam buckle claw 32 is formed on the top of the raised part. A support beam sealing groove 31 is respectively arranged on the left and right sides of the upper horizontal edge of the convex shape. The sealing strip 7 is installed in the sealing groove 31 of the supporting beam, and the supporting beam buckle claw 32 is fastened and fixed with the supporting beam bead buckling claw 52 . The frame bead 4 is an L-shaped extruded profile, as shown in FIG. 6 . There is one frame bead sealing groove 41 under the horizontal side and the inner side of the vertical side respectively, and two outer buckle type frame bead buckle claws 42 are arranged on the inner side of the vertical side. The frame bead sealing groove 41 is equipped with a sealing rubber strip 7 , and the frame bead claw 42 is fastened and fixed with the frame clasp claw 22 . The support beam bead is a T-shaped extruded profile, as shown in Figure 7. A T-shaped support beam bead sealing groove 51 is respectively arranged on both sides of the horizontal side, and a support beam bead clasp claw 52 is arranged at the bottom of the vertical side. The support beam bead sealing groove 51 is equipped with a sealing rubber strip 7, and the support beam bead buckle claw 52 is fastened and fixed with the support beam bead buckle claw 32. The briquetting block 102 is a Z-shaped extruded profile, as shown in FIG. 9 . The right bottom has a serrated protrusion 102-2, the left side of the pressing block 102-1 is fixed with the support, the right side is pressed and fixed with the outer pressure groove 24 of the frame, and the zigzag can be tightly occluded to increase friction. the

As shown in Figure 8, the frameless small-size photovoltaic module 1 used in this embodiment is an amorphous silicon double-glass module with a size of 1640mm×707mm×7mm. and install four combined photovoltaic modules into a group of photovoltaic arrays, which is equivalent to installing 12 small-sized photovoltaic modules at one time, reducing 4 beams with a length of 7000mm, 16 connection blocks and 15 The pressing block is equivalent to reducing the installation materials by 60%, and saving more than 70% of the installation time. the

Example 2:

See Figures 10 and 11. In this example, 9 pieces of amorphous silicon double-glass modules of 1640mm×707mm×7mm are used in the factory to pre-assemble into a combined photovoltaic module with a size of 5000mm×2200mm×45mm. The packaging is convenient and suitable for container transportation. . For example, a 20-foot container can just transport 5000mm×2200mm components. It can be installed with a crane at the installation site, reducing labor costs and shortening the construction period. The specific implementation method is the same as that of Example 1, and will not be repeated here. The difference is that the frame 2 and frame bead 4 in the combined photovoltaic module adopt rail-type buckles. Tightly fixed, the support beam B is an extruded profile, the left side is U-shaped, and the right side is "convex"-shaped, as shown in Figure 12. The U-shaped groove 33' is used for wiring and placing the junction box. The convex function is the same as that of the supporting beam 3. The bottom of the right side of the pressing block 102 is provided with a tooth-shaped protrusion, the left side is fixed with the bracket, and the right side is pressed and fixed with the outer pressure groove 24 of the frame. the

The above embodiments of the utility model have been described in detail in conjunction with the accompanying drawings, but the utility model is not limited to the above embodiments, especially the fastening method of the frame bead and the frame is within the knowledge of those of ordinary skill in the art. Various changes can also be made without departing from the gist of the invention. the

Claims (10)

1. A combined solar photovoltaic module, comprising a frameless photovoltaic module and a connection member, characterized in that the connection member is composed of a frame, a support beam, a detachable frame bead and a support beam bead, and a plurality of frameless photovoltaic modules are placed On the support beam, the support beam bead is buckled with the support beam to form a whole, and the frame and the frame bead are fastened around the whole to form a combined solar photovoltaic module. 2. A combined solar photovoltaic module according to claim 1, characterized in that the frame is a U-shaped extruded profile, the opening of the U-shaped profile is a frame wire groove, the bottom is provided with frame bolt grooves, and the left side is provided with There are frame buckle claws and frame external pressure grooves, and a Z-shaped buckle on the top right. 3. A combined solar photovoltaic module according to claim 1, characterized in that the support beam is a convex extruded profile, the top of the convex profile is provided with a support beam buckle claw, and the two sides are provided with a support beam seal groove. 4. A combined solar photovoltaic module according to claim 1, characterized in that the frame bead is an L-shaped extruded profile, and the horizontal and vertical sides of the L-shaped profile are provided with frame bead sealing grooves. There is also a frame pressing strip buckle claw on the inner side. 5. A combined solar photovoltaic module according to claim 1, characterized in that the support beam bead is a T-shaped extruded profile, the two sides of the T-shaped profile are provided with support beam bead sealing grooves, and the bottom is provided with a support Beam layer buckle claw. 6. A combined solar photovoltaic module according to claim 2, characterized in that the Z-shaped buckle is connected with a detachable wire groove buckle. 7. A combined solar photovoltaic module according to claim 2, characterized in that a pressing block is fixed on the outer pressure groove of the frame, and the pressing block is a Z-shaped extruded profile with serrated protrusions on it. 8. A combined solar photovoltaic module according to claim 1, characterized in that said support beam is an extruded profile, the left side is U-shaped, and the right side is "convex"-shaped. 9. A combined solar photovoltaic module according to claim 2, characterized in that an output cable is laid inside the wire groove of the frame. 10. A combined solar photovoltaic module according to claim 8, characterized in that a junction box is placed inside the U-shaped groove of the support beam.
