Abstract

The utility model discloses an automatic parking device for acrylic fiber knotting, which comprises a left-right symmetrical fixed frame. The middle part of the fixed frame is fixed with the roller core and can slide up and down to adjust the height. The fixing bolts are adapted, the upper part can be connected with the knotted striker, including the knotted striker, and the two ends of the knotted striker are respectively adapted to the left and right fixing frames through the described bearings and the described nuts. The connection also includes a roller core, and also includes a roller. The roller is set on the roller core and can roll freely. It also includes a fixing bolt. The fixing bolt is adapted to the fixing frame, and one end can be clamped To the appropriate position of the equipment, bearings are also included, and the bearings are respectively adapted to the holes of the fixing frame and the knotted striking plates. The utility model has the advantages of adopting a photoelectric switch, which can sensitively control the operation of the motor and achieve the purpose of automation of the equipment. The equipment is simple, easy to install, easy to manufacture, and convenient to operate. Can save manpower.

Description

An automatic parking device for acrylic fiber knotting

technical field

The utility model relates to an automatic parking device for acrylic fiber knotting. the

Background technique

Acrylic fiber is mainly used for civilian use, it can be purely spun or blended, and can be made into a variety of wool, wool, blankets, sportswear, artificial fur, plush, bulked yarn, water hose, parasol cloth, etc. The production process requires high requirements. , Polymerization→spinning→preheating→steam drawing→washing→drying→heat setting→curling→cutting→packing, if there is knotting in any step before cutting, it will affect the product during cutting and packing The quality of the whole package of products is unqualified. The traditional process is to place a person to monitor between cutting and crimping. If there is a knot, stop the car immediately and deal with it. Causes the waste of personnel, is unfavorable for the automatic production of equipment. the

Utility model content

The purpose of the utility model is to provide an automatic parking device for acrylic fiber knotting, which can effectively solve the problems of personnel waste and automatic production line production. the

In order to solve the above-mentioned technical problems, the utility model is realized through the following technical solutions: an automatic parking device for acrylic fiber knotting, which includes a left-right symmetrical fixing frame and a knotting bumper, and the knotting bumper is composed of two There are steps at the end to install bearings and are welded by smooth round steel and steel plate with threaded structure. It also includes a roller. The roller can roll freely. It also includes a roller core, a bearing, a retaining ring, a nut, and a fixed The fixing bolt on the device also includes a photoelectric switch, and the photoelectric switch is connected with the control system of the cut-off host to control the operation status of the cut-off host.

Preferably, the knotted striker is welded together by a smooth round steel and a steel plate, and the two ends of the smooth round steel have stepped shafts and threads for fixing. the

Preferably, the left and right fixing frames are provided with U-shaped grooves to facilitate the adjustment of the roller, and are also provided with threaded holes and stepped holes for mounting and positioning to fix the bearings. the

Preferably, the roller is arranged on a roller core, and the roller can freely roll around the roller core. the

Preferably, the photoelectric switch is an infrared photoelectric switch. the

Preferably, the fixing bolt is fully threaded and can be threadedly engaged with the fixing frame so as to be fixed to the original equipment. the

Compared with the prior art, the utility model has the advantages of adopting a photoelectric switch, which can sensitively control the operation of the motor and achieve the purpose of automation of the equipment. The equipment is simple, easy to install, easy to manufacture, and easy to operate. Later personnel come and deal with it, which can save manpower,

Description of drawings

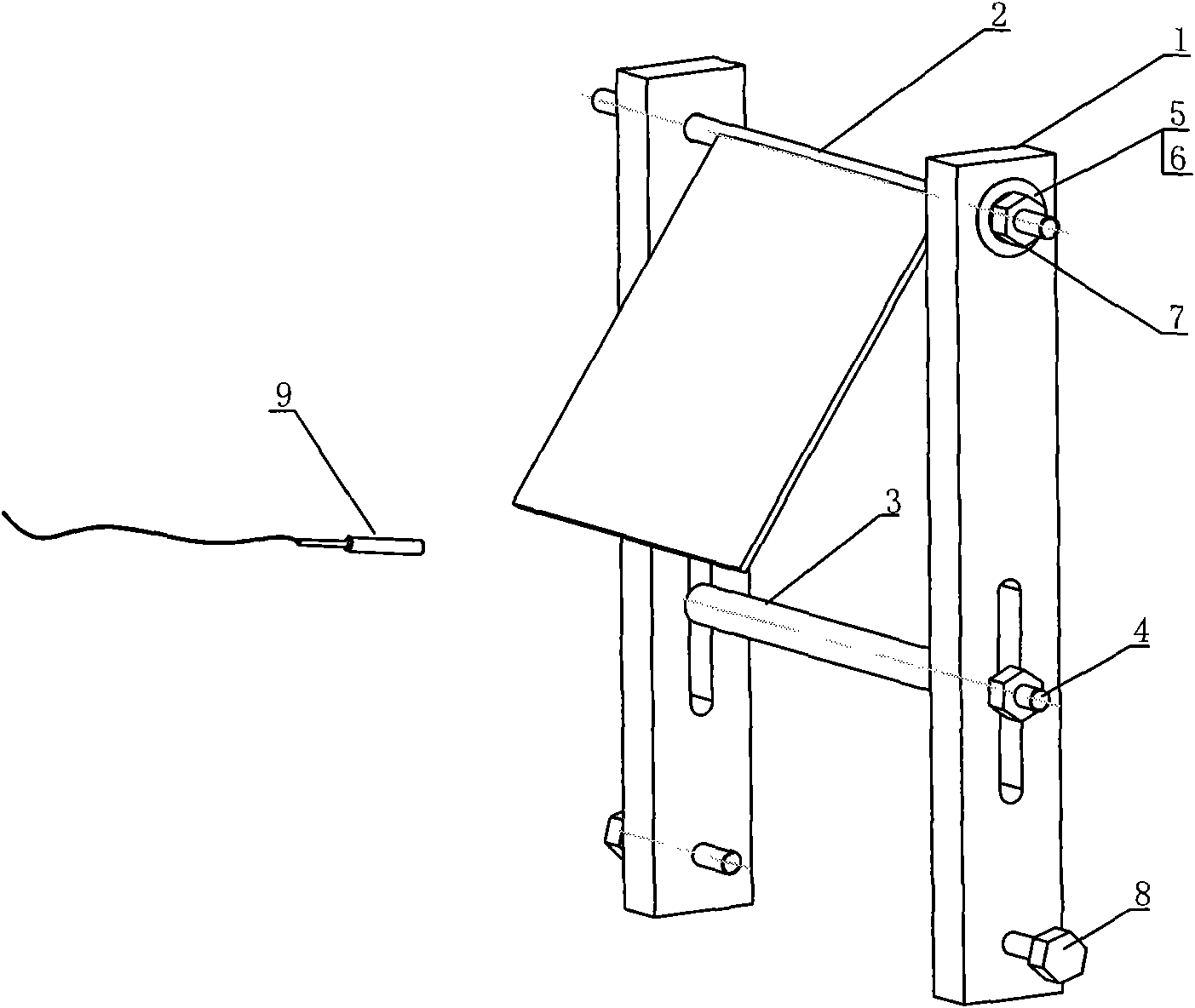

Fig. 1 is a kind of acrylic fiber knotting automatic parking device schematic diagram;

Fig. 2 is a front view of an acrylic fiber knotting automatic parking device;

Figure 3 is a left view of an acrylic fiber knotting automatic parking device;

Fig. 4 is a top view of an acrylic fiber knotting automatic parking device;

Detailed ways

Referring to Fig. 1 to Fig. 4 is the embodiment of a kind of acrylic fiber knotting automatic parking device of the present utility model, a kind of acrylic fiber knotting automatic parking device, comprises fixed frame 1, and described fixed frame 1 comprises two left and right symmetrical, The upper part has a stepped hole, which can be adapted to the bearing 5, and the middle part has a U-shaped groove, which allows the roller core 4 to slide up and down to adjust the height, and the lower part has a threaded hole, which is adapted to the fixed bolt 8, including The knotting striker 2, the knotting striker is welded by two plates and round steel, the two ends are adapted and connected with the left and right fixing frames respectively through the bearings 5 and the nuts 6, and It includes a roller core 4, the two ends of the roller core are respectively adapted to the U-shaped grooves in the fixed bracket, connected by nuts, and a roller 3 is also included, and the roller 3 is arranged on the roller core, It can roll freely, and also includes a fixing bolt 8, the fixing bolt 8 is adapted to the fixing frame, and one end can be clamped to an appropriate position of the equipment, and also includes a bearing 5, and the bearing 5 is respectively fixed with the Frame 1 hole and knotted striker 2 fit. the

When in use, fix the acrylic fiber knotting automatic parking device to the equipment through the fixing bolt 8, adjust the position so that the acrylic fiber passes between the knotting bumper 2 and the roller 3, and place the acrylic fiber belt on the roller 3, the suitable gap of the acrylic fiber tape can be reached by adjusting the roller core 4, then the photoelectric switch 9 is fixed, so that the infrared rays are irradiated on the middle and lower part of the knotting plate 2, when the knotted acrylic fiber tape passes, The acrylic fiber knot will hit the knotting bumper 2, and the knotting bumper 2 will rotate around the axis, and at this moment the infrared rays of the photoelectric switch will react. Notify the cut-off host to stop running, and notify the staff to deal with it. After the processing is completed, cut off the host and continue to run. the

The above is only a specific embodiment of the utility model, but the technical characteristics of the utility model are not limited thereto, and any changes or modifications made by those skilled in the art within the scope of the utility model are all covered by the utility model. In the scope of the new patent. the

Claims (5)

1. acrylic fiber knotting automatic stopping device, comprise symmetrical fixed mount (1), described fixed mount (1) middle part, can slide up and down with described roller core (4) is fixing, regulate height, screwed hole is arranged at the bottom, adaptive with described set bolt (8), top can be hit plate (1) with described knotting and is connected, comprising ties a knot hits plate (2), the two ends that plate (2) is hit in described knotting are adaptive with described nut (6) and be connected by described bearing (5) with left and right sides fixed mount (1) respectively, also comprise cylinder core (4), also comprise cylinder (3), described cylinder (3) is arranged on the described cylinder core, can freely roll, also comprise set bolt (8), described set bolt (8) is adaptive with described fixed mount (1), and an end can clip to the appropriate location of equipment, also comprise bearing (5), to hit plate (2) adaptive with described fixed mount (1) hole and knotting respectively for described bearing (5).

2. a kind of acrylic fiber knotting automatic stopping device as claimed in claim 1 is characterized in that: described fixed mount (1), and there is shoulder hole the upper end, and there is U type groove at the middle part, can make roller core (4) up-down adjustment, and there is screwed hole the lower end.

3. a kind of acrylic fiber knotting automatic stopping device as claimed in claim 1, it is characterized in that: plate (1) is hit in knotting, is that the round steel and the steel plate of multidiameter, screw thread is welded as a whole by two ends, can rotate freely.

4. a kind of acrylic fiber knotting automatic stopping device as claimed in claim 1, it is characterized in that: cylinder core (4) places cylinder (3), and cylinder (3) can rotate around cylinder core (4).

5. a kind of acrylic fiber knotting automatic stopping device as claimed in claim 1, it is characterized in that: set bolt (8) is adaptive by screw thread with fixed mount (1), is fixed on the equipment by rotation set bolt (8).
