Abstract

A bag includes a bag body, characterized in that: a rope is provided on the bag strap, one end of the rope is connected to the bag strap, and the other end is connected to the root of an artificial adsorption device-suction cup, and the rope is composed of two ropes, and the two ropes are respectively connected to a part of a movable connection device. When the bag needs to be hung on the wall, the artificial adsorption device-suction cup can be adsorbed to the tile, and when the bag needs to be used, the movable connection device is disengaged, the rope is divided into two, and the bag is separated from the artificial adsorption device-suction cup, so that the bag can be used alone.

Description

bag

technical field

The utility model relates to a bag.

Background technique

At present, the known handbag needs to nail nails on the wall to hang on the wall, and most of the walls are decorated with ceramic tiles now, which will inevitably be destroyed.

Contents of the invention

In order to overcome the disadvantages that the handbag needs to be nailed on the wall to be hung on the wall, and the existing walls are mostly decorated with ceramic tiles, which is bound to be damaged, the utility model provides a handbag.

The technical solution adopted by the utility model to solve the technical problem is: a bag, including the bag body, which is characterized in that: there is a rope on the strap of the bag, one end of the rope is connected to the strap of the bag, and the other end is connected to the root of the artificial adsorption device-suction cup, This rope is made up of two ropes, and two ropes respectively connect each part of articulation device. When you need to hang the bag on the wall, you only need to use the artificial adsorption device-suction cup to absorb the tiles, and when you need to use the bag, the movable connection device is separated, the rope is divided into two, and the bag and the artificial adsorption device- The suction cup comes apart so the bag can be used on its own.

The beneficial effect of the utility model is that the wall does not need to be damaged when the bag is hung on the wall.

Description of drawings

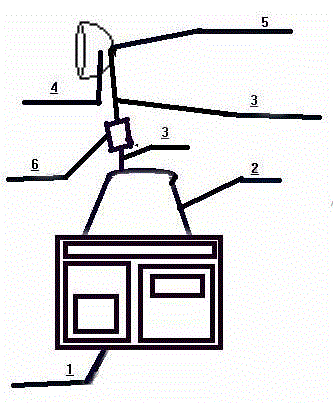

Fig. 1 is a schematic diagram of the structure of the bag in the first embodiment.

1 bag body, 2 bag straps, 3 rope, 4 artificial adsorption device-suction cup, 5 artificial adsorption device-the root of the suction cup, 6 movable connection device.

Detailed ways

In the embodiment shown in Fig. 1, a kind of bag, comprises bag body 1, is characterized in that: there is a rope 3 on the bag strap 2, one end of rope 3 is connected with bag strap 2, and the other end is connected with artificial adsorption device-suction cup 4 The root 5, this rope 3 is made up of two ropes 3, and the two ropes 3 are respectively connected to each part of the movable connection device 6. When it is necessary to hang the handbag on the wall, it is only necessary to absorb the tiles with the artificial adsorption device-suction cup 4; Adsorption device-the suction cup 6 is separated, and the bag can be used alone.

Claims (2)

1. a bag comprises bag body [1], it is characterized in that: a rope [3] is arranged on the bag braces [2], and rope [3] one ends connect bag braces [2], and the other end connects the root [5] of artificial adsorbent equipment-sucker [4].

2. a kind of bag according to claim 1 is characterized in that: this root rope [3] is made up of two ropes [3], and two ropes [3] connect each part of articulating device [6] respectively.
