Abstract

便携式高压电缆半导层剥皮装置，涉及制作高压电缆头的技术领域。本实用新型包括壳体、刀片、刀片调节装置、手柄，壳体的内部设置刀片，刀片的一端通过刀片调节装置与壳体连接，壳体的外部连接手柄。本实用新型只有手掌大小，便于携带，在电缆沟或高压柜等一些空间不足的环境下，也可以方便使用；利用游标卡尺微调原理进行调节刀片，能够快速地剥半导层，且不会破坏高压电缆的主绝缘。能够广泛适用各电压等级的高压电缆，省时省力，安全可靠，节约资源和成本。

Figure 201020249306

The utility model relates to a portable high-voltage cable semiconducting layer stripping device, which relates to the technical field of making high-voltage cable heads. The utility model comprises a shell, a blade, a blade adjusting device and a handle. The inside of the shell is provided with a blade, one end of the blade is connected with the shell through the blade adjusting device, and the outside of the shell is connected with a handle. The utility model is only the size of a palm and is easy to carry. It can also be used conveniently in some environments with insufficient space such as cable trenches or high-voltage cabinets. The blade is adjusted by using the principle of vernier caliper fine-tuning, which can quickly peel off the semiconducting layer without damaging the high voltage. The main insulation of the cable. It can be widely applied to high-voltage cables of various voltage levels, saves time and effort, is safe and reliable, and saves resources and costs.

Figure 201020249306

Description

Portable high-pressure cable semiconductive layer apparatus for peeling off
Technical field
The utility model relates to the technical field of making high-voltgae pothead.
Background technology
When making high-voltgae pothead, need peel some semiconductive layers off.But the semiconductive layer of the high-tension cable that different cable producers makes is also different, and the difficult especially stripping of many high-tension cable semiconductive layers is arranged, and particularly the semiconductive layer of the cable of 35kV and above electric pressure belongs to not peelable semiconductive layer.
At present, the staff makes high-voltgae pothead, and the use cutter that the has cable semiconductive layer that rows dry draws semiconductive layer to carry out peeling with pliers then.When running into not peelable semiconductive layer, just can not use said method, some people uses that blowtorch is roasting, some people uses glass to scrape.These two kinds all exist drawback.The use blowtorch is roasting, and roasting hot semiconductive layer uses the cutter cable semiconductive layer that rows dry then, draws semiconductive layer with pliers again, so just can peel semiconductive layer off.But when baking, can destroy the main insulation of cable with blowtorch; Use glass is scraped, and can wipe semiconductive layer off.But glass is broken easily, can hurt the staff, and main insulation can be drawn roughly, needs polishing for a long time.No matter use blowtorch or glass, all take time and effort very much.
Portable high-pressure cable semiconductive layer peeling specific purpose tool is that the wooden plane principle of utilizing the carpenter to use is made, but more accurate than wooden plane.Blade can utilize vernier caliper fine setting principle to regulate, and precision can reach 0.02mm.Before stripping high-tension cable semiconductive layer, at the good blade of cable waste adjusted, can dig skin fast then, and not destroy main insulation, the polishing time is also shorter.It has only people's hand size, and is easy to carry, under the environment of some insufficient spaces such as cable trough or high-voltage board, can conveniently use.When running into 110kV and above cable, because cable is thicker, dig skin-expenses power, handle can be installed, so very laborsaving, safety.
Summary of the invention
It is very low that the utility model purpose provides a kind of cost, can be applicable to various electric pressures, flexible, safe and reliable, time saving and energy saving high-tension cable semiconductive layer apparatus for peeling off simple to operate.
The utility model adopts following technical scheme for achieving the above object:
The utility model comprises housing, blade, cutting insert adjustment device, handle, and the inside of housing is provided with blade, and an end of blade is connected with housing by cutting insert adjustment device, and the outside of housing connects handle.
Be provided with on the housing that the utility model and blade adapt and be convenient to high-tension cable and partly lead the inside groove that skin passes through.The utility model utilizes vernier caliper fine setting principle on blade adjustment, can be as accurate as 0.02mm and regulate blade length.
Size of the present utility model has only hand size, carries or uses all very convenient.
The utility model adopts technique scheme, compared with prior art has following advantage:
1, the utility model uses simply, as long as utilize cutting insert adjustment device to regulate blade, just can dig the semiconductive layer that bark is shelled high-tension cable as wooden plane.
2, the utility model is safe and reliable, can not injure the staff, can not destroy the main insulation of high-tension cable.
3, the utlity model has simple and efficient to handlely, greatly shorten the manufacturing cable head time, time saving and energy saving, greatly reduce labour cost.
4, the utility model cost of manufacture is lower.
Description of drawings

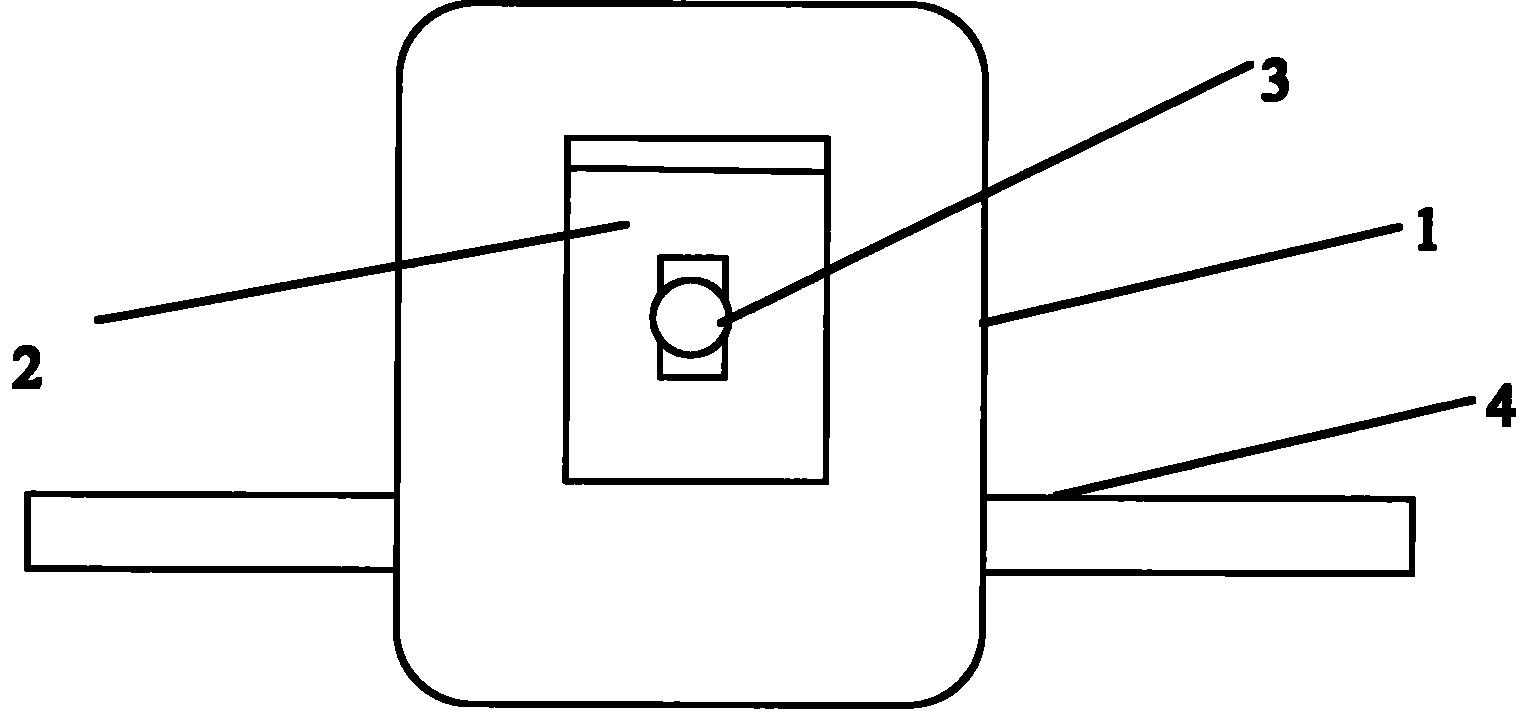

Fig. 1 is a kind of structural representation of the present utility model.
Fig. 2 is the structural representation of the utility model housing.
Fig. 3 is the structural representation of the utility model blade.
Embodiment
Below in conjunction with accompanying drawing the technical solution of the utility model is elaborated:
As shown in Figure 1 and Figure 2, the utility model comprises epoxy package 1, blade 2, cutting insert adjustment device 3, handle 4, blade inside groove 5, and blade 2 is set in the shell 1, on the inside groove 5 of blade 2 cutting insert adjustment device 3 is set, need as need, handle 4 can be installed on the epoxy package 1.
As shown in Figure 3, on the blade 2 of the present utility model cutting insert adjustment device 3 is set, can finely tunes blade.
Handle 4 of the present utility model is threaded with housing 1.
As shown in Figure 2, there are two screw sockets 6 shell of the present utility model 1 outside, and handle 4 can be installed.
The utility model has only the size of adult's hand size, is easy to carry.
The utility model saves time, laborsaving, precision is high, be convenient to operation, greatly shortens high-voltgae pothead Production Time.

Claims (3)

1. portable high-pressure cable semiconductive layer apparatus for peeling off, it is characterized in that comprising housing (1), blade (2), cutting insert adjustment device (3), handle (4), the inside of housing (1) is provided with blade (2), one end of blade (2) is connected with housing (1) by cutting insert adjustment device (3), and the outside of housing (1) connects handle (4).
2. portable high-pressure cable semiconductive layer apparatus for peeling off according to claim 1 is characterized in that housing (1) that above-mentioned and blade (2) adapt is gone up to be provided with and is convenient to high-tension cable and partly leads the inside groove (5) that skin passes through.
3. portable high-pressure cable semiconductive layer apparatus for peeling off according to claim 1 is characterized in that above-mentioned handle (4) is threaded with housing (1).
