Abstract

The utility model relates to a convenient maintenance electric rotary connector, comprising a slip ring shaft, an electric slip ring is fixedly arranged on the slip ring shaft, and an electric brush support frame is installed on the external rotation of the slip ring shaft. The above-mentioned brush support frame is provided with a brush that is in sliding contact with the electric slip ring, and the outer cover of the support frame is provided with a casing, and the casing includes at least two fixed to the electric slip ring. The electrical connector installation box on the brush support frame and the protective tile arranged between the adjacent electrical connector installation boxes, the electrical connector installation box is fixedly provided with an electrical connector; the utility model is installed through the electrical connector The combination of the box and the protection tile changes the traditional one-piece electric rotary connector shell into a split structure, which facilitates the maintenance of the electric rotary connector by the staff.

Description

A Convenient Maintenance Electric Rotary Connector

technical field

The utility model relates to the technical field of circuit connection, in particular to an electric rotary connector which is convenient for maintenance.

Background technique

The electrical rotary connector is an electrical connector that can transmit signals and power in a rotating state. During the rotation, the cables used to transmit signals and power will not be twisted and damaged. The main components of the electric rotary connector are electric slip rings and electric brushes. The electric slip rings are fixed on a slip ring shaft, and the electric brushes are fixed on a supporting frame that rotates with the slip ring shaft. In the above, the electric slip ring is slidingly matched with the electric brush, and the signal or power transmission is completed by using the relative rotating sliding contact between the electric slip ring and the electric brush. In order to prevent the slip ring shaft or electric The brush is exposed to the surrounding environment and is damaged. Generally, a sealed shell is provided on the outer cover of the rotary electric connector. At present, the shells of the existing rotary electric The internal circuits of the rotary connector are all connected by wires by welding. When an internal fault occurs and needs to be repaired, because the shell is an integral structure, it must be disassembled as a whole, which is very inconvenient.

Contents of the invention

The purpose of the utility model is to provide a hollow electric rotary connector to solve the problem of difficult disassembly and assembly of the existing electric rotary connector during maintenance.

In order to achieve the above purpose, the utility model adopts the following technical scheme: a convenient maintenance electric rotary connector, including a slip ring bushing, an electric slip ring is set on the slip ring bushing, and the slip ring shaft The two ends of the sleeve are rotatably equipped with supporting devices, the supporting devices are connected by bridge beams with axial square holes, the bridge beams are provided with brush brackets, and the brush brackets are arranged along the slide A brush set is arranged in the axial direction of the ring sleeve, and the brushes are in sliding contact with the electric slip ring. The outer cover of the support frame is provided with a housing, and the housing includes at least two An electrical connector installation box fixed on the bridging beam and a protective tile arranged between adjacent electrical connector installation boxes, an electrical connector is fixedly arranged on at least one vertical wall of the electrical connector installation box.

One of the electrical connector installation box and the protective tile is provided with a slot and the other is provided with a key, and the electrical connector installation box is snap-fitted with the protective tile.

An installation hole for installing an electrical connector is provided on the side plate of the electrical connector installation box, and the electrical connector is fixedly assembled in the installation hole.

The top of the electrical connector installation box is provided with a cover plate.

The protective tile is in the shape of a circular arc, and keys are provided on both side edges parallel to the axis of the slip ring sleeve, and corresponding slots are provided on the bottom of the electrical connector installation box. The above-mentioned electrical connector installation box is connected with the above-mentioned protection tile.

The protective tile is in the shape of a circular arc, and there are slots on both side edges parallel to the axis of the slip ring bushing. The bottom of the electrical connector installation box is provided with a corresponding key. The above-mentioned electrical connector installation box is connected with the above-mentioned protection tile.

Because the utility model changes the traditional integrated electric rotary connector shell into a split structure through the combination of the electric connector installation box and the protective tile, it is convenient for the staff to overhaul the electric rotary connector; further, the electrical connection The connector installation box is connected with the protection tile, and the protection tile can be easily disassembled only by loosening the electrical connector installation box. The electrical connector installation box is provided with an electrical connector installation hole, and the wire of the electrical rotary connector can be connected with the electrical connector plug or socket, which facilitates the wiring of the rotary connector at the point; in the electrical connector The top of the installation box is provided with a cover plate, so that the brushes, electric slip rings and other components can be completely covered inside the housing, which is conducive to its protection; A card key or a card slot is provided on the protective tile, and a corresponding card slot or card key is provided on the electrical connector installation box.

Description of drawings

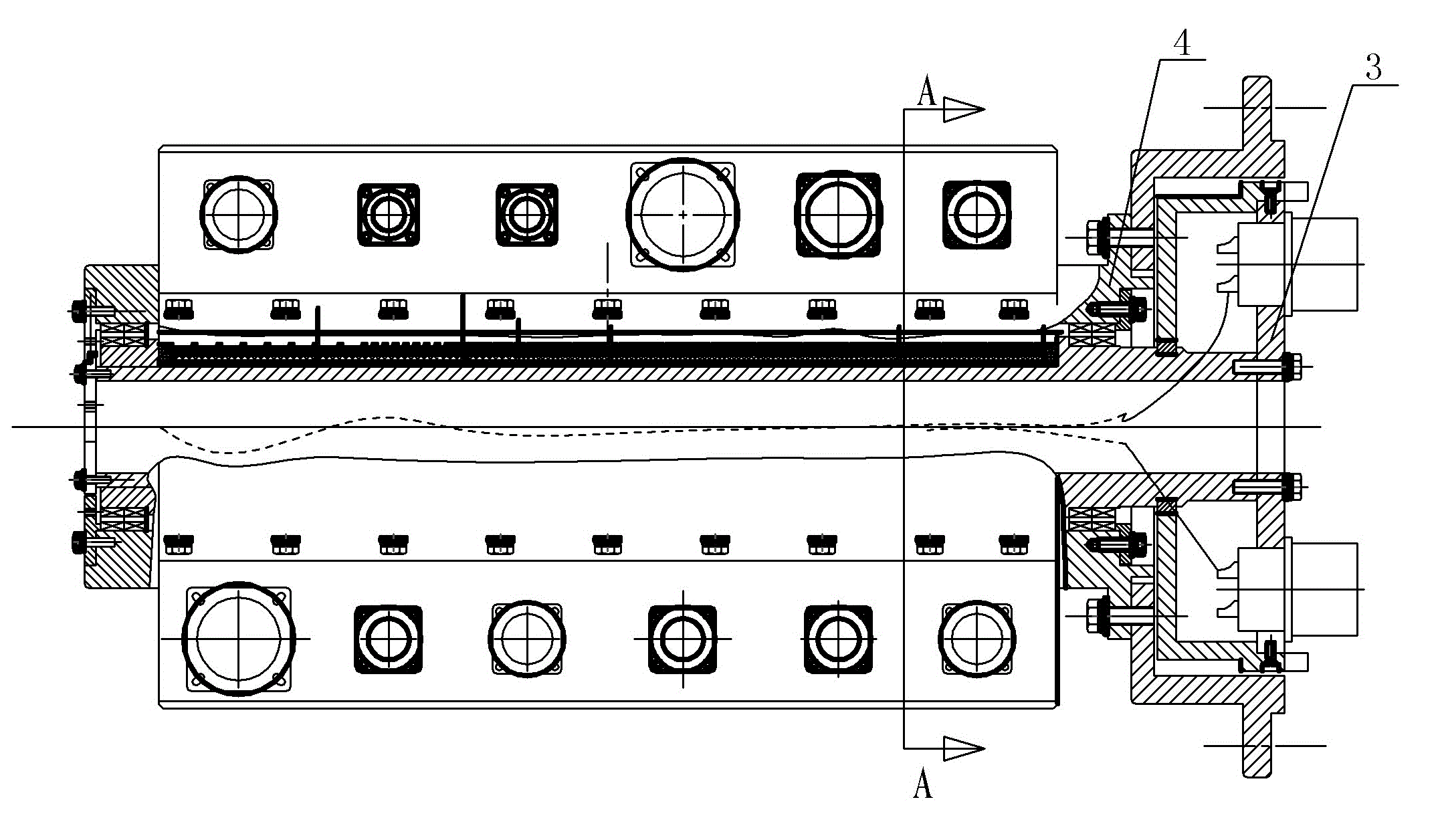

Fig. 1 is a schematic structural view of the electric rotary connector of the present invention;

Fig. 2 is a cross-sectional view along line A-A of Fig. 1 .

Detailed ways

As shown in Figure 1 and Figure 2, an embodiment of the electric rotary connector for easy maintenance of the utility model, a group of electric slip rings are fixedly arranged on the slip ring shaft 1, and each electric slip ring is connected with a The slip ring wire 2 connected to the equipment, one end of the slip ring shaft 1 is provided with an electrical connector mounting plate 3, the electrical connector mounting plate 3 is provided with an end electrical connector, the slip ring wire 2 and the corresponding end electrical connector The two ends of the slip ring shaft 1 are equipped with a support device 4 through the bearing rotation, and two bridge beams 5 are arranged between the two support devices. The bridge beam 5 is provided with a brush support frame, and the brush support frame is fixed. The brush group, the brush group is composed of brush monomers arranged along the axial direction of the bridge beam 5, each brush monomer is in sliding contact with the electric slip ring, and the end of the brush monomer far away from the electric slip ring is provided with a brush The side of the wire 6 and the bridging beam 5 away from the slip ring shaft 1 is provided with an electrical connector installation box 7, the electrical connector installation box 7 is rectangular, and the two sides of the electrical connector installation box 7 are parallel to the axis of the slip ring shaft 1 An electrical connector installation hole is provided on the upper surface, and a threaded hole for fixing the electrical connector is provided on the circumference of the electrical connector installation hole. A second electrical connector is installed in the electrical connector installation hole, and the brush wire 6 is connected to the corresponding first electrical connector. The two electrical connectors are electrically connected, and the bottom of the electrical connector installation box 7 (the side close to the bridge beam 5) is provided with a turning edge, and a threaded hole is arranged on the turning edge, and the electrical connector installation box 7 is used through the threaded hole. Screws are fixed on the bridging beam 5, and a card slot is also arranged on the turning edge. A protective tile 9 is arranged between the two bridging beams. The axial section of the protective tile 9 is arc-shaped, and the protective tile 9 is provided with a The card key corresponding to the card slot, the protective tile 9 is fixedly arranged between the two bridge beams through the electrical connector installation box 7; the top of the electrical connector installation box 7 is provided with a cover plate 10, and the cover plate 10 is connected with the electrical connector The installation box 7 and the protective tile 9 are combined to form the housing of the electric rotary connector of the present invention. The cover plate 10 is fixed on the electrical connector installation box 7 by screws. When the electric rotary connector is in operation, the cover plate 10 can be opened. to observe its inner workings.

In the above embodiment, three or more bridging beams can also be set between the two supporting devices, and then corresponding electrical connector installation boxes and cover plates can be set on the bridging beams, and corresponding protective tiles can be set between the bridging beams. ; It is also possible to set a card key on the turning edge of the electrical connector installation box, and then set a corresponding card slot on the protective tile, so that the card connection of the two can also be realized.

Claims (6)

1. An electric rotary connector for easy maintenance, comprising a slip ring bushing, the slip ring bushing is covered with an electric slip ring, and the two ends of the slip ring bushing are rotatably equipped with supporting devices, so The support device is connected by a bridging beam with an axial square hole, a brush bracket is arranged on the bridging beam, and a brush group is arranged on the brush bracket along the axial direction of the slip ring bushing. , the brush is in sliding contact with the electric slip ring, and the outer cover of the support frame is provided with a housing, which is characterized in that the housing includes at least two bridging beams fixed on the The electrical connector installation box on the top and the protective tile arranged between adjacent electrical connector installation boxes, at least one vertical wall of the electrical connector installation box is fixedly provided with an electrical connector. 2. The electric rotary connector convenient for maintenance according to claim 1, characterized in that: one of the electrical connector installation box and the protective tile is provided with a card slot and the other is provided with a card key, and the The electrical connector installation box is snap fit with the protective tile. 3. The electric rotary connector convenient for maintenance according to claim 1, characterized in that: the electrical connector installation box and the side plate are provided with installation holes for installing electrical connectors, and the electrical connection The device is fixedly assembled in the said mounting hole. 4. The convenient maintenance-friendly electrical rotary connector according to claim 1, wherein a cover plate is arranged on the top of the electrical connector installation box. 5. The convenient maintenance-friendly electric rotary connector according to claim 2, characterized in that: the protective tile is in the shape of an arc, and two sides parallel to the axis of the slip ring bushing are provided with The card key, the bottom of the electrical connector installation box is provided with a corresponding card slot, and the electrical connector installation box is connected with the protective tile. 6. The convenient maintenance-friendly electric rotary connector according to claim 2, characterized in that: the protective tile is in the shape of a circular arc, and the two side edges parallel to the axis of the slip ring bushing are provided with The card slot, the bottom of the electrical connector installation box is provided with a corresponding card key, and the electrical connector installation box is connected with the protective tile.
