CN201759462U - Novel tissue box - Google Patents

Abstract

The utility model discloses a novel tissue box, comprising a box body and an upper cover covering the box body, wherein a paper taking port is provided in the middle of the upper cover; at least one elastic rib is provided along the horizontal plane inside the box body, and the two ends of the elastic rib are fixed on the side walls of the box body; one, two, three or four of the four side surfaces of the box body are provided with an observation port; the observation port is an open structure, or transparent materials such as transparent film, transparent plastic, glass, etc. are installed at the observation port; and an inclined surface is provided at each end of the inner side surface of the upper cover, and the inclined surface is a structure with a high outer side and a low inner side. The utility model adopts elastic ribs in the box body instead of springs, provides an observation port on the side, and makes the bottom surface of the upper cover into an inclined surface, so that the utility model has a simpler structure and lower cost, and the amount of tissue in the box can be conveniently observed at any time, and it is also easier to extract tissue without tearing the tissue.

Description

A new tissue box

technical field

The utility model relates to the technical field of daily necessities, in particular to a paper towel box specially used for storing extractable paper towels.

Background technique

At present, the patented paper towel box of the removable paper towel that is common on the market is generally composed of a box body and an upper cover covering the box body. Paper towels are extracted from the paper mouth. The disadvantage of this kind of tissue box is: when the paper towels are used less and less, their thickness will become thinner, and the remaining paper towels are getting closer to the bottom of the box, which makes it very inconvenient to extract the last part of the paper towels. In order to solve this problem, the applicant disclosed a tissue box in the Chinese patent CN201524022U. The tissue box is equipped with two compression springs at the bottom of the box. The tissue is placed on the spring, and the elastic force of the spring is used to make the tissue rise without falling. To the bottom of the box, it solves the problem that the last part of the paper towel is hard to get. But this kind of tissue box still has some disadvantages, such as the high cost of the spring, the mass is also relatively large, and the structure is more complicated; the amount of tissue in the tissue box needs to be opened to see the top cover, which is very inconvenient; Sometimes it is not very convenient to extract the tissue, and it may even tear.

Utility model content

The technical problem to be solved by the utility model is to provide a new type of paper towel box with simple structure, low cost, convenient observation of the amount of paper towels, and convenient extraction.

In order to solve the above-mentioned technical problems, the utility model adopts the following technical scheme: a new type of tissue box, including a box body and an upper cover covering the box body, and a paper-taking port is opened in the middle of the upper cover, and the feature is that: the box body At least one elastic tendon is arranged along the horizontal plane, and the two ends of the elastic tendon are fixed on the side wall of the box body. One elastic tendon can be used, but usually two elastic tendons are used, and more than one can be used. If two elastic tendons are used, they can be two crossed or two parallel. The paper towel is lifted up by the elastic force of the elastic rib, so that the paper towel is always close to the upper cover, which is convenient for extraction. Elastic band can adopt elastic material such as rubber band.

Further, one, or two, or three, or four of the four sides of the box body are provided with an observation port, that is to say, an observation port can be made on any one of the sides, or on any two sides. It can be done on one side, or on any three sides, or as observation ports on all four sides.

Further, the viewing port is an opening structure, or a transparent material, such as a transparent film, transparent plastic, glass, etc., is installed at the viewing port.

Further, both ends of the inner surface of the upper cover are respectively provided with a slope, the slope is high on the outside and low on the inside. After the top cover is covered, under the action of the slope, the paper towel is pressed into a bulge in the middle, so that it can be pulled out more easily. Tissues in the box.

The utility model adopts elastic ribs instead of springs in the box body, sets an observation port on the side, and makes the bottom surface of the upper cover into a slope, so that the structure of the utility model is simpler, the cost is lower, and the inside of the box can be observed conveniently at any time. The amount of paper towels is reduced, and it is also easier to extract the paper towels without tearing the paper towels.

Description of drawings

Fig. 1 is the overall structure diagram of the utility model;

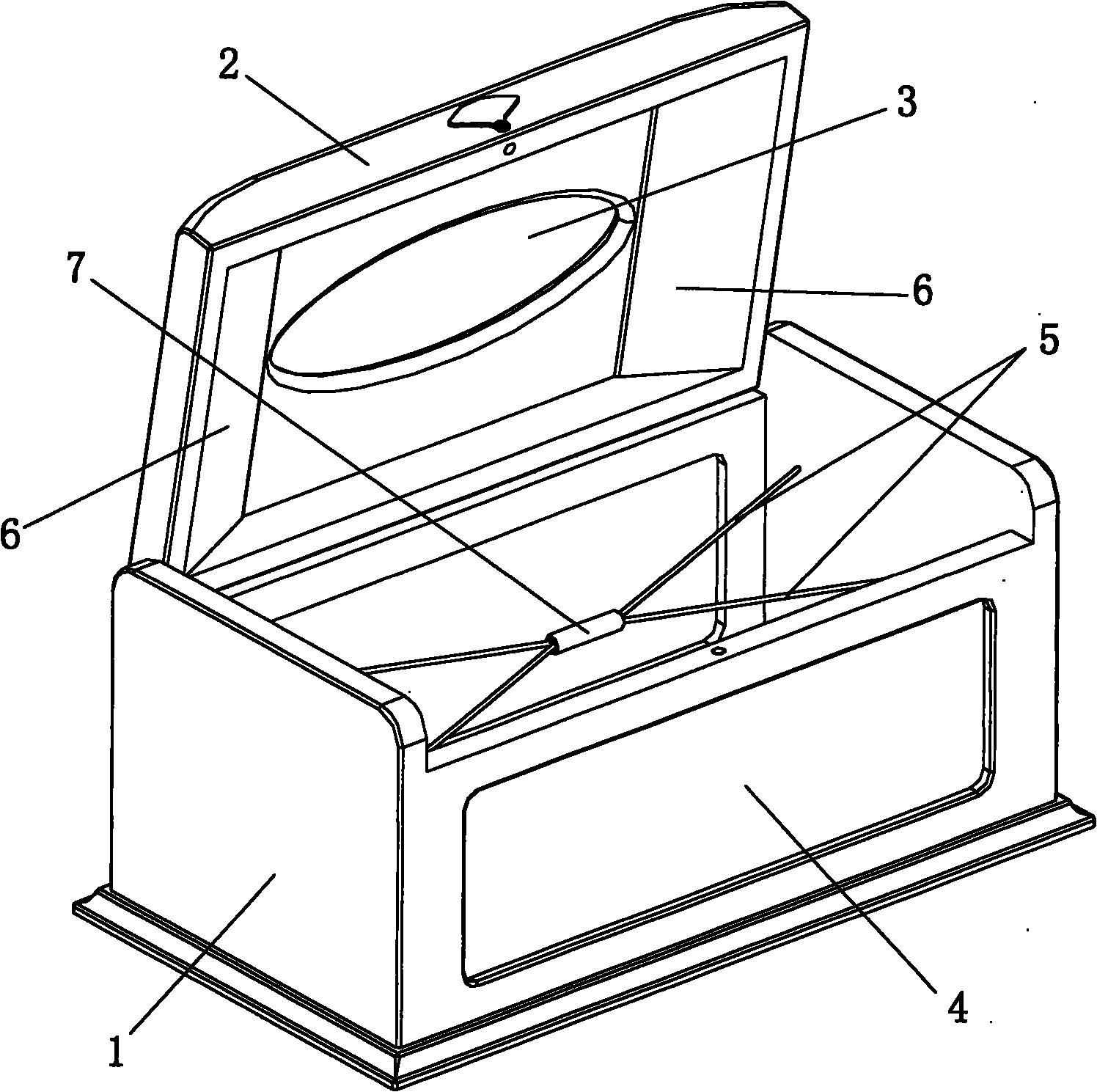

Fig. 2 is a diagram of the internal structure of the utility model.

In the figure, 1 is a box body, 2 is an upper cover, 3 is a paper-taking port, 4 is an observation port, 5 is an elastic tendon, 6 is an inclined plane, and 7 is a sleeve.

Detailed ways

In this embodiment, referring to Fig. 1 and Fig. 2, the novel tissue box includes a box body 1 and an upper cover 2 covered on the box body 1, and a paper-taking port 3 is provided in the middle of the upper cover 2; The horizontal plane is provided with two elastic tendons 5, and the two ends of the elastic tendons 5 are fixed on the side wall of the box body 1, and the two elastic tendons 5 intersect each other, and the two elastic tendons 5 are fixed together with the sleeve 7 at the intersection. Of course, one or more elastic ribs 5 can also be used, and the elastic ribs 5 can use elastic materials such as rubber bands.

Two faces, front and back, of the box body 1 are provided with an observation port 4 . The observation port 4 is an opening structure, and of course transparent materials, such as transparent film, transparent plastic, glass, etc., can also be installed at the observation port 4.

Both ends of the inner surface of the upper cover 2 are respectively provided with an inclined plane 6, the inclined plane 6 is a structure with a high outer side and a lower inner side. Easy to pull out the tissue inside the box.

The utility model has been described in detail above, and the above is only a preferred embodiment of the utility model, and should not limit the scope of the application, that is, all equivalent changes and modifications made according to the scope of the application should still be It belongs to the scope covered by the utility model.

Claims (4)

1. A new type of tissue box, comprising a box body and a loam cake covered on the box body, a paper opening is provided in the middle of the loam cake, and it is characterized in that: the box body is provided with at least one elastic tendon along the horizontal plane, the elastic rib The two ends are fixed on the side wall of the box body. 2. The new tissue box according to claim 1, characterized in that: one, or two, or three, or four of the four sides of the box body are provided with viewing ports. 3. The new tissue box according to claim 2, characterized in that: the viewing port is an open structure, or a transparent material is installed at the viewing port. 4. The new tissue box according to claim 1, characterized in that: both ends of the inner surface of the upper cover are respectively provided with a slope, and the slope is a structure that is high on the outside and low on the inside.
