Abstract

The utility model relates to a multifunctional shoe brush with convenient use and good cleaning effect, which is used for brushing shoes, including a brush head and a brush handle, the brush head and the brush handle are integrated, the lower surface of the brush head is fixedly connected with long bristles, the brush head and the The handle is at an obtuse angle, grooves are designed at the junction of the brush head and the brush handle, short bristles are fixedly connected to the upper surface of the end of the brush head and the side of the brush head respectively, and a hanging opening is provided at the rear end of the brush handle.

Description

multifunctional shoe brush

技术领域technical field

本实用新型涉及一种生活用品，尤其涉及一种多功能鞋刷。The utility model relates to a daily necessities, in particular to a multifunctional shoe brush.

背景技术Background technique

目前使用的鞋刷只是刷头的一个表面上带有刷毛，平时使用这种鞋刷在刷鞋子的内侧面时不方便，有些地方无法刷到，例如鞋子后跟处和头部，清理效果不好，The shoe brush currently used only has bristles on one surface of the brush head. It is inconvenient to use this kind of shoe brush to brush the inner side of the shoes. Some places cannot be brushed, such as the heel and head of the shoe, and the cleaning effect is not good. ,

发明内容Contents of the invention

本实用新型的目的是提供一种使用方便、清理效果好的多功能鞋刷。The purpose of the utility model is to provide a multifunctional shoe brush which is easy to use and has good cleaning effect.

为实现上述目的，本实用新型采用的技术方案为：一种多功能鞋刷，包括刷头和刷柄，刷头和刷柄为一整体，刷头的下表面固定连接有长刷毛，其特征在于：所述的刷头和刷柄成钝角，刷头和刷柄连接处设计有凹槽。In order to achieve the above purpose, the technical solution adopted by the utility model is: a multi-functional shoe brush, including a brush head and a brush handle, the brush head and the brush handle are integrated, and the lower surface of the brush head is fixedly connected with long bristles. It is that: the brush head and the brush handle form an obtuse angle, and a groove is designed at the joint between the brush head and the brush handle.

此结构中，刷头端部的上表面和刷头的侧面分别固定连接有短刷毛。In this structure, the upper surface of the end of the brush head and the side of the brush head are respectively fixedly connected with short bristles.

此结构中，刷柄的后端部开有挂口。In this structure, the rear end of the brush handle is provided with a hanging opening.

本实用新型的有益效果：由于本实用新型的这种结构，所以使用本实用新型刷鞋时，能够对鞋子进行彻底清洁，使用方便，使用效果好。Beneficial effects of the utility model: due to the structure of the utility model, when using the utility model to brush shoes, the shoes can be thoroughly cleaned, and the use is convenient and effective.

附图说明Description of drawings

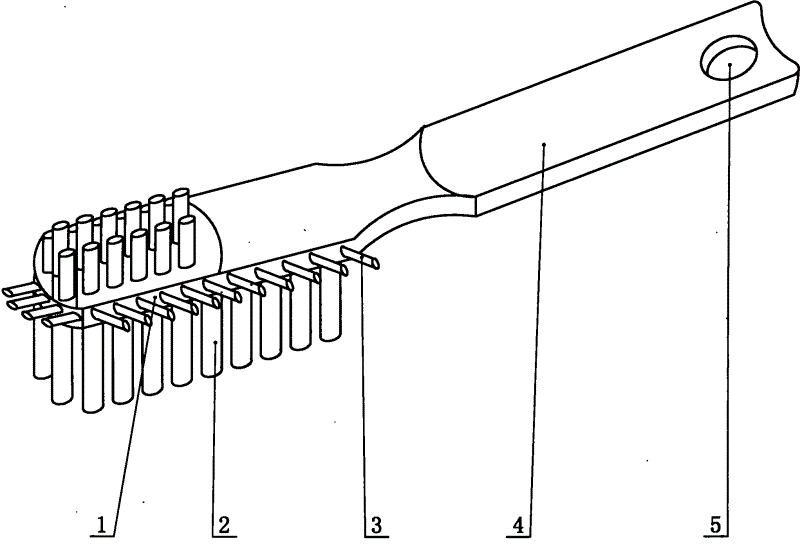

图1为本实用新型的结构示意图。Fig. 1 is the structural representation of the utility model.

附图中：1、刷头；2、长刷毛；3、短刷毛；4、刷柄；5、挂口In the drawings: 1. Brush head; 2. Long bristles; 3. Short bristles; 4. Brush handle; 5. Hanging mouth

具体实施方式Detailed ways

下面结合附图和具体实施例对本实用新型作进一步说明：Below in conjunction with accompanying drawing and specific embodiment the utility model is further described:

本实用新型如图1所示，一种多功能鞋刷，包括刷头1和刷柄4，刷头1和刷柄4为一整体，刷头1的下表面固定连接有长刷毛2，刷头1和刷柄4成钝角，刷头1的前端部为弧形，刷头1和刷柄4连接处设计有凹槽，持握方便，使用时，方便用力。The utility model is shown in Fig. 1, a kind of multifunctional shoe brush, comprises brush head 1 and brush handle 4, and brush head 1 and brush handle 4 are integrated, and the lower surface of brush head 1 is fixedly connected with long bristles 2, brush The head 1 and the brush handle 4 form an obtuse angle, the front end of the brush head 1 is arc-shaped, and the connection between the brush head 1 and the brush handle 4 is designed with a groove, which is convenient to hold and use force.

在本实施例中，刷头1端部的上表面和刷头1的侧面分别固定连接有短刷毛3。能够方便刷到鞋子内部的前头和后跟，还有鞋子的内侧面，清洗彻底。在本实施例中，刷柄4的后端部开有挂口5；使用时，可以将挂口5处固定跟绳子，携带方便。In this embodiment, short bristles 3 are fixedly connected to the upper surface of the end of the brush head 1 and the side surfaces of the brush head 1 . It can be easily brushed to the front and heel of the inside of the shoe, as well as the inner side of the shoe, for thorough cleaning. In this embodiment, the rear end of the brush handle 4 is provided with a hanger 5; when in use, the hanger 5 can be fixed with a rope, which is convenient to carry.

Claims

1. A multifunctional shoe brush, comprising a brush head (1) and a brush handle (4), the brush head (1) and the brush handle (4) are integrated, and the lower surface of the brush head (1) is fixedly connected with long bristles (2), characterized in that: the brush head (1) and the brush handle (4) form an obtuse angle, and a groove is designed at the connection between the brush head (1) and the brush handle (4).

2. The multifunctional shoe brush according to claim 1, characterized in that short bristles (3) are fixedly connected to the upper surface of the end of the brush head (1) and the side surfaces of the brush head (1).

3. The multifunctional shoe brush according to claim 2, characterized in that: the rear end of the brush handle (4) is provided with a hanging opening (5).
