Abstract

The utility model belongs to the technical field of measuring tools, in particular to a quasi-square bar inclined plane measuring tool. A right angle breach is arranged on the measuring tool. The two right angle sides of the right angle breach are flat, and are respectively provided with graduations which take a right angle point as a zero point. The utility model has the beneficial effects as follows: the measuring tool is simple to operate, is convenient to measure, and can get the inclination degree of the inclined plane directly.

Description

Measurer is measured on accurate square rod inclined-plane
Technical field
The utility model belongs to the measurer technical field, and measurer is measured on particularly a kind of accurate square rod inclined-plane.
Background technology
The situation that accurate square rod end face is the inclined-plane makes accurate square rod cutting exist certain quality hidden danger, as causing faults such as wire jumper, broken string because of the inclined-plane in the slicing processes, so need detect by pin aligning square rod end face before section.The inclined-plane is bigger carries out grinding, is controlled within the specification.The metering system of existing accurate square rod end face gradient is that try square adds clearance gauge, has following problem in the measuring process: need two measurers to use simultaneously, and need bimanualness, and comparatively complicated; Can not directly draw measurement result, need repeated measurement repeatedly, comparatively time-consuming.
The utility model content
Technical problem to be solved in the utility model is: design a kind of accurate square rod inclined-plane and measure measurer, can make things convenient for the inclined degree of the end face of measuring accurate square rod exactly.
The technical scheme that its technical matters that solves the utility model adopts is: measurer is measured on a kind of accurate square rod inclined-plane, on measurer, has individual right angle breach, two right-angle sides of right angle breach are smooth, and are respectively equipped with scale on two right-angle sides, and scale is zero point with the right angle electrical.
The beneficial effects of the utility model are: this measurer is simple to operate, and it is convenient to measure, and can directly draw the degree of inclination.
Description of drawings
Below in conjunction with the drawings and specific embodiments the utility model is described in further detail;

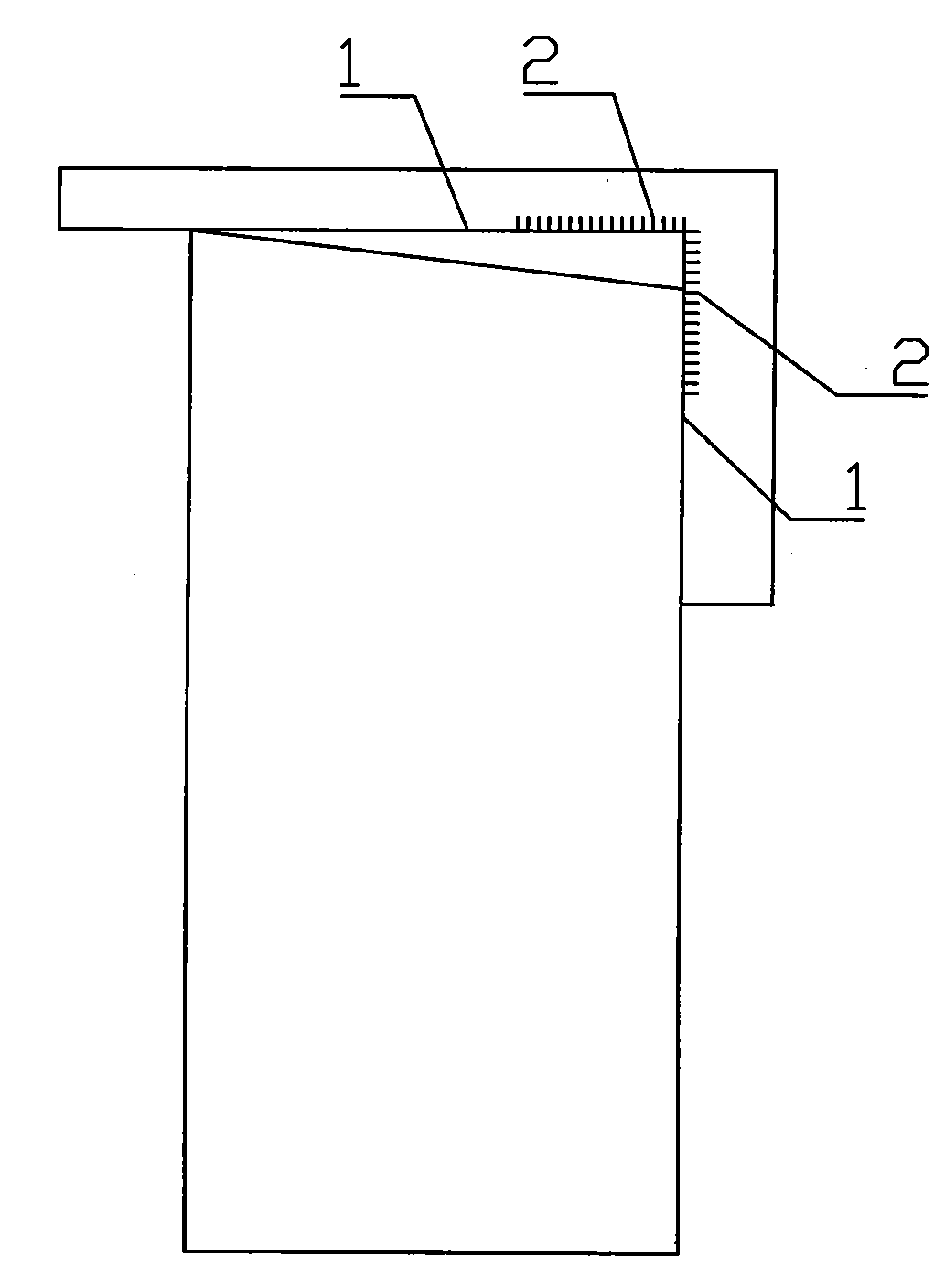

Fig. 1 is a structural representation of the present utility model;
Wherein: 1. right-angle side, 2. scale.
Embodiment
As shown in Figure 1, measurer is measured on a kind of accurate square rod inclined-plane, has individual right angle breach on measurer, and two right-angle sides 1 of right angle breach are smooth, and are respectively equipped with scale 2 on two right-angle sides 1, and scale 2 is zero point with the right angle electrical.Detect step: 1. with smooth being placed on the worktable of accurate square rod, with the end face of measurer near accurate square rod; 2. measurer one end must contact accurate square rod side completely; 3. can directly draw the length on inclined-plane from measurer.

Claims (1)

1. measurer is measured on an accurate square rod inclined-plane, and it is characterized in that: have individual right angle breach on described measurer, two right-angle sides (1) of right angle breach are smooth, and are respectively equipped with scale (2) on two right-angle sides, and scale is zero point with the right angle electrical.
