Abstract
A ceiling hanging lamp structure mainly comprises a light-emitting module, a motor box and a hanging device, and is suitable for being assembled on various ceilings; the light emitting module has one reflecting hood, one transparent plate fixed to the bottom of the reflecting hood, one lamp tube penetrating downwards from the top center of the reflecting hood, one spring to fix the part of the lamp tube with the upper end exposed out of the reflecting hood, and one raised cylinder structure around the spring for combining with the motor box to constitute one closed light emitting module to replace conventional circular T8 fluorescent lamp tube.
Description
Technical field
The utility model is hung fitting structure about a kind of suction top.
Background technology
Lamp affixed to the ceiling is to be installed on the ceiling to provide illumination to use.Known lamp affixed to the ceiling light fixture, in open lamp panel, assemble one or more round lamp tube structure mostly, T8 fluorescent lamp for example, such structure, make the round lamp tube structure half light be arranged for shining toward the lamp panel top, cause a lot of light can't effective lighting in desiring the field of illumination, produce the not enough problem of illuminance, remain to be improved.
Summary of the invention
Be directed to the disappearance of known lamp affixed to the ceiling light fixture, the utility model provides a kind of suction top to hang fitting structure, and this structure can effectively overcome the not enough shortcoming of existing structure illuminance.
For achieving the above object, the utility model discloses a kind of suction top and hang fitting structure, it is characterized in that comprising:
One illuminating module, has a reflection shield, its bottom fixed combination one printing opacity sheet material, and a fluorescent tube is penetrated downwards from this reflection shield top center, and this fluorescent tube upper end is exposed the part of this reflection shield and is fixed with a spring, thereby and around this spring, be provided with one and protrude the structure that cylindrical structure constitutes a sealing;
One motor box, has a cylinder, its internal fixation one obtains civil power and provides stable power to send bright power supply unit to the fluorescent tube of this illuminating module, and with an intermediate plate this power supply unit is oppressed on a flat board, and should be combined in this cylinder with screw by flat board; This cylinder bottom surface is formed with the abnormity perforation of the protrusion cylindrical structure positioning combination of a pair of and this illuminating module; And
One erecting by overhang fixedly is assembled in the below of a ceiling, has a ㄇ type frame, and with the cylinder of affixed this motor box of a pair of long screw.
Wherein, the reflection shield top of this illuminating module is protruded in the cylindrical structure tube stand is set, this fluorescent tube of assembling and this spring on this tube stand, and two inverted L shape supports are set in this protrusion cylindrical structure inside edge, at least have two perforation on this protrusion cylindrical structure, and with respect to this perforation place one nut is set respectively in this protrusion cylindrical structure inside edge.
Wherein, several double-screw bolts are established in the cylinder bottom surface of this motor box, and at least one circular perforations; And ends of these two abnormity perforation are for than large perforation and connect the little perforation of an arc, the tail edge of the little perforation of this arc be one with the sunk area unidimensional than large perforation; This cylinder edge has at least two perforation; This cylinder edge has at least two perforation.
Wherein, the printing opacity sheet material of this illuminating module is a dull and stereotyped printing opacity sheet material, and at least one surface is that the frosted atomizing is handled.
Wherein, the printing opacity sheet material of this illuminating module is a dull and stereotyped printing opacity sheet material, and at least one surface is the protruding or concavees lens structures of a plurality of interconnective polygons.
Wherein, the printing opacity sheet material of this illuminating module is an indent arc light-passing board material, and at least one surface is that the frosted atomizing is handled.
Wherein, the printing opacity sheet material of this illuminating module is an outer convex light-passing board material, and at least one surface is that the frosted atomizing is handled.
Wherein, the printing opacity sheet material of this illuminating module is a polymorphic structure printing opacity sheet material, and at least one surface is that the frosted atomizing is handled.
Wherein, the reflection shield inner reflection face of this illuminating module is a special-shaped light distribution curve structure of being made up of a plurality of different focus parabola line segments.
Wherein, the reflection shield inner reflection face of this illuminating module is a special-shaped light distribution curve structure of being made up of a plurality of different angles straightways.
Wherein, the reflection shield inner reflection face of this illuminating module is a special-shaped light distribution curve structure of being made up of a plurality of arc curve line segments.
Wherein, the fluorescent tube of this illuminating module is a LED, and this protrusion cylindrical structure top is provided with a radiating fin.
Wherein, the cylinder edge inboard of this motor box is provided with the ㄇ type support that a center has a perforation.
Wherein, the cylinder interior of this motor box is provided with at least one iron chains, and this iron chains is connected with this erecting by overhang.
Wherein, the cylinder interior of this motor box is provided with at least one iron chains, and this iron chains is connected with the protrusion cylindrical structure of this illuminating module.
Wherein, the reflection shield top of this illuminating module is protruded the cylindrical structure inboard ㄇ type support that a center has a perforation is set, and this ㄇ type support connects this iron chains.
Pass through said structure, fitting structure is hung on a kind of suction provided by the utility model top, thereby can replacing, the illuminating module of not only forming a sealing commonly uses circular T8 fluorescent lamp, and in illuminating module, add this reflection shield design by high-luminous-efficiency convergence spot light fluorescent tube, not only the most light of fluorescent tube can be reflexed to the field of illumination, dazzling spot light light can be transferred to soft area source light again, effectively solve glare problem and the normal optimal illumination efficient of protecting.
Below, will structure of the present utility model and principle be described in detail according to the various embodiment shown in the drawing.
Description of drawings
Fig. 1 inhales the exploded view that fitting structure is hung on the top for the utility model,
Fig. 2 inhales the constitutional diagram that fitting structure is hung on the top for the utility model, also is first kind of mounting means second step diagram,
Fig. 3 inhales the combination section that fitting structure is hung on the top for the utility model,
Fig. 4 inhales first kind of illuminating module diagram that fitting structure is hung on the top for the utility model,
Fig. 5 inhales second kind of illuminating module diagram that fitting structure is hung on the top for the utility model,
Fig. 6 inhales the third illuminating module diagram that fitting structure is hung on the top for the utility model,
Fig. 7 inhales the 4th kind of illuminating module diagram that fitting structure is hung on the top for the utility model,
Fig. 8 inhales the 5th kind of illuminating module diagram that fitting structure is hung on the top for the utility model,
Fig. 9 inhales the 6th kind of illuminating module diagram that fitting structure is hung on the top for the utility model,
Figure 10 inhales first kind of structural diagrams of cylindrical shape motor box that fitting structure is hung on the top for the utility model,
Figure 11 inhales second kind of structural diagrams of cylindrical shape motor box that fitting structure is hung on the top for the utility model,
Figure 12 inhales illuminating module and the motor box assembling diagram that fitting structure is hung on the top for the utility model,
Figure 13 inhales the cylindrical shape motor box inner member assembling diagram of hanging fitting structure in the top for the utility model,
Figure 14 inhales first kind of printing opacity sheet material assembly drawing hanging the fitting structure illuminating module in the top for the utility model and shows,
Figure 15 inhales second kind of printing opacity sheet material assembly drawing hanging the fitting structure illuminating module in the top for the utility model and shows,
Figure 16 inhales the third printing opacity sheet material assembly drawing of hanging the fitting structure illuminating module in the top for the utility model and shows,
Figure 17 inhales the 4th kind of printing opacity sheet material assembly drawing hanging the fitting structure illuminating module in the top for the utility model and shows,
Figure 18 inhales first kind of mounting means first step diagram that fitting structure is hung on the top for the utility model,
Figure 19 inhales second kind of mounting means first step diagram that fitting structure is hung on the top for the utility model,
Figure 20 inhales second kind of mounting means second step diagram that fitting structure is hung on the top for the utility model,
Figure 21 inhales the third mounting means diagram that fitting structure is hung on the top for the utility model,
Figure 22 inhales the 4th kind of mounting means diagram that fitting structure is hung on the top for the utility model,

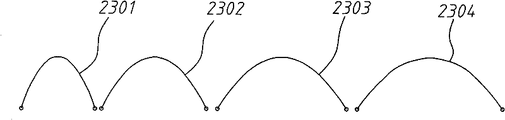

Figure 23 inhales the reflection shield reflecting surface theory of constitution schematic diagram that fitting structure is hung on the top for explanation the utility model,
Figure 24 inhales the reflection shield reflecting surface of hanging fitting structure in the top for the utility model and forms structural representation for first kind,
Figure 25 inhales the reflection shield reflecting surface of hanging fitting structure in the top for the utility model and forms structural representation for second kind.
The specific embodiment
Please refer to Fig. 1 and hang fitting structure, mainly constituted with an illuminating module 1, a motor box 2 and an erecting by overhang 3 to suction provided by the utility model shown in Figure 3 top.
Please refer to Figure 24 and be first kind of reflection shield structure of the utility model, wherein fluorescent tube 13 is located in reflection shield 11 tops, and reflection shield 11 internal layer reflectings surface are formed a special-shaped light distribution curve by a plurality of different focal parabola line segments, wherein a line segment 2402 is certain line segment of focal length 30mm parabolic curve, one line segment 2403 is certain line segment of focal length 60mm parabolic curve, one line segment 2404 is certain line segment of focal length 90mm parabolic curve, and a line segment 2405 is certain line segment of focal length 120mm parabolic curve.Certainly, parabolic curve 2402～2405 line segments on the reflection shield 11 also can replace with the arc curve line segment, to reach decision illumination zone size and to make light be uniformly distributed in the function of field of illumination.
Please refer to Figure 25 and be second kind of reflection shield structure of the present utility model, reflection shield 11 internal layer reflectings surface are formed a special-shaped light distribution curve by a plurality of different lengths (or equal length) and different angles straightway 2502～2508, when fluorescent tube 13 is arranged at these reflection shield 11 certain fixed focal length points, by the special-shaped light distribution curve that a plurality of different lengths and angle straightway 2502～2508 are formed, also can determine the illumination zone size and make light be uniformly distributed in the field of illumination.
The utility model is designed to the special-shaped light distribution curve structure with reflection shield 11 internal layer reflectings surface, Figure 24 or shown in Figure 25 for example, not only most light can be reflexed to the field of illumination, dazzling spot light light can be transferred to soft area source light again, effectively solve glare problem and the normal optimal illumination efficient of protecting.
3 belows that fixedly are assembled in ceiling 4 of erecting by overhang have a ㄇ type frame 31, and with the cylinder 21 of long screw 32 affixed motor box 2.
Fitting structure is hung on a kind of suction provided by the utility model top, illuminating module 1 with sealing, commonly use circular T8 fluorescent lamp with replacement, and add this reflection shield 11 designs by the fluorescent tube 13 of high-luminous-efficiency convergence spot light, not only fluorescent tube 13 most light can be reflexed to the field of illumination, dazzling spot light light can be transferred to soft area source light again, effectively solve glare problem and the normal optimal illumination efficient of protecting.
Below, will describe the various embodiment of each element of the utility model in detail.
Referring to Fig. 4, for the utility model is inhaled first kind of illuminating module, 1 diagram that fitting structure is hung on the top, the cylindrical structure 15 of protrusion is arranged at reflection shield 11 tops, protrude cylindrical structure 15 inboards two L type supports 151 are set at least, each is fixed with a screw and nut 152, at least two nuts 153 are for fixedly installing, as combining purposes with printing opacity sheet material 12 in addition.Reflection shield 11 top center are provided with fluorescent tube 13, and it is partly fixing with a spring 14 that reflection shield 11 is exposed in fluorescent tube 13 upper ends, and reflection shield 11 bottoms are provided with printing opacity sheet material 12 (not showing at Fig. 4).
Please refer to Fig. 5, for the utility model is inhaled second kind of illuminating module, 1 diagram that fitting structure is hung on the top, it is identical with Fig. 4, but in the 1 protrusion cylindrical structure 15 of reflection shield 11 tops, a tube stand 16 is set, tube stand 16 is fixed on the reflection shield 11 with two-screw nut 17, fluorescent tube 13 is directly bored a hole to the cooperation of passing through tube stand 16 and reflection shield 11 from tube stand 16 tops, and spring 14 also is fixed on the tube stand 16.
Please refer to Fig. 6, for the utility model is inhaled the third illuminating module 1 diagram that fitting structure is hung on the top, it is identical with Fig. 4, but be replaced by a ㄇ shape support 18 each fixes the default screw and nut 181 of ㄇ shape support 18 central authorities, one perforation with a screw and nut 19 at the two L type supports that are provided with at least that protrude cylindrical structure 15 inboards.
Please refer to Fig. 7, be that the utility model inhales the 4th kind of illuminating module 1 diagram that fitting structure is hung on the top, it is provided with a tube stand 16 with structure shown in Figure 5 is similar in protrusion cylindrical structure 15, and tube stand 16 is provided with fluorescent tube 13 and spring 14; But the two L type supports that are provided with at least that protrude cylindrical structure 15 inboards that do not coexist be replaced by a ㄇ shape support 18 each fixes the default screw and nut 181 of ㄇ shape support 18 central authorities, one perforation with a screw and nut 19.
The person of advancing, please refer to Fig. 8, for the utility model is inhaled the 5th kind of illuminating module 1 diagram that fitting structure is hung on the top, to remove fluorescent tube and spring element in Fig. 4 or Fig. 6 structure, change in reflection shield 11 inner tip at least one LED lamp 131 is set, and LED lamp 131 is fixed on the reflection shield 11 with two-screw nut 132 at least.
Please refer to Fig. 9, for the utility model is inhaled the 6th kind of illuminating module 1 diagram that fitting structure is hung on the top, it is identical with illuminating module 1 shown in Figure 8, but above protruding cylindrical structure 15 at reflection shield 11 tops a radiating fin 155 is set, and is fixed on the reflection shield 11 with two-screw nut 156 at least.
Please refer to Figure 10, for the utility model is inhaled 2 first kinds of structural diagrams of motor box that fitting structure is hung on the top, cylinder 21 edges of motor box 2 near top end have at least two perforation 211 as be assembled in ceiling 4 on erecting by overhang 3 combine, and the power supply source line passes through; Cylinder 21 bottom center have a perforation 212 and pass through usefulness for fluorescent tube 13 power lines, it is in conjunction with L type support 151 usefulness on the reflection shield 11 shown in Figure 4 that cylinder 21 bottom surfaces also have two abnormity perforation 26, and each depression 262 of special-shaped perforation 26 edges act as to prevent to slide after L type support 151 from making up and comes off; In addition, cylinder 21 bottom surfaces are provided with several double-screw bolts 213 as the retaining element purposes.
Please refer to Figure 11, inhale 2 second kinds of structural diagrams of motor box that fitting structure is hung on the top,, but a ㄇ type support 214 is set in cylinder 21 inside edges further with structure shown in Figure 10 for the utility model, fixing with two-screw nut 215; Other, one perforation of ㄇ type support 214 central authorities is provided with a hook 216 and is fixed on the ㄇ type support 214 with a nut.
Please refer to Figure 12, for the utility model is inhaled the illuminating module 1 and motor box 2 assembling diagrams that fitting structure is hung on the top, the reflection shield 11 tops two L type supports 151 of illuminating module 1 two up installing from two abnormity perforation 26 of motor box 2 cylinders 21 bottom surfaces respectively as shown in Figure 4 than large perforation 261, the top of protruding cylindrical structures 15 when reflection shield 11 with rotate in a counter-clockwise direction illuminating module 1 after motor box 2 cylinders 21 bottom surfaces contacts, be positioned abnormity 262 places of caving in, 26 edges two of boring a hole up to two L type supports, 151 tops.
Please refer to Figure 13, inhale the motor box 2 inner members assembling diagram of hanging fitting structure in the top for the utility model, cylinder 21 inside are provided with a flat board 24, with several screws 25 flat board 24 are fixed on the double-screw bolt 213; In addition, a power supply unit 22 is set with above an intermediate plate 23 compacting power supply units 22 on the flat board 24, and utilizes two-screw 231 to be fixed on the double-screw bolt 213.One group of power line 221 of power supply unit 22 passes motor box 2 cylinders 21 bottom surfaces perforation 212 and combines with the fluorescent tube 13 of illuminating module 1; Another group power line 222 of power supply unit 22 combines with external mains supply.
Please refer to Figure 14, inhale first kind of printing opacity sheet material, the 121 assembling diagrams that the illuminating module 1 of fitting structure is hung on the top, one smooth printing opacity sheet material 121 is set, be fixed on the reflection shield 11 inboard double-screw bolts with several screws 120 in reflection shield 11 bottoms for the utility model.
Please refer to Figure 15, inhale second kind of printing opacity sheet material, the 122 assembling diagrams of hanging fitting structure illuminating module 1 in the top, one indent arc light-passing board material 122 is set, be fixed on the reflection shield 11 inboard double-screw bolts with several screws 120 in reflection shield 11 bottoms for the utility model.
Please refer to Figure 16 and inhale the third printing opacity sheet material 123 assembling diagrams that fitting structure illuminating module 1 is hung on the top, convex light-passing board material 123 outside is set, be fixed on the reflection shield 11 inboard double-screw bolts with several screws 120 in reflection shield 11 bottoms for the utility model.
Please refer to Figure 17, inhale the 4th kind of printing opacity sheet material 124 assembling diagrams of hanging fitting structure illuminating module 1 in the top for the utility model, one special-shaped printing opacity sheet material 124 is up installed from reflection shield 11 bottoms, is fixed in reflection shield 11 tops with at least two screws 1201 and protrudes cylindrical structure 15 inboard two nuts 153.
Please refer to Figure 18, inhale first kind of mounting means first step diagram that fitting structure is hung on the top for the utility model, wherein ceiling 4 fixedly installs a screw 41, and the ㄇ type frame 31 of erecting by overhang 3 is fixed on the screw 41 with a nut 311; Inboard, ㄇ type frame 31 two ends respectively fixedly installs a nut 312.
Please refer to shown in Figure 2, for the utility model is inhaled first kind of mounting means second step diagram that fitting structure is hung on the top, the ceiling lighting that illuminating module 1 and motor box 2 assemblings are finished is installed on the ㄇ type frame 31 that is fixed in ceiling 4 shown in Figure 180, and be fixed in the nut 311 of ㄇ type frame 31 with two long screws 32, form a ceiling lighting that is installed on the ceiling 4.
Please refer to Figure 19, for the utility model is inhaled second kind of mounting means first step diagram that fitting structure is hung on the top, a ㄇ type frame 31 be arranged at ceiling 4 and with screw 41 fixing after, one end of one iron chains 33 is fixed on the ceiling 4 jointly with a nut 331, the other end of iron chains 33 is fixed in a screw 332 on the double-screw bolt 213 of motor box 2, and the cylinder 21 with motor box 2 is fixed in the inboard nut 311 in ㄇ type frame 31 two ends with two long screws 32 again.
Please refer to Figure 20, inhale second kind of mounting means second step diagram that fitting structure is hung on the top for the utility model, another iron chains 27 is arranged in the cylinder 21 of motor box 2, the one end is fixed on cylinder 21 interior another double-screw bolts 213 with a screw 271; Iron chains 27 other ends pass the protrusion cylindrical structure 15 that motor box 2 cylinders 21 bottom surfaces perforation 212 extends to reflection shield 11 tops of illuminating module 1, and with a screw and nut 272 iron chains 27 and a L type support 151 are fixed on the reflection shield 11 jointly, at last illuminating module 1 is arranged on the motor box 2.
Please refer to Figure 21, inhale the third mounting means diagram that fitting structure is hung on the top for the utility model, motor box 2 mounting means illustrate with Figure 19, no longer repeat in this; Two L type supports of former settings in the protrusion cylindrical structure 15 at reflection shield 11 tops of illuminating module 1 are replaced by a ㄇ type support 18 (as shown in Figure 7), and are fixed in two-screw nut 19 and protrude cylindrical structure 15.An end of another iron chains 28 is fixed on the ㄇ type support 18 with a screw and nut 281 in the motor box 2, forms a ceiling and hangs light fixture.
Please refer to Figure 22, for the utility model is inhaled the 4th kind of mounting means diagram that fitting structure is hung on the top, one illuminating module 1 is assembled in motor box 2 bottoms, motor box 2 tops are organized separately and are adorned a ㄇ type support 29, its central authorities are provided with a hook 291, be fixed in ㄇ type support 29 with a nut 292, form one and hang light fixture.
Claims (16)
1. fitting structure is hung on a suction top, it is characterized in that comprising:
One illuminating module, has a reflection shield, its bottom fixed combination one printing opacity sheet material, and a fluorescent tube is penetrated downwards from this reflection shield top center, and this fluorescent tube upper end is exposed the part of this reflection shield and is fixed with a spring, thereby and around this spring, be provided with one and protrude the structure that cylindrical structure constitutes a sealing;
One motor box, has a cylinder, its internal fixation one obtains civil power and provides stable power to send bright power supply unit to the fluorescent tube of this illuminating module, and with an intermediate plate this power supply unit is oppressed on a flat board, and should be combined in this cylinder with screw by flat board; This cylinder bottom surface is formed with the abnormity perforation of the protrusion cylindrical structure positioning combination of a pair of and this illuminating module; And
One erecting by overhang fixedly is assembled in the below of a ceiling, has a ㄇ type frame, and with the cylinder of affixed this motor box of a pair of long screw.
2. hang fitting structure according to the described suction of claim 1 top, it is characterized in that, the reflection shield top of this illuminating module is protruded in the cylindrical structure tube stand is set, this fluorescent tube of assembling and this spring on this tube stand, and two inverted L shape supports are set in this protrusion cylindrical structure inside edge, at least have two perforation on this protrusion cylindrical structure, and with respect to this perforation place one nut is set respectively in this protrusion cylindrical structure inside edge.
3. hang fitting structure according to the described suction of claim 1 top, it is characterized in that several double-screw bolts are established in the cylinder bottom surface of this motor box, and at least one circular perforations; And ends of these two abnormity perforation are for than large perforation and connect the little perforation of an arc, the tail edge of the little perforation of this arc be one with the sunk area unidimensional than large perforation; This cylinder edge has at least two perforation.
4. hang fitting structure according to the described suction of claim 1 top, it is characterized in that the printing opacity sheet material of this illuminating module is a dull and stereotyped printing opacity sheet material, and at least one surface is that the frosted atomizing is handled.
5. hang fitting structure according to the described suction of claim 1 top, it is characterized in that the printing opacity sheet material of this illuminating module is a dull and stereotyped printing opacity sheet material, and at least one surface is the protruding or concavees lens structures of a plurality of interconnective polygons.
6. hang fitting structure according to the described suction of claim 1 top, it is characterized in that the printing opacity sheet material of this illuminating module is an indent arc light-passing board material, and at least one surface is that the frosted atomizing is handled.
7. hang fitting structure according to the described suction of claim 1 top, it is characterized in that the printing opacity sheet material of this illuminating module is an outer convex light-passing board material, and at least one surface is that the frosted atomizing is handled.
8. hang fitting structure according to the described suction of claim 1 top, it is characterized in that the printing opacity sheet material of this illuminating module is a polymorphic structure printing opacity sheet material, and at least one surface is that the frosted atomizing is handled.
9. hang fitting structure according to the described suction of claim 2 top, it is characterized in that the reflection shield inner reflection face of this illuminating module is a special-shaped light distribution curve structure of being made up of a plurality of different focus parabola line segments.
10. hang fitting structure according to the described suction of claim 2 top, it is characterized in that the reflection shield inner reflection face of this illuminating module is a special-shaped light distribution curve structure of being made up of a plurality of different angles straightways.
11. hang fitting structure according to the described suction of claim 2 top, it is characterized in that the reflection shield inner reflection face of this illuminating module is a special-shaped light distribution curve structure of being made up of a plurality of arc curve line segments.
12. hang fitting structure, it is characterized in that the fluorescent tube of this illuminating module is a LED, and this protrusion cylindrical structure top is provided with a radiating fin according to the described suction of claim 1 top.
13. hang fitting structure according to the described suction of claim 1 top, it is characterized in that the cylinder edge inboard of this motor box is provided with the ㄇ type support that a center has a perforation.
14. hang fitting structure according to the described suction of claim 1 top, it is characterized in that the cylinder interior of this motor box is provided with at least one iron chains, this iron chains is connected with this erecting by overhang.
15. hang fitting structure according to the described suction of claim 1 top, it is characterized in that the cylinder interior of this motor box is provided with at least one iron chains, this iron chains is connected with the protrusion cylindrical structure of this illuminating module.
16. hang fitting structure according to the described suction of claim 2 top, it is characterized in that the reflection shield top of this illuminating module is protruded the cylindrical structure inboard ㄇ type support that a center has a perforation is set, this ㄇ type support connects this iron chains.
