CN201729484U - Coil strip conveying system - Google Patents
Coil strip conveying system Download PDFInfo
- Publication number
- CN201729484U CN201729484U CN2010202653851U CN201020265385U CN201729484U CN 201729484 U CN201729484 U CN 201729484U CN 2010202653851 U CN2010202653851 U CN 2010202653851U CN 201020265385 U CN201020265385 U CN 201020265385U CN 201729484 U CN201729484 U CN 201729484U
- Authority
- CN
- China
- Prior art keywords
- track
- dolly
- bont
- transport systems
- pin
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 101100272852 Clostridium botulinum (strain Langeland / NCTC 10281 / Type F) F gene Proteins 0.000 claims description 27
- 238000006073 displacement reaction Methods 0.000 claims description 8
- 239000012530 fluid Substances 0.000 claims description 5
- 229910000831 Steel Inorganic materials 0.000 claims description 4
- 230000003014 reinforcing effect Effects 0.000 claims description 4
- 239000010959 steel Substances 0.000 claims description 4
- 239000000203 mixture Substances 0.000 claims 2
- 238000012423 maintenance Methods 0.000 abstract description 3
- 238000004519 manufacturing process Methods 0.000 abstract description 2
- 230000032258 transport Effects 0.000 description 12
- 238000005303 weighing Methods 0.000 description 4
- 238000007689 inspection Methods 0.000 description 3
- 238000007599 discharging Methods 0.000 description 2
- 239000000463 material Substances 0.000 description 2
- 230000009286 beneficial effect Effects 0.000 description 1
- 238000010924 continuous production Methods 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 239000012467 final product Substances 0.000 description 1
Images
Landscapes
- Winding, Rewinding, Material Storage Devices (AREA)
Abstract
一种成卷带材运输系统，包括运输设备，其特征在于：还包括轨道，所述运输设备为小车，所述小车通过车轮置于所述轨道上并可以沿所述轨道移动。本实用新型以小车为运输设备，在不同标高处设置小车行走轨道，不仅简化了结构，减少了设备投资，而且降低了运行成本，减少了设备维护量，极大的方便了生产。
A coiled strip transportation system, including transportation equipment, is characterized in that it also includes rails, and the transportation equipment is a trolley, and the trolley is placed on the rails through wheels and can move along the rails. The utility model uses trolleys as transportation equipment, and sets trolley walking tracks at different elevations, which not only simplifies the structure, reduces equipment investment, but also reduces operating costs and equipment maintenance, which greatly facilitates production.
Description
Technical field
The utility model relates to a kind of transport systems, relates in particular to a kind of coil strip transport systems.
Background technology
At present, the transport systems of coil strip has two kinds, and a kind of is to be main straight line transportation device with stepping beam type transport plane and chain conveyor, is equipped with the transportation that equipment such as lifting, rotation, weighing are embodied as coiled strip again; Another kind is formed transport systems by pallet, roller-way, Traverse Displacement Unit, bont, turning gear etc., moving belt carries the heavily loaded roller-way of pallet and transports the underloading roller-way that returns return of empty pallets and can be arranged on the same horizontal surface in this system, also can be arranged vertically on differing heights, the upper strata is heavily loaded roller-way, and lower floor is the underloading roller-way.More than two kinds of transportation modes all have problems such as system architecture complexity, plant maintenance work capacity are big, cost height.
The utility model content
The purpose of this utility model is exactly that a kind of coil strip transport systems simple in structure will be provided.
The purpose of this utility model is achieved in that a kind of coil strip transport systems, comprises transportation device, it is characterized in that: also comprise track, described transportation device is a dolly, and described dolly places on the described track by wheel and can move along described track.
Transportation for convenience, above-mentioned dolly comprises and is arranged on the saddle that is placed to coiled strip above the wheel and is arranged on tooth bar or pin rack below the described saddle, above-mentioned track is provided with and described tooth bar or pin rack gears in mesh or pin gear, described gear or pin gear are to be provided with at interval, it should guarantee at least that at interval tooth bar or pin rack on the dolly can mesh with a gear or pin gear, and described gear or pin gear are by motor or fluid motor-driven.
In order to realize online weighing, on the above-mentioned track circuit weighting apparatus is set, described weighting apparatus be arranged on described track below, be provided with the segment track that links to each other with track above it, described segment track be provided with dolly on tooth bar or pin rack gears in mesh or pin gear.When needs are weighed to coil strip, allow the dolly that is assembled into coiled strip enter the control position of weighting apparatus, after weighing, dolly drives to leave and gets final product.
In order to satisfy the needs that change the band transporting direction, on the above-mentioned track circuit steering hardware is set, described steering hardware be arranged on described track below, be provided with the segment track that is connected with track above it, described segment track be provided with dolly on tooth bar or pin rack gears in mesh or pin gear.In the time of need turning to, described steering hardware turns to the position that is connected with the track of supplied materials direction under motor or hydraulic-driven, and dolly enters the control position of described steering hardware, and described then steering hardware turns to the position that is connected with the track of discharging direction.
In order to make coil strip be transported to different absolute altitude places, above-mentioned track is arranged on the different absolute altitudes, track on the different level connects by bont, described bont is provided with the segment track, described segment track be provided with dolly on tooth bar or pin rack gears in mesh or pin gear.When the absolute altitude of transport systems changed, dolly was introduced on the segment track of bont, and under motor or hydraulic-driven, bont raises or reduces, and described segment track aligns with the track of upper class or next stage absolute altitude, and dolly drives and enters this track.
In order not influence continuous production and to guarantee the unimpeded of transportation route, above-mentioned track comprises conveying track and return trajectory, described conveying track and return trajectory can upper and lower settings and are connected by bont, described bont is provided with the segment track, described segment track be provided with dolly on tooth bar or pin rack gears in mesh or pin gear.
Above-mentioned conveying track and return trajectory also can be arranged on the same horizontal surface, the end of above-mentioned track circuit is provided with Traverse Displacement Unit, dolly after the unloading can be delivered on the return trajectory from conveying track by described Traverse Displacement Unit, when needs carry out quality inspection to coil strip, can also shift out track with the dolly that Traverse Displacement Unit will be assembled into coiled strip, treat that quality inspection sends track back to after intact again.
For the track that is arranged on the different level, when above-mentioned conveying track and the same horizontal surface of return trajectory were provided with, above-mentioned bont comprised that band carries a bont and a unloaded bont.
For firm reliable, above-mentioned track is installed in steel frame or reinforcing bar mixes on the earth basis.
The utility model has following beneficial effect: this use is novel to be transportation device with the dolly, at the different level place carriage walking track is set, and not only simplifies the structure, reduced equipment investment, reduce operating cost, and reduced the plant maintenance amount, greatly facilitated production.
The accompanying drawing summary
The utility model is described in further detail below in conjunction with the drawings and specific embodiments.

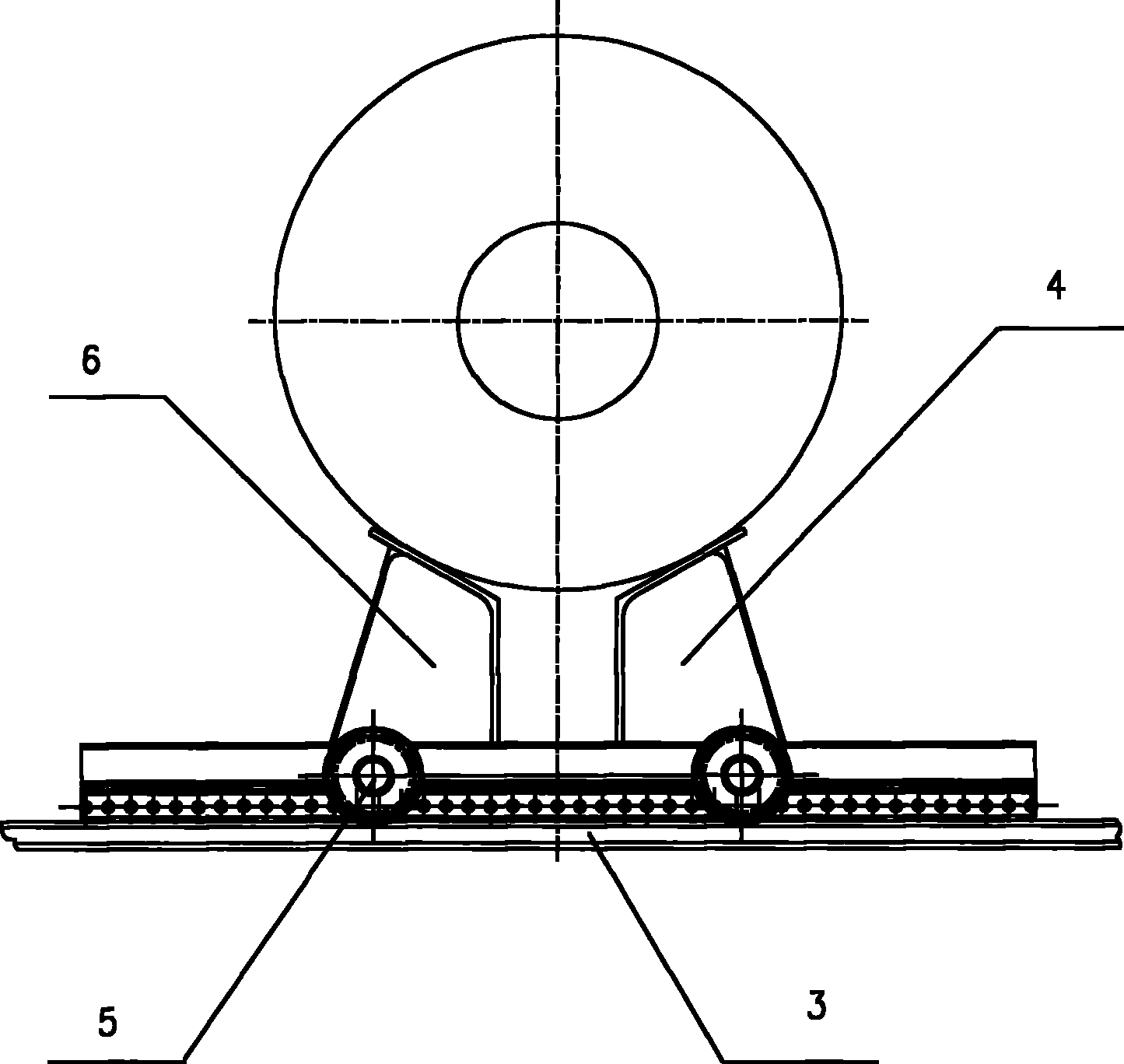

Accompanying drawing 1 is the utility model example structure scheme drawing
Accompanying drawing 2 is Fig. 1 lateral plan
Accompanying drawing 3 is the utility model embodiment orbital arrangement scheme drawing
The specific embodiment
When the absolute altitude of transport systems changed, dolly 4 was introduced on the segment track 3-1 of bont 1, and under the driving of motor, bont 1 raises or reduces, and aligns with the track 3 of upper class or next stage absolute altitude, and dolly 4 drives and leaves segment track 3-1.
When needs were weighed to coil strip, the dolly 4 that is assembled into coiled strip entered the control position of weighting apparatus 2, and after weighing, dolly 4 drives and leaves.
Claims (10)
1. a coil strip transport systems comprises transportation device, it is characterized in that: also comprise track (3), described transportation device is dolly (4), and described dolly (4) places described track (3) to go up and can move along described track (3) by wheel (5).
2. transport systems as claimed in claim 1, it is characterized in that: described dolly (4) comprises and is arranged on the saddle (6) that is placed to coiled strip on the wheel (5) and is arranged on tooth bar or pin rack (7) below the described saddle (6), described track (3) is provided with and described tooth bar or pin rack (7) gears in mesh or pin gear (8), described gear or pin gear (8) are provided with at interval, at least guarantee tooth bar or pin rack (7) and a gear or pin gear (8) engagement on the dolly, described gear or pin gear (8) are by motor or fluid motor-driven.
3. transport systems as claimed in claim 2, it is characterized in that: described track (3) circuit is provided with weighting apparatus (2) or/and steering hardware (12), described weighting apparatus (2) and steering hardware (12) all be arranged on described track (3) below, be provided with the segment track (3-1) that links to each other with track (3) above it, described segment track (3-1) be provided with dolly (4) on tooth bar or pin rack (7) gears in mesh or pin gear (8), described steering hardware (12) can rotate under motor or fluid motor-driven with another section track (3) and be connected.
4. as each described transport systems of claim 1～3, it is characterized in that: described track (3) is arranged on the different absolute altitudes, track on the different level (3) connects by bont (1), described bont (1) is provided with segment track (3-1), and described segment track (3-1) is provided with dolly (4) and goes up tooth bar or pin rack (7) gears in mesh or the pin gear (8) that is provided with.
5. as each described transport systems of claim 1～3, it is characterized in that: described track (3) comprises conveying track (9) and return trajectory (10), described conveying track (9) is connected with return trajectory (10) upper and lower settings and by bont (1), described bont (1) is provided with segment track (3-1), and described segment track (3-1) is provided with dolly (4) and goes up tooth bar or pin rack (7) gears in mesh or the pin gear (8) that is provided with.
6. as each described transport systems of claim 1～3, it is characterized in that: described track (3) comprises conveying track (9) and return trajectory (10), described conveying track (9) and the same horizontal surface setting of return trajectory (10), described track (3) end is provided with Traverse Displacement Unit (11).
7. transport systems as claimed in claim 4 is characterized in that: described track (3) comprises conveying track (9) and return trajectory (10), and described conveying track (9) also is connected by described bont (1) with return trajectory (10) upper and lower settings.
8. transport systems as claimed in claim 4, it is characterized in that: described track (3) comprises conveying track (9) and return trajectory (10), described conveying track (9) and the same horizontal surface setting of return trajectory (10), described bont (1) comprise that band carries bont (1-1) and unloaded bont (1-2).
9. as each described transport systems of claim 1～3: as described in track (3) be installed in steel frame or reinforcing bar and mix on the earth basis.
10. as each described transport systems of claim 4: as described in track (3) be installed in steel frame or reinforcing bar and mix on the earth basis.
