Abstract
The utility model discloses an improved invention of a paper cutter, which comprises a rack, a paper advance mechanism and a paper cutting mechanism, and is characterized in that the paper cutter comprises a paper cutting roller, an upper hobbing cutter, a lower fixed cutter, a lower fixed holder and a motor, wherein the upper hobbing cutter is arranged on the paper cutting roller, the paper cutting roller is in driving connection with the motor, the lower fixed cutter is arranged on the lower cutter holder, the lower cutter holder is arranged on the rack, and the upper hobbing cutter and the lower fixed cutter are matched to work under the working condition. In the utility model, the paper cutting roller drives the upper hobbing cutter to move, when the paper cutting roller rotates one circle, the hobbing cutter can complete one-time paper cutting, since the paper cutting roller and the paper advance mechanism respectively continuously work, in this way, the stopping time needed when paper is cutting in the background technology can be saved, and the production efficiency can be greatly improved.
Description
Technical field
The utility model relates to a kind of improvement invention of paper cutter.
Background technology
Along with the progress of The development in society and economy and science and technology, the social demand amount of paper cutter constantly increases.At present, existing paper cutter all adopts straight knife to carry out cut paper, and straight knife is knee-action under cylinder drives, and paper is cut.This kind paper cutter needs earlier paper to be suspended to carry when cut paper, and straight knife cuts then, and after cut paper was finished, paper is continued to be carried.This shows that all need when straight knife cuts at every turn to stop over some times, therefore, the production efficiency of existing paper cutter is lower, also need improve and could satisfy existing production demand.
Summary of the invention
In view of the existing technical problem of background technology, technical problem to be solved in the utility model provides the high paper cutter of a kind of production efficiency.
In order to solve the problems of the technologies described above, the utility model adopts following scheme to realize: this kind paper cutter, include frame, paper advance mechanism and cut paper mechanism, it is characterized in that described cut paper mechanism includes the cut paper roller, goes up hobboing cutter, dead knife, tool rest and motor down down, the described hobboing cutter of going up is installed on the cut paper roller, described cut paper roller and motor are in transmission connection, described dead knife down is installed in down on the tool rest, described tool rest down is installed on the frame, described hobboing cutter and the following dead knife cooperating under operating mode gone up.
Described paper cutter also includes electric cabinet, is provided with programmable controller in the described electric cabinet, and the motor of the driving motor of described paper advance mechanism and cut paper mechanism all connects with programmable controller.
Described cut paper roller is provided with near switch, and the driving motor of described paper advance mechanism is provided with the paper feeding encoder, describedly all connects with programmable controller with the paper feeding encoder near switch.
The utility model rotates to drive by the cut paper roller goes up the hobboing cutter action, the cut paper roller rotates a week, and hobboing cutter is finished cut paper one time, because cut paper roller and paper advance mechanism are continuous operation, so just save in the background technology time of required pause when cut paper, thereby improved production efficiency widely; The utility model has improved the precision of cut paper by the speed of programmable controller controls cut paper roller rotation and the speed of paper advance mechanism paper feeding in addition, has reduced the error that cut paper length exists, thereby has improved product quality.
Description of drawings
Further describe relevant details of the present utility model and operation principle thereof below in conjunction with accompanying drawing.

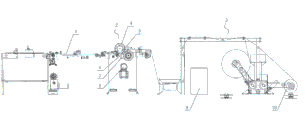

Fig. 1 is a structural representation of the present utility model.
Fig. 2 is the structural representation of the utility model cut paper mechanism.
The specific embodiment
With reference to accompanying drawing, this kind paper cutter, include frame 1, paper advance mechanism 3, cut paper mechanism 2 and electric cabinet 9, described cut paper mechanism 2 includes cut paper roller 4, goes up hobboing cutter 5, dead knife 6, tool rest 7 and motor 8 down down, the described hobboing cutter 5 of going up is installed on the cut paper roller 4, and described cut paper roller 4 is in transmission connection with motor 8, and described dead knife 6 down is installed in down on the tool rest 7, described tool rest 7 down is installed on the frame 1, described hobboing cutter 5 and following dead knife 6 cooperating under operating mode gone up; Described paper advance mechanism 3 includes feeding-in roll 10 and driving motor, and described feeding roller 10 is in transmission connection with driving motor; Be provided with programmable controller in the described electric cabinet 9, the motor 8 of the driving motor of described paper advance mechanism 3 and cut paper mechanism all connects with programmable controller; Described cut paper roller 4 is provided with near switch, the driving motor of described paper advance mechanism 3 is provided with the paper feeding encoder, described paper feeding encoder also can be arranged on the feeding-in roll 10 of paper advance mechanism, its effect is equal to, describedly all connect with the paper feeding encoder with programmable controller near switch, programmable controller is by receiving the detection signal near switch and paper feeding encoder, through calculating, give motor with feedback information, the speed that control cut paper roller 4 rotates and the speed of paper advance mechanism 3 paper feedings, so that paper feeding speed and cut paper speed keep absolute synchronization, reduce the error of cut paper length.
During the work of this machine, feeding roller 10 is delivered to cut paper mechanism 2 places with paper, and cut paper roller 4 drives goes up hobboing cutter 5 rotations, when last hobboing cutter 5 and following dead knife 6 were relative, paper was cropped, and cut paper roller 4 whenever circles, last hobboing cutter 5 and following dead knife 6 cooperatings are once promptly finished a cutting work.Hence one can see that, the length of being opened by cut paper is by the speed decision of the transmission of the rotating speed of cut paper roller 4 and feeding roller 10, and can detect the speed of cut paper near switch on the cut paper roller 4, paper feeding encoder on the driving motor of paper advance mechanism 3 or the feeding-in roll 10 then detects the length of paper sheet delivery, just can calculate the length of being opened by programmable controller by cut paper, when certain error appears in the length of cut paper, programmable controller is by the speed of the driving motor of adjusting paper advance mechanism 3, promptly regulate the speed of paper feeding, so that paper feeding speed and cut paper speed keep absolute synchronization, reduce the error of cut paper length.
Claims (3)
1. paper cutter, include frame (1), paper advance mechanism (3) and cut paper mechanism (2), it is characterized in that described paper cutter (2) structure includes cut paper roller (4), last hobboing cutter (5), following dead knife (6), following tool rest (7) and motor (8), the described hobboing cutter (5) of going up is installed on the cut paper roller (4), described cut paper roller (4) is in transmission connection with motor (8), described dead knife (6) down is installed in down on the tool rest (7), described tool rest (7) down is installed on the frame (1), described hobboing cutter (5) and following dead knife (6) cooperating under operating mode gone up.
2. paper cutter according to claim 1, it is characterized in that described paper cutter also includes electric cabinet (9), described electric cabinet is provided with programmable controller in (9), and the motor (8) of the driving motor of described paper advance mechanism (3) and cut paper mechanism all connects with programmable controller.
3. paper cutter according to claim 2, it is characterized in that described cut paper roller (4) is provided with near switch, the driving motor of described paper advance mechanism (3) is provided with the paper feeding encoder, describedly all connects with programmable controller with the paper feeding encoder near switch.
