Abstract
一种新型竖辊卷板机，它涉及一种卷板机。它由机架(1)、工作辊(2)、油缸(3)和电机(4)组成，工作辊(2)竖直设置在机架(1)上，工作辊(2)的后侧设置有油缸(3)，油缸(3)的右侧设置有电机(4)。它采用竖辊，这样在卷制板材时就不会产生下坠现象，提高了卷制精度，提高了工作效率。
A novel vertical roller plate rolling machine relates to a plate rolling machine. It consists of frame (1), work roll (2), oil cylinder (3) and motor (4). The work roll (2) is vertically set on the frame (1), and the rear side of the work roll (2) is set Oil cylinder (3) is arranged, and the right side of oil cylinder (3) is provided with motor (4). It adopts vertical rollers, so that there will be no falling phenomenon when rolling the plate, which improves the rolling precision and improves the working efficiency.
Description
Technical field:
The utility model relates to a kind of veneer reeling machine, relates in particular to a kind of novel perpendicular roller rolling machine.
Background technology:
Veneer reeling machine is owing to the field difference of using, and kind is also just different.Divide three rolls plate bending machine and four-roll plate bending machine from the roller number.Three rollers divide the symmetrical expression three rolls plate bending machine again, horizontal down-regulation type three rod veneer reeling machines, camber line downward-adjusting type lapping machine, top roll universal three rolls plate bending machine; Divide mechanical type and fluid pressure type from transmission.But the working roll of present veneer reeling machine all is horizontally set on the machine, and like this when veneer reeling machine is rolling sheet material, sheet material produces tenesmus owing to be subjected to gravity effect, and influence rolls precision, and makes and relatively require great effort when rolling sheet material.
The utility model content:
The purpose of this utility model provides a kind of novel perpendicular roller rolling machine, and it adopts perpendicular roller, just can not produce the tenesmus phenomenon like this when rolling sheet material, has improved to roll precision, has improved operating efficiency.
In order to solve the existing problem of background technology, the utility model is by the following technical solutions: it is made up of frame, working roll, oil cylinder and motor, working roll vertically is arranged on the frame, and the rear side of working roll is provided with oil cylinder, and the right side of oil cylinder is provided with motor.
The utility model is by the work of driven by motor working roll, make metallic plate through the multi-pass continuous bend, produce nonvolatil plastic deformation, roll into needed cylinder, awl tube or their part, its working roll is vertically to be arranged on the frame, when rolling sheet material, sheet material just the phenomenon that drops can not occur like this, rolls precision thereby improve.
Description of drawings:
Description of drawings:

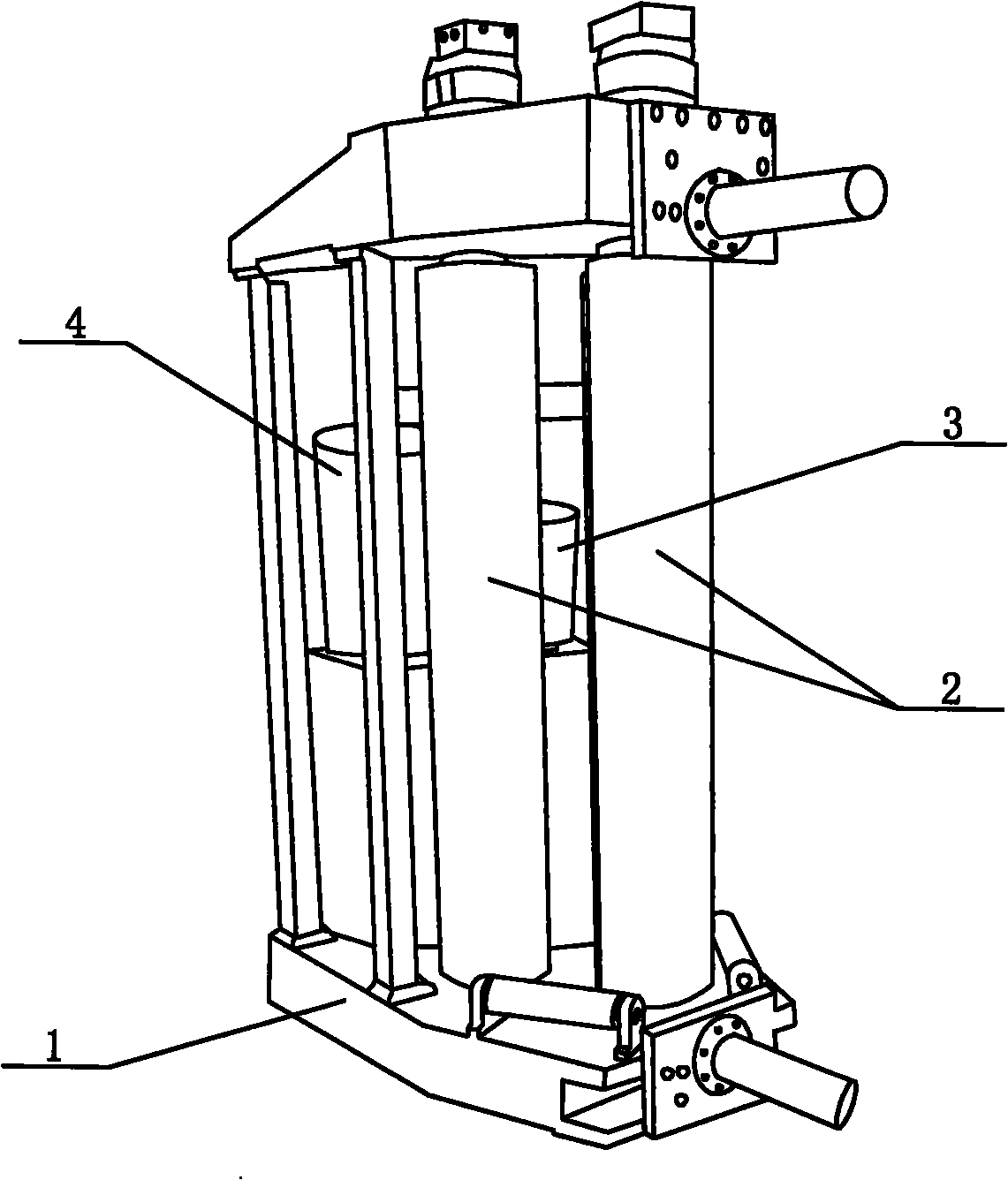

Fig. 1 is a structural representation of the present utility model.
The specific embodiment:
With reference to Fig. 1, this specific embodiment by the following technical solutions: it is made up of frame 1, working roll 2, oil cylinder 3 and motor 4, and working roll 2 vertically is arranged on the frame 1, and the rear side of working roll 2 is provided with oil cylinder 3, and the right side of oil cylinder 3 is provided with motor 4.
This specific embodiment is by the work of driven by motor working roll, make metallic plate through the multi-pass continuous bend, produce nonvolatil plastic deformation, roll into needed cylinder, awl tube or their part, its working roll is vertically to be arranged on the frame, when rolling sheet material, sheet material just the phenomenon that drops can not occur like this, rolls precision thereby improve.
Claims (1)
1. novel perpendicular roller rolling machine, it is characterized in that it is made up of frame (1), working roll (2), oil cylinder (3) and motor (4), working roll (2) vertically is arranged on the frame (1), and the rear side of working roll (2) is provided with oil cylinder (3), and the right side of oil cylinder (3) is provided with motor (4).
