CN201719503U - Lumbar vertebrae pulling and bracing bed - Google Patents
Lumbar vertebrae pulling and bracing bed Download PDFInfo
- Publication number
- CN201719503U CN201719503U CN2010202776279U CN201020277627U CN201719503U CN 201719503 U CN201719503 U CN 201719503U CN 2010202776279 U CN2010202776279 U CN 2010202776279U CN 201020277627 U CN201020277627 U CN 201020277627U CN 201719503 U CN201719503 U CN 201719503U
- Authority
- CN
- China
- Prior art keywords
- bed
- frame
- stretching
- stretching frame
- leg
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 210000002435 tendon Anatomy 0.000 claims abstract 3
- 208000002193 Pain Diseases 0.000 abstract description 6
- 230000000694 effects Effects 0.000 abstract description 4
- 208000008035 Back Pain Diseases 0.000 abstract description 2
- 238000004519 manufacturing process Methods 0.000 abstract description 2
- 206010028836 Neck pain Diseases 0.000 abstract 1
- 239000008280 blood Substances 0.000 abstract 1
- 210000004369 blood Anatomy 0.000 abstract 1
- 210000003141 lower extremity Anatomy 0.000 description 5
- 210000003205 muscle Anatomy 0.000 description 3
- 230000007812 deficiency Effects 0.000 description 2
- 201000010099 disease Diseases 0.000 description 2
- 208000037265 diseases, disorders, signs and symptoms Diseases 0.000 description 2
- 238000005516 engineering process Methods 0.000 description 2
- 208000008930 Low Back Pain Diseases 0.000 description 1
- 208000012287 Prolapse Diseases 0.000 description 1
- 229910000831 Steel Inorganic materials 0.000 description 1
- 239000002253 acid Substances 0.000 description 1
- 238000004378 air conditioning Methods 0.000 description 1
- XAGFODPZIPBFFR-UHFFFAOYSA-N aluminium Chemical compound [Al] XAGFODPZIPBFFR-UHFFFAOYSA-N 0.000 description 1
- 229910052782 aluminium Inorganic materials 0.000 description 1
- 239000004411 aluminium Substances 0.000 description 1
- 230000017531 blood circulation Effects 0.000 description 1
- -1 existing timber Substances 0.000 description 1
- 230000002349 favourable effect Effects 0.000 description 1
- 231100000862 numbness Toxicity 0.000 description 1
- 208000027753 pain disease Diseases 0.000 description 1
- 230000001737 promoting effect Effects 0.000 description 1
- 239000002994 raw material Substances 0.000 description 1
- 230000001105 regulatory effect Effects 0.000 description 1
- 239000010959 steel Substances 0.000 description 1
- 208000024891 symptom Diseases 0.000 description 1
Images
Landscapes
- Orthopedics, Nursing, And Contraception (AREA)
Abstract
腰椎牵引拉筋床，在床体的一端设有2个垂直于床面的腿部拉筋架套管，套管中套装有腿部拉筋架，腿部拉筋架与套管之间设有调节螺钉，上端活动连接有托架；床体另一端设有垂直于床面的T形拉伸架套管，套管中套装有T形拉伸架，T形拉伸架与套管之间设有调节螺钉，架的两端分别设有弹性拉伸环。本实用新型使用灵活方便，占地面积小，特别适合于家庭使用，对于各种身高、不同年龄的人群，无需他人协助一个人即可自行施行拉筋锻炼。能够对颈、背、腰、腿起到松筋活络、活血理气等作用，对颈椎痛、腰椎痛，尤其是老年人的腿脚不便、周身疼痛等都有较好的效果，具有结构简单、加工制作容易、成本低、使用灵活方便效果好、应用范围广等优点。
The lumbar traction and stretching bed is equipped with two leg stretching frame casings perpendicular to the bed surface at one end of the bed body. The leg stretching frame is set in the casing, and a There are adjustment screws, and the upper end is movably connected with a bracket; the other end of the bed body is provided with a T-shaped stretching frame sleeve perpendicular to the bed surface, and a T-shaped stretching frame is set in the sleeve, and the connection between the T-shaped stretching frame and the sleeve Adjusting screws are arranged between them, and elastic tension rings are respectively arranged at both ends of the frame. The utility model is flexible and convenient to use, occupies a small area, and is especially suitable for home use. For people of various heights and ages, one person can perform stretching exercises without the assistance of others. It can loosen tendons, activate blood and regulate qi on the neck, back, waist, and legs. It has good effects on cervical and lumbar pain, especially the elderly's inconvenient legs and feet, and body pain. It has a simple structure and easy processing. The invention has the advantages of easy manufacture, low cost, flexible and convenient use, good effect, wide application range and the like.
Description
Technical field
This utility model relates to the improvement of medical treatment, care appliance structure, is a kind of lumbar traction lacing wire bed specifically.
Background technology
Pain diseases such as prolapse of lumbar intervertebral disc, cervical vertebra pain, lumbago and skelalgia are people's commonly encountered diseases, frequently-occurring disease.Not only occurred on one's body in the last few years the old people, but also popular in youngster.Particularly the pain that causes owing to reasons such as computer, TV, game machine, automobile and air-conditionings, numbness, acid sense of discomfort such as expand is more general.At present, some occurring is purpose to remove various pain symptoms, can be at home or the lacing wire utensil of office operation by patient oneself, still, existing structure more complicated, cost height, use deficiencies such as inconvenience mostly in various degree limited the popularization and the use of these lacing wire utensils.
The utility model content
The purpose of this utility model is at above-mentioned deficiency, and a kind of simple in structure, processing and fabricating is easy, cost is low, simple to operate, easy to use lumbar traction lacing wire bed is provided.
The technical scheme that realizes this utility model purpose is:
This lumbar traction lacing wire bed, a bed body of being made up of bed surface, footpost constitutes, and characteristics are that the end at the bed body is connected with the shank lacing wire frame perpendicular to bed surface, and the upper end of shank lacing wire frame is connected with carriage; Be connected with T shape draw frame perpendicular to bed surface at the other end of bed body, the two ends of T shape draw frame are respectively equipped with the elastic stretching ring.
For the ease of respectively to the shank lacing wire of left and right two lower limbs, regulate the height of shank lacing wire frame and in that the time spent can not fall it, avoid occupying more spaces, end at the bed body is provided with 2 shank lacing wire frame sleeve pipes perpendicular to bed surface, in shank lacing wire frame sleeve pipe, be set with shank lacing wire frame, be provided with adjustment screw between shank lacing wire frame sleeve pipe and the shank lacing wire frame.
For the ease of the height of regulating T shape draw frame and in that the time spent can not fall it, avoid occupying more spaces, be provided with T shape draw frame sleeve pipe at the other end of bed body perpendicular to bed surface, in T shape draw frame sleeve pipe, be set with T shape draw frame, be provided with adjustment screw between T shape draw frame sleeve pipe and the T shape draw frame.
This utility model is simple in structure, can select raw materials such as existing timber, steel, aluminium section bar for use, and adopts the processing and manufacturing of conventional technology, and cost is low, implements easily.
Has simple in structure, advantage such as processing and fabricating is easy, cost is low, effective, applied range flexible and convenient to use.
Description of drawings
Fig. 1 is the plan structure sketch map of a kind of embodiment of this utility model.
Fig. 2 is the structural representation of shank lacing wire frame end among Fig. 1.
Fig. 3 is the structural representation of T shape stretching frame end among Fig. 1.

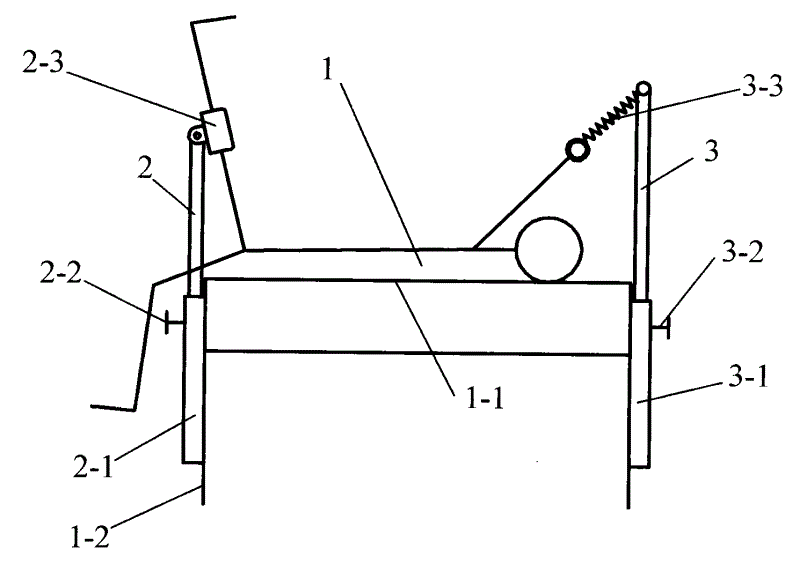

Fig. 4 is the user mode sketch map of a kind of embodiment of this utility model.
Among the figure: 1 body, 1-1 bed surface, 1-2 footpost, 2 shank lacing wire framves, 2-1 shank lacing wire frame sleeve pipe, 2-2 shank adjustment screw, 2-3 carriage, 3T shape draw frame, 3-1T shape draw frame sleeve pipe, 3-2 adjustment screw, 3-3 elastic stretching ring.
Specific embodiments
This utility model is further described with the embodiment that provides below in conjunction with accompanying drawing.
With reference to accompanying drawing, this lumbar traction lacing wire bed, the bed body of being made up of bed surface 1-1, footpost 1-2 1 constitutes, end at the bed body is fixed with 2 shank lacing wire frame sleeve pipe 2-1 perpendicular to bed surface, be set with shank lacing wire frame 2 in the shank lacing wire frame sleeve pipe, be provided with shank adjustment screw 2-2 between shank lacing wire frame sleeve pipe and the shank lacing wire frame, the upper end of shank lacing wire frame is rotatably connected to carriage 2-3 (referring to Fig. 2).Be fixed with T shape draw frame sleeve pipe 3-1 at the other end of bed body perpendicular to bed surface, in T shape draw frame sleeve pipe, be set with T shape draw frame 3, be provided with adjustment screw 3-2 between T shape draw frame sleeve pipe and the T shape draw frame, the two ends of T shape draw frame are respectively equipped with elastic stretching ring 3-3.
This utility model applicant presses the foregoing description, implements this lumbar traction lacing wire bed, its user mode as shown in Figure 4, during lacing wire, user is lain on the back on bed surface, a lower limb is held high and is abutted on the carriage, steps on ground under the another lower limb.Can draw the muscle of loose whole body, especially the muscle of neck, the back of the body, waist, lower limb and heel portion.Meanwhile both hands also can be held the elastic stretching ring, do the lacing wire exercise of both arms.This lumbar traction lacing wire bed of demonstration on probation through inside, flexible and convenient to use, floor space is little, is particularly suitable for family and uses, and for the crowd of various heights, all ages and classes, need not other people and assists a people can implement the lacing wire exercise voluntarily.Can play effects such as loose muscle is active, blood circulation promoting regulates qi to neck, the back of the body, waist, lower limb, to cervical vertebra pain, lumbar vertebra pain, especially old people's legs and feet inconvenience, general aching etc. all have effect preferably, are subjected to person on probation's welcome and favorable comment.
Claims (3)
